Хорошее качество, машина для производства армированного бетона для дренажных труб

Product Overview

Description



good quality reinforced concrete pipe making machine for drainage pipe



1.Brief introduction

1)HF V HF vertical extruding pipe-making machine is the ideal equipment to manufacture cement pipe. Reasonbale desigh ,reliable and simple operation ,accord with state  standard GB11836-89.This machine mixes river sand ,tubular products of inner diameter 150-800mm .

2)The tubular products made by this machine has the following advantages :average wall thickness ,smooth inner and outer wall ,good impermeability ,high compressive strength ,low cost ,firm and reliable tie-in, convenient construction,high efficiency ,and instant film-releasing maintenance ,etc ,And the tubular products are used widely in irrigationin the field and the water supply and sewage works in the towm .

2.Main technical parameter

Mould diameter (inside mm)
φ200	φ300	φ400	φ500	φ600	φ700	φ800	φ1000
Wall thickness
30mm	30mm	40mm	50mm	60mm	70mm	80mm	100mm
Whole power			11.75kw (motor:7.5kw )
Speed of mainshaft			45r/min
Reducer rate			1:5.8
Molding cycle			5-10min(depends on the dimension)
Productivity (per shift )			400~600pcs /shift
Whole weight			1500kg(except mould)
Whole dimension			1840×1700×4000mm

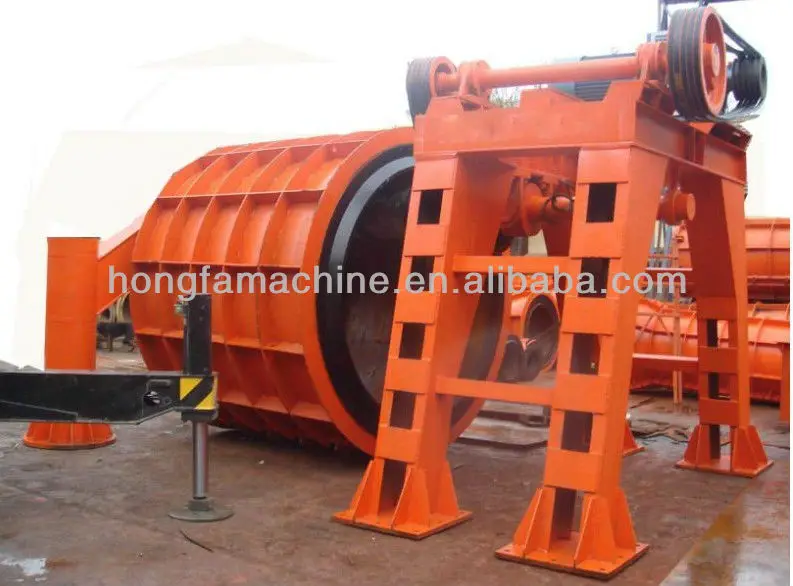

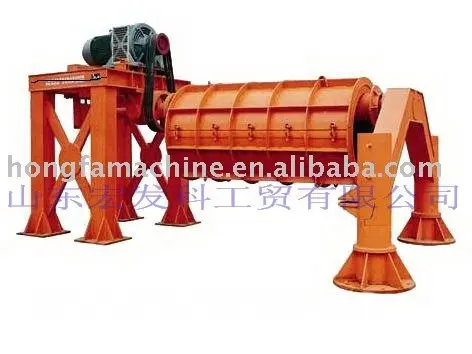

1.host machine

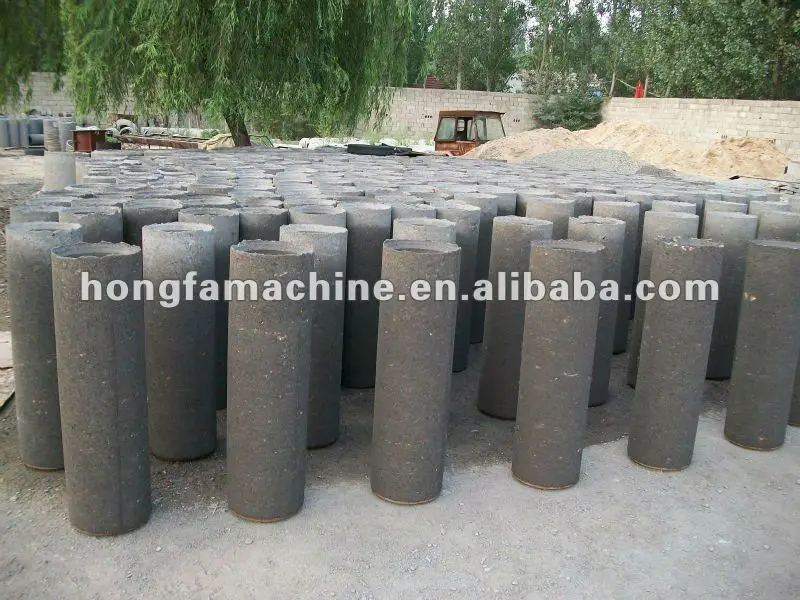

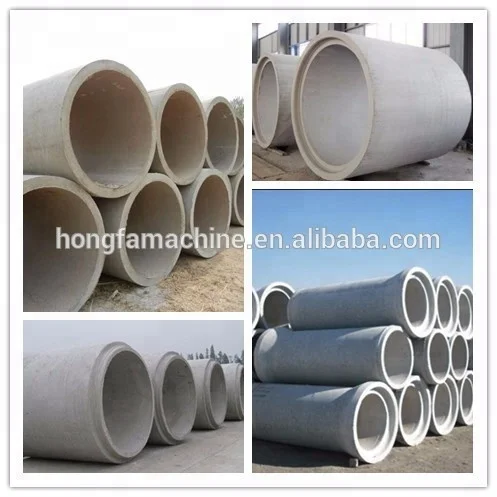

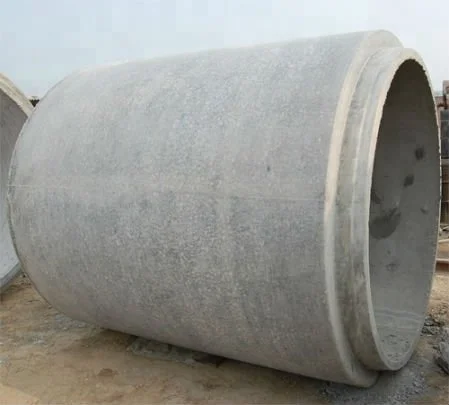

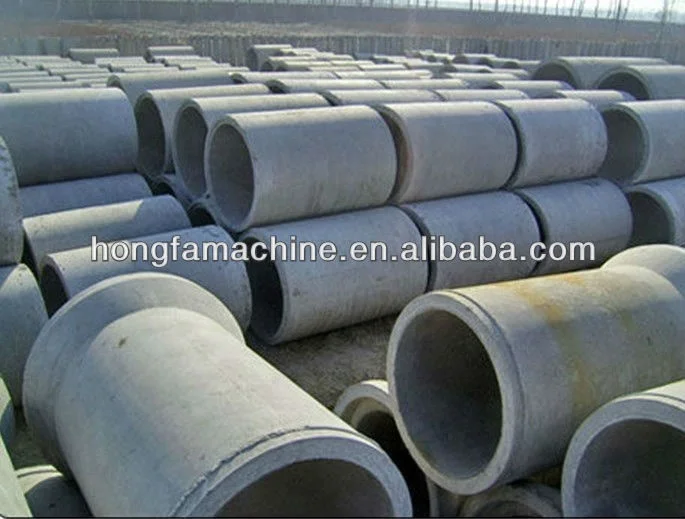

2.drain pipe sample

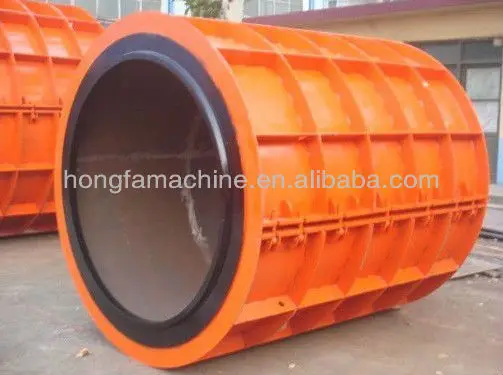

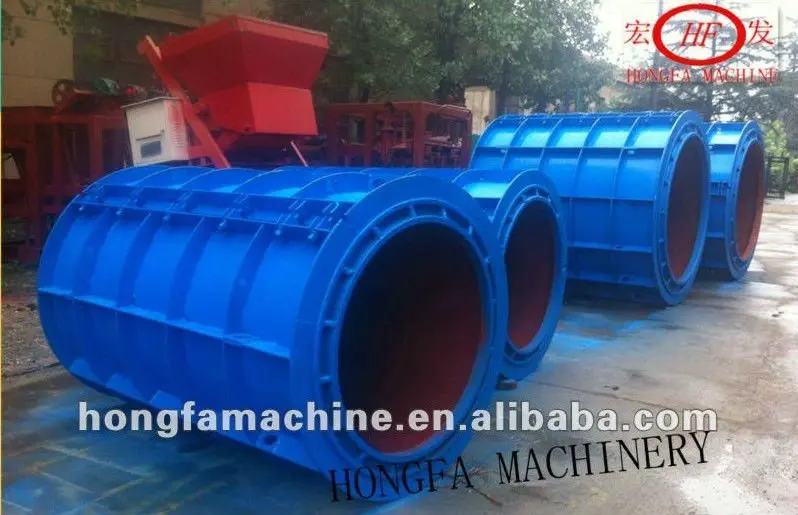

3.mould

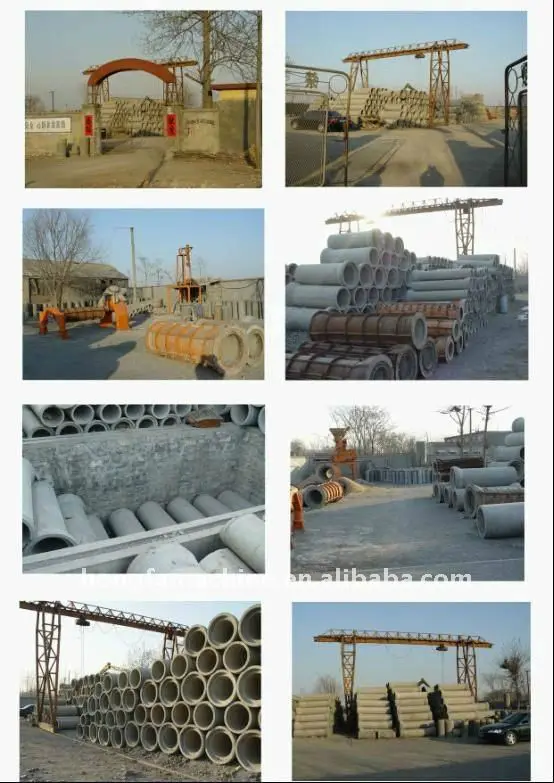

4.our factory and workshop
