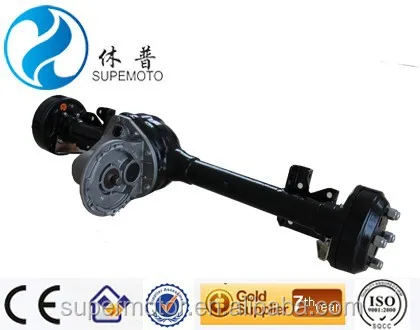

3kw 48v electric golf cart dc motor with axle

 Product advantage

1.Strong capacity of overload. The motor can bear 3 times overload current and 4.5 times overload torque.

2.Strong regulation controller. The motor can realize stepless speed regulatng smoothly,satisfy vehicle of heavy load starting and climbing, also adapt to different road conditions.

3. Low nosie, efficient and long continuous running time.

4. Easy brush replacement.

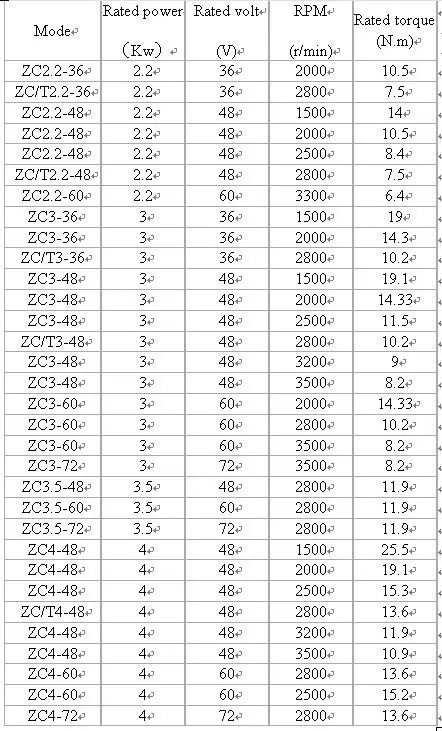

Technical Data

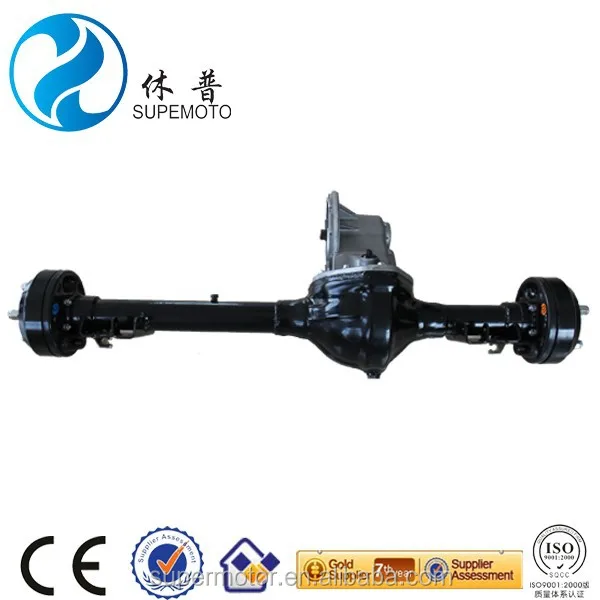

Rear Axle Specification

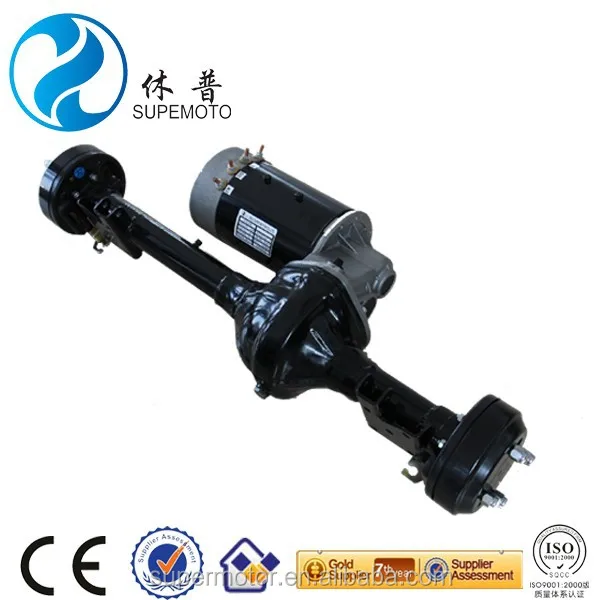

3kw 48v dc motor matching Axle

Note:Transmission Ratio can be adjusted according to customer's requirment.

Rear Axle Advantge

1. Rear axle assembly is composed of gear box subassembly and axle housing subassembly. Gear box transmits power and axle housing loads weight, the two parts complete their work independent .

2. Axle housing is an integral construction with high intensity. so stealing effect is good, reduce the posssibility of oil leakage.

3. Good stability.Furthermore, noise of the rear axle will be largely reduced, which helps to higher the efficiency of the rear axle and longer the life of the battery.

4. Renders the weight of rear axles light on one hand, and makes the whole car appears good on the other.

5. Process Optimization,Improve positioning accuracy of gear.

6. Powerful magnets iron particles, played the role of lubrication clean.

Application

3kw 48v dc motor with axle are widely used on  some kinds of golf cart, such as the following.

Packaging & Shipping

 Packing Detail

Delivery detail

14 working days after payment received.

International express                      Ocean shipping                                                        Air transport

Our Services

1. One year warranty.

2. 24 hours technical support .

3. Provide solution for free.

4. On time delivery.

5.T/T payment online , L/C, Western Union payment can also be accepted.

Company Information



Company

       Zibo Super Motor Co., Ltd is a professional manufacturer of electric driving system, which was founded in early 2000, covering 80000 square meters, located in the state-level development zone – Zibo High&New Tech Zone. Now Zibo Super Motor Co., Ltd is the biggest driving system supplier in China.

     We focus on the research and development, production and sales of electric vehicle driving system, which include electric motors, transmissions, and motor control systems. We have the domestic advanced production equipment, production line, currently more than 400 employees, more than 60 people R&D team led by Doctors. the company registered capital of USD4 million, total assets of USD8 million, the production value is more than USD20 million in 2014.



Certification

We have passed the ISO9001:2008 quality management system certification,BV certifiaction and European  CE certification.

.



Super Motor Advantages



1. Been Motor Manufacturer and Exporter for more than 15 years.
2. We own "three of the most",earliest research and development, biggest market share and strongest technical force.



3. Quality assurance,  we have passed ISO9001:2008, BV and CE certification.



4. Leading service level, solve doubts online.



5. Provide customized products.
