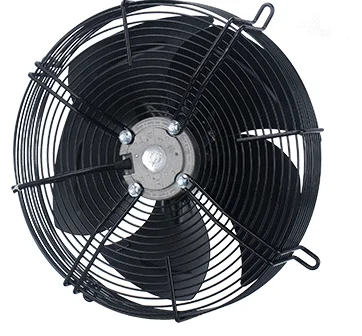

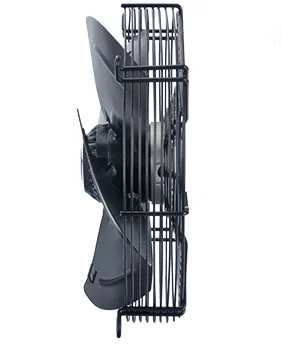

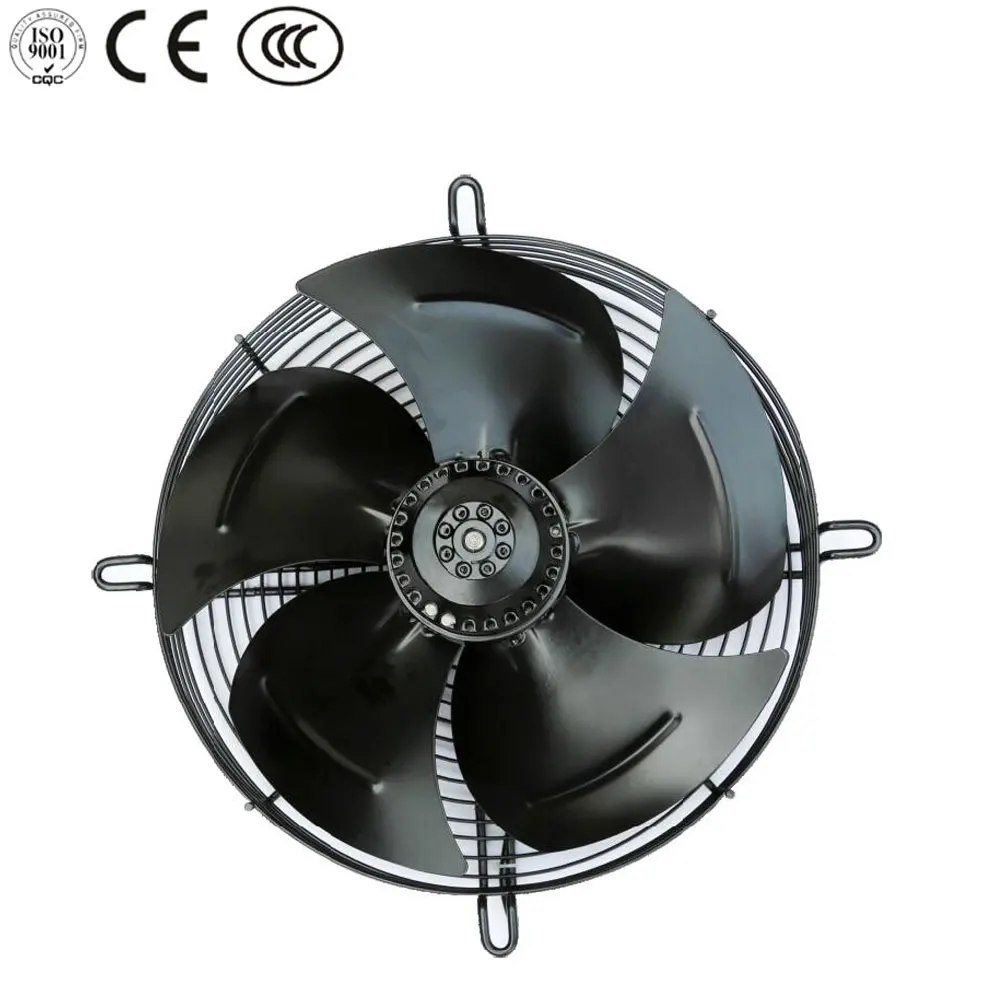

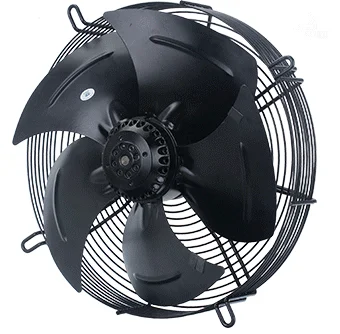

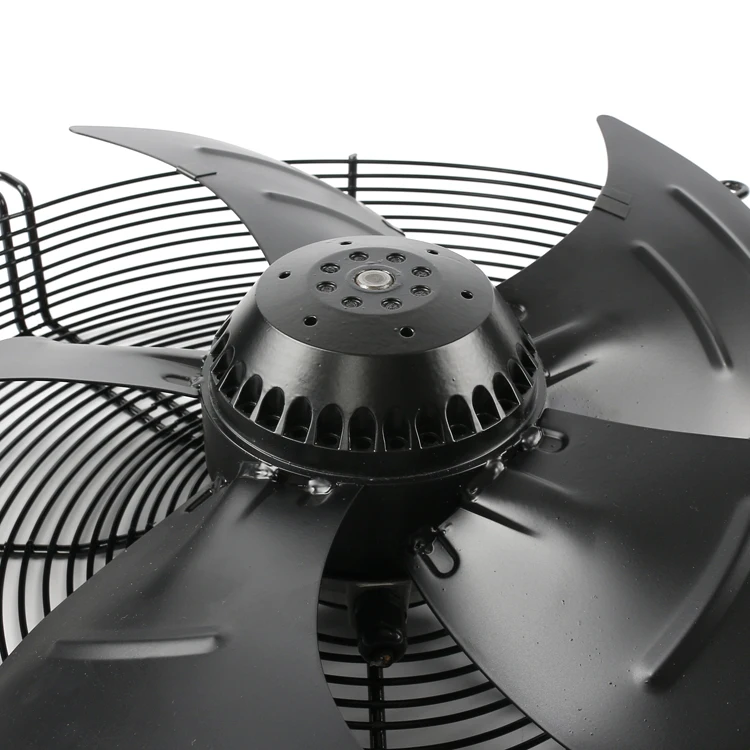

Professional AC Motor External Water Cooling centrifugal fan 350mm axial fan Manufacturers

Product Overview

Description

Technical table about YWF-350 Axial exhaust fan



Model	Voltage	Frequency	Current	Input power	Speed	Noise	Capacitor	Air volume
	V	Hz	A	W	r/min	dB	μF	m³/h
YWF4D-350	380	50	0.45	150	1380	65	-
	400	60	0.4	180	1600	68	-	2350
YWF4E-350	220	50	0.7	150	1380	65	4
	230	60	0.9	190	1500	68	4
YWF6D-350	380	50	0.3	90	950	52	-	1608
	400	60	0.25	85	1100	55	-
YWF6E-350	220	50	0.4	75	930	52	2
	230	60	0.45	80	1100	55	2



The products are extensively applied to all kinds of refrigeration, ventilation, air conditioner, medical, communication and other instrumentation equipment.



About The YWF series:



1,Out factory cooperation with Shanghai Jiao Tong University on technology, External Rotor Fan Blade adopts advanced aerodynamic design, which is beautiful appearance, high efficiency.

2,Fan rotor is directly with rotor and blade, that adopt dual-side dynamic balance, dynamic balance achieved G6.3.

3,The fan blade, rotor and grid is all sprayed, the surface is bright appearance that is not easy oxidation and discoloration, and has good corrosion-resistant effect, motor cover also by the special treatment.

4,The insulation grade ambient temperature:-25°C~+60°C, if the temperature range exceed the above, our factory can be customized according to customer requirements.

5,The insulation grade of currently supplied fan is B-class, F-class and H-class, the protection class is IP54. At present, we can also supply the fan of working environment temperature:-40°C~+60°C and -25°C~+80°C. All fans can install thermal protection in them. Our factory will put the IP56 external rotor motor with new structure soon, and this structure has got national patent. It can apply to the high humidity and bad environment.

6,Fans have single-phase capacitor running and three-phase asynchronous running. Single-phase motor has 220V/50HZ and 220V/60HZ. Three-phase motor has 380V/50HZ and 380V/60HZ. At the same time can provide customers with motors of the special requirements: special voltage, dual voltage and so on.

7,The line fan motor can be directly leaded out, and can provide various forms of water-proof junction box for the user’s selection.
