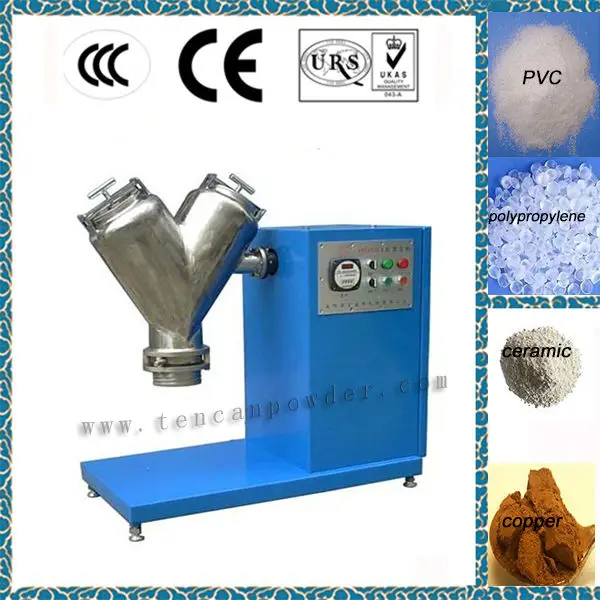

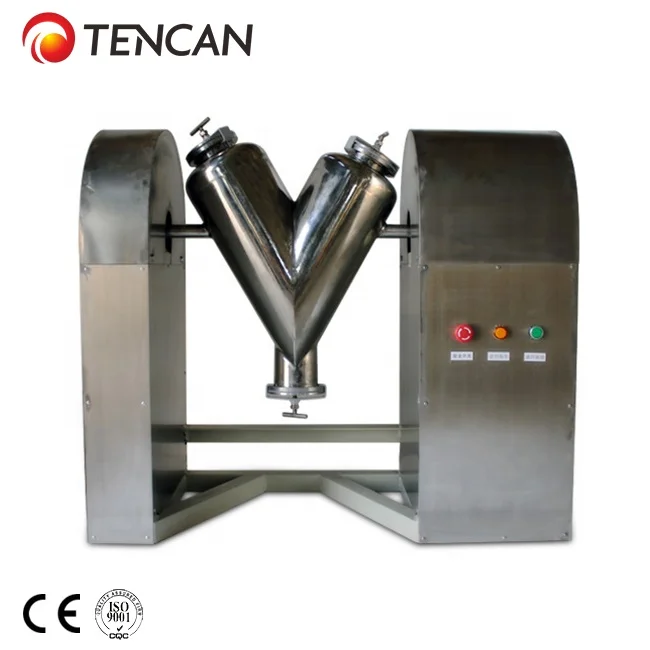

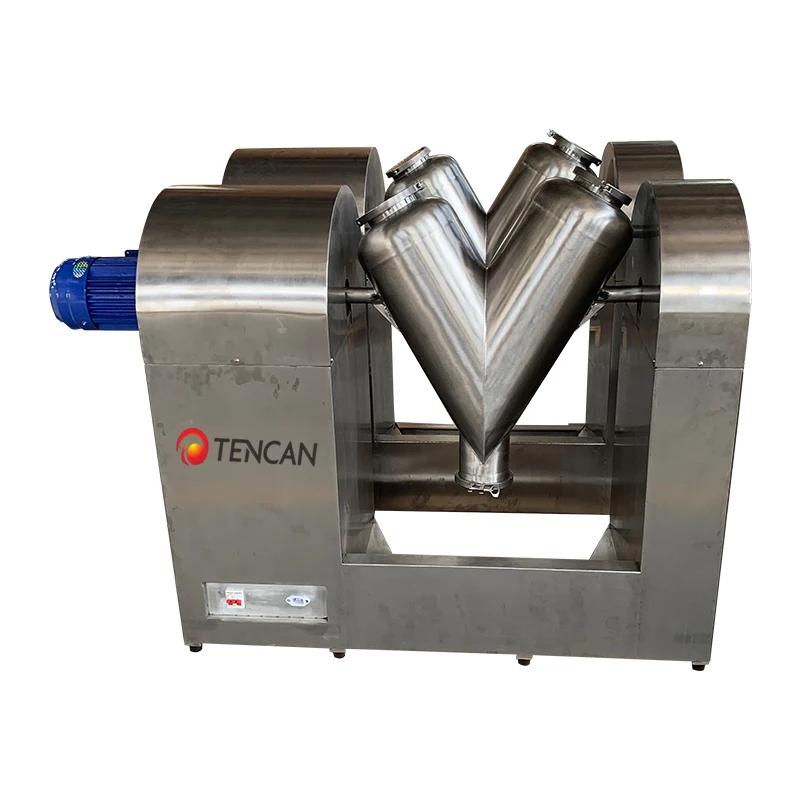

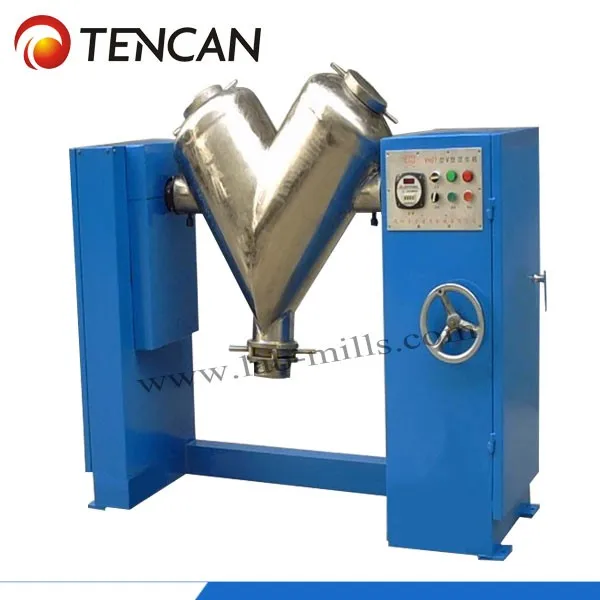

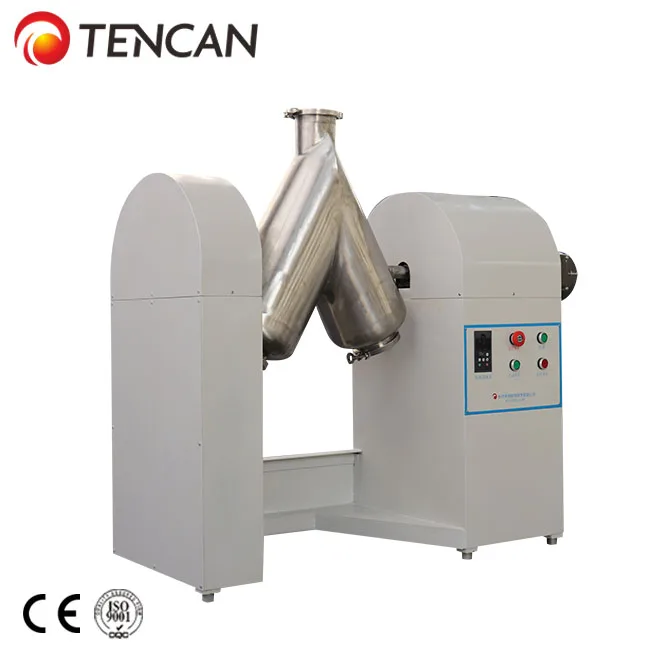

China Tencan 200L V type Dry Powder Mixer, Lab Chemical Mixer

Product Overview

Description

Stainless Steel Powder gypsum powder horizontal mixing machine

 Overview
V-type mixer machine is suitable for pharmacy,food,chemical, metallurgy,electronics and other industries, used for mixing the dry granule materials. The machine adopts manual feed and closed disc valve discharge, which can avoid dust spilling; with unique mixing barrel structure, high efficiency blending, and no dead angle. Using stainless steel material, prevent the mixing materials from being polluted.The inside and outside of machine are polished. Mixing the materials evenly and apply to a wide range of fields. It also can be equipped with the compulsory mixer, which is according to the users’ demand. It is suitable for smaller powder, blocks and the material that contain a certain mixture of water.

Working Principle
V-type mixer machine is composed of container welded with two cylinders. Shape of cylinder is asymmetric. Because of rotary motion, granule powder is segmented and merged continuously and repeatedly, feed material is delivered from one to another, and powder particle is stacked multiplexer with slip of powder and is constantly distributed on surface of powder.

 Features
1. High efficiency for mixing materials at close or same granularity and density
2. It is not easy to crush granule when mixing materials.
3. The machine keeps material particle integrity without extrusion and strong wear.
4. Internal and external of the mixing vat are polished without dead angle, to avoid cross contamination of materials.
5. Available materials of mixing vat: carbon steel, stainless steel, nylon, and etc.
6. The machine is equipped with a timing device, it can set mixing time to realize automatic stop.

Shipment & Payment



Typical Clients



As one of the most professional powder equipment manufacturers in China, TENCAN have won a

high reputation and good recognition both in domestic  and abroad. The following are our cooperate

clients.

After Sales Service for planetary ball mill/ ball milling machine
1)One year guarantee for whole machine except of ball mill jars and

balls.Some accessories we have 18-36 months warranty.
2) We shall make prompt response to any problem about the machine within 24 hours if you have.
3) We shall provide 6-day 8-hour services for all our clients and subscribers, and shall provide

    trouble-shooting solutions until the fault is completely eliminated.
4) If the machine is found any fault or problem, please do not hesitate to notify us the details about

    faults, caused reasons and status. We shall do our great efforts to solve according to following

    terms:

a. Common faults:

Common faults refer to failure of non critical parts or improper configuration that effects partial

operation or leads to Inconvenience of machine operation. We shall solve such problems by email

or posting parts by courier.



b. Serious faults:

Serious faults refer to failure of key parts or improper configuration that influence running or

operating of machine widely. We shall firstly diagnose reasons of faults by email or phone, then,

shall send replacement of parts by courier, until solve the problems. Courier freight shall be for

our account within quality warranty period.
