Product Overview
Description
Product Description

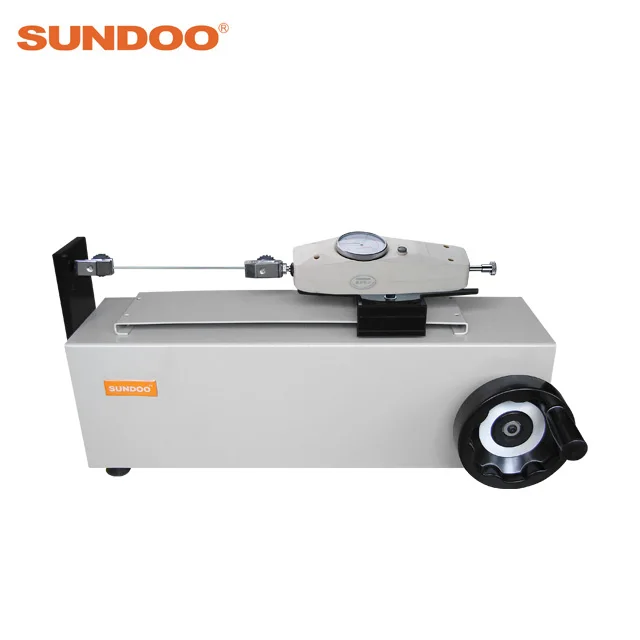

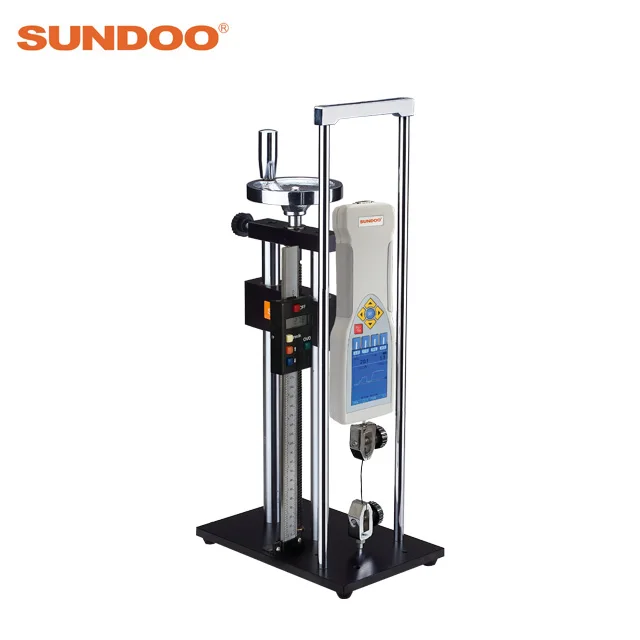

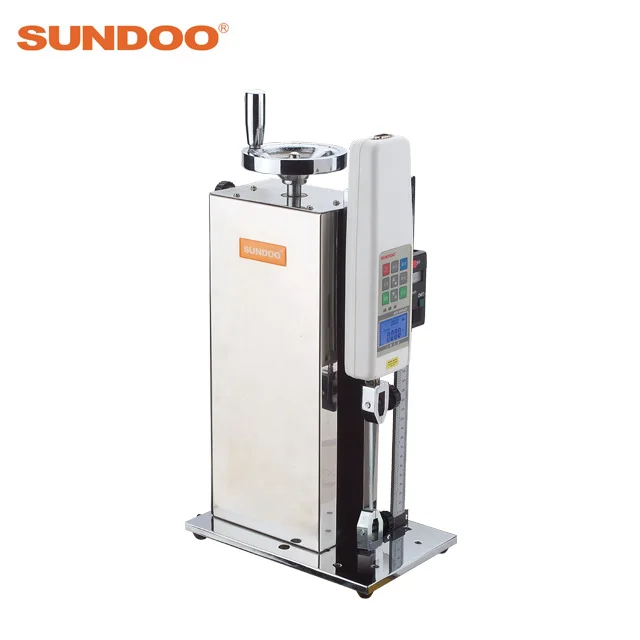

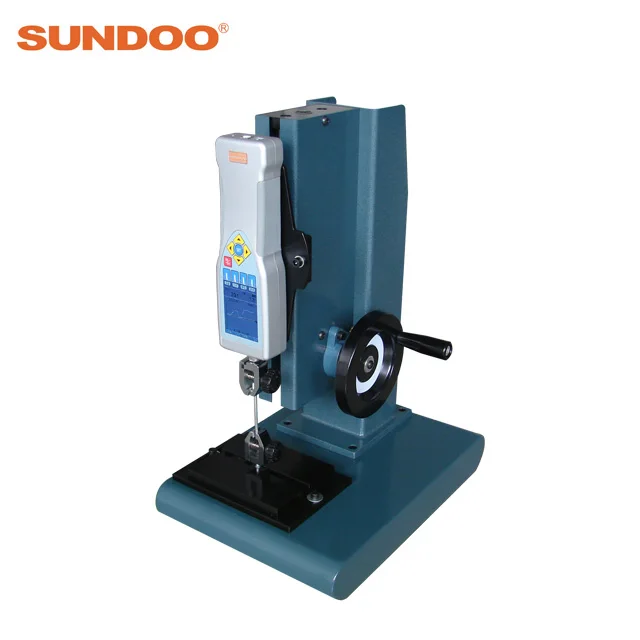

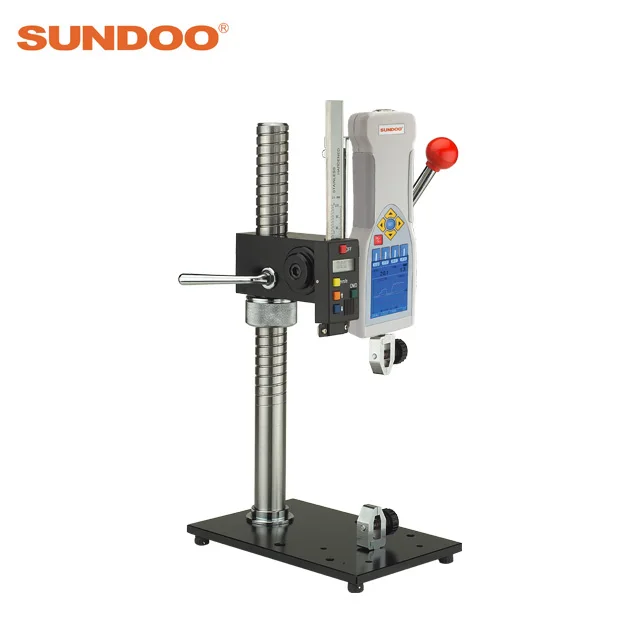

Manual Wheel Test Stand, especially designed to match push pull force gauge, is applied in every trade and scientific research organization for testing, such as tension/compression test, insertion/withdraw test and fracture test, T-screw transfer, manual operation, stability, vertical and horizontal using.
Product Parameter
Model | Capacity | Stroke | Digital scale | Weight | Dimension(mm) |
SLJ | 500N | 150mm | No | 8.5kgs | 154*240*500 |
SLJ-B | 500N | 150mm | Yes | 9.5kgs | 154*240*500 |
SPJ | 500N | 70mm | No | 10.4kgs | 152*235*425 |
SPJ-B | 500N | 70mm | Yes | 11kgs | 152*235*425 |
SLK | 500N | 150mm | Yes | 10kgs | 154*240*500 |
SLR | 500N | 175mm | No | 18kgs | 250*355*470 |
SPH | 500N | 60mm | No | 9kgs | 450*185*170 |
SLH | 1000N | 250mm | No | 21.5kgs | 542*189*278 |
