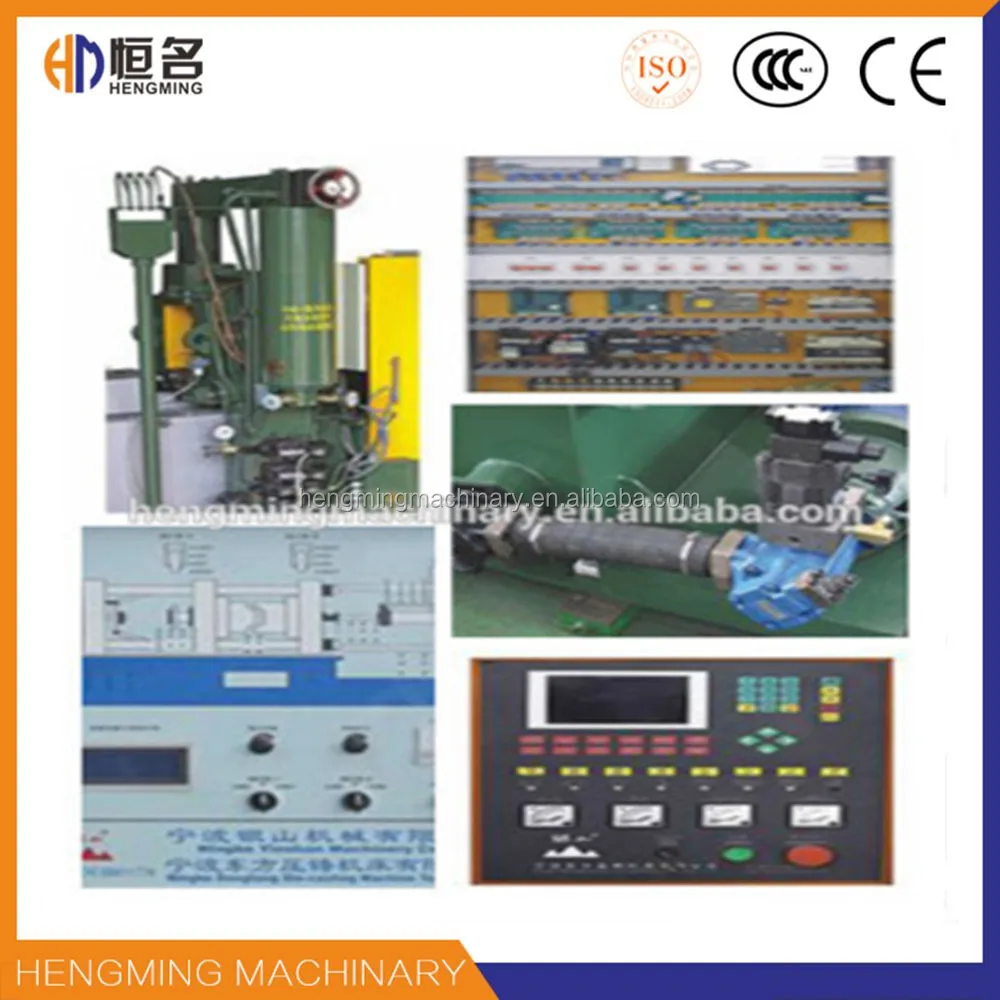

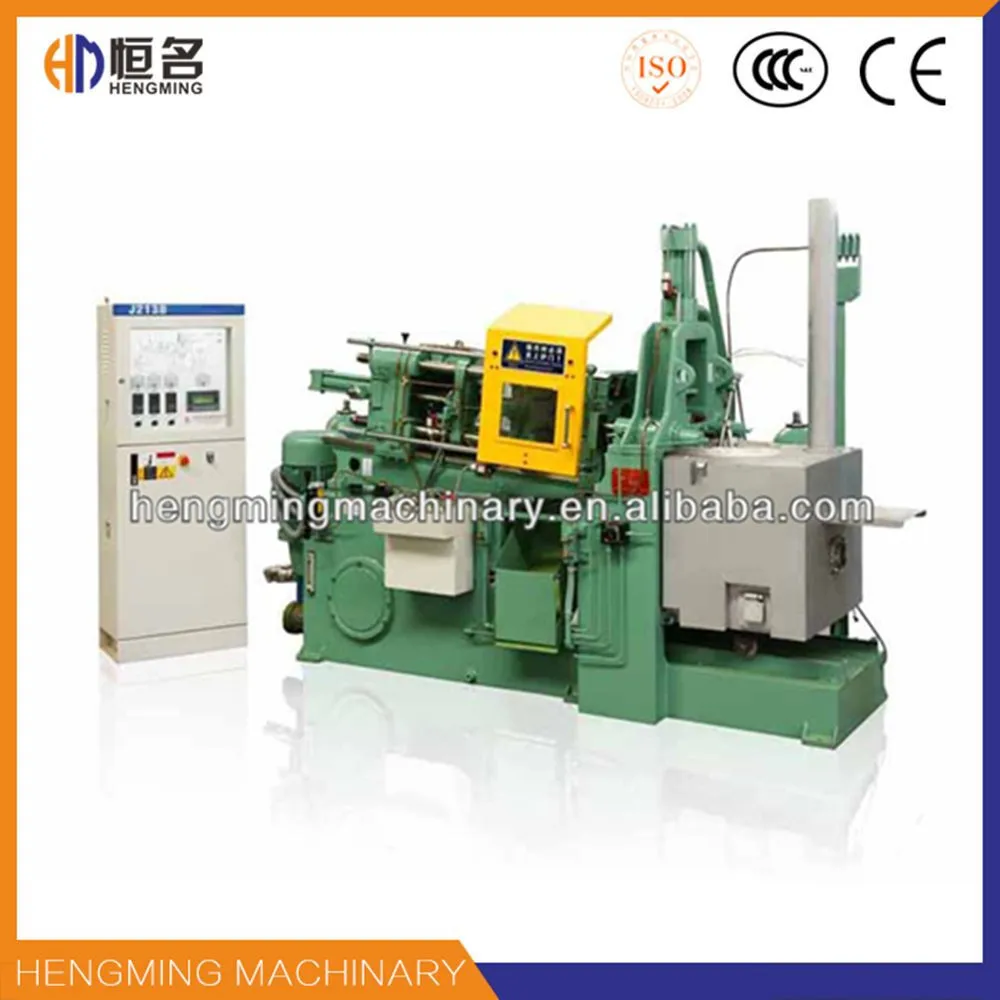

18T Hot Chamber Wheel Weight Die Cast Machine

18T Hot Chamber Wheel Weight Die Cast Machine is composed of machine body. compound die institutions, ejection system, a feeding system, spray device, cooling system, smelter equipment, electrical and etc. With hydraulic drive, mechanical arm increases pressure system, electrical remote control, with manual, semiautomatic and automatic operation of three modes. Smelting furnace can be heated with oil and electricity. We can deploy according to the customer request. So machine operation simple, adjustable range is big. Various hydraulic components and machine control electric appliance, seal components etc all adopt famous quality products. Mechanical part adopts computer optimization design. Frame of the deformation nodular cast iron CNC processing, thus the operation is stable, and the performance is remarkable. In normal operation of machine, can with high production efficiency. This machine is mainly used for the hardware, electrical appliances, bracelet, bags, shoe buckle in industries such as zinc alloy and lead alloy die casting.

1.Machine structure

Its die locking adopts toggle force mechanism. By compound die oil cylinder piston rod, the cross slider, connecting slab driving toggle, core plate move along the four tie bars at linear reciprocating motion to complete compound die and open mold process. Due to the increasing of arm curved force function. Pushing forward the oil cylinder slightly can get enough compound die force. At the same time, the whole mold institutions adopted four tie bars orientation, make sure the front template and back template good parallel after clamping mold (good sealing), and can effectively prevent the high temperature alloy material flying out to burn operating workers, so as to achieve the goal of safe production.Adopt the arm system with compact structure, small power consumption, fast movement speed and etc. Sports curve of a quadratic curve distribution is slow-fast-slow, sporting more smoothly to reduce the impact of the mold damage and achieve durable, high efficiency production.

2.Injection institutions

Injection parts are mainly composed of injection oil cylinder, injection stent, pressure material pole, material cup, nozzle body, nozzle head and etc. Under the high pressure hydraulic oil, the oil cylinder piston makes fluctuation up & down reciprocating motion, drive material within the cup feeding stem reciprocating motion, make alloy liquid through the crucible flow, nozzle body, nozzle head into the mold cavity. Injection organization adopt electro-hydraulic valve, achieve remote control and obtain large acceleration, therefore injection speed is fast, injection strength is big, so that the density of the casting is much high and good surface finish. The stroke switch is adjustable for every action of oil cylinder to guarantee the accuracy of each movement and interlock. Ensure the normal operation of the machine and the quality of the product.

3.Electrical system

Power source adopts three-phase four wire 380 V, frequency 50 HZ ac, motor, heating tube, three-phase AC power supply , ac contactor, middle relays, time relay, thermostat, lights, heating cover, electromagnetic valve uses AC 220 V.

Main data of 18T Hot Chamber Wheel Weight Die Cast Machine

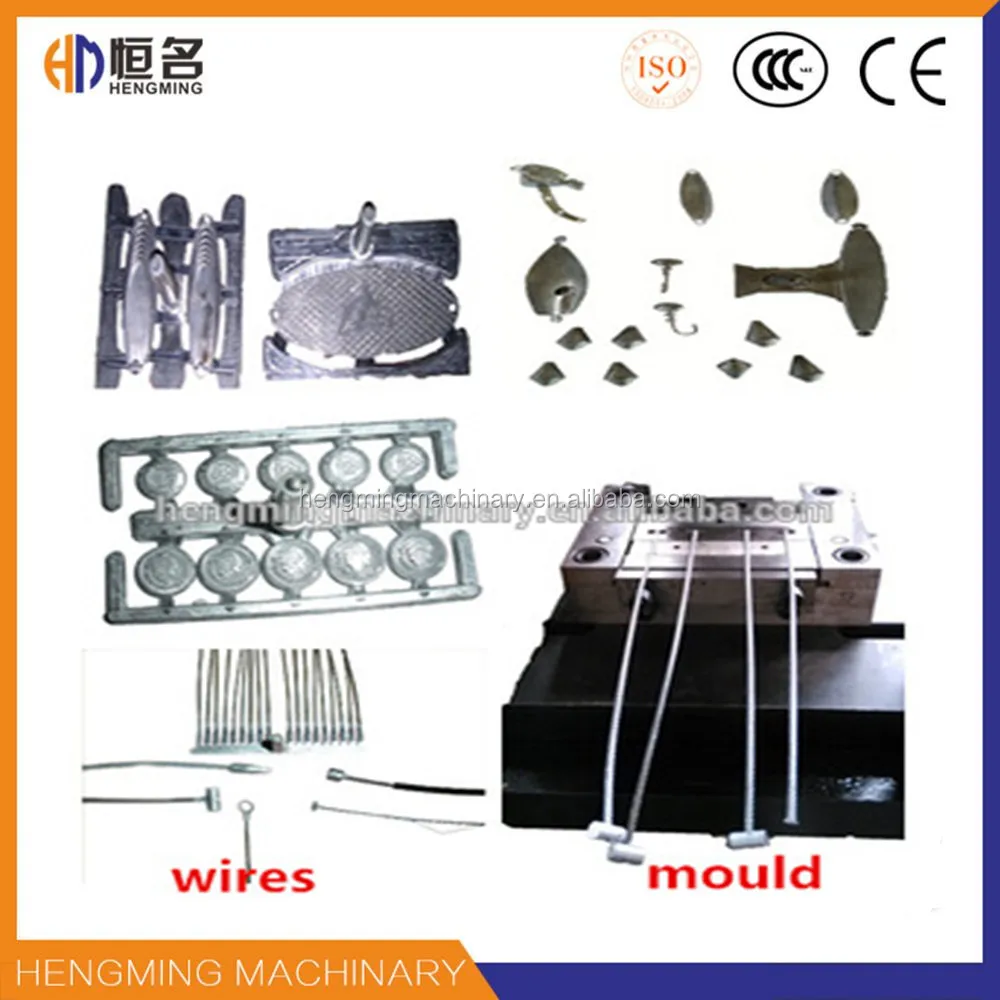

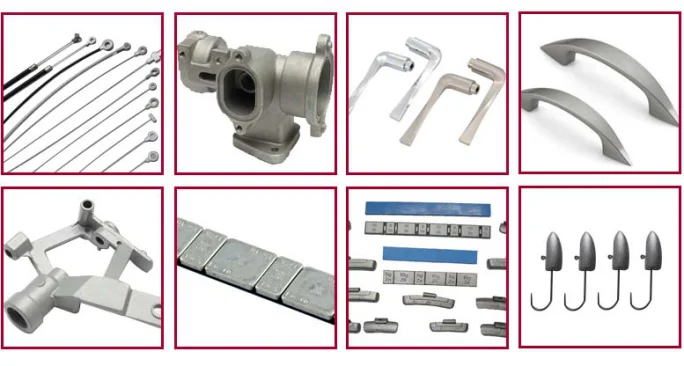

Products of 18T Hot Chamber Wheel Weight Die Cast Machine

1.Q:Is your company a trader or manufacturer?
A:Our company is a manufacture.

2.Q: How's your products?
A:Our good quality is built on superior material, imported from Japan, French and so on. We have professional engineers and experienced work team.

3. Q:How's your price?
A:Our price is based on the quality, we give the competitive price to every customer! Here could buy quality of  Europe quality on Chinese price!

4. Q:How's your after-sale service?

A:we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff. We will send some free set of spare parts for you change it.

5. Q:How to place order?
A:We would need you to provide your as much detail as possible about your requirements. So we suggest a most suitable design for you!
