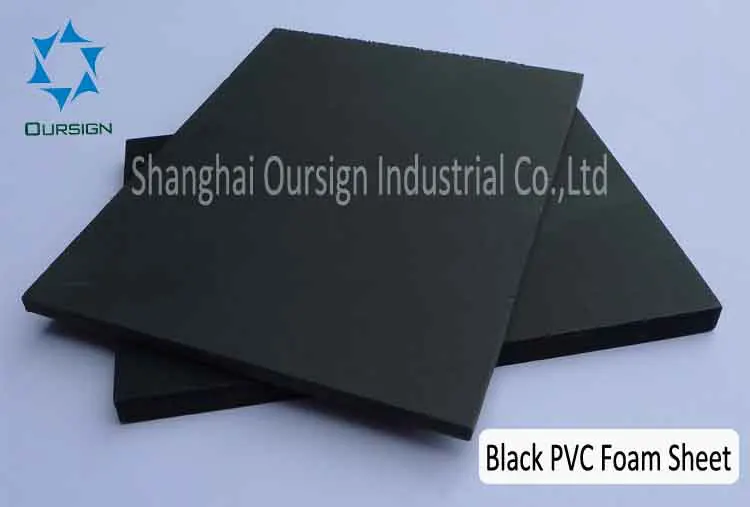

Black PVC Sintra Board for Kitchen/ Cabinet

Product Overview

Description

PVC Foam Board



Introduction:



Oursign PVC free foam board is a new type of environmental protective plastic materials which instead of woods and steels. Comparing to woods, it has many advantages, light-weight, flexible, anti-flame, alkaliacid resistance, moisture proof, water proof, good heat preservation, sound insulation, shock absorption and so on. The board can be filmed or printed colorfully. It owns many ways of processing such as nailing,sawing,planning,cementing, jointing,etc







Features:



1. feather light, non-absorb water, fire retardant and self-extinguishing

2. sound insulation, heat insulation , noise absorption, heat preservation and corrosion preventin.

3. weather proof, vandal proof, and can be shaped, moulded, painted and screen printed.

4. non-warping and stain proof.

5. non-corrosive, non-toxic and chemical resistant.

6. tough, rigid with a high impact stregth.

7. easy to clean and maintain.



Application:



1.Advertisement: exhibition & display,digital printing,silk screen printing,engraving materials,sign board, etc.

2.Furnitureoffice furniture,cabinet,bath cabinet,etc.

3.Finishing Materialdecorative sheets,storage racks,room segments,etc.

4.Industrial Application:thermoforming products,refrigeratory warehouse project,environmental protection.



Specification:



Name	Density(g/cm3)±0.02	width and length(mm)	Thickness(mm)±0.2	Color
PVC Foam Board	0.7	1220*2440	1~20	white,red, yellow, blue, green,  gray, black
	0.6		2~20
	0.5		3~6
	0.8	1560*3050	1~20
	0.6		2~20
	0.7	2000*3050	2~6
pvc rigid sheet	1.38/1.45	1220*2440	0.23-1.8
			2-5.8



Mechanical Property:



Project	Unit	Index
Surface density	kgm3	550~900
Elongation strength	mpa	≥10
Elongation rate at break		≥15
Bending strength	mpa	≥20
Impact strength of free beam	kjm2	≥10
Schauder hardness	D	≥55
Softening Point	°C	≥70
Water absorption		≤1.0



Note :
 Special Color,size,thickness can be specified.
