Electronic Belt Scale for mine

Product Overview

Description

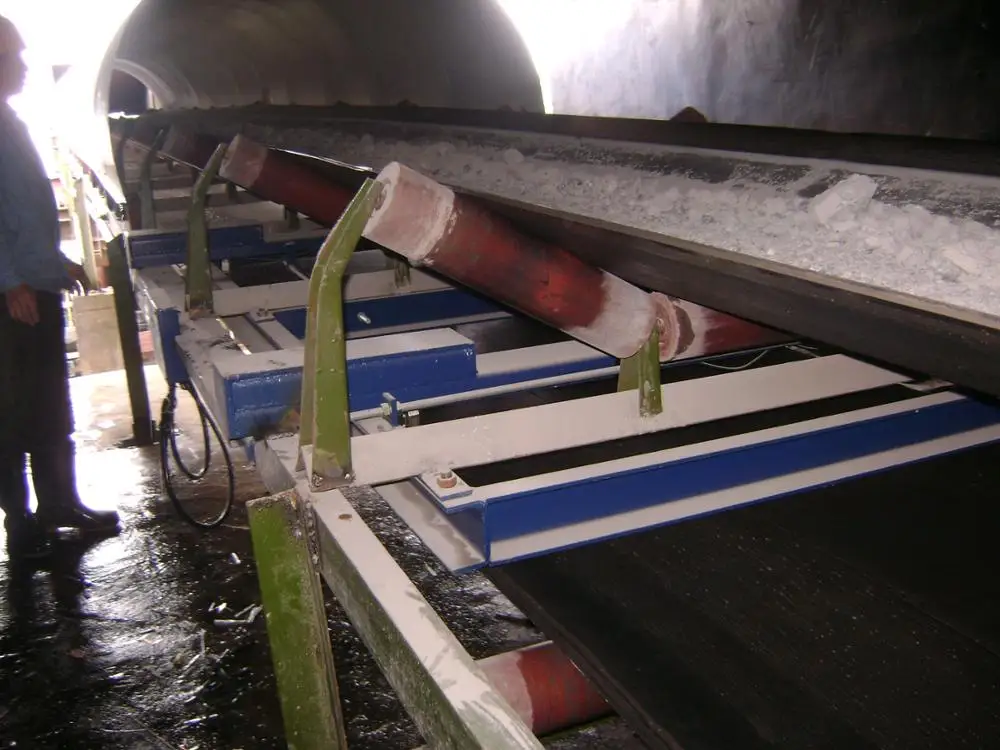

Eectronic Belt Scale

Electronic Belt Scale is a metering device to continuously weigh for bulk material which is in the process of

 conveying on belt conveyor. Its advantages are accurate weighing, stable operation, convenient working,

easy maintenance,etc. The electronic belt scale is widely applied in metallurgy, mine, chemical and building

 industry.





Technical Parameter

Weigh Range: 0~8000t/h

Belt Width: 500~2400mm

Belt Speed: 0~4m/s

System Precision:±0.5%

Conveying Distance: 400m

Belt Conveyor Angle:0~18°



Feature

Entire Suspension Load-bearing Bridge

English LED Display



Perfect Communication Interface

Storage and Search History Output Database

Signal remote transmission

Excellent Functional Calibration



ICS-B-X  (B stand for Belt Width, X stand for Roller)



Belt Width (mm)	Roller X
	II	III	IV
500	ICS-500-II	ICS-500-III	ICS-500-IV
650	ICS-650-II	ICS-650-III	ICS-650-IV
800	ICS-800-II	ICS-800-III	ICS-800-III
1000	ICS-1000-II	ICS-1000-III	ICS-1000-III
1200	ICS-1200-II	ICS-1200-III	ICS-1200-III
1400	ICS-1400-II	ICS-1400-III	ICS-1400-III
>1400	If Belt Width>1400, its data should be provided for customization





Note: II,III,IV stand for 2PCS, 3PCS,4PCS Roller, More Roller enhance weigh area and stable for weight accuracy.

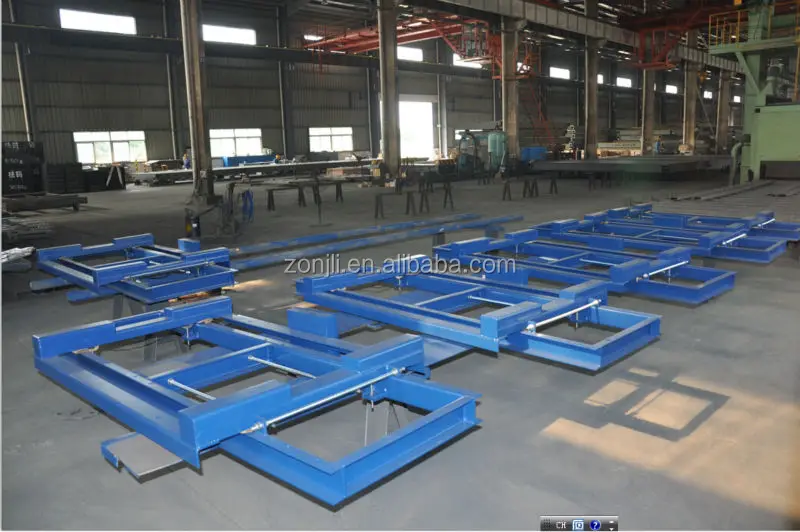

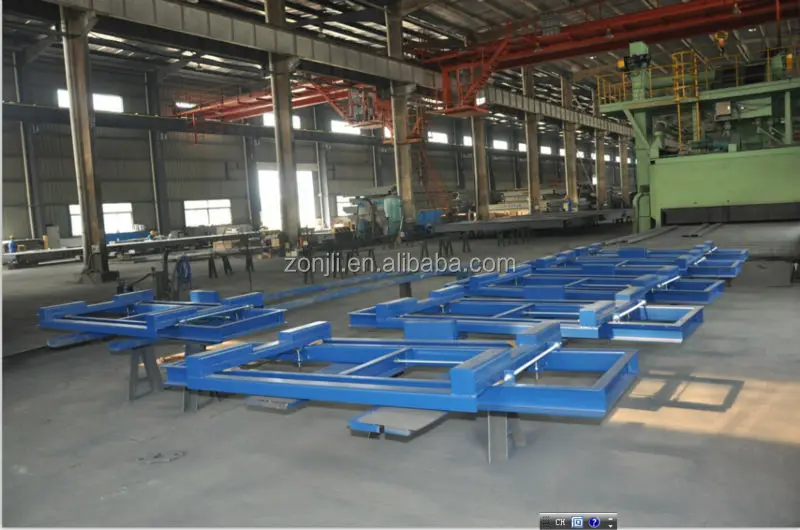

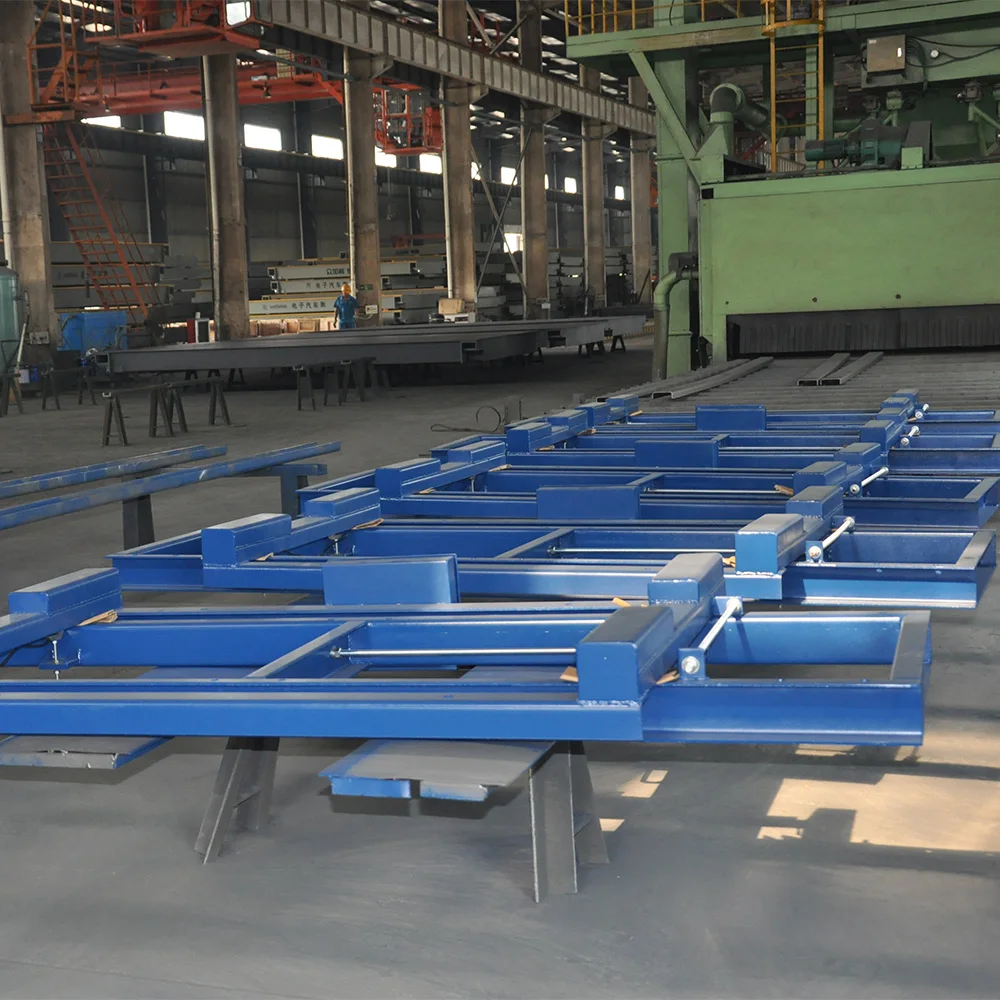

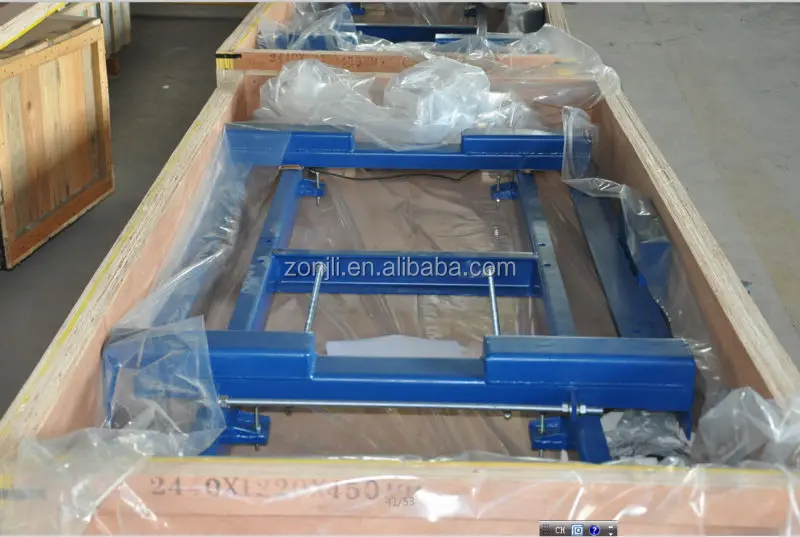

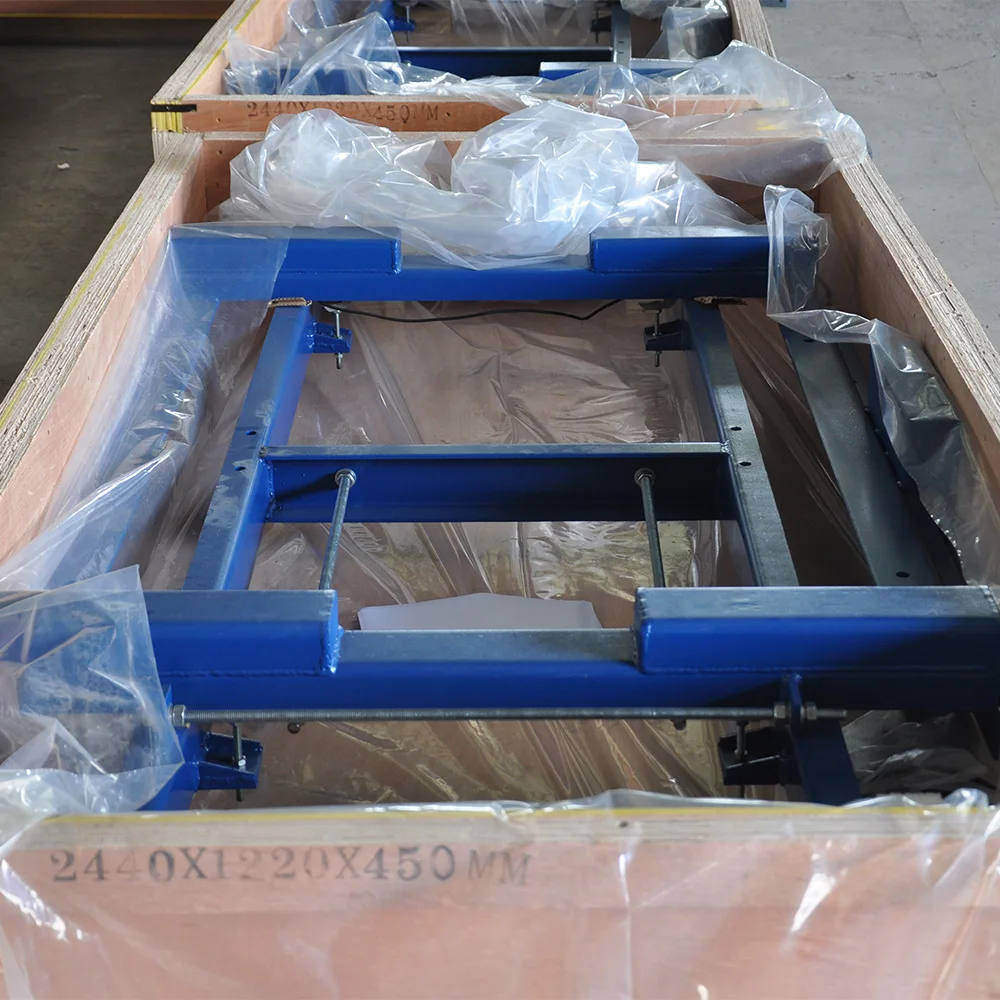

Weigh Body



Heavy Overload, Suspend Weigh Bridge

Excellent Structure, Popular Configuration

Shot blasting, Stress relief, Enhance the adhesive force of painting

Extend the using life

Easy Installation, Convenient Maintenance

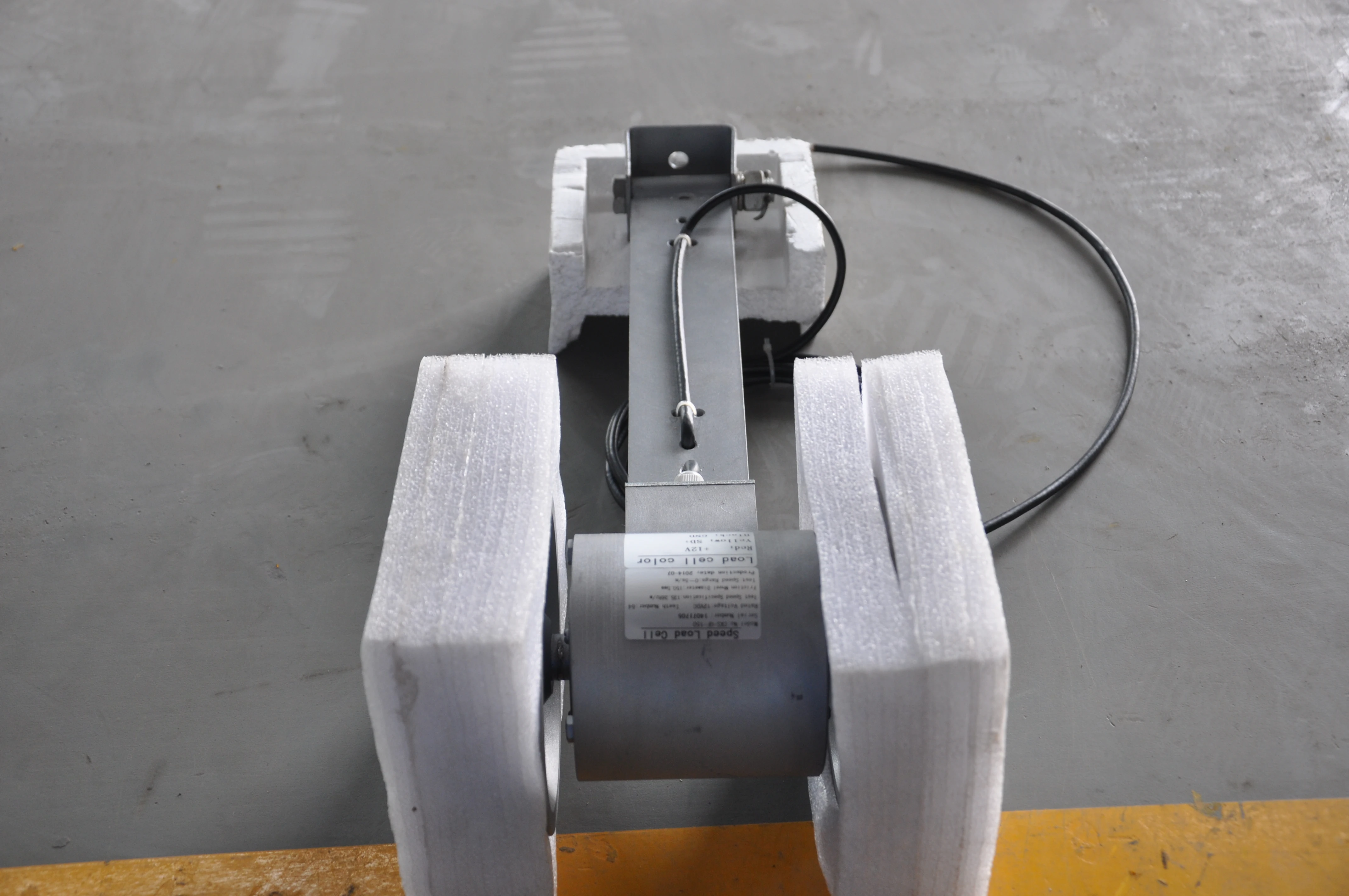

Weigh Load Cell (DZHM-44J-150)



S-Shape Pull Load Cell

Protection Class : IP67

Working Temperature:-30°~70°

Max. Overload: 200%F.S

Alloy Steel Material

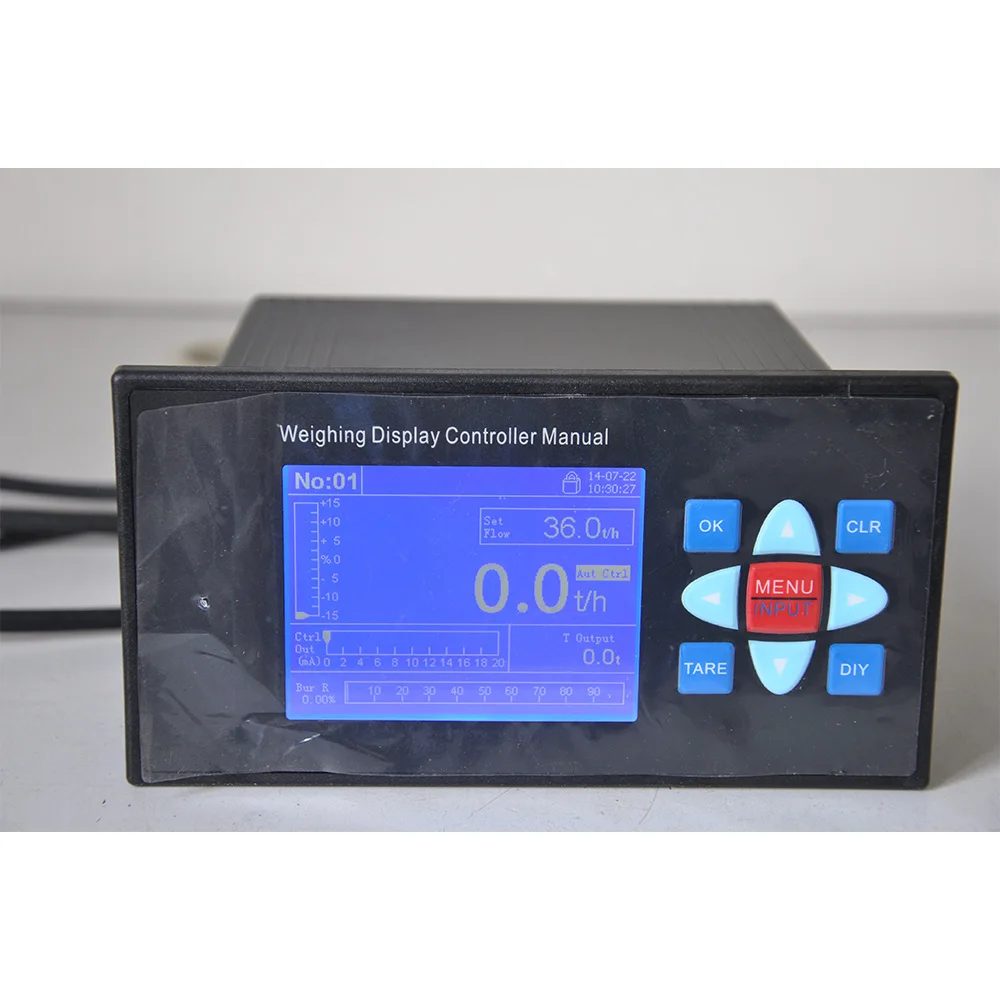

Weigh Indicator (DZ2008-L2B)



English LED Display

 Easy Operation, Graphical User Interface

 Digital Load Cell

 Muti-metering Working Model

 Perfect Communication Connection

 (RS232 RS485 4~20mA for optional)

 Excellent Function Calibration

(Goods Calibration, Chain Code Calibration, Hang Code Calibration)

 Operation Memory

 Search History Output

 Capable of Manual Zero-setting





Speed Load Cell (CXS-GF-150)





Reliable touch with Double-Wheel Speed Test to reduce belt slip



Photovoltaic conversion technology, Large output signal, Perfect anti-jamming



Hermetical structure, Water-proof, Anti-humidity, Capable of working under severe environment, Long working life.



Quantity of pulse per meter: 135.36 pulse/M



Speed Range: 0~5M/S
