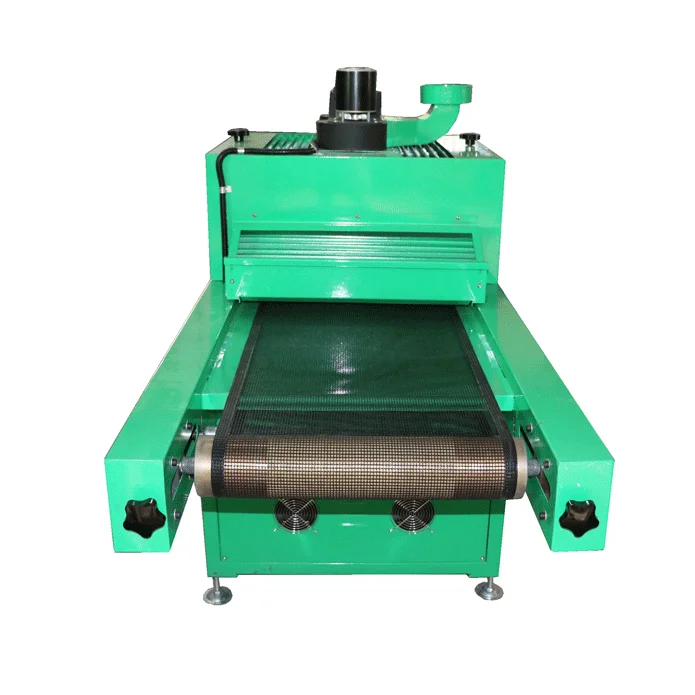

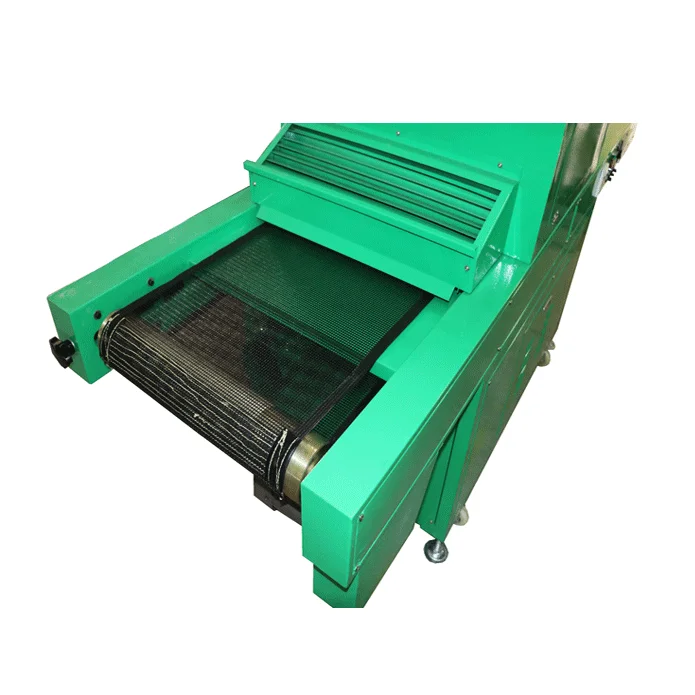

Hot sale china Spot UV curing machine drying oven for screen printing machine and offset printer

Share on (200731293):


Price:$2,100.00

Quantity:


Product Overview

Description






Product Description

























































Guide




  • UV curing for CD;
    UV curing for Small-dimension Electronic products;
    UV curing for circuit wafer UV gule;
    UV curing for A4 paper;
    UV curing for Inkjet cartridge of printer;
    Test on UV printing Ink.

  • Used in the field of post-printing by UV ink. Exposure through UV light onto the film of UV ink to let it dry.

  • Drying to UV ink printed onto paper, PVC etc soft and thin substrates;

  • Connecting with offset printer to cure UV ink;

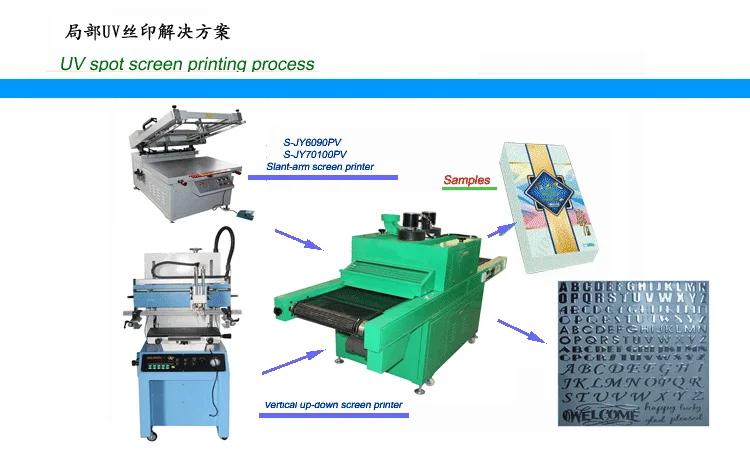

  • Suitable for Spot UV process with flat vacuum screen printer;

  • Curing some soft materials after coating by roller ;

  • Entering mouth adjustable make diffrent objects curing;

  • Temperature controlled automatically ensure Objects drying on lower temperature



Application fields




  • Electron, Hardware, Auto, Toys, Gifts, Plastics parts,

  • Plastics products, House appliances, work of art, Stationery, Ornament, cosmetic, sports apparatus .UV drying for UV ink .



M-50200UVC Flat UV Drying Machine//Parameter






Technical parameters



M-50200UVC UV curing Machine



  • Conveyer width:500mm;

  • Total wattage:7KW;

  • Wind fan wattage:200W/380V;

  • Conveyer motor wattage:1000W/1P/380V;

  • ConveyEr speed:0~10m/min;

  • Speed adjustment:Stepless;

  • Lamp wattage:3KW/380V×2pcs;

  • Max height of production: 80mm.



Works supply




  • Power: 3 phase 380V.



Package list




  • Package Dimension: 2.170×0.850×1.420m;

  • Gross weight: 336KG;

  • CBM:3.2645



H.S.Code



8443198000



Certificate



CE



M-50200UVC Flat UV Curing Machine//Advantage






Function




  • The conveyer speed can adjustment according to the products drying condition;

  • Conveyer belt mabe by teflon materials;

  • Famous brand UV lamp installed ;

  • Cooling fan installed on the side to remove the heat in curing chamber;

  • Worked on Table, save the space;

  • Teflon conveyer belt and resist high temperature. function.

  • Electrical components and control systems using Famous brand  to ensure stable Curing quality.



Main configuration




  • Main Motor:zhejiang Motor/reducer;

  • Feeding Motor: Zhejiang Motor-31K15RGN-C/15W;

  • Contactor:Shanghai;

  • Relay : Shanghai;

  • UV lamp: Hebei;

  • Transport speeder :STS/AUS22-15W;

  • Cooling fan: SUNON/DP200A.



Accessories included




  • Operation instruction in English;



Printing elements



To achieve the UV Drying Machine capabilities, Please notice



  • Please test with UV ink before normal production;

  • Please replace UV lamp after 1000 hours;

  • Please ask Master professional electrician to maintain and repair UV curing Machine;

  • Do not Frequent start UV lamp

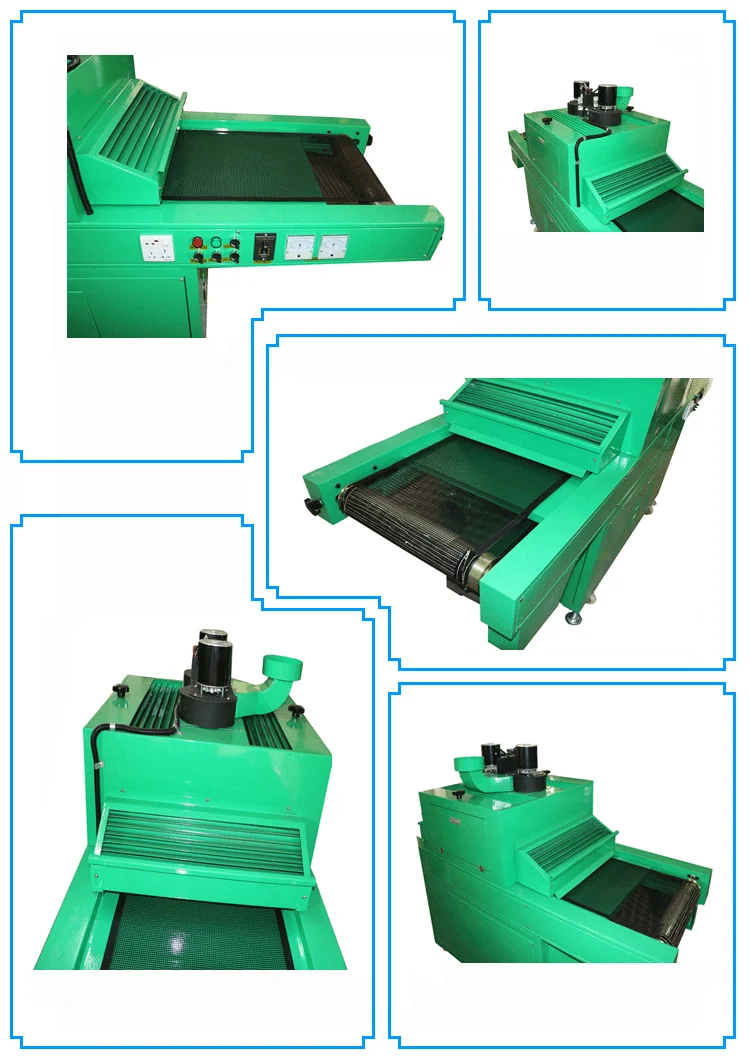

Machine details

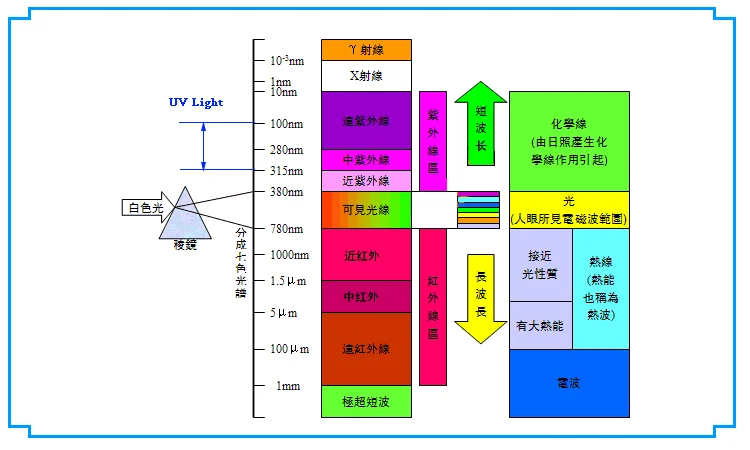

What is UV light?

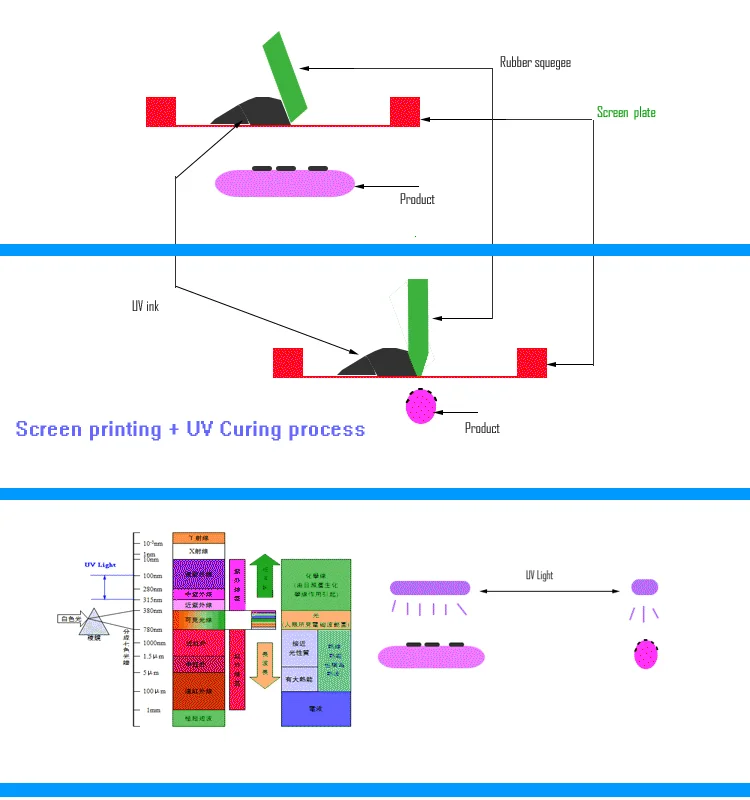

What is UV process?





Packaging & Shipping




Machine is very heavy, It is recommended to use mechanical forklift move and handling, avoid i nversion, Impact, Shake.








Company Information


       The world is only one China, China only one LC, we are the production and sale of pad printing machines, silk screen machines, bronzing machines and automatic printing equipment and world famous!




 Excellence in product quality depends on the high precision machining equipment;
 The company has dozens of leading domestic CNC, printing machines, silk screen machines, bronzing machines and other special printing equipment, data and standardized management in the forefront of the domestic.Excellence in product quality depends on the high precision machining equipment.




All Machine has CE certification.


    CE of pad printers


     CE of screen printers


     CE of hot foil stamping machine


     CE of UV exposure machine and UV curing machine.          Etc







Our clients







FAQ


1) What are your main products?
     Pad printers,


     Silk screen printers,


     Hot stamping machines,


     and the supply chain related to the above-mentioned industrial printing, we will also provide users with complete printing solutions.





2) What kind of pre-sale service do you provide.



   Free technical consultation, pictures, technical materials, and video materials are provided. For those that cannot be provided, we may provide design solutions.





3) What kind of payment method should I choose?



 For new users, if the amount is smaller, you can use the credit guarantee order, TT, and if the amount is larger, you can consider a letter of credit. In order to protect the safety of customers' funds, we do not recommend customers to transfer to personal accounts, or use Western Union, paypal and other personal payment methods. Unless the customer makes a special request.










4) How to order the machine?
   When you confirm to buy the machine, we will provide PI, and pay according to the payment method guided by PI. We will produce the machine and arrange the calculation until you get the machine safely.










5) Questions about proofing?
For direct users, it is very important to confirm whether the machine is suitable for their products and require the factory to carry out proofing as the standard for machine delivery, because pad printing machines, screen printing machines and hot stamping machines usually require fixtures, printing plates, and inks. The perfect match of the bronzing paper can meet the requirements. For the proofing of the customer's confirmed order, we are free. For the proofing without the confirmed order, we will charge a certain proofing fee. When you confirm the order, the proofing fee will be deducted from the machine purchase price.










6) How about after-sales service?



Companies that sell through the Internet are usually small in scale, and none of them have set up after-sales service points overseas. After-sales service requires online support from sales staff. In general, pad printers, screen printers and hot stamping machines are relatively simple machines, and most problems can be solved through online communication.







7) How do you evaluate the quality of your products?
   When each user purchases a product, he balances price and quality. This balance may be difficult to grasp, but this is how you do business. Most of the products sold on the Internet are in the middle of whether the price is not low or the quality is not bad. end. You have to negotiate professionally with the sales staff for better products. There are roughly 300 similar manufacturing plants and more than 8,000 trading companies in China. It is not difficult to choose products that suit you.
