Hangzhou tile ready shower base

Category: Shower Trays >>>
Supplier: Hangzhou Shield Energy-Saving Insulation Materials Co. Ltd.

Price:

Quantity:

Product Overview

Description

Bathroom xps shower tray

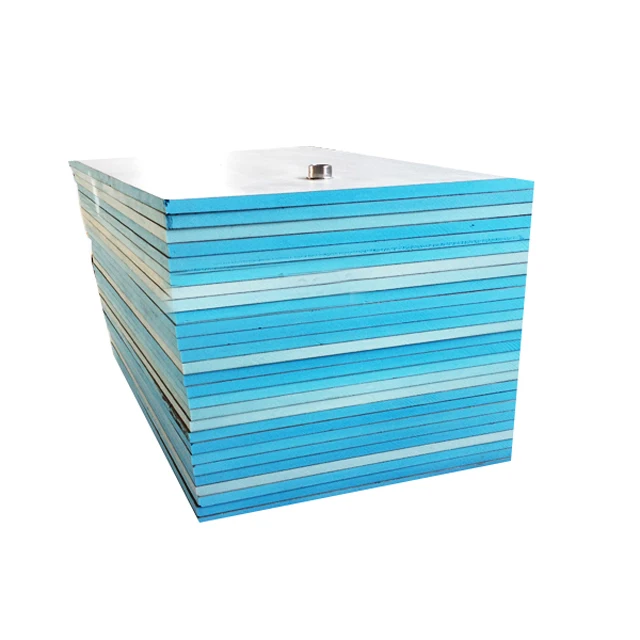

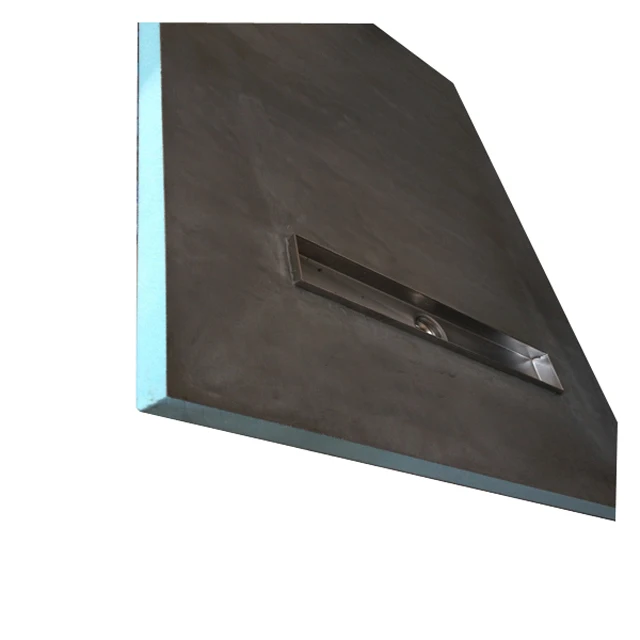

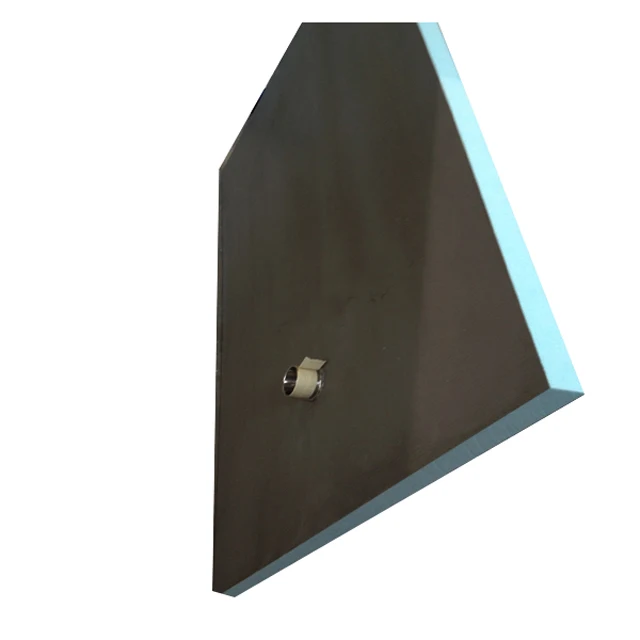

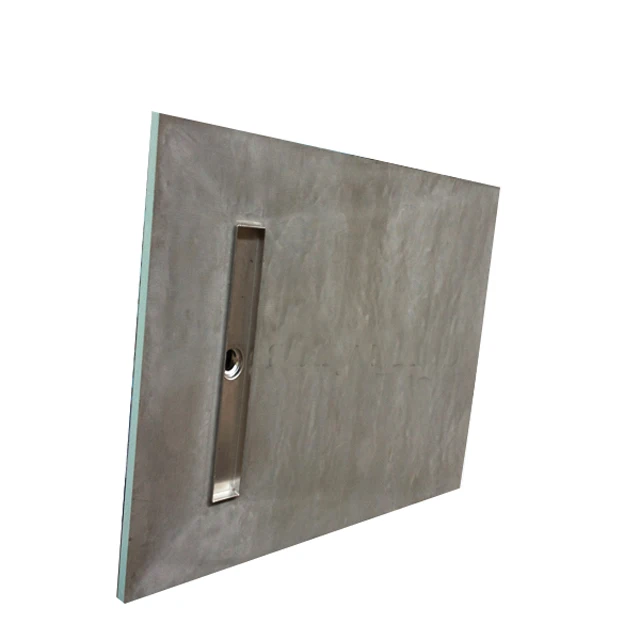

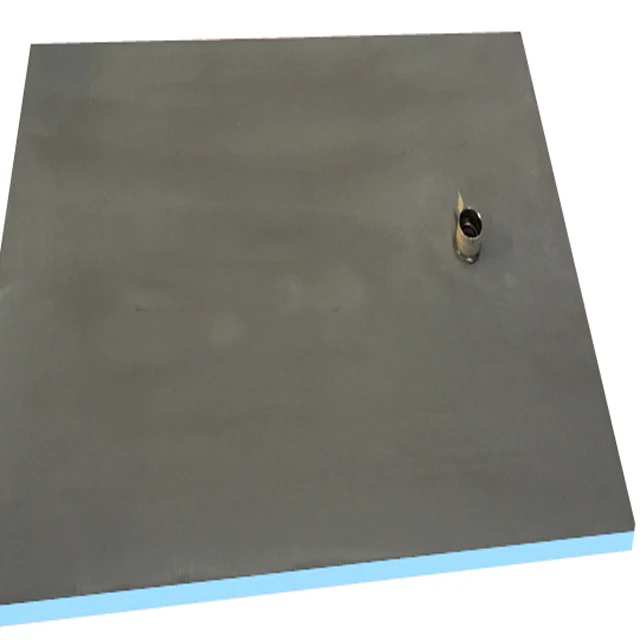

Hangzhou tile ready shower base are made from rigid extruded polystyrene foam with a closed cellular structure,it has a 0.5mm coating on either side comprising a glass fibre mesh embedded in a polymer-cement mortar. Designed for shower and wet room applications, the Shield showerlay board is preformed to create an effective water slope to the drain. It is a floor lever panel that can be easily cut to fit the shower area or to produce an irregular or circular shower base.

Characteristics:

Pre-laid to falls (min. 2% drain angle) Bathroom shower trays

Easy access, floor level Ideal for elderly or disabled

Can be finished with tiles to match surrounding decoration.

Can be cut to fit on site

Use to create a wet room or enclosed shower area

Environment friendly(free of CFC and HCFC)

Preformed (no skilled laying of falls)

Certificate

CE / ITS/ SINTEF/SGS / ISO9001 / ISO14001

Xps shower tray Available Sizes and Kinds

Length	Width	thickness	Drain
820mm	820mm	25/30/40mm	Central Offset/Rear Linear/Channel
900mm	900mm
1000mm	900mm/1000mm
1200mm	900mm/1000mm/1200mm
1500mm	900mm/1000mm
1800mm	900mm/1000mm
2000mm	1000mm
2400mm	1200mm
Other sizes and kinds could be produced according to the requirement also.

Technical Data S

Thermal conductivity, 90 days, 10℃	GB/T10294 (EN13164)	0.030-0.036W/(M.K)
Compressive strength at deformation of 10%	GB/T8813 (EN826)	Minimum of 300Kpa
Bond Strength	N/A	0.3N/mm2
Maximum tile loading weight	N/A	60kg/M2
Bending Stiffness (20mm)	ASTM C203	2.00Mpa
Moisture permeability	GB/T2406 (DIN EN 12086)	3.2m
Dimensional Stability	N/A	≤1.0
Working temperature	N/A	-50℃-80℃
