CO2 fire extinguisher

Product Overview

Description

1.co2 fire extinguisher(carbon steel)  2.co2 fire extinguisher(alloy-steel) 3.co2 fire extinguisher(aluminium) 4.dry powder fire extinguisher 5.dry powder fire extinguisher(aluminium)

CO2 fire extinguisher-(carbon-steel)

TYPE 1.3kg 2kg 2.3kg 3kg 4.5kg 5kg 6.0kg 7kg Item No. FT01-01 FT01-02 FT01-03 FT01-04 FT01-05 FT01-06 FT01-07 FT01-08 Out-diameter(mm) 108 114.3 114.3 114.3 152 152 152 152 Volume(L) 2 3 3.45 4.5 6.75 7.5 9 10.5 Cylinder Length(mm) 330 420 480 610 520 580 700 775 Cylinder Weight(kg) 4 6.3 7 8.7 12.4 13.5 16 17.8 Extinguisher Weight(kg) 5.9 9.1 9.8 12.5 18.1 19.7 23.5 26 CO2 Filled Weight(kg) 1.3 2 2.3 3 4.5 5 6 7 Working Pressure(Bar) 150 150 150 150 150 150 150 150 Test Pressure(Bar) 250 250 250 250 250 250 250 250 Min Wall-thickness(mm) 4.2 4.5 4.5 4.5 5.5 5.5 5.5 5.5 Material CK45 CK45 CK45 CK45 CK45 CK45 CK45 CK45 Packing Size(cm) 13x13x35 14X14X45 14X14X45 14X14X63 17X17X54 17X17X60 17X17X72 17X17X79   16x13x46 18X14X55 18X14X61 18X14X73 23X17X64 23X17X70 23X17X80 23X17X90

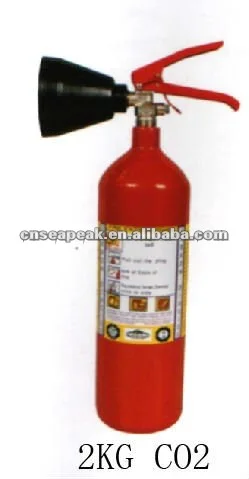

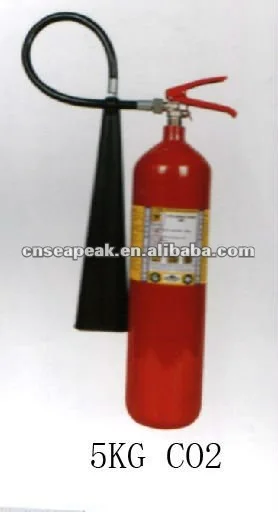

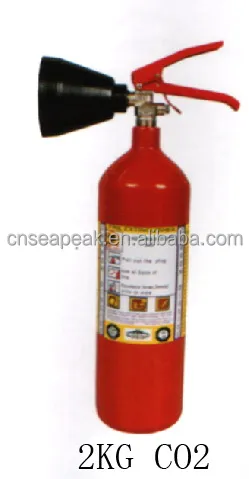

Portable CO2 (carbon steel)  fire extinguisher,specification: 2KG,3KG, ,5KG

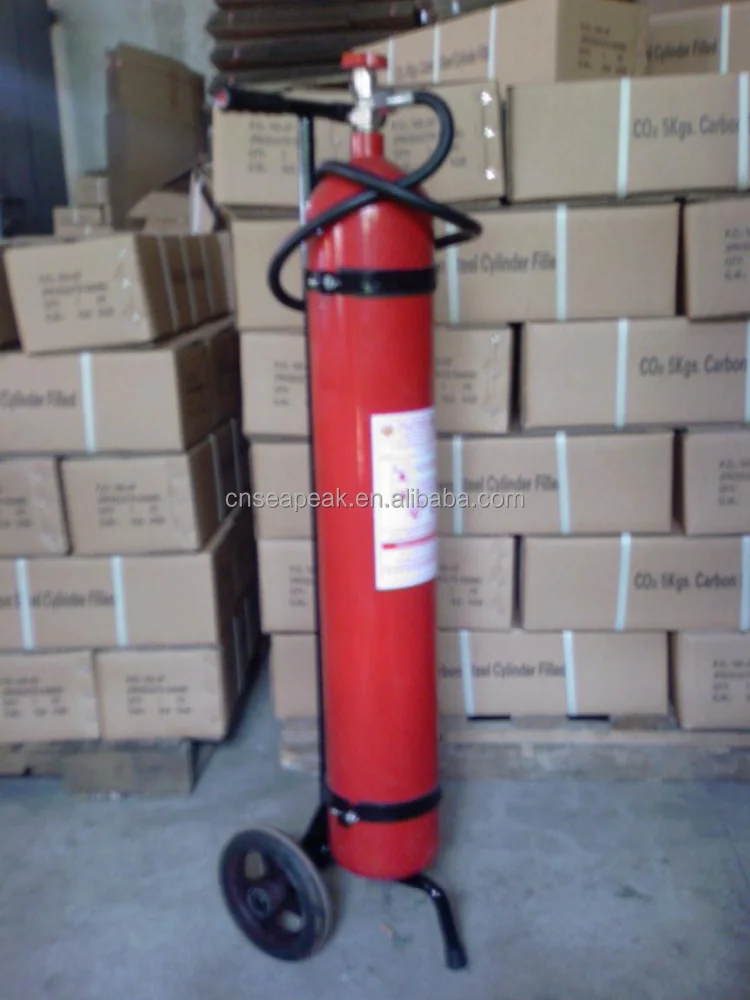

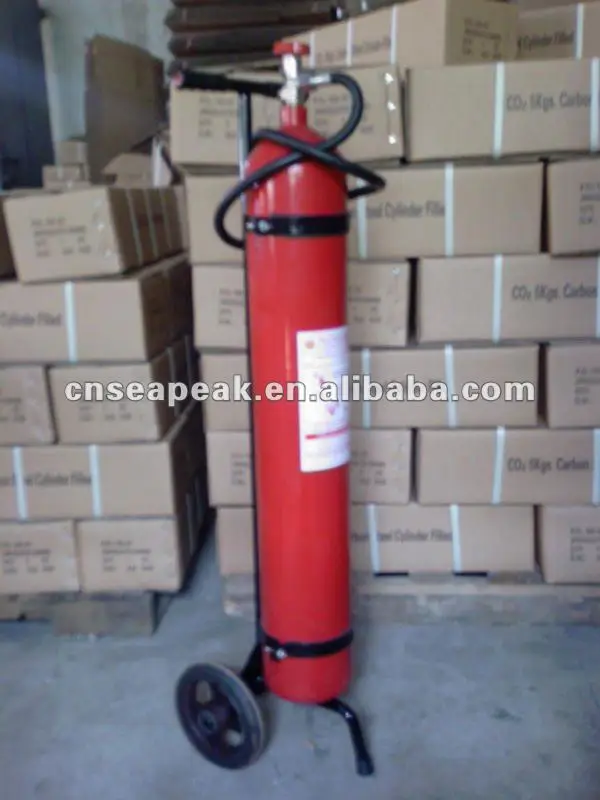

Wheel CO2 (carbon steel) fire extinguisher,specification: 10KG ,24KG
