King Rabbit 800mm 1360mm 1780mm optical cutting plotter
- Category: Office Equipment >>>
- Supplier: Jinan King Rabbit Technology Development Co. Ltd. [Shandong China]Jinan
Share on (2007809335):
Product Overview
Description
King Rabbit 800mm 1360mm 1780mm optical cutting plotter :
Features:
1. Support the forward and reverse paper feeding, emergency stop, random location of original spot , with maximum speed of 800mm/s.
2.the circuit adopts the low power consumable design, no need of cooling fan, to ensure the reliable long-time operation.
3. Perfect output, absolutely no sawtooth in high speed.
4. Serial port+USB port+U-disk+SD card, four way of output mode, offering more choices
5. Using the switching power supply, the work will be kept from the voltage fluctuation.
6. Memory function for blade speed and blade pressure, double sensor board reset, free of dolly cash
7. Using the most advanced divided chimeric dolly, and the most advanced control chip, no noisein cutting.
8. Straightly pulling the dolly, knife pressure can reach 500g, strong pressure can cut any reflective film.
9. English backlit LCD displaypanel, clear operation.

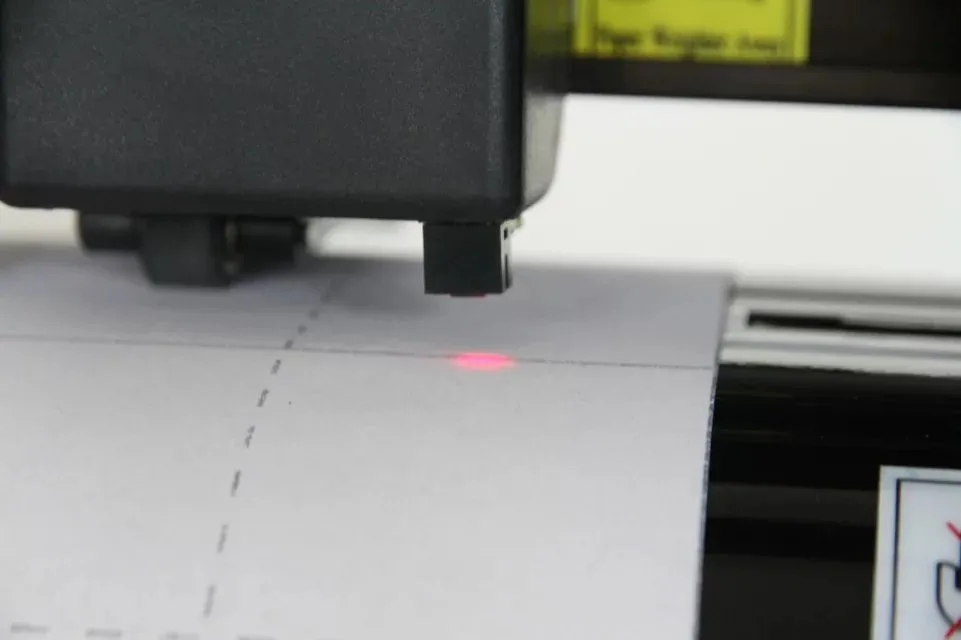

10.Infrared sensor can auto scan the contour, offering better precision and easer operation
![[ 1024 768]](//sc01.alicdn.com/kf/HTB1N_DHNpXXXXbEapXXq6xXFXXX8/20217/HTB1N_DHNpXXXXbEapXXq6xXFXXX8.jpg)
|
Specification/model |
HX-800KIII |
HX-1360KIII |
HX-1780KIII |
|
LCD |
Bule color LCD |
||
|
Maximum paper width |
800mm |
1360mm |
1780mm |
|
Real time range |
720mm*limitless |
1250mm*limitless |
1650mm*limitless |
|
Cutting pressure |
5-500g |
||
|
Cutting speed |
5mm/s-800mm/s |
||
|
cutting thickness |
0.05-0.5mm |
||
|
connection type |
Serial port+USB port+U-disk+SD card |
||
|
Original point setting |
random setting of original point manually |
||
|
Power |
AC90-220V/50-60HZ |
||
|
Support software |
Artcut/Cut Master/Flexi/coreldraw |
||
|
Bracket |
with |
||
|
paper moving system |
Roll axis/steel Thron roll |
||
![[ 1024 768]](http://sc01.alicdn.com/kf/HTB1N_DHNpXXXXbEapXXq6xXFXXX8/20217/HTB1N_DHNpXXXXbEapXXq6xXFXXX8.jpg)
Guarantee and after-sale service:
1. Two years for machine
2. 24 hours technical support by e-mail, calling or door-to-door service
3. English software, user manual and detailed instalation&training Videos DVD
4. International quality certificate:CE,SGS,ISO9001
5. professional plotter machine supplier with 10 years experiences
We offer training in our factory.
<Welcome to our factory for visiting and trainning.> (need samples provided)
Machine spare parts and repair service is also available from us.
