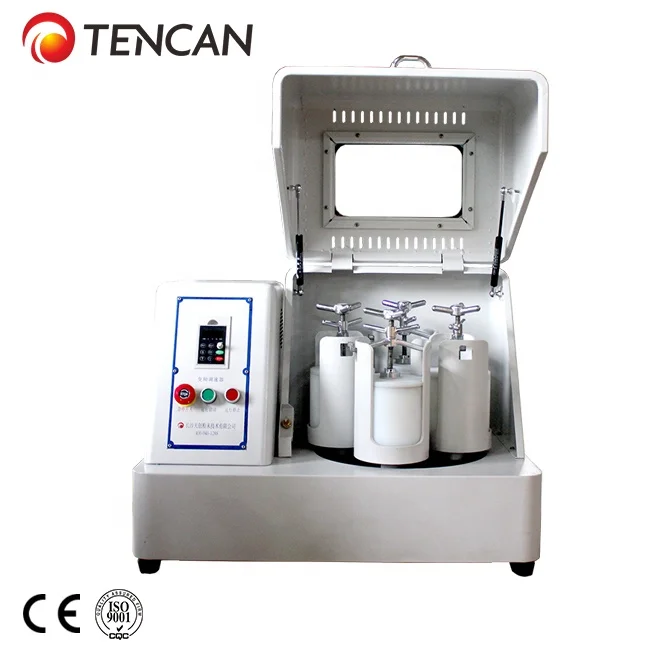

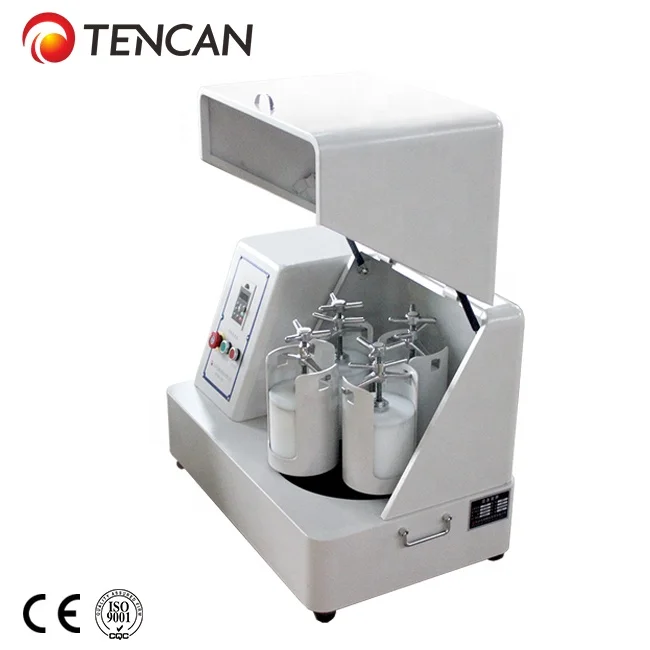

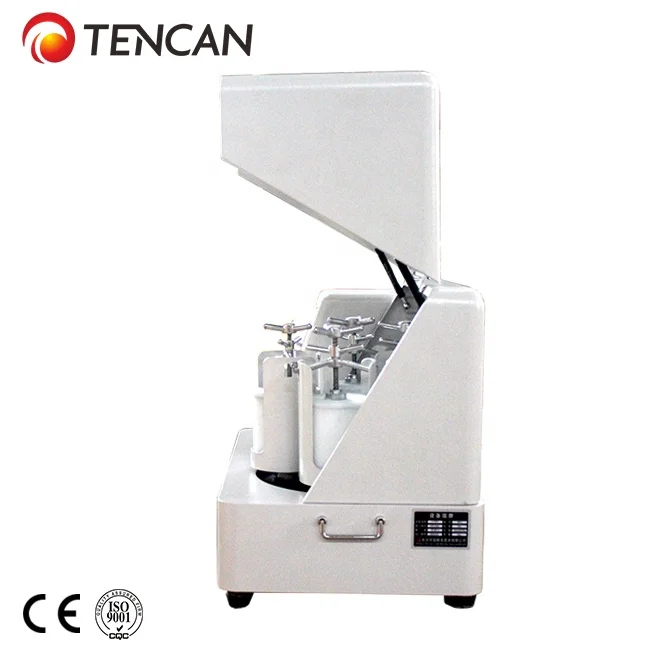

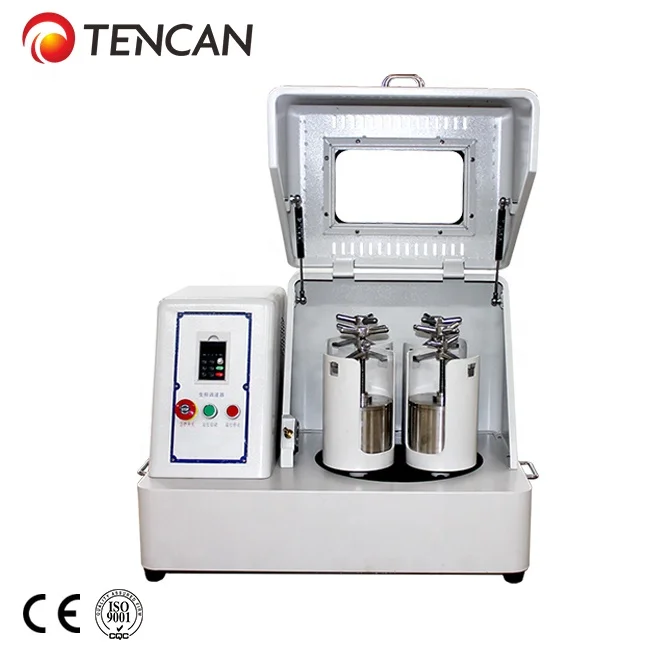

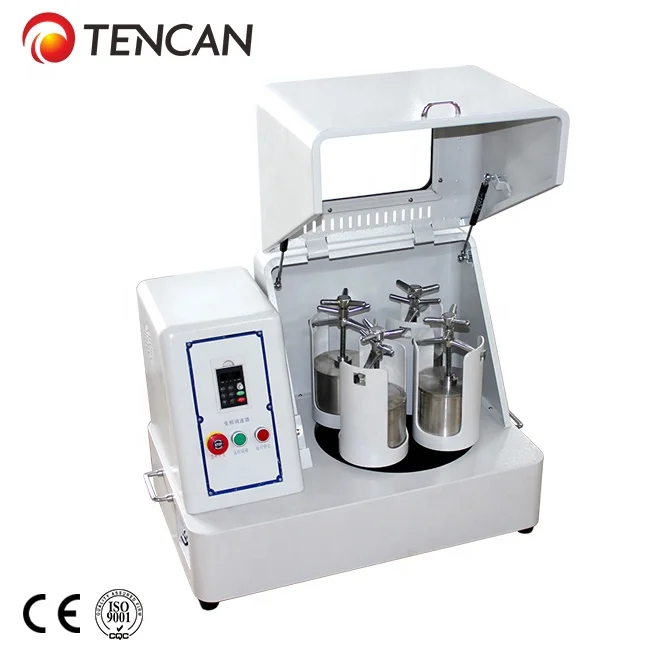

China Tencan 2L 110V or 220V high efficiency super fine nano powder grinding lab planetary ball mill

Product Overview

Description

China Tencan 110V High Efficiency Nano Powder Grinding Planetary Ball Mill



Product introduction

1. Fast grinding with variable speeds up to 900 rpm

2. Minimum granularity can be reached to 0.1 micron meter

3. Convenient to operate,safe and reliable

4. Grinding jars and balls in different materials to suit the property of your material

5. Ultrafine grinding

6. Mixing

7. Small sample preparing

8. New product development

9. Small volume high-tech material production



Drive Mode	Gear drive and belt drive
Operation Mode	Two or four grinding tanks working together
Maximum Loading Capacity	2/3 of the capacity of milling tank
Feeding Size	Soil material≤10mm, other materials≤3mm
Output Granularity	Minimum 0.1 μm
Rotational Speed Ratio	1/2
Max. Continuous Operating Time	72hours
Materials of Jar	Stainless steel, agate, nylon, corundum, zirconia, etc.





Application of Planetary Ball Mill

1.Geology and Mineralogy: rock, gravel, sand, minerals

2.Ceramics: porcelain, sintered ceramics, clay, fireclay

3.Chemistry: pesticides, fertilisers, salts, inorganic and organic materials

4.Biology: plants, leaves, freeze-dried samples

5.Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets

6.Metallurgy: ores, sinters

7.Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating

8.Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography



Product working principle

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually grinding into powder. Various kinds of different materials can be grinding by the mill with dry or wet method. Minimum granularity of grinder powder can be as small as 0.1 micron meter.

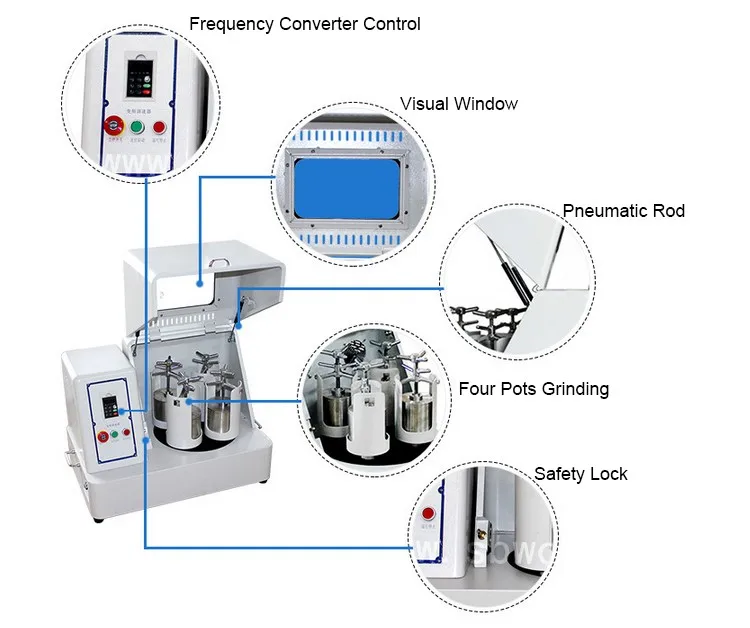

Product features

· Elegant design, easy to operate

· Ideal for wet or dry grinding application

· Multiple grinding modes to choose

· High Uniformity and excellent repeatability

· Fast rotational speed, high efficiency and fine granularity

· Digital display of the actual rotational speed of the grinding jar

· Four samples with different sizes and materials in one experiment

· Programmable interval and pause times

· Stepless speed regulation, reversing function

· Large range of materials available for grinding tools

· Smaller grinding jars also possible with an adapter

· Gear-drive offers an effective solution to problems caused by belt driving

· Grinding chamber with forced air ventilation



Technical Specifications

Name	XQM-2
Specification	2L
Grinding ways	Dry grinding /wet grinding/High energy grinding/vacuum grinding low temperature grinding for optional
Transmission mode	Gear drive
Working stations	4
Feeding particle size	soil ≤10mm, other material ≤3mm
Discharge particle size	Min. as 0.1um
Speed ratio (revolution: rotation)r/min	1:2 (20-200L productive planetary ball mill can be 1:1.5)
Revolution speed	50-450r/min
Rotating speed	100-900r/min
Speed control mode	Frequency converter with stepless speed regulation
Program control	Our ball mill adopts high-tech microcomputer chip control,it can runs by set up the forward and inversion alternately repeatedly program(0-999 min) and forward, pause, inversion, pause, forward (0-999 min) alternating operation program, especially suitable for cooling or intermittent operation.
Max. Continuous working time (full load)	72 hours( timer 0-9999h)

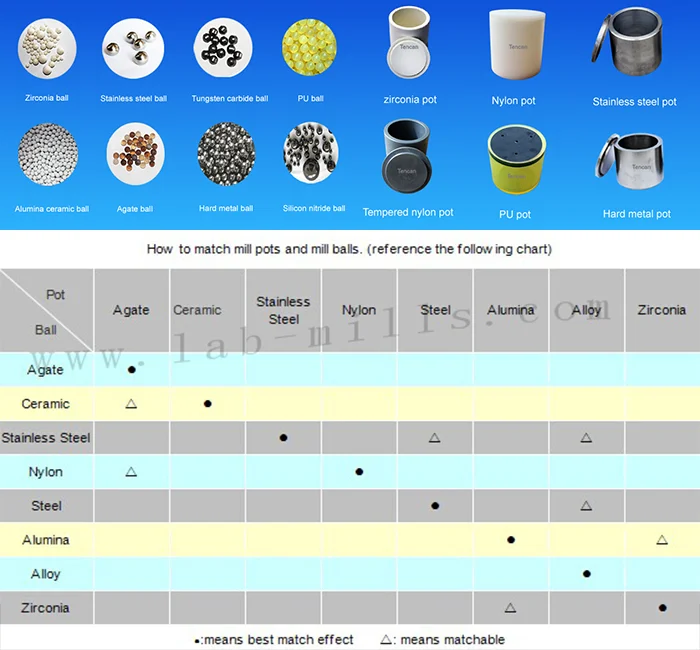

Mill Jars  and Mill Balls

We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, tungsten carbide, etc.

Shipment & Payment

Typical Clients



As one of the most professional powder equipment manufacturers in China, TENCAN have won a

high reputation and good recognition both in domestic  and abroad. The following are our cooperate

clients.

After Sales Service for planetary ball mill/ ball milling machine
1)One year guarantee for whole machine except of ball mill jars and

balls.Some accessories we have 18-36 months warranty.
2) We shall make prompt response to any problem about the machine within 24 hours if you have.
3) We shall provide 6-day 8-hour services for all our clients and subscribers, and shall provide

    trouble-shooting solutions until the fault is completely eliminated.
4) If the machine is found any fault or problem, please do not hesitate to notify us the details about

    faults, caused reasons and status. We shall do our great efforts to solve according to following

    terms:

a. Common faults:

Common faults refer to failure of non critical parts or improper configuration that effects partial

operation or leads to Inconvenience of machine operation. We shall solve such problems by email

or posting parts by courier.



b. Serious faults:

Serious faults refer to failure of key parts or improper configuration that influence running or

operating of machine widely. We shall firstly diagnose reasons of faults by email or phone, then,

shall send replacement of parts by courier, until solve the problems. Courier freight shall be for

our account within quality warranty period.
