Product Overview

Description

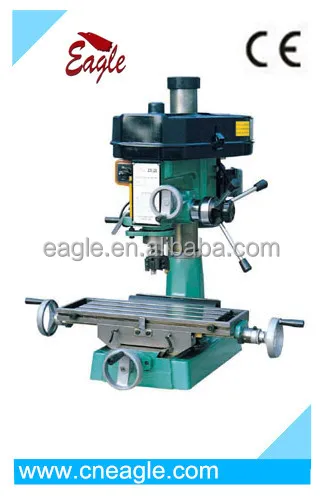

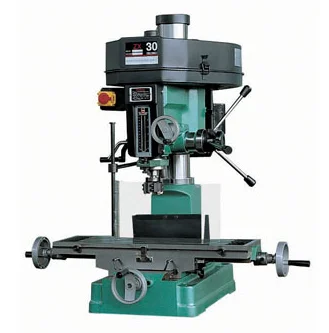

Drilling And Milling Machine

Specification





Model	ZX-25	ZX-30
Maximum drilling capacity	Φ25mm (1')	Φ32mm (1 1/4')
Maximum clamping surface milling	Φ63mm (2 1/2')	Φ76mm (3')
Maximum clamping cutter	Φ13mm (1/2')	Φ20mm (1 1/8')
Put process	Φ405mm (15 7/8')	Φ405mm (15 7/8')
Front spindle to table the maximum distance	380mm (15')	457mm (18')
Spindle taper	MT-3 (R-8)	MT-3 (R-8)
Spindle stroke	100mm (4')	130mm (5')
Diameter of Spindle sleeve	62mm (2 1/2')	75mm (3')
Spindle speed range	90-2150 r.p.m/50Hz	100-2080 r.p.m/50Hz
	110-2580 r.p.m/60Hz	120-2500 r.p.m/60Hz
Spindle speeds	12 steps	12 steps
Headstock rotation	360 º	360 º
Column diameter	92mm (3 7/10')	115mm (4 1/2')
Before and after the campaign table	160mm (6 1/4')	175mm (6 7/8')
The work table movement	370mm (14 1/2')	500mm (19 5/8')
Table size	585mm×190mm (23'× 7 1/2')	730mm×210mm (28 3/4'× 8 1/4')
Motor Power	3/4HP(0.56KW) or 1HP(0.75KW)	1 1/2HP (1.1KW) or 2HP(1.5KW)
Motor voltage	110V/60HZ or 220V/50HZ	110V/60HZ or 220V/50HZ
Overall height	930mm(36 3/5')	1100mm(43 1/3')
Total length	930mm (36 3/5')	1095mm(43 1/9')
Total width	930mm (36 3/5')	1010mm(39 3/4')
Gross weight	245KGS (540LB)	340KGS(750LB)
Net weight	195KGS (430LB)	270KGS(600LB)
Carton Packing size	730×670×1020mm	870mm×760mm×1200mm
Item No	144010	144020
