Good solution for both interior wall exterior wall !
Product Description

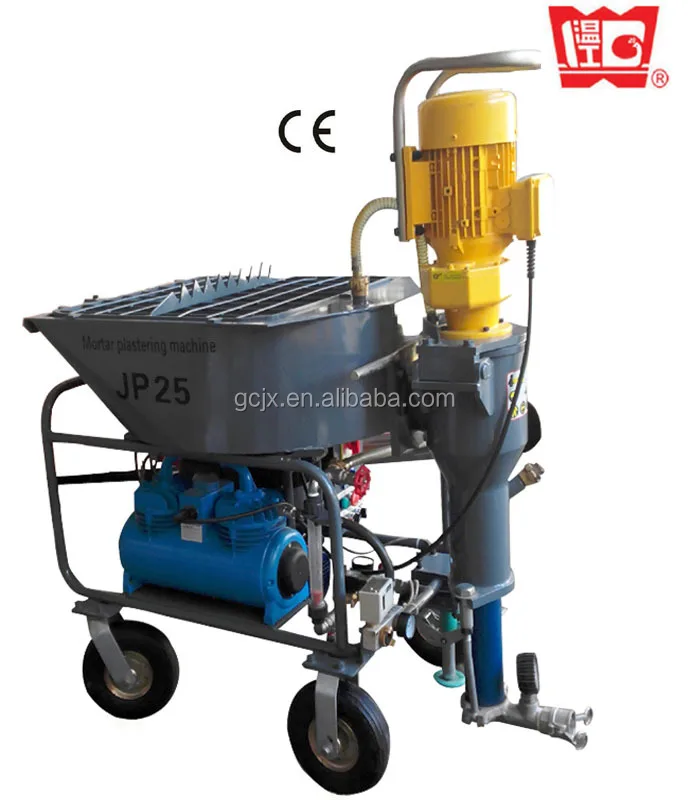

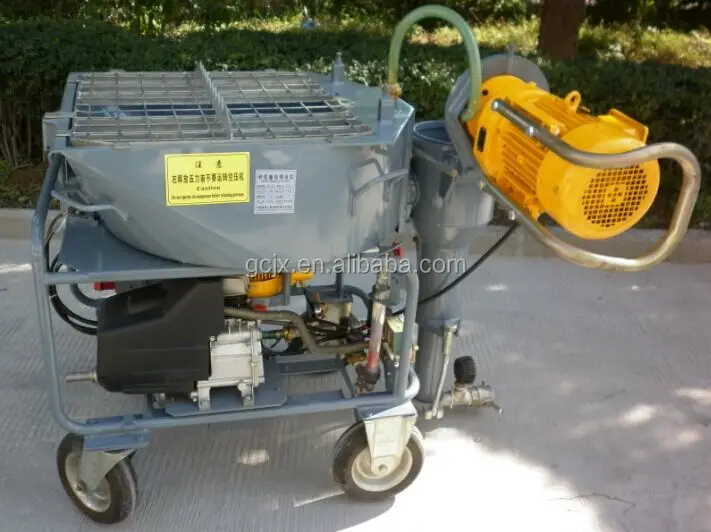

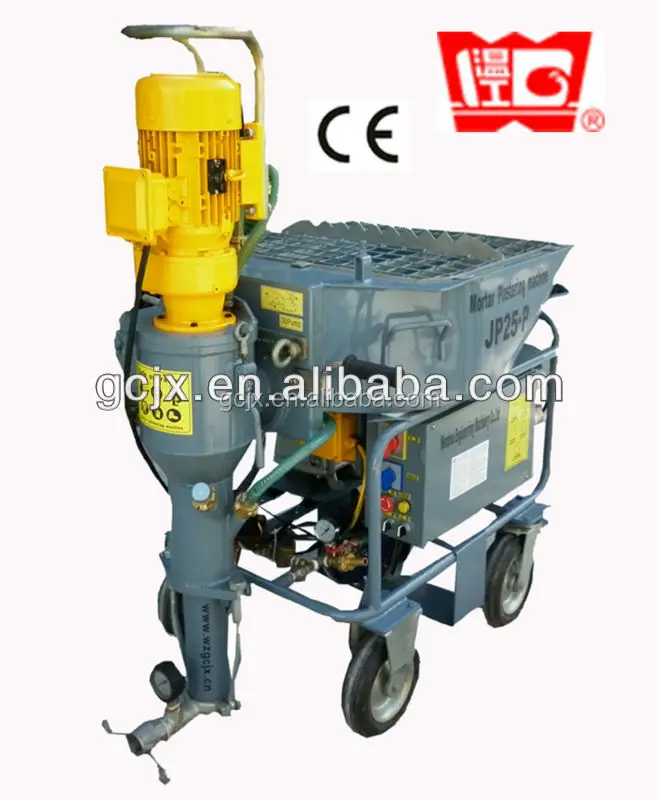

JP25 Automatic wall rendering machine
1.Easy to dismantle but difficult to surpass. The JP 25 is a real all-rounder.
2. It places all types of ready mixed dry mortar. No matter whether out of a bag or silo.
3. In addition it mixes and pumps insulating plaster and even floorscreed.
4. Suitable for all pumpable ready mixed dry mortars, bag material and material from a silo such as for example interior plaster (gypsum/gypsum-lime plaster); outside plasters and renders: (lime/lime-cement and insulating plasters), floor-screed, bonding mortar as well as reinforcement mortar.
characteristics
•
Easily accessible service components
•
Frontal air supply
•
Simple change of the pump units
•
Lifting brackets
•
Large tool kit
•
Automatic switch-off for compressor and water pump
•
Compressor protection
•
Reduced weight for increased mobility on construction site
•
Safety switch-off
Technical parameter
Model
JP25
Mixing bunker volume
115L
Output pressure
40bar
Plastering output capacity
25L/min
Plastering motor power
3.3KW/4.0KW
Theoretical delivery distance
45m
Mixer motor power
1.1kw
Air compressor motor power
2.2kw
Net Weight
240kg
Dimension
1324×728×1443mm
1. JP25 Automatic plastering spray machine use the same design with Putzmeister JP25, its main components are same Putzmeister suppliers as below:
a. mixing motor made in Germany
b. air compressor made in Germany
C. JP25 mortar mixer pump can be separated into several parts for easily movement..
2. JP25 is used for plastering mortar, self-screed, grouting.

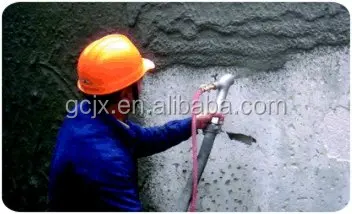

a. Spraying & plastering
b. Do self-screed floor application
c. Injecting or grouting crack
Company profile
2. Our Bamua fair in Shanghai 2012
FAQ
1. Q: Which pump model or plastering machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
-use for plastering or grouting?
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A:Screw type plastering machine
Rotor and stator would be worn out after 1-4 weeks depends on material and operation period.suggest purchase 4--6 sets.
Concrete pump:
After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week if voltage is 3 phase 380v 50hz. 20-40 days if other voltage.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
