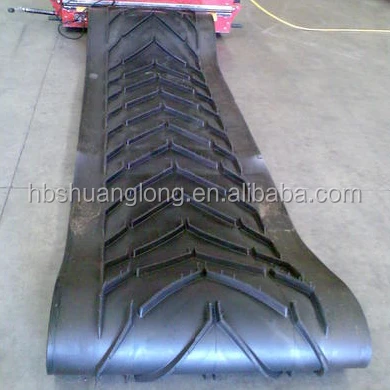

slope transportation patterned v conveyor belts for road construction application

Product Overview

Description

slope transportation patterned v conveyor belts for road construction application



Pattern:we can make different patterns conveyor belt,it is all up to your deamnd

Types:

        1) open v and closed v and other patterns
        2) the depth of pattern is 15mm-25mm higher the surface
        3) each kind of pattern includes three types, high, medium and low.

 Characteristic :

         1. There is no joint in belt carcass
         2. Long service life
         3. Cleats and top cover rubber are vulcanized integrally

         4. Cleat pattern, angle and pitch are designed elaborately.

Carcass Materials: NN/ EP/PP/Cotton

Standard:

                DIN22102 (DINW,DINX,DINY,DINZ,DINK)

                RMA(RMA Ⅰ, RMAⅡ)

                AS1332( M24,N17 )

                SANS 1173 (A,C,M,N)

                GB7984-87

Application:

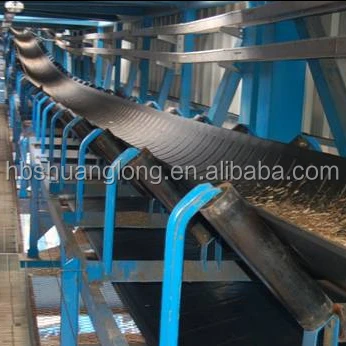

Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.

Selections:

Selection of a type and height of cleats depends on the material to be conveyed and the angle of inclination:

Type of material	Material example	Max. angle of inclination
Height of cleats
H(mm): 14	H(mm): 16	H(mm): 25	H(mm): 32
Powdery	Flour, etc.	25°	25°	28°	30°
Loose flowing	Corn, barley, wheat, rye, etc.	20/25°	20/25°	25/30°	25/30°
Loose rolling	Gravel, ground stone, etc.	25°	25°	28°	30°
Sticky	Wet sand, ash, wet loam, etc.	30°	30/35°	35/40°	40/45°
Packed	Sacks, paper sacks, etc.	30/35°	30/35°	35/40°	35/40°

 Conver properties of the belts

Type	Mpa ≥	Mpa ≥	mm2 ≤	Change Rate of tensile strengh and elong after aging
				%
H	24	450	120	-25~+25
D	18	400	100	-25~+25
L	15	350	200	-25~+25



 Different patterns for you to choose,pls confirm your pattern in the inquiry list.









Once you give the detailed pattern data or the sample,we can manufacturer it as your demand.

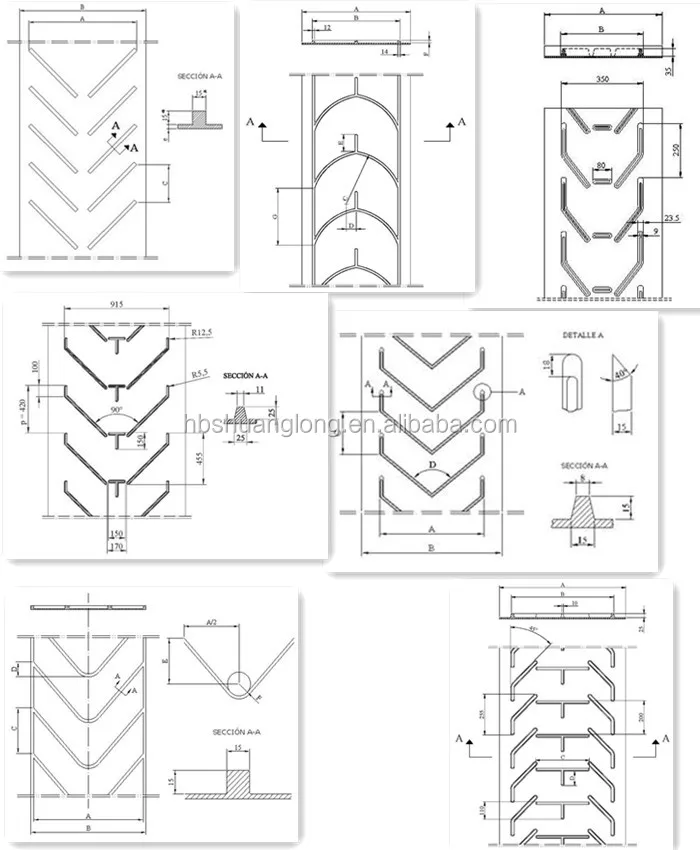

The main chevron pattern







  Why you choose us?

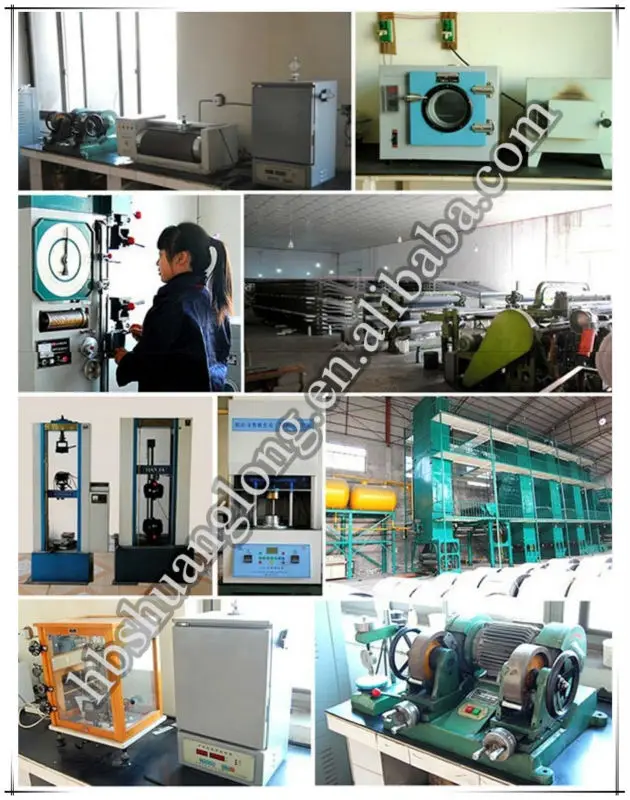

     1.We have our own factory and team.we can assure the quality of the products,we are the honest manufacturer



     2.We can produce lots of types belts,such as EP/NN/CC conveyor belt,patterned conveyor belt,fire retardant conveyor belt,heat resistant conveyor belt,chemical conveyor belt etc.



       3.We guarantee the quality of our belts



          4.You can trust us







     If you have inquiry for profiled chevron belts,pls feel free to contact us.
