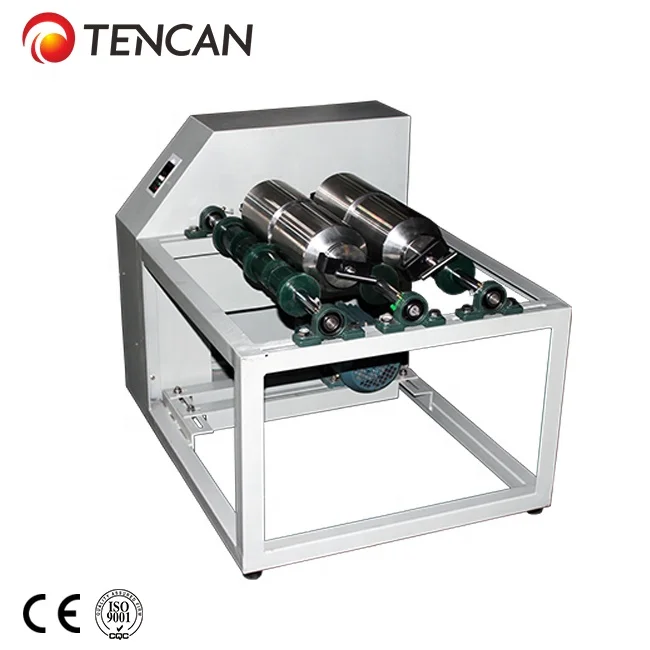

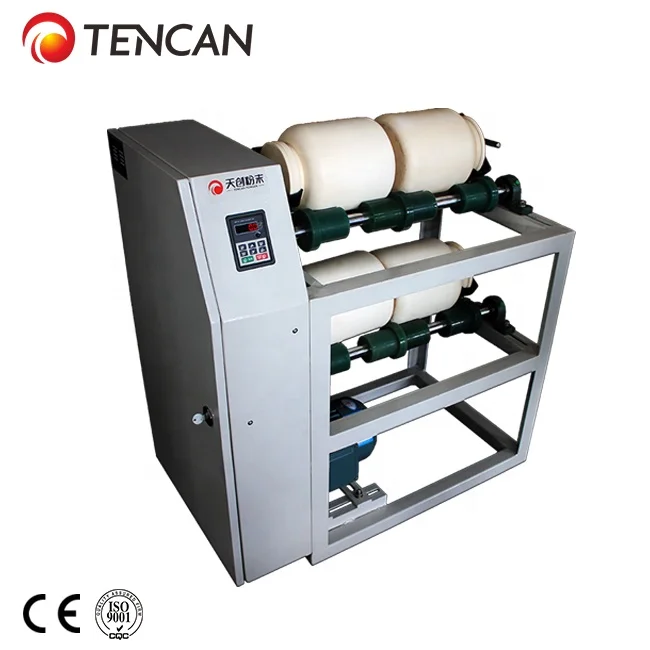

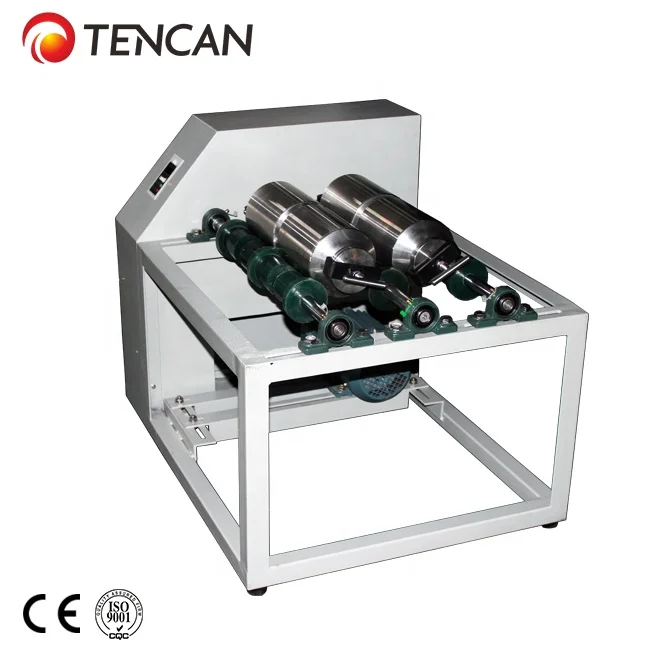

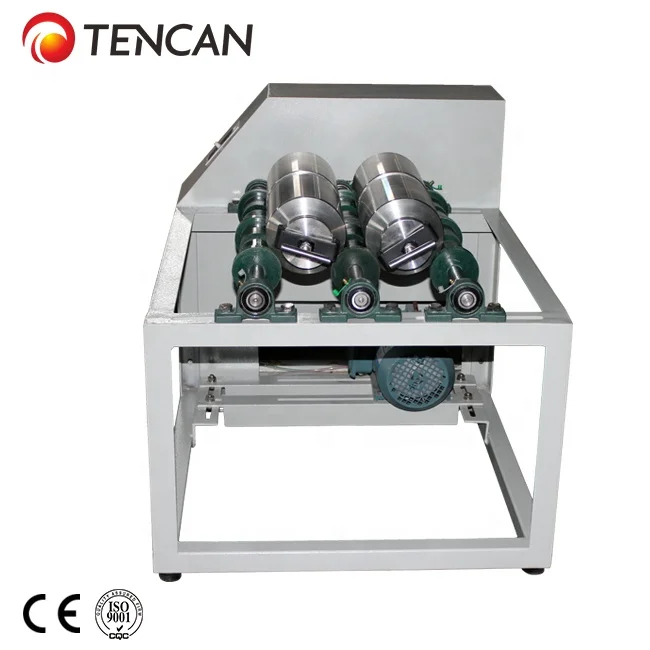

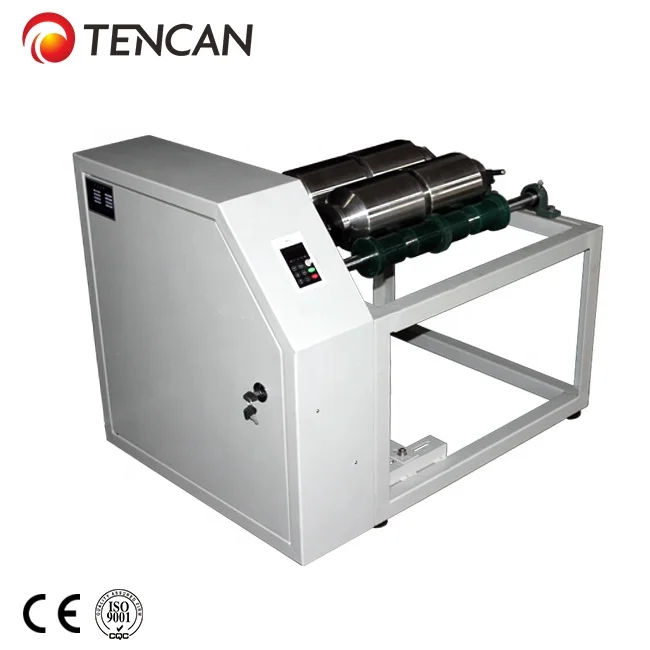

China Tencan GQM 4 5 USD1300 Simple Strctural Cheap Sale Dry and Wet Grinding Lab Roll Jar Mill
China Tencan GQM-4-5 USD1300 Simple Strctural Cheap Sale Dry and Wet Grinding Lab Roll Jar Mill
China Tencan GQM-4-5 USD1300 Simple Strctural Cheap Sale Dry and Wet Grinding Lab Roll Jar Mill
China Tencan GQM-4-5 USD1300 Simple Strctural Cheap Sale Dry and Wet Grinding Lab Roll Jar Mill
China Tencan GQM-4-5 USD1300 Simple Strctural Cheap Sale Dry and Wet Grinding Lab Roll Jar Mill
China Tencan GQM-4-5 USD1300 Simple Strctural Cheap Sale Dry and Wet Grinding Lab Roll Jar Mill
China Tencan GQM-4-5 USD1300 Simple Strctural Cheap Sale Dry and Wet Grinding Lab Roll Jar Mill

China Tencan GQM 4 5 USD1300 Simple Strctural Cheap Sale Dry and Wet Grinding Lab Roll Jar Mill

Share on (2008883116):


Price:$1,100.00 - $1,300.00

Quantity:


Product Overview

Description





Recommend Products




Products Description


China Tencan Multi Position CE Verified Dry and Wet Grinding Horizontal Lab Roll Jar Mill


Category
Model No.
Power Supply
Rotate Speed
Max Load
Per Jar
Dimensions &
Net Weight
2 Positions
GQM-2-5
220V-50Hz
Or 60Hz/0.75kw
50-410 rpm
35KGS
950*480*685mm
59KGS
GQM-2-15
220V-50Hz
or 60Hz/1.1kw
40-365 rpm
80KGS
1130*550*690mm
80KGS
GQM-2-20
220V-50Hz
or 60Hz/1.5kw
40-340 rpm
120KGS
1350*650*690mm
92KGS
4 Positions
GQM-4-5
Single layer
220V-50Hz
or 60Hz/0.75kw
50-410 rpm
35KGS
950*660*690mm
70KGS
GQM-4-5
Double layer
220V-50Hz
or 60Hz/0.75kw
50-410 rpm
35KGS
950*480*870mm
92KGS
GQM-4-15
220V-50Hz
or 60Hz/1.5kw
40-365 rpm
80KGS
1130*800*690mm
95KGS
GQM-4-20
380V-50Hz
or 60Hz/2.2kw
40-340 rpm
120KGS
1350*820*690mm
122KGS
8 Positions
GQM-8-5
220V-50Hz
or 60Hz/1.5kw
50-410 rpm
35KGS
950*660*960mm
106KGS
GQM-8-15
380V-50Hz
or 60Hz/2.2kw
40-365 rpm
80KGS
1130*800*960mm
152KGS


Lab jar mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions. The machine is preferred equipment for scientific research, education, experiment and production due to its advantage such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic materials, magnetic materials, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine. Mill jar is dragged to rotate by rubber roller and balls inside the jar make incline flow movement and disperse materials. Thus it obtains best effects of grinding. As a result, materials are ground to micro powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, so that you may set working time according to requirement at any time. It not only saves time and labor, but is easy for operation.




Working Principle of Jar Mill
When the machine works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding. It not only saves time and labor, but is easy for operation.


Features of Jar Mill
1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set as per users’ needs.
4. Suitable for ultrafine grinding with high efficiency of pulverizing.
5. Rubber roller is made of special materials and durable in use.


Available & Matched Accessories
Matching Solutions Recommendation for Materials & Mill Balls roll mill jars，like stainless steel mill pot, zirconia mill pot,
alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls, tungsten mill balls, etc.








Company Profile


Changsha Tencan Powder Technology Co.,ltd is founded in 2006. It is located in Xingsha Town, Changsha City of Hunan Province, China.
Our factory is a supplier of manufacturing planetary ball mill, roll ball mil, stirring machine, mixer machine, vibration
ball mill, vacuum glove box, mill tank, ball media.. Harvard University, Peking University, Tsingha University, Foxconn, BYD, CASC etc are our regular customers, giving high praise for our machines for their long using life with less mechanical failure.
With the sustained business conception of "credit is the basis, quality is the first", we gain the high trust from customers. A
first-class enterprises goal ----- brand, do first-class enterprises, and take Group operations, to the international development.






Certifications






Communication with Customers




FAQ


1. Are you manufacturer or trade company?
We are one of leading manufacturers in China, which focuses on designing, manufacturing and selling all kinds of powder grinding equipment including planetary ball mills, roll ball mills, stir ball mills, crushers, mixers and sieve shakers as well as accessories matched with machines.

2. What is your delivery time if I place an order?
We often have a great deal of regular machine models and accessories in stock available. If you want to order our regular items, it takes about 1-3 working days to finish packing and inspection, Generally speaking we can make shipment of regular order from our warehouse within 3-7 working days after payment is received.

3. What questions about requirements are required to provide to us if you inquiry about ball mills?
Answers:
* What material is needed to be grind? By wet or dry method?
* How many liters of material are required to be ground per batch?
* What is feed size (mm) of starting materials?
* What final particle size (μm or nm or meshes) is required by grinding?
* Is material allowed with metal impurity contamination while grinding?

4. Can you provide testing service of grinding experiment before we place an order?
Yes. sample grinding experiment is available for any customer who is willing to send materials to us, and grinding experiment of sample is always free of charge.
Delivery address of material sample:
Changsha Tianchuang Powder Technology Co., Ltd
Room 804, 2nd Building, No.68 Luositang Road, Changsha Economic and Technological Development Zone, Changsha, Hunan, China 410100
Contact Name: Aivin Ai Mobile Phone: +86 13548659522

5. What’s your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you can send Email to: service@lab-mills.com for after-sale services.

6. What is MOQ (Minimum Order Quantity) of one order?
One set of machine or one piece of accessories (like ball mill jar and balls) are acceptable.
