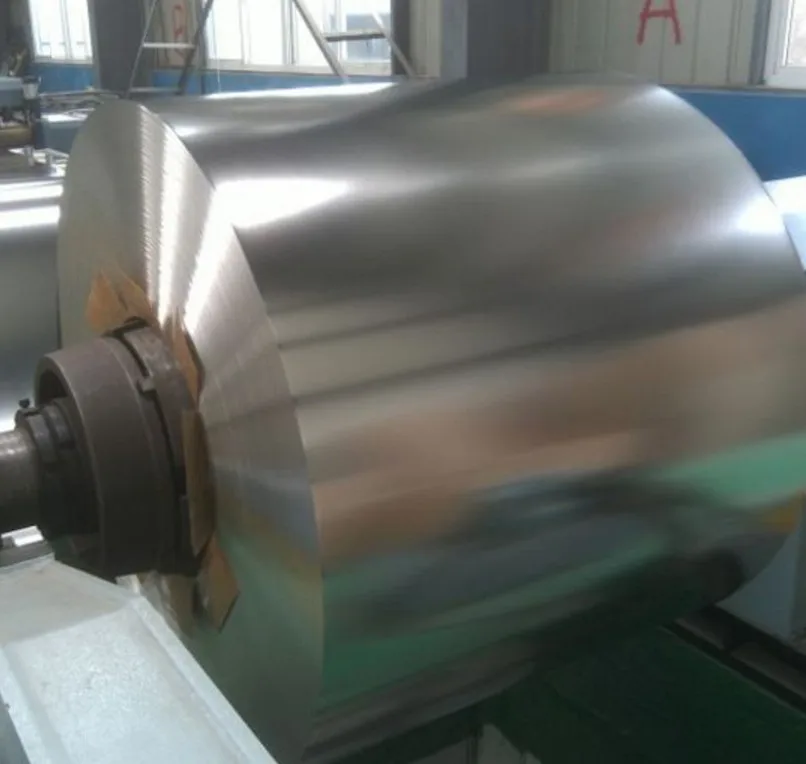

Жестяная листовая жестяная листовая

Product Overview

Description

Tinplate  Sheet

Detailed Information



Electrolytic Tinplate Steel/ETP



Operated standard: GB2520, JIS G3303 and DIN EN10203-91



Thickness:0.15-0.55mm



Width::200-1250mm



Base plate:SPCC,MR,IF



Tin plating weight:1.1-8.4g/sqm(common:2.8/2.8g,5.6/5.6g)



Annealing types:BA/CA



Surface finish:Bright,Matt,Stone



Hardness:T1-T5 /DR8/DR9



Detailed Information



1.  Type of steel: MR,SPCC,S08AL



2.  Thickness available: 0.15mm to 0.55mm



3.  Width available: 200mm to 1250mm



4.  Temper :  Temper grade: T2 - T4 DR7/8/9



5.  Coating : The coating can be provided by customers requests.



6. Standard : JISG3303/GB2520-2000



7. PackingInner packing: Anti-rust paper



    Outer packing: Corner protected



8  Surface: Stone/ Bright



9  Form: Coil, straight-cut sheets



Temper	HR30T	Applications
T1	49±3	Nozzles, spouts, closures, and deep drawing.
T2	52±3	Rings and plugs, pie pans, closures, shallow drawn and specialized can parts.
T2.5	55±3	Battery can bodies, small can ends and bodies.
T3	57±3	Can ends and bodies, large diameter closures, crown caps.
T4	61±3	Can ends and bodies, crown caps and small screw closures.
T5	65±3	Can ends and bodies for non corrosive products.
DR-8	73 ± 3	small diameter round can bodies and ends



Coating weight



Classification	Designation of  tin coating weight	Nominal tin coating  weight(g/m2)	Min average  tin coating weight(g/m2)
Equal tin coating(E)	1.1/1.1	1.1/1.1	1.8
	2.2/2.2	2.2/2.2	4.0
	2.8/2.8	2.8/2.8	5.0
	5.6/5.6	5.6/5.6	10.5
Differential  tin coating(D or A)	2.2/1.1	2.2/1.1	2.0/0.9
	2.8/1.1	2.8/1.1	2.25/0.9
	5.6/1.1	5.6/1.1	5.05/0.9
	2.8/2.2	2.8/2.2	2.25/2.0
	5.6/2.2	5.6/2.2	5.05/2.0
	5.6/2.8	5.6/2.8	5.05/2.25



Packing:plastic film, anti-rust paper, corner- protected

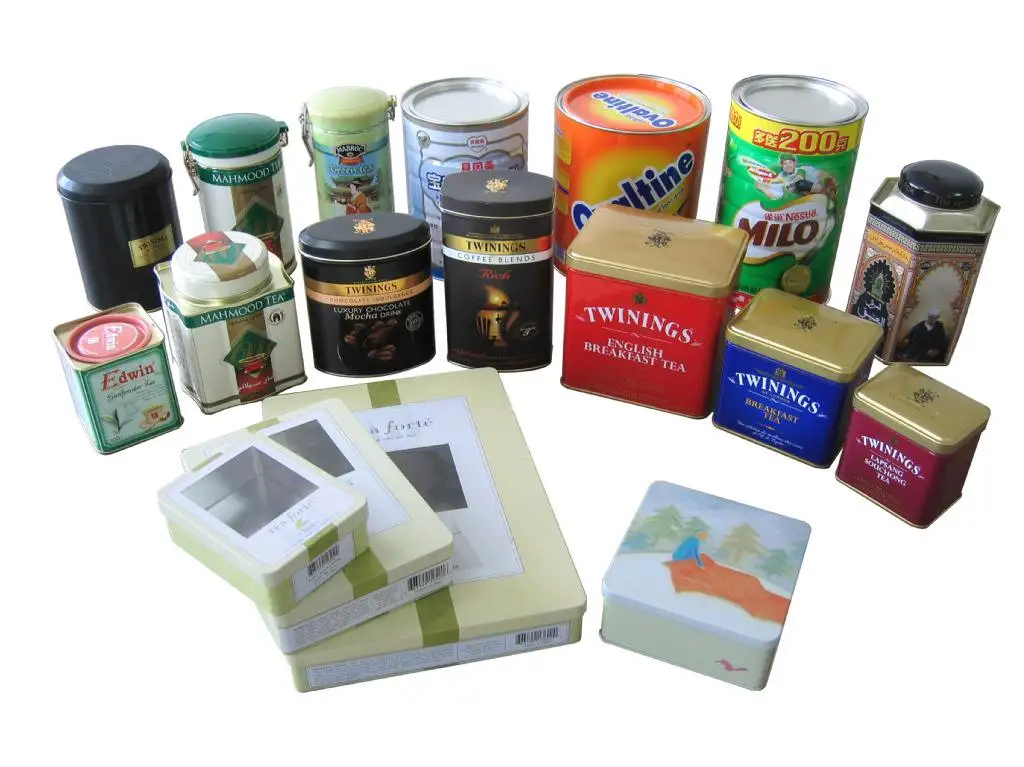

Application: Tin can box, tin can body , tin can bottom, tin can caps! DR8/DR9 can be used for making the twist cups!

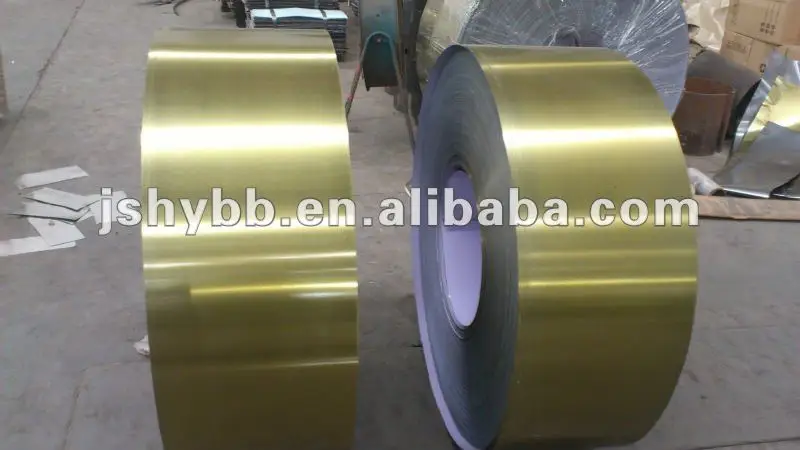

Gold lacquer tinplate coil and sheet

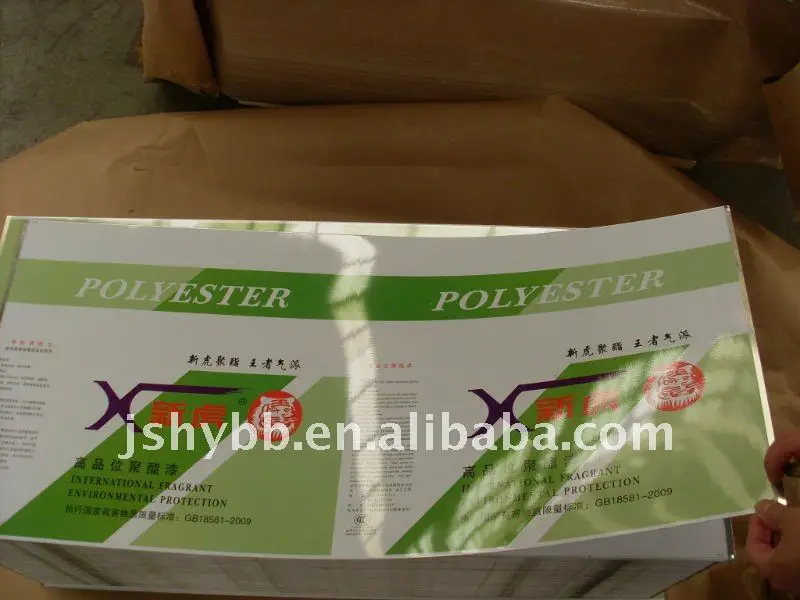

Printed tinplate sheet

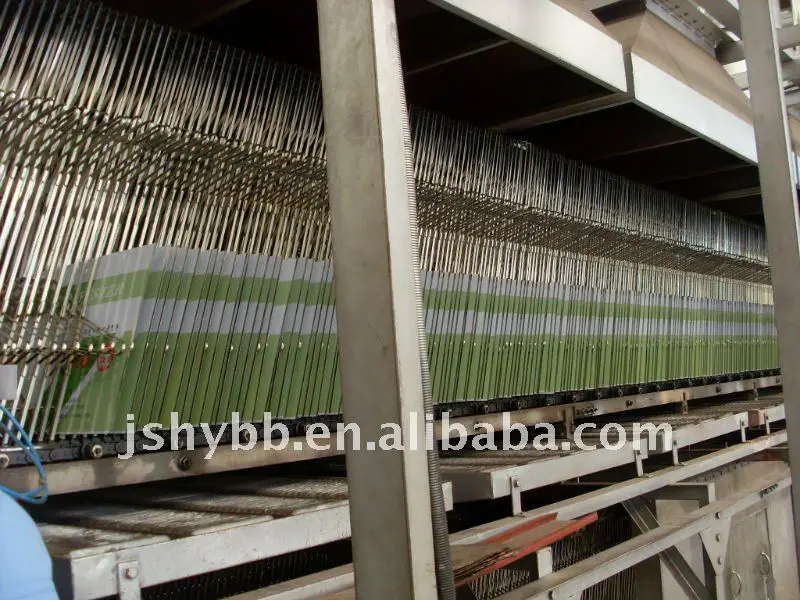

Printing production Line

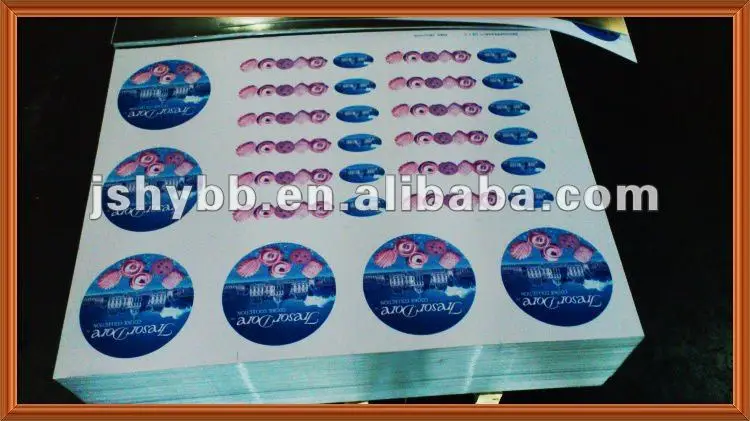

Printed tinplate sheet



Gold lacquer tinplate sheet





Printed tinplate sheet



Gold lacquer tinplate coil production Line

 Plain tinplate sheet



 Tinplate Strips







 Thanks for your time.Welcome to visit our company !
