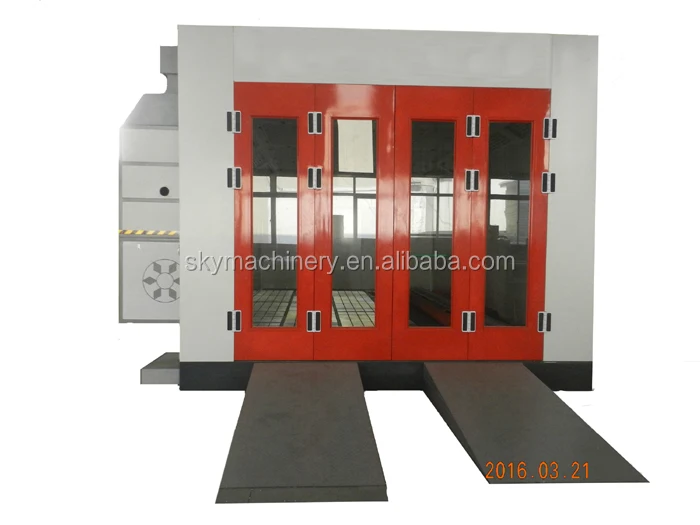

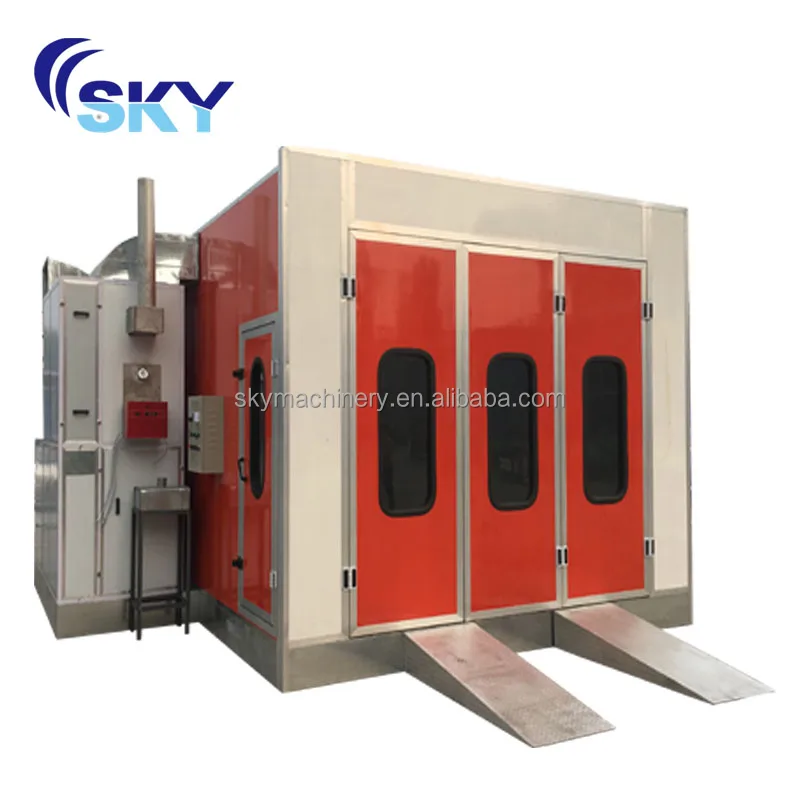

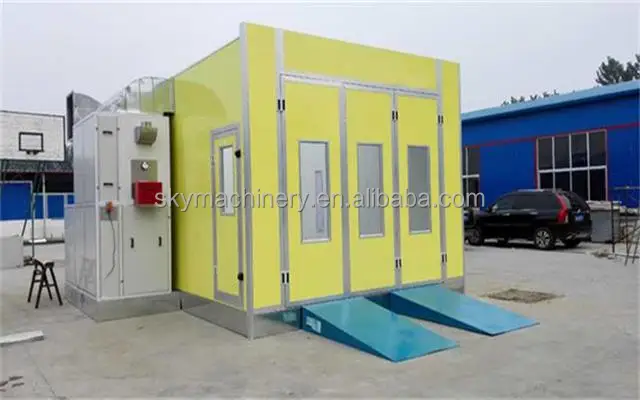

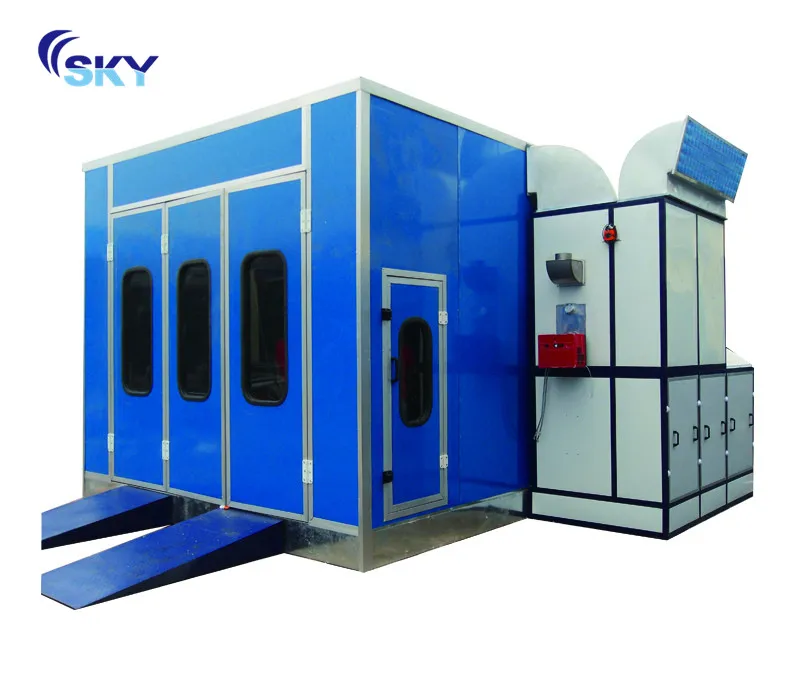

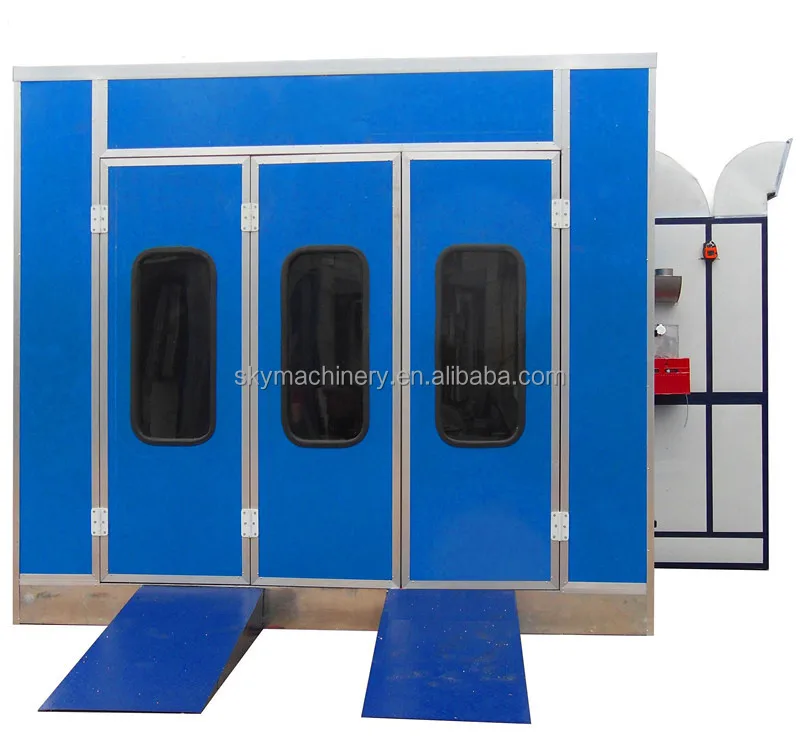

SB 300 SKY best buy spraying oven&car paint booth &car body paint booth

Features:

Total Power 22 KW; 380v/3phase/50hz

Noise < 80 db

1. Walls & Ceiling

- Panels 75 mm thick, with foam in the middle and color steel on both sides

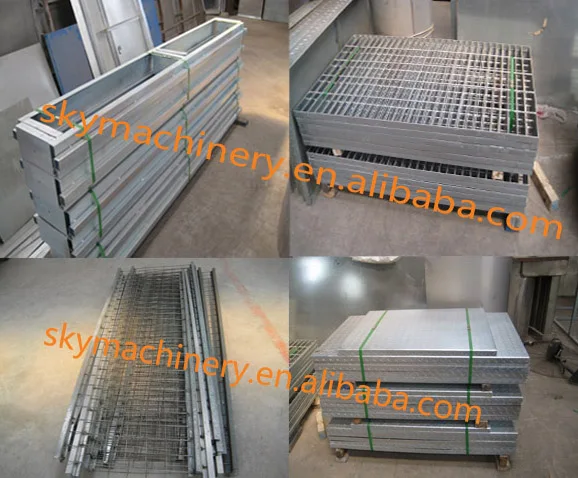

2. Basement System

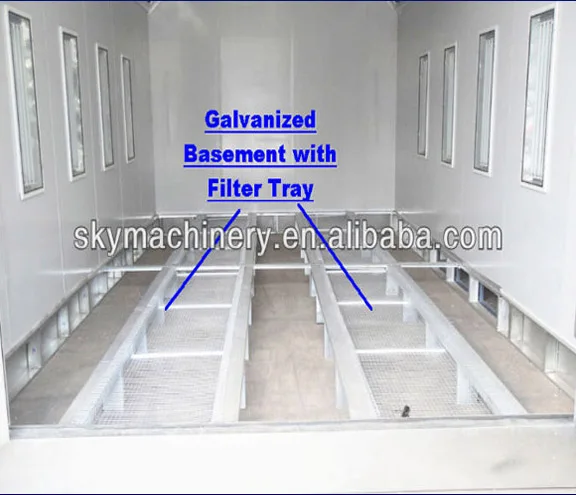

- Metal Pedestal (Galvanized), with Filter Tray* 2rows & Ramps a couple

- Grid Plates (Galvanized)* 2rows

- Diamond Plates (Powder Coated or Galvanized)* 3rows

3. Heating System

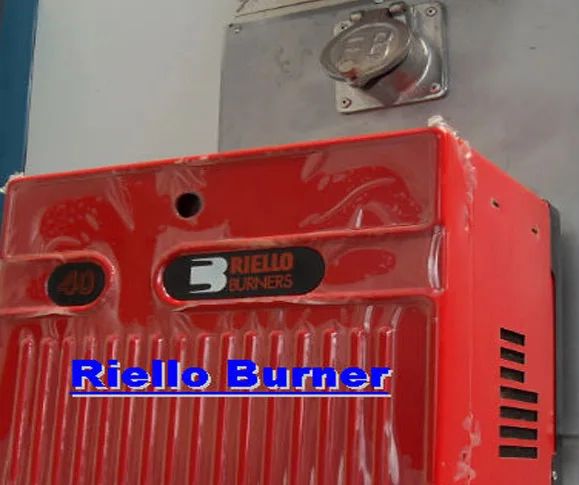

- Diesel Burner (Italy RIELLO, RG5S)* 1unit

- Heating Exchanger (Stainless Steel material)* 1unit

- 5~10 minutes reaching the baking temperature 60~80 degree Celsius

- Cabinet (rock-wool insulation) * 1unit; Air Ducts * 2pcs

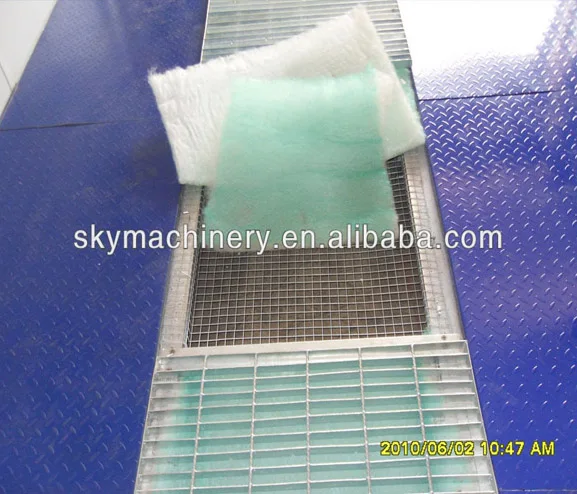

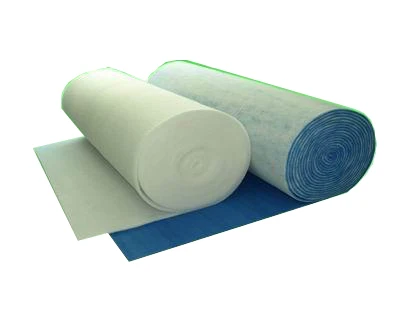

4. Filter System

- Primary Filter* 1set, filtering rate > 83%

- Air-Intake Filter* 1set, filtering rate > 97%

- Air-Exhaust Filter* 1set, filtering rate > 70%

5. Air System

- Air-Intake Fans* 2units, Centrifugal Fans with 5.5 KW motor each

- Air-Exhaust Fan* 1unit, Centrifugal Fans with 7.5 KW motor

- Air velocity 0.30 m/s

- Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (pneumatic)* 1unit

6. Illumination

- Ceiling Lights * 40pcs, 36w each, with Light Fixtures, anti-explosion design

- Side Lights * 32pcs, 36w each, with Light Fixtures, anti-explosion design

7. Control Panel

- *1unit, including Spray Switch, Baking Switch, Light Switch, Emergency Stop, etc.

** Included

- All Hardware, Fasteners, and Sealants
