Product Overview

Description


10W3()

















General Property


  • Input and output electro-optic isolation or transformer isolation.

  • Input constant current control and LED display, control signal and TTL & CMOS logic is compatible.

  • Bidirectional controlled sillion or unidirectional controllable counter-parallel output, zero electric current opening zero electric current shutdown.

  • Power solid state uses the SCR chip counter-parallel output and working is stable.

  • Buit-in resistance-capacitance absorbing circuit, dead zone voltage and small harmonic interference.

  • Higher than of 2.5KV safe isolation voltage between the input output and ledger wall's.

  • Small volume, small input power, non-contact, sparkless, noiseless, non-machinery wear, anti-vibration and the long life.



Main Application

solid state relay.jpg


Model& Meanings


model & meanings.jpg





Interior Schematic Diagram and Basic Property Test


property test.jpg



Features

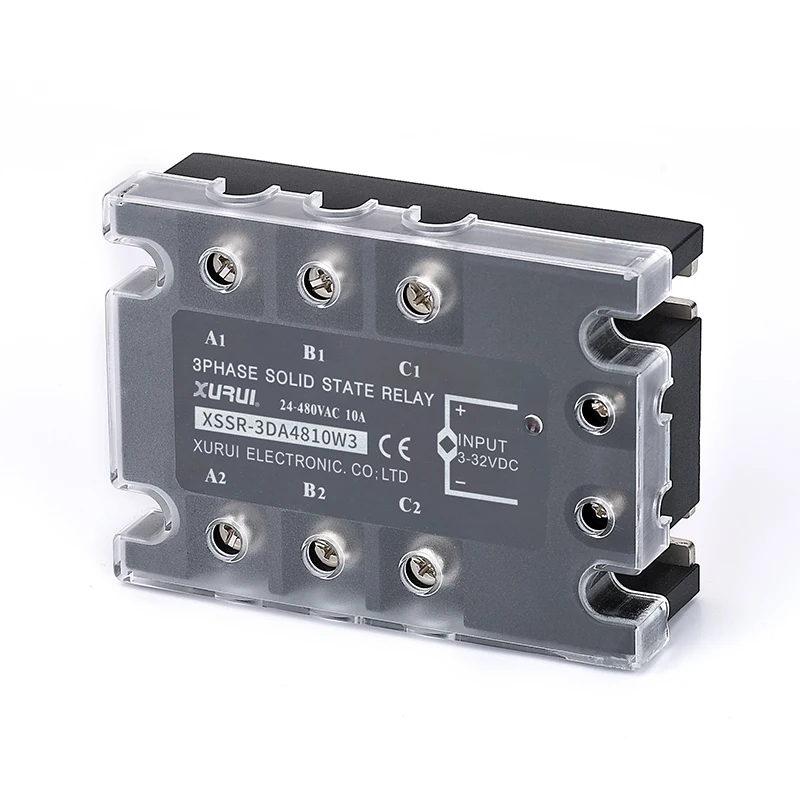

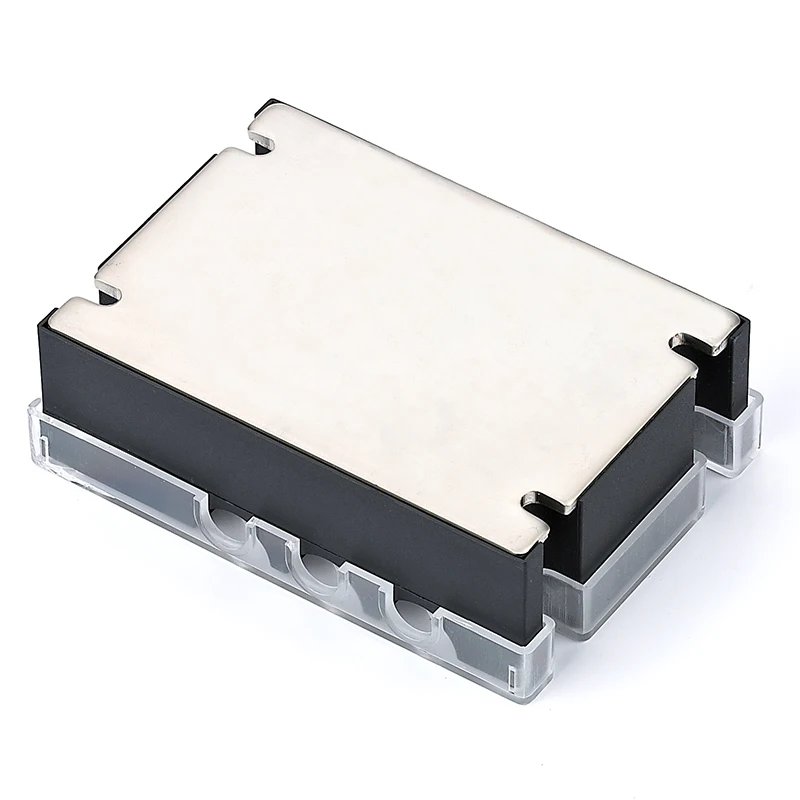

  • Bolt Installation-Horizontal Type Three Phase AC Solid State Relay.

  • Triac/One-way SCR antiparallel NO output.

  • DC-AC DC signal control AC load/AC-AC AC signal control AC load.

  • Optoelectronic devices isolation.

  • Zero crossing/random trigger form.

  • Built-in RC absorbing circuit.

  • LED status indicator.




Technical Specification


















































































Product ModelXSSR-3DA48_W3XSSR-3AA48_W3
Control Voltage3-32VDC80-250VAC
Control Current10-30mA10-30mA
Reverse Voltage32VDC /
Guarantee Close Voltage1VDC30VAC
Guarantee Open Voltage
3VDC
80VAC
Load Voltage24-480VAC
Load Max Current10A-75A
Load Mini Current0.06A
Breakover Voltage≤1.6VAC
Output Leakage Current≤8mA
Medium Withstand Voltage≥2500VAC
Insulating Resistance≥100MΩ
Switching Time≤10mS
Frequency Range50-60HZ
Operating Temperature-20-70℃
Load Current Safety Factorresistive load 50-60%
inductive load 30-40%



Characteristic Curve

Characteristic Curve.png


Outshape Dimension & Connection Diagram

XSSR-W3Outshape Dimension.png
