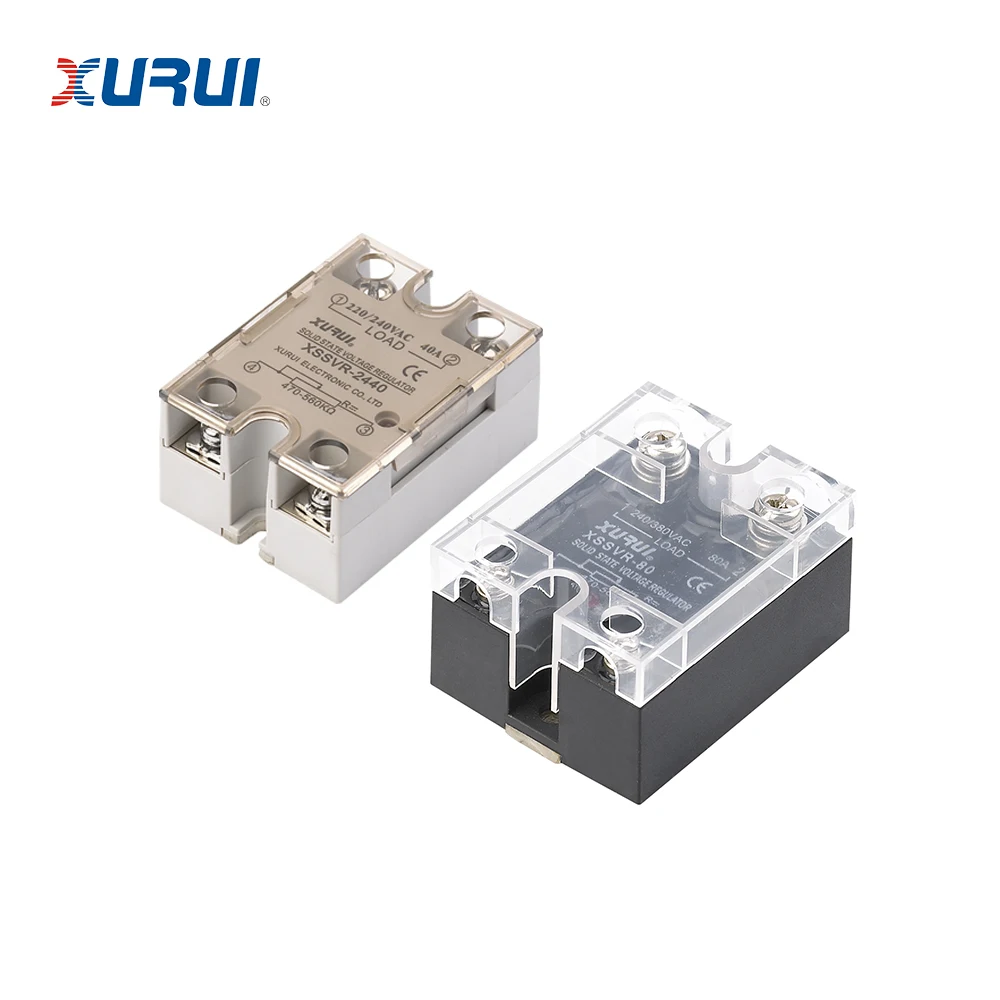

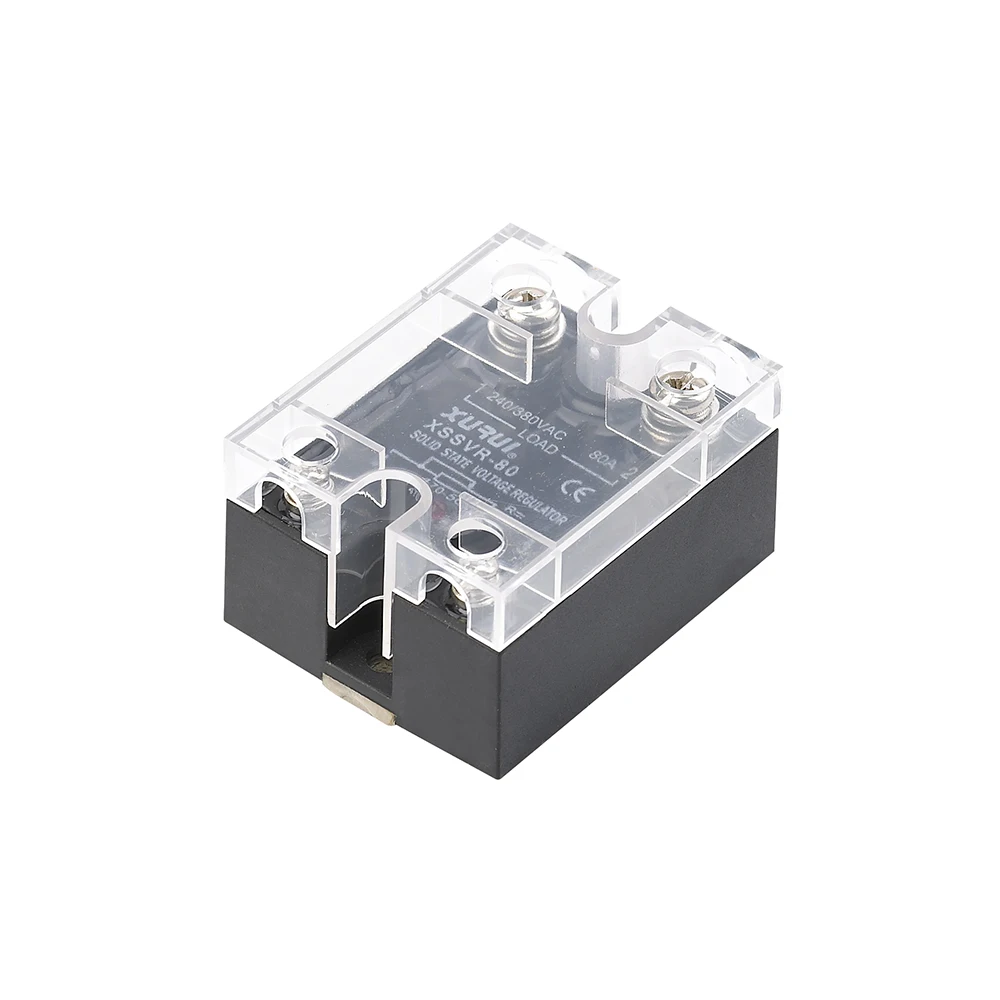

single phase ac solid state voltage regulator 0 480VAC
- Category: >>>
- Supplier: Zhejiang Xurui Electronic Co. Ltd.
Share on (2010503591):
Product Overview
Description
• Bolt installation-Horizontal Type.
Adjusting Resistance type single-phase SSVR.
• Triac phase shift output.
• Potentionmeter adjustment output power.
•LED Status Indicator.

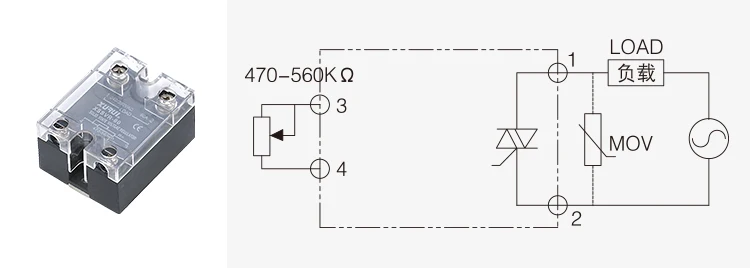

| Product Model | XSSVR-W1 / W2 | |
| External potentionmeter | 470-560KΩ / 0.5-2W | |
| Conduction angle range | 0-170° | |
| Load voltage | 0-240/380VAC 0-480VAC | |
| Load max current | 10A-40A / 50A-200A | |
| Load mini current | 0.05A | |
| Load Voltage | 24-240VAC | |
| Breakover Voltage | ≤2VAC | |
| Output Leakage Current | ≤1mA | |
| Medium withstand voltage | ≥2500VAC | |
| Insulating resistance | ≥100MΩ | |
| Frequency range | 50-60HZ | |
| Operating temperature | -20-70℃ | |
| Load current safety factor | resistive load 50-60% | |
| inductive load 30-40% | ||
