Пассажирский лифт для жилых помещений/дома/офиса/гостиницы/обслуживания

Product Overview

Description



SMR ELEVATOR CONSTRUCTION LAYOUT DRAWING AND SPECIFICATION



Small machine room passenger elevator construction parameters
Loading capacity(Passenger)		630kg(8 Passengers)			800kg(10 Passengers)					1000kg(13 Passengers)					1250kg(16 Passengers)					1600kg(20 Passengers)
Rated speed(m/s)		1.0	1.5	1.75	1.0	1.5	1.75	2.0	2.5	1.0	1.5	1.75	2.0	2.5	1.0	1.5	1.75	2.0	2.5	1.0	1.5	1.75	2.0	2.5
Door opening size(mm)		800*2100			800*2100					900*2100					1000*2100					1100*2100
Car size(mm)	Width	1400			1400					1600					1700					1900
	Depth	1100			1350					1400					1500					1800
	Height	2400			2400					2400					2400					2400
Hoistway size(mm)	Width	2000			2000					2200					2300			2500		2500			2600
	Depth	1700			1950			2150		2000			2200		2200			2400		2500			2650
Machine room size(mm)	Width	2000			2000					2200					2300					2500
	Depth	3000			3400					3450					3450					3750
	Height	2200			2200			2500		2200			2500		2200			2500		2200			2500
Top floor height(mm)		4400	4500	4600	4400	4500	4600	4900	5100	4400	4500	4600	4850	5100	4500	4600	4700	4900	5100	4500	4600	4700	4900	5100
Pit depth(mm)		1400	1500	1500	1400	1500	1500	1700	1900	1400	1500	1500	1700	1900	1400	1500	1500	1700	1900	1400	1500	1500	1700	1900
Max travelling height(mm)		40	60	70	40	60	70	100	120	40	60	70	100	120	40	60	70	100	120	40	60	70	100	120



MRL ELEVATOR CONSTRUCTION LAYOUT DRAWING AND SPECIFICATION



Machine roomless passenger elevator construction parameters
Loading(kg)	Speed	Drawing	Max rising(m)	Max floors	Car dimension CWxCDxCH(mm*mm*mm)	Door size OPxOPH(mm*mm*)	Door opening	Shaft dimension(mm*mm)	Standard pit   PD(mm)	Min.overhead   OH(mm)	Power
320	0.3	DCH320-01	12	5	800*1200*2100	800*2000	2 panel side opening	1500*1550	1100	3300	220v/1p
400	0.3	DCH400-01	12	5	900*1200*2100	800*2000	2 panel side opening	1600*1550	1100	3300	220v/1p

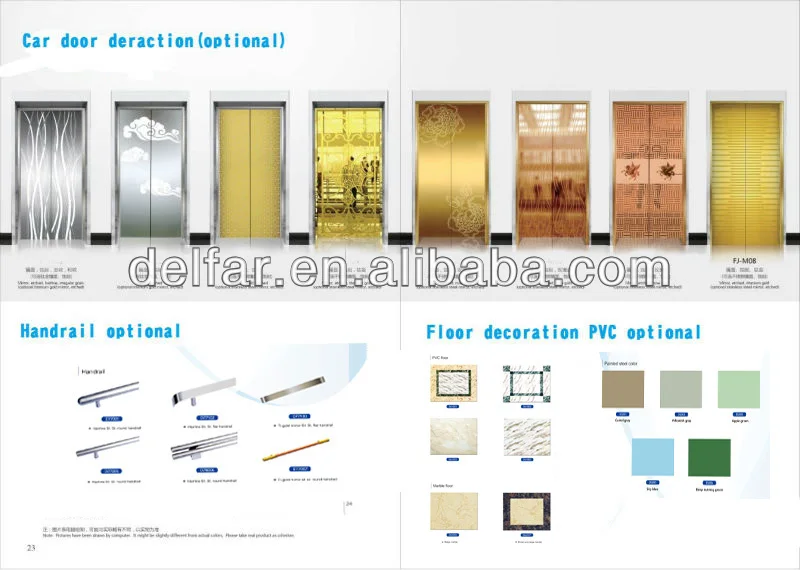

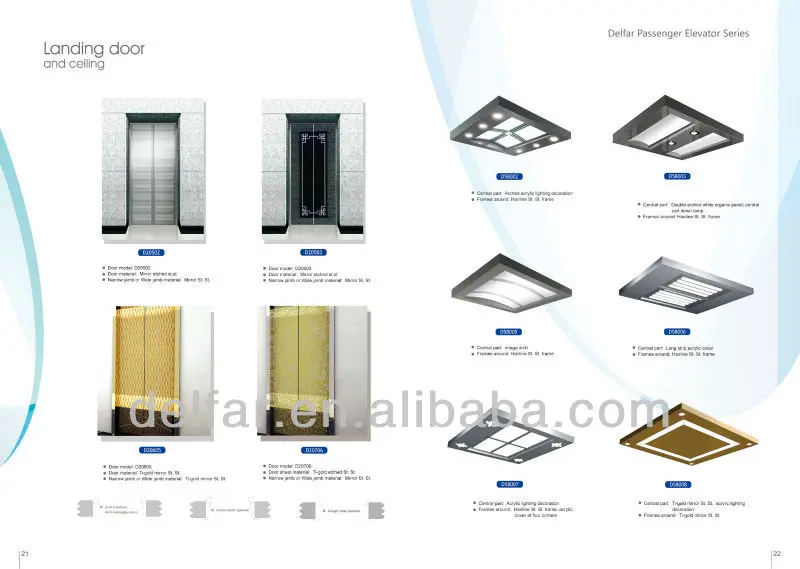

Products picture show

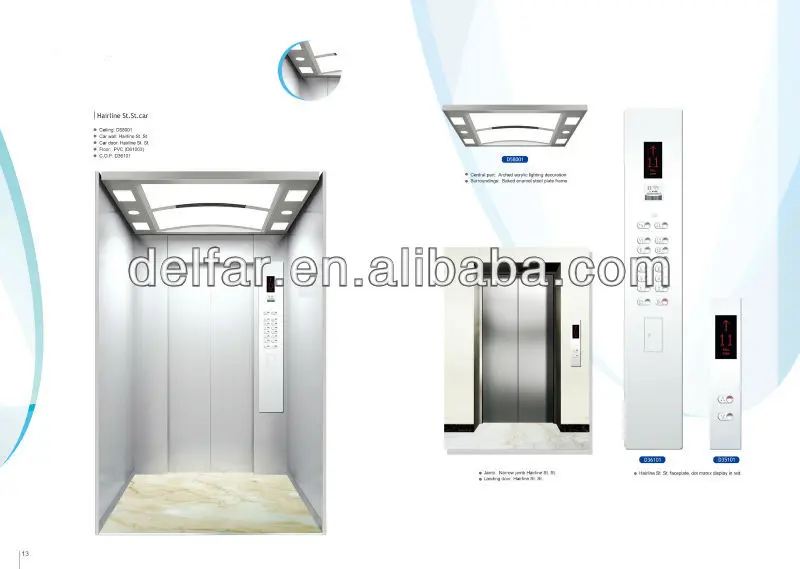

Standard-Manner

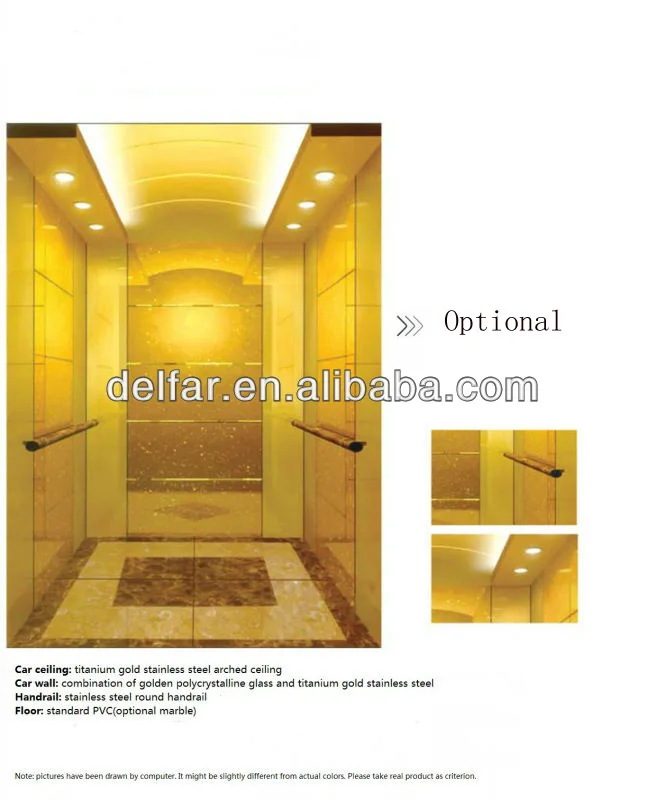

Luxury classic-Manner car

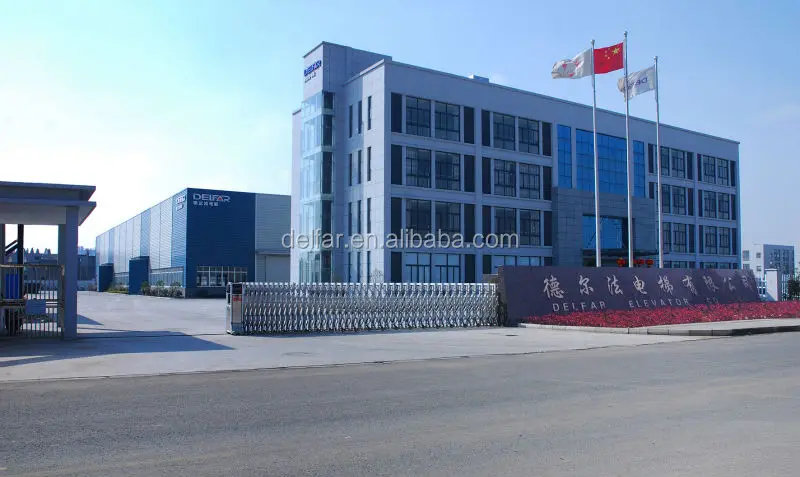

About DELFAR

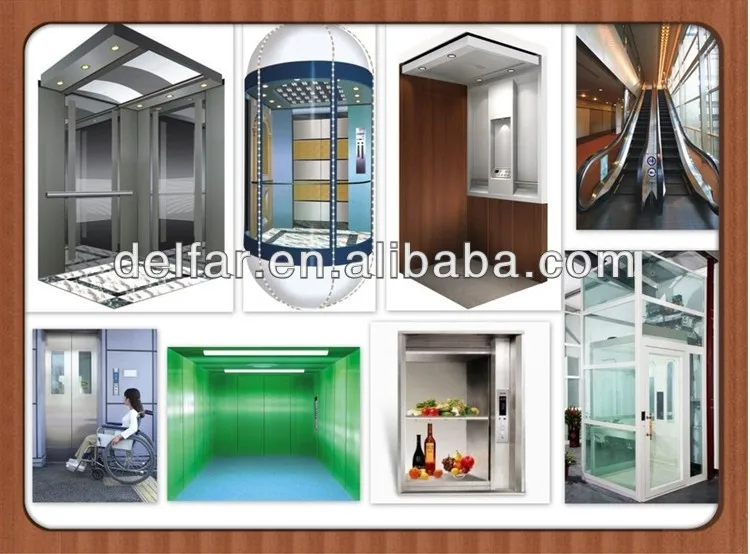

The company has rich product varieties. We can satisfy diverse requirements from various users. The products scope covers passenger elevator, observation elevator, bed elevator, freight elevator, hydraulic elevator, car elevator, small machine room elevator, machine room-less elevator, home elevator, dumbwaiter, escalator and moving walk. The superior service guarantees the outstanding product performance.  In order to satisfy the requirements from different areas, users and levels, the company has established one-continuous-line of highly-efficient work system from elevator design, manufacture, installation, modernization and maintenance.

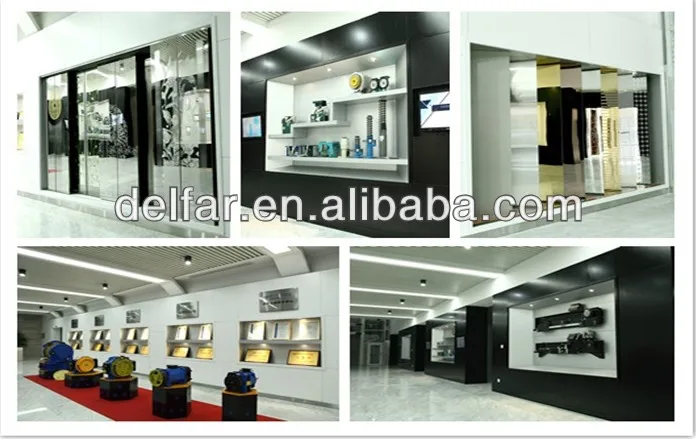

1.Exhibition Zone:

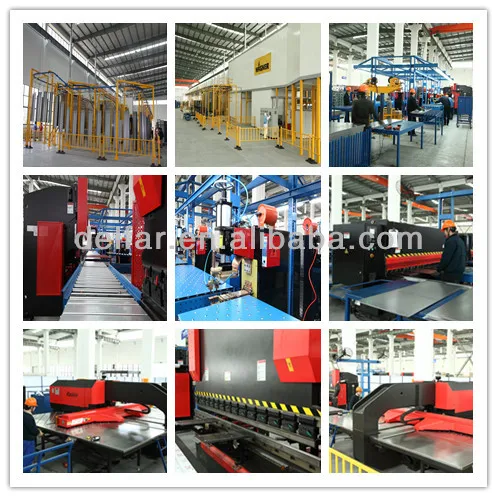

2.Equipemnts:

3.Certificates:

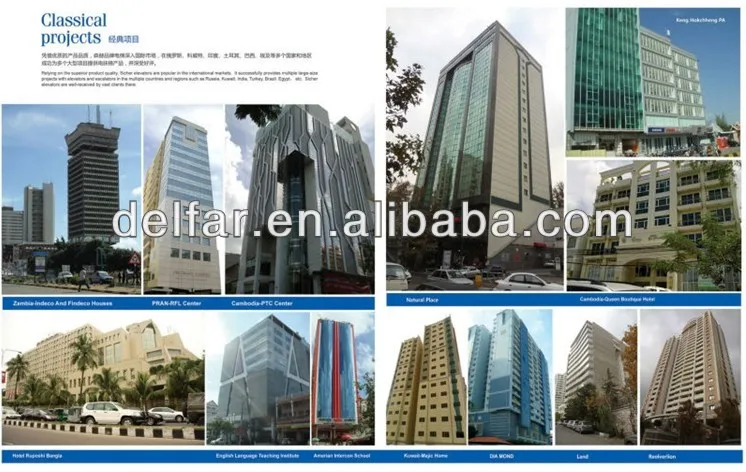

4.Our projects:
