HIWIN HGH20HA Linear Guide for cnc machine

1.HIWIN HGH20HA linear guide

We are professional HIWIN LM guide and block supplier,can supply HGH,HGW,EGH,EGW,MGN,MGW,RGH,RGW etc series.We have large quantity HIWIN products in stock now,and we are near the Tianjin port,can delivery the products very timely.Our machines and engineers are all from Taiwan,can cutting the guide rail according to your require length, ensure cheap price and guaranteed quality.

2.HIWIN linear guide characteristics :

1. High positioning accuracy.

2. Less wear long time to maintain the accuracy.

3. Apply high speed movement and reduce the power needed to drive.

4. At the same time the up and down or so under the direction of the load.

5. Easy assembling with interchangeability.

6. Lubrication structure simple.

3.Types of  Hiwin linear guide:

HGH type:High assembly square model.

HGW type:High assembly flange form type.

EGH type: Low assembly square locked type type.

EGW type: Low assembly flange form type.

MGN type: Miniature guide rail type.

MGW type:Small small-sized.

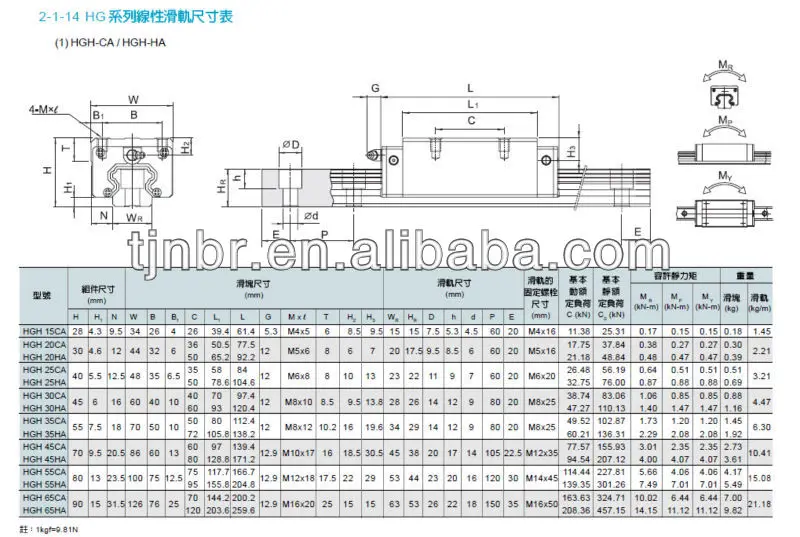

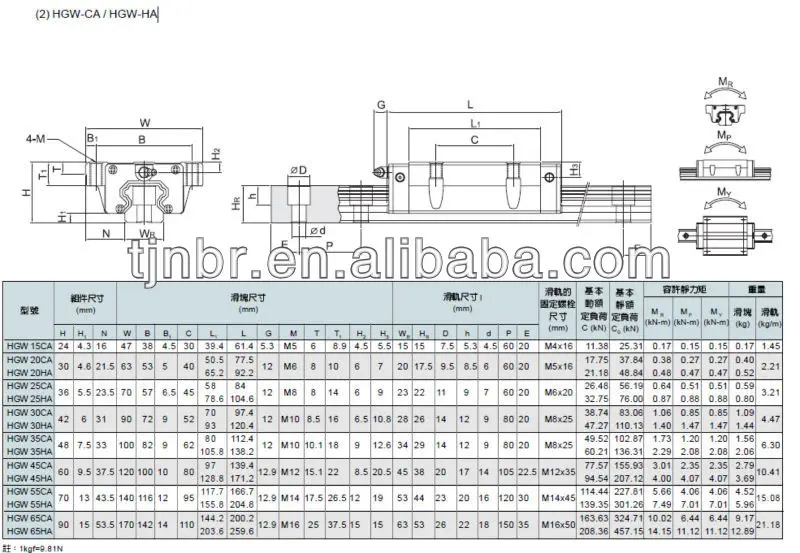

4.HIWIN HGH20HA Linear Guide specification:
