Ламинированные колпачки для воздушного потока 99.99%, высокопроизводительный фильтр HEPA H13 с глубокой сборкой
- Category: Industrial Filtration Equipment >>>
- Supplier: Dongguan Senbao Purifying Equipment Co. Ltd.
Share on (2011971836):
Product Overview
Description
Laminar Air Flow Hoods 99.99% High Capacity Deep Pleat HEPA Filter H13
Product Description
Application
Separator Hepa air filter is applied to dead-end filtration of the cleanroom and many
kinds of cleaning equipment .

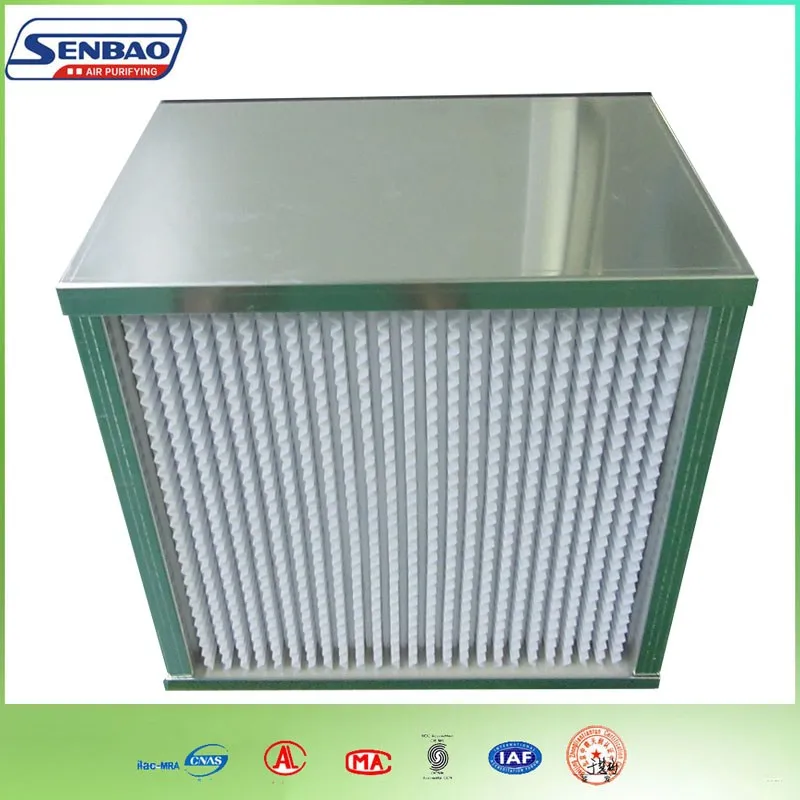

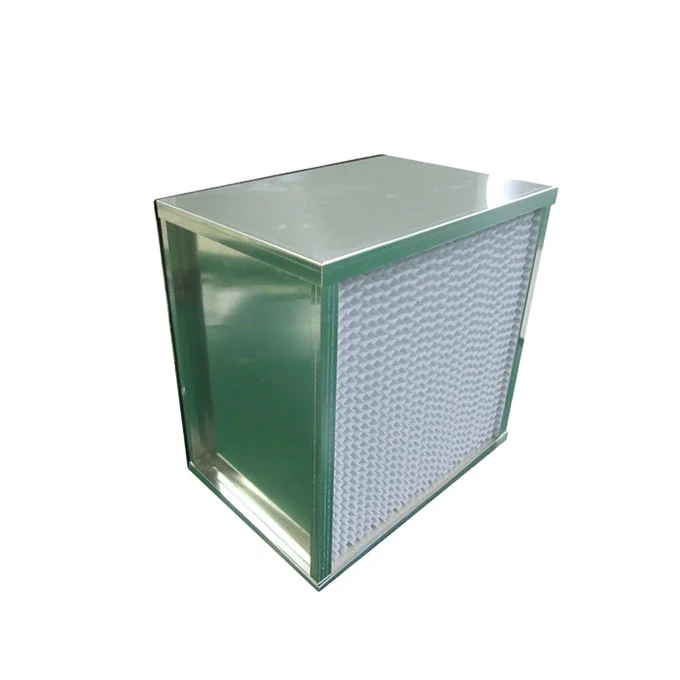

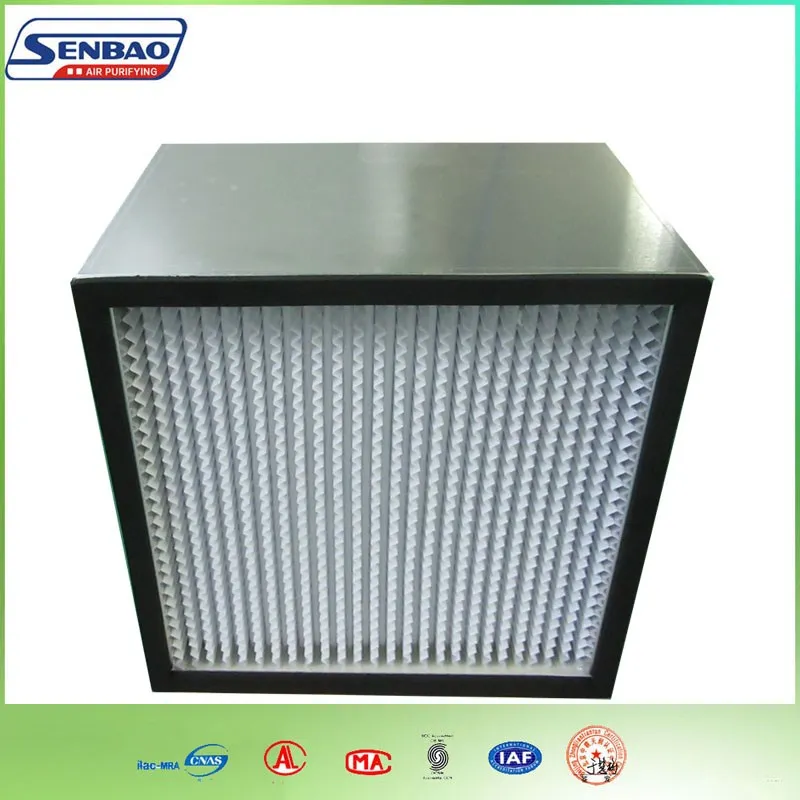

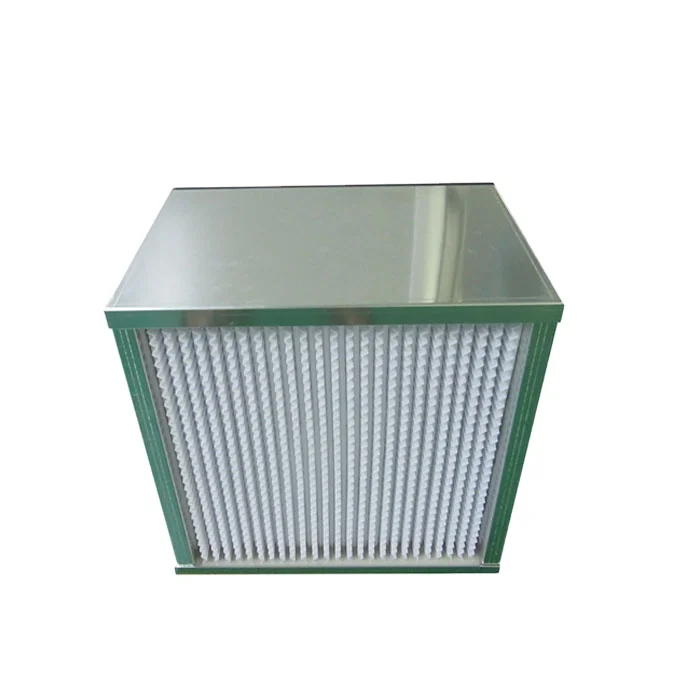

Product show
Specification
Frame | Aluminum alloy; Galvanized steel |
Filter media | wet-laid glass fibre paper |
Separator | Aluminum foil / Paper |
Sealant | Polyurethane |
EN779 class | H11, H12, H13, H14 |
Final pressure drop | 450Pa - 500Pa |
Maximum air flow rate | 125% of nominal air flow rate |
Max operating temperature | 80°C |
Humidity | ≤100% RH |
Technical data
Dimension (mm) H*W*D | Rated air flow (m3/h) | Initial pressure drop (Pa) |
320x320x220 | 400 | ≤200 |
484x484x220 | 1000 | ≤200 |
610x610x150 | 1000 | ≤200 |
600x820x150 | 1200 | ≤200 |
630x630x220 | 1500 | ≤200 |
484x968x220 | 2000 | ≤200 |
630x945x220 | 2200 | ≤200 |
630x1260x220 | 3000 | ≤200 |
610x305x292 | 1000 | ≤200 |
610x610x292 | 2000 | ≤200 |
Note: special size available upon request.
Company Information
Please do not hesitate to send your inquiry to us ,you can find us any time !maybe you can get the free sample and big discount !
