vertical axis Wind & solar hybrid street light
- Category: >>>
- Supplier: Tangshan Toyoda Technology Co. Ltd.
Share on (2012815724):
Product Overview
Description

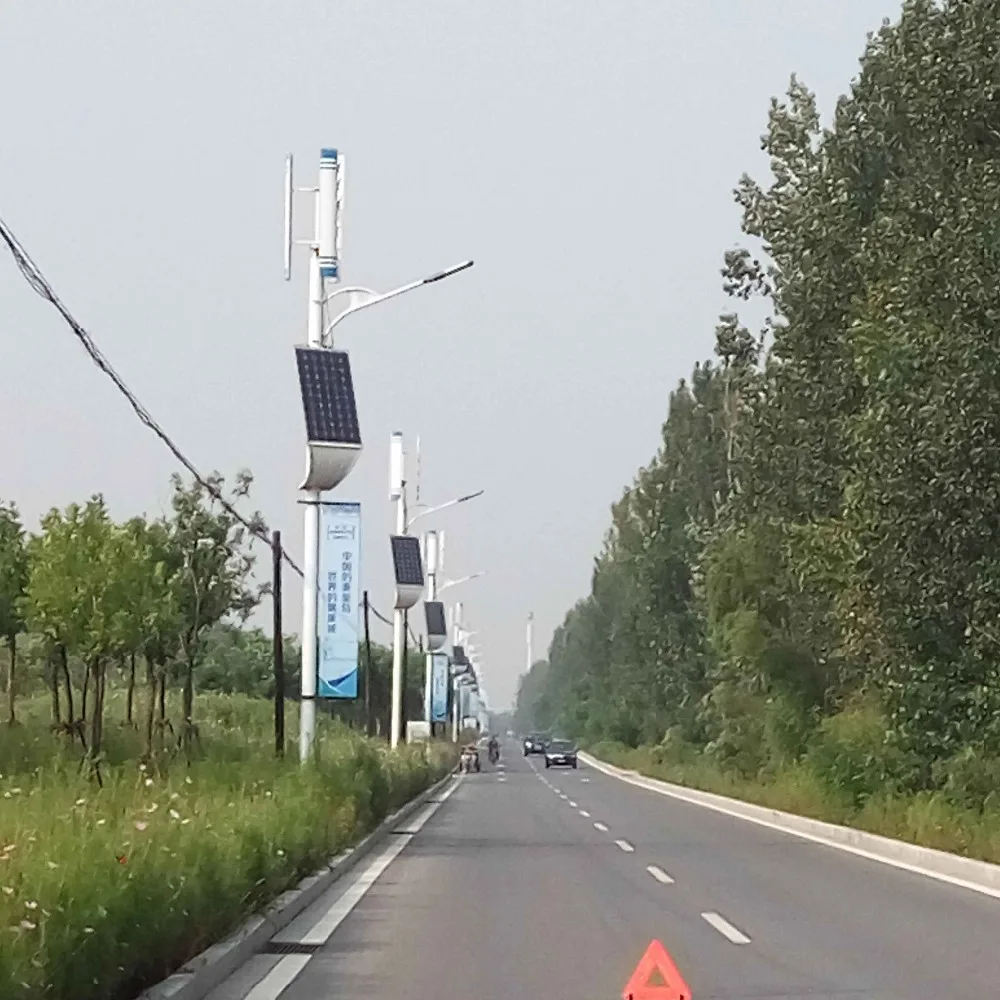

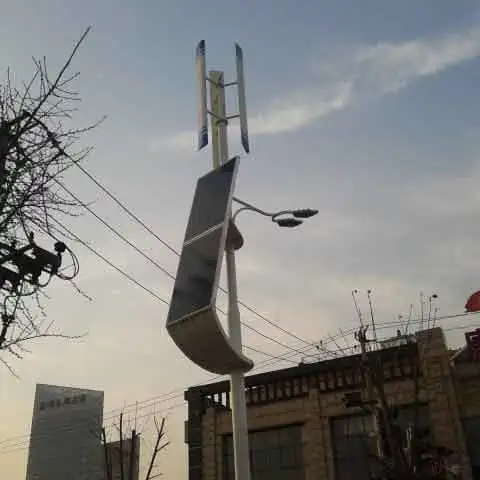

wind solar hybrid street light is consisted of vertical axis wind turbine, solar panel, wind solar hybrid controller, led lamp, gel battery, pole, etc.
Advantage:
1. green resource power system combined wind power with solar power
2.independent power supply and there is no need for electric wiring; continous power supply, emergency lighting in natural disasters.
3. it can be installed on streets, parks, and schools, etc; safe, noise-free, vibration-free, and will not hinder the spread of signals.
4. independently designed and developed long life, high brightness LED lights.
Details as following:
Power | Wind 300W+ Solar240W | |
vertical axis wind turbine | Start-Up Wind Speed | 1.0m/S |
Cut-In Wind Speed | 1.5m/S | |
Rated Wind Speed | 12m/S | |
Subsistence Wind Speed | 60m/S | |
Blades | Length | 1.5 m |
Diameter | 1m | |
Number Of Blades | 3pcs | |
Material | Erosion Resistant Aluminum | |
Generator | Type | Disk Type Ironless Rare Earth Permanent Magnet AC Generator |
Driving Mode | Direct | |
Rated Rotating Speed | 300rpm | |
Rated Output | 300W | |
Cover Material | Erosion Resistant Aluminum | |
Pole | Height | 9m |
Diameter | 215mm | |
Material | Carbon Steel Pipe | |
Coat | Powder Spraying, Melted Galvanizing | |
Solar Panel | Solar Module | Polycrystalline Silicon Solar Module 240W/24V |
Lamp | LED | 60W |
Height | 8m | |
Working Time | 12 Hours/ Day (365 Days) | |
Battery | Type | Gel Battery |
Quantity | 100AH/12V*2PCS | |
Working Time | Continuous 3 To 5 Days, 70% Depth Of Discharge | |

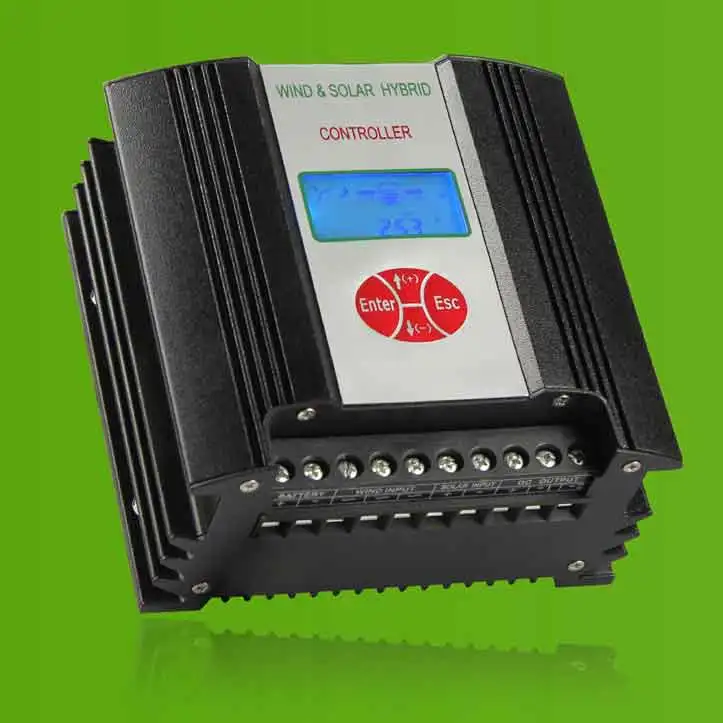

Controller | Intelligent Controller | Adjusting Brightness Function, Light Control On And Light Control Off |
Environmental parameters:
1. Annual average wind speed is not less than 2.0m / s.
2. Solar energy resource class Ⅲ region;
Street light functions:
1. Control the lamp on and off by light and time.
2. Adjust brightness of the led lamp, so can save some energy.
3. The width of street light is 6m, the distance between two street lights is 25m to 35m.
