Sinocastel IDD 213GD 2G Car Tracking Device with Diagnostic Trouble Code Scanner OBD ii GPS Tracker
- Category: GPS Tracker >>>
- Supplier: Sinocastel Co. Ltd.
Share on (2013585154):
Product Overview
Description
Products Description

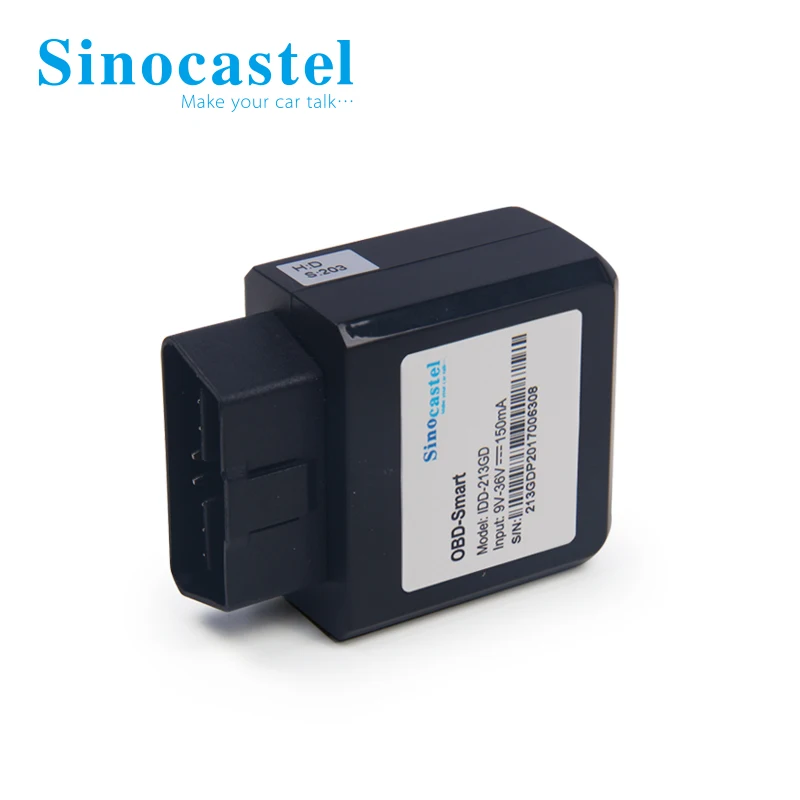

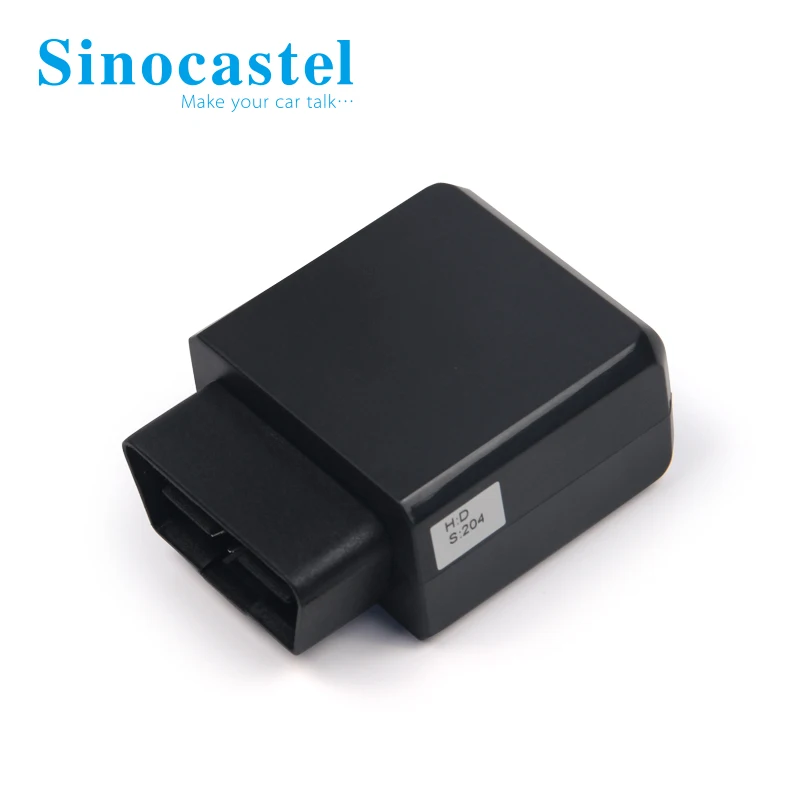

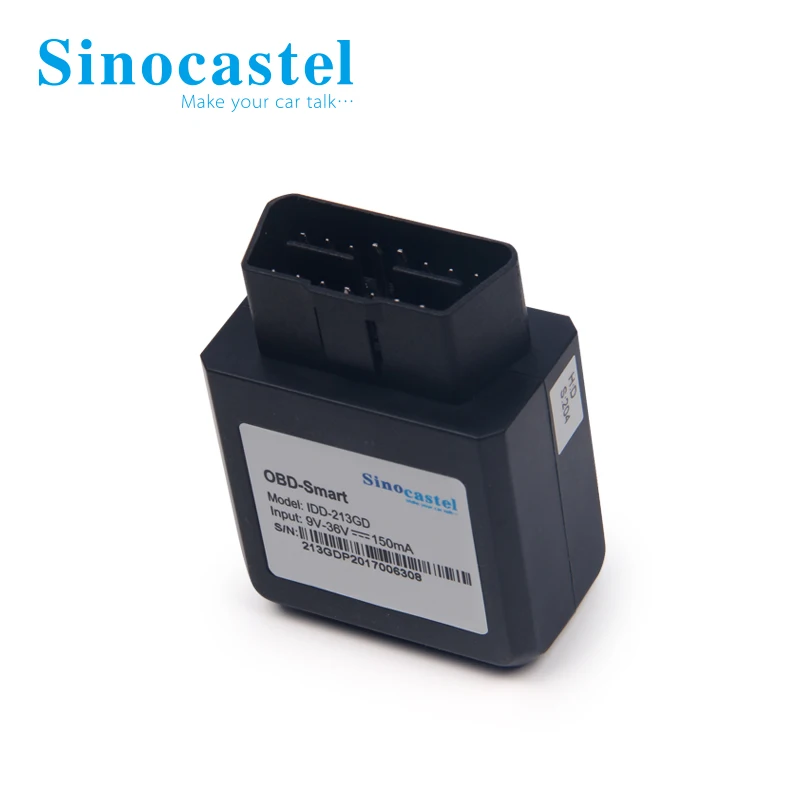

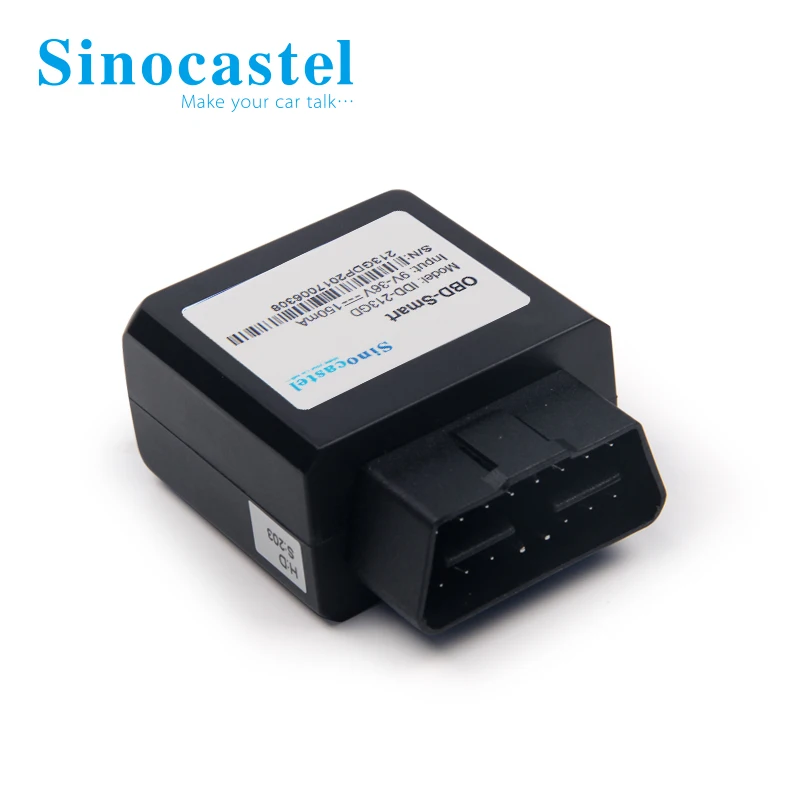

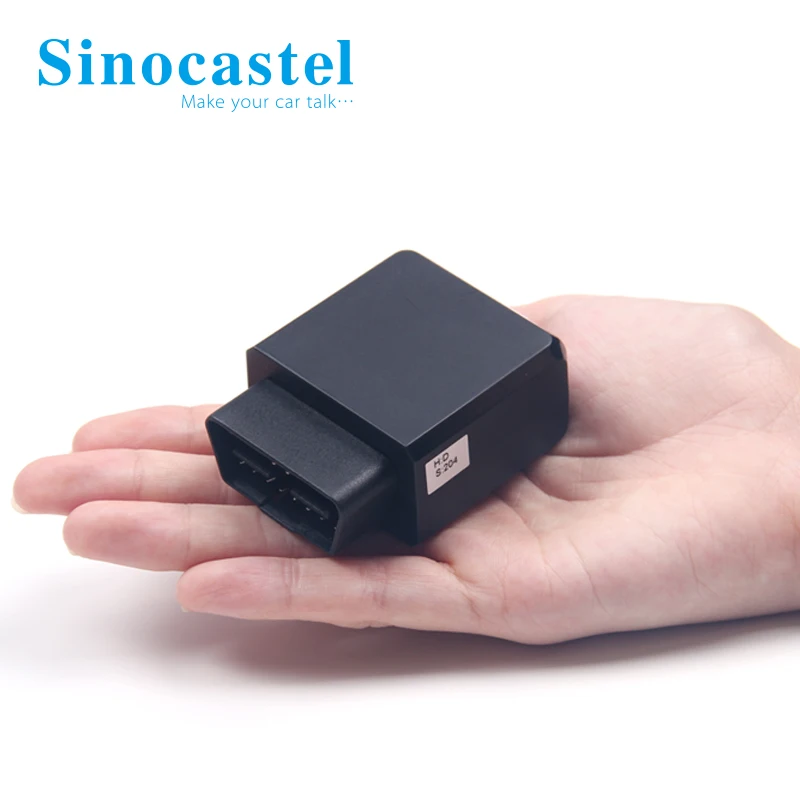

OBD ii GPS Car Tracking Device IDD-213GD
IDD-213GD is an intelligent on-board diagnostic device compatible with passenger and commercial vehicles, it features plug-and-play technology, could read diagnostic info from vehicle ECU and capture location data, then send them to backend server for real-time remote diagnostic and tracking purpose.
OBD ii GPS Car Tracking Device IDD-213GD | ||
Size | 63mm (L) x 48mm (W) x 28mm (H) | |
Weight | 50g | |
Interface | OBD interface: 16 pin standard OBD II Configuration interface: Micro-USB SIM card interface: Push-Push Type | |
Data transmission | GPRS/SMS | |
Positioning method | GPS | |
Storage | 2MB FLASH, up to 24,000 GPS data storage | |
OBD protocol | SAE J1850 PWM SAE J1850 VPW ISO 9141-2 ISO 14230-4 ISO 15765-4 SAE J1939 SAE J1587/J1708 | |
Working Voltage | 9-36V DC | |
Working Current | Max.: <200mA@13.8/27.6VDC Average: <150mA@13.8/27.6VDC Sleep mode: <10mA@12/24VDC | |
Backup battery | 3.7V/160mAh | |
GPS | Channels: 66 Sensitivity: -165dBm Accuracy: 5m CEP Time to first fix: Cold start: <35s (typ.) Hot start: <1s (typ.) | |
Cellular | Frequency: GSM/GPRS: 850/900/1800/1900MHz Network protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W, 33dBm)@850/900MHz Class 1 (1W, 30dBm)@1800/1900MHz | |
Driving behavior detection | 6-axis IMU | |
LED Indication | GPS/Cellular/OBD indication | |
Cellular | Internal | |
GPS | Internal | |
Accessories | Configuration cable OBD II extension cable 9-Pin deutsch wiring harness 6-Pin deutsch wiring harness Power cable | |
Working Temp. | -30℃ ~ +70℃ | |
Storage Temp. | -40℃ ~ +85℃ | |
Humidity | 5%～95%（no fog） | |
OBD ii GPS Car Tracking Device IDD-213GD Main Functions
* Real-time tracking
* Read diagnostic data, including vehicle speed, RPM, ECT etc.
* Read diagnostic trouble codes and freeze frame data
* Mileage statistic
* Fuel consumption statistic
* Driving behavior monitoring, including speeding, hard acceleration, hard deceleration, excessive engine idle time etc.
* Support passenger car / heavy duty / tracker mode
* Read diagnostic data, including vehicle speed, RPM, ECT etc.
* Read diagnostic trouble codes and freeze frame data
* Mileage statistic
* Fuel consumption statistic
* Driving behavior monitoring, including speeding, hard acceleration, hard deceleration, excessive engine idle time etc.
* Support passenger car / heavy duty / tracker mode
* Up to 24,000 GPS data storage
* Data reporting according to time interval, distance and heading change
* Data reporting according to time interval, distance and heading change
* Ignition on/off detection
* Vehicle battery monitor
* Base station ID report (when no GPS signal)
* Internal battery for unplug notification
* Alarms and events
* SMS alarm to user phone
* Connect backend server via domain or IP address
* Google Map link in location SMS
* OTA FW update
* Vehicle battery monitor
* Base station ID report (when no GPS signal)
* Internal battery for unplug notification
* Alarms and events
* SMS alarm to user phone
* Connect backend server via domain or IP address
* Google Map link in location SMS
* OTA FW update
Shipment & Service
Company Profile
OBD ii GPS Car Tracking Device Manufacturer
Established in 2007,Sinocastel is a national high-tech manufacturer integrating R&D, production, sales & operation,focusing on the research and production of GPS telematics and solutions.
Our main products include: obd tracker,GPS/ Beidou trackers for all kinds of vehicles, hardwired GPS tracker, asset GPS
tracker,T-BOX, children & elderly smart watch and GPS tracker, and pet GPS tracker,which have one or more communication modes such as Bluetooth,GSM, CDMA, WCDMA, and LTE. The hardwares and solutions have been widely used in fleet management, car insurance UBI,telecom industry, car rental business and family care service.
Our company's sub-meter car GPS/Beidou tracke has excellent performance with low cost and high precision.All products have different domestic and international standards for different countries, such as CCC, CE, FCC, Rohs, EMARK,NATEL,AT&T, PTCRB, JATE and TELEC certifications.
Our main products include: obd tracker,GPS/ Beidou trackers for all kinds of vehicles, hardwired GPS tracker, asset GPS
tracker,T-BOX, children & elderly smart watch and GPS tracker, and pet GPS tracker,which have one or more communication modes such as Bluetooth,GSM, CDMA, WCDMA, and LTE. The hardwares and solutions have been widely used in fleet management, car insurance UBI,telecom industry, car rental business and family care service.
Our company's sub-meter car GPS/Beidou tracke has excellent performance with low cost and high precision.All products have different domestic and international standards for different countries, such as CCC, CE, FCC, Rohs, EMARK,NATEL,AT&T, PTCRB, JATE and TELEC certifications.
FAQ
FAQ about OBD ii GPS Car Tracking Device IDD-213GD & Sinocastel
Q2.How about the quality of your device?
A: Most of our products have been approved by CE,FCC,PTCRB,CCC and Anatell certification to ensure good quality and stable performance.Our factory passed ISO9001:2015 and TS16949 quality management control system of strict production process.
Q3. What’s the warranty?
A: The warranty is 1 year.
Q4. What’s the lead time?
A: For samples: 1-2 days against full payment arrival. For bulk Orders: 4-6 weeks against the deposit arrival.
Q5. What’s the shipping time?
A: Normally is 3-5 days from DHL/Fedex/UPS/TNT door-to-door services.
Q6. What’s the payment method?
A: You can pay via PayPal, Western Union and Bank transfer.
