High Speed Side Sealing PP Bread Bag Making Machine

Product Overview

Description

Specifications:

PE/PP/OPP/BOPP/POF Double Sides Hot Sealing and Cutting Bag Making Machine

(1) It's able to process PE (HDPE/LDPE/LLDPE), PP, OPP, BOPP, POF etc plastic film.

(2) Maximun bag making speed could reach 230-250Pcs/min

(3) Micro-computer for easy operation & Inverter for controlling the whole machine

(4) 24 hours working, higher capacity, lower labor consumption

(5) 1 person is enough to operate this machine



High Speed Side Sealing PP Bread Bag Making Machine



Usage:

(1) The double sides sealing bag making machine is widely applied for applying PE (HDPE/LDPE/LLDPE), PP, OPP, BOPP or POF etc thermal contracting plastic film to produce printing or non printing side sealing bags.

(2) The produced thermal side sealing bag could be used as sock bag, towel bag, bread bag, ornament bag, stationery packing bag (such as pen, ruler, notebook etc), clothes bag or electrical parts bag etc package bags.

(3) This machine is ideal machine for producing thermal side heating & cutting bag/ double side sealing bag.



Performance and Features:

(1) The lateral side sealing machine equips with micro-computer (for easy operation) and Best Brand Inverter for controlling the whole machine.

(2) The film material feeding is controlled by Stepper motor (Japanese YASKAWA Brand Servo Motor is optional) and DC motor (works match with photoelectric switch).

(3) Equips with inline slitting and top flag inline folding device, ensure it's able to process PE or PP tube film roll material.

(4) With inline gusset device to make gusset on the bottom of side sealing bags, automatic self adhesive tapes inline adhere device, to adhere the self adhesive tapes on the bags automatically inline when makes bags.

(5) Automatically punching round shape holes or butterfly shape holes or irregular shapes holes on the bags automatically, when no need make holes, just move the puncher device away.

(6) Equips with inline gusset device to make bottom gusset on the thermal sealing bag.

(7) Automatic computer controlled arbitrary length fixed function, automatic bag's number counting, when the bag's quantity approach the preseted bag's number, the machine will alarm or stop automatically.

(8) Digital conatsant temperature controller, firm and smooth sealing, automatic alram system, when there is no material, the machine will alarm or stop automatically.

(9) Photocell electric tracking system for making printed bags, when the label of printed bag is lost, the machine will alarm or stop automatically.

(10) The machine equips with 2 sets cutting knives, one is straight cutting knife, the other is teeth cutting knife, for making diffetent style side sealing bags separately.



Main Technical Parameters:

Model	RQL-600	RQL-700	RQL-800	RQL-900
Max. Bag Height	500mm	600mm	700mm	800mm
Max. Bag Width	In standard, Max bag width is 700mm, if you have special requirement, please kindly let us know
Max Bag Making Speed	230-250pcs/min	230-250pcs/min	230-250pcs/min	230-250pcs/min
Total Power	About 4KW	About 5KW	About 6KW	About 7KW
Weight of Machine	About 650KG	About 700KG	About 750KG	About 800KG
Overall Dimensions(L*W*H)	3.3*1.0*1.7M	3.3*1.0*1.7M	3.3*1.0*1.7M	3.3*1.0*1.7M

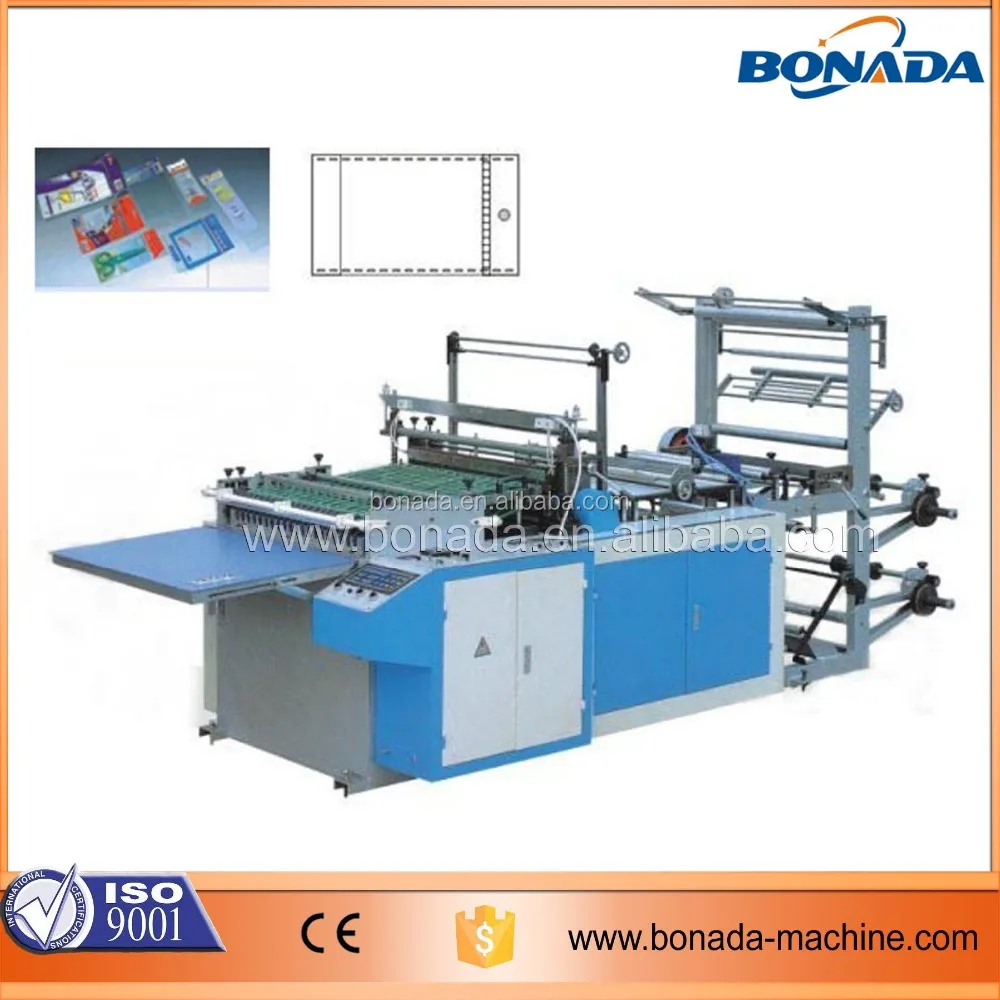

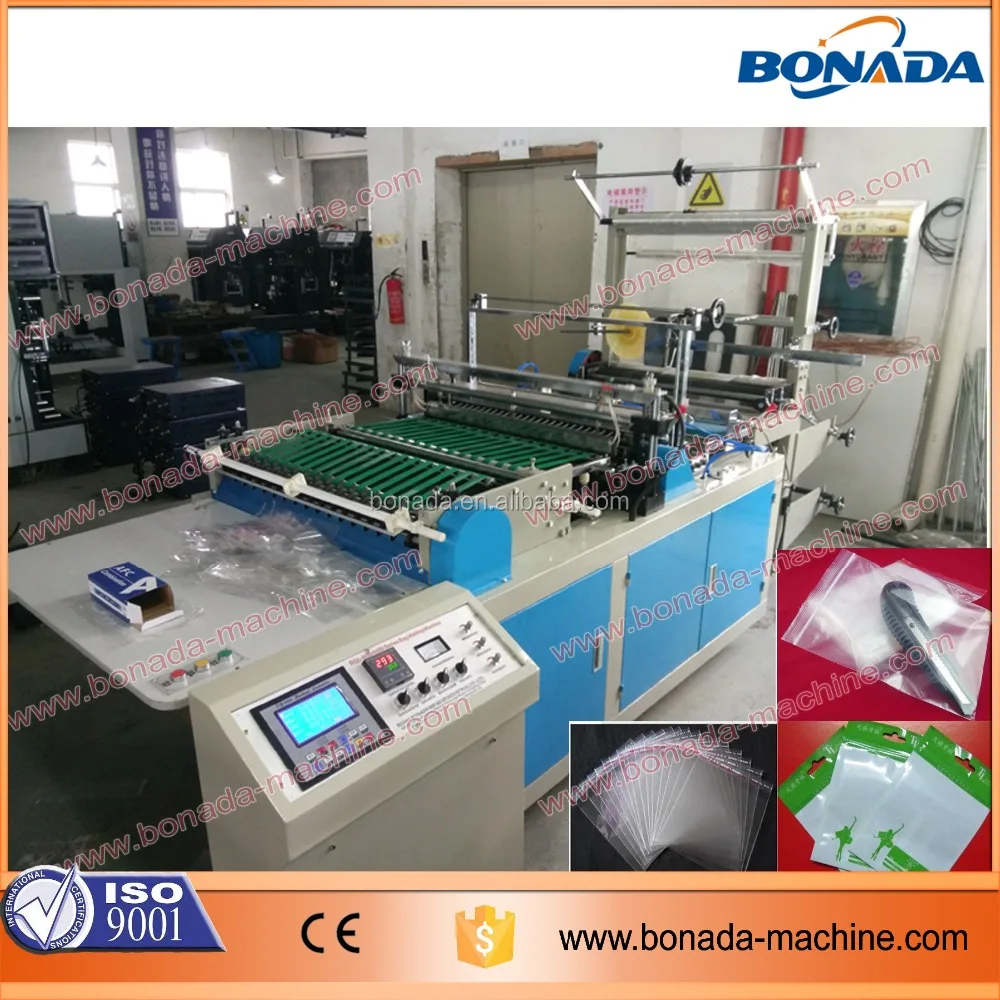

BOPP/OPP/CPP Side Sealing Machine's Pictures:

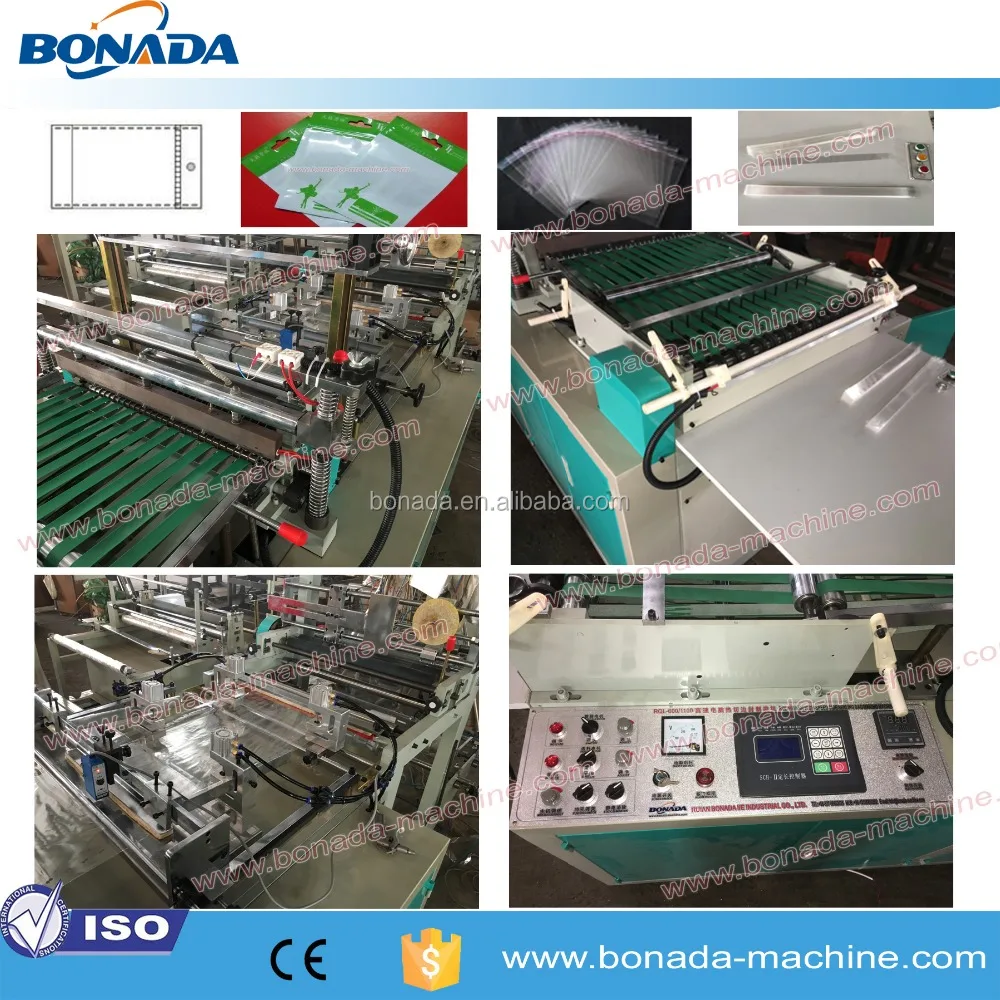

Machine detailed picture:

Product Sample Show:
