TAIWAN Manufacture High tensile strength for PU Coil Hose
- Category: >>>
- Supplier: TAIWAN POLY-URETHANE INDUSTRIAL CO. LTD.
Share on (2014724682):
Product Overview
Description
Product Description

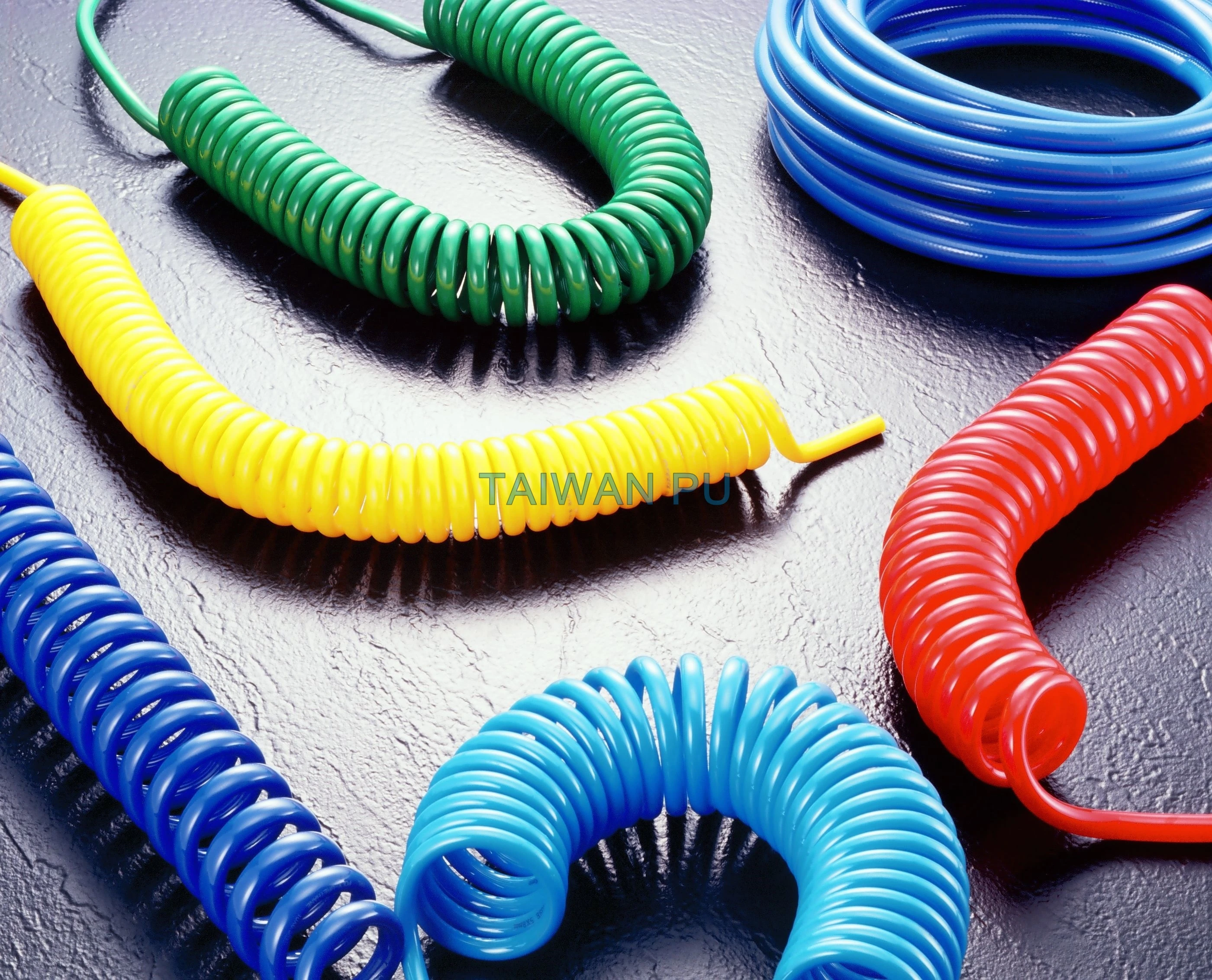

Long Lifespan Red PU Coil Hose
Taiwan PU Corporation, known as TPUCO, is a professional manufacturer and a world-class factory of PU Coil Hose .
For more than 25 years, TPUCO has created a trustworthy worldwide reputation due to excellent service and high-quality polyurethane products.
With TPUCO’s leading producing and processing technologies, TPUCO can manufacture various kinds of PU Coil Hose according to client’s requirement.
Each step of producing PU Coil Hose is carefully calculated by production line engineers.
From raw material selecting to final product selecting, TPUCO has chemical engineers and quality control technicians to make sure the PU Coil Hose fit client’s need of physical properties.
Therefore, TPUCO assures customers of the reliability and the top quality of the PU Coil Hose .
Advantage
- High flexibility
- Small bending radius
- Widely used in many applications
- Available in ether and ester types
- Optimum abrasion resistance
- High tensile strength
- Low temperature flexibility
Application
Automated machinery, coating machinery, all kinds of pneumatic tools, pneumatic & hydraulic machinery, construction and various pneumatic tools. Polyether based PU Tube is hydrolysis-resistant, anti-bacterial & anti-fungous, and it can be used for gardening, cleaning, water hoses and other purposes. Ether type is resistance to hydrolysis, fungus and weatherability. Ester type give maximum abrasion resistance and good oil, solvent and great resistance.
Description

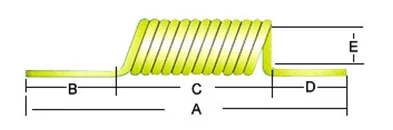

| ITEM No. | Size ID x OD | Total Tube Length M | A mm | B mm | C mm | D mm | E mm | Max working Pressure BAR/PSI |
| TBC080502 | 5.0 x8.0 | 2.0 | 740 | 500 | 140 | 100 | 42 | 10/145 |
| TBC080504 | 5.0 x8.0 | 4.0 | 930 | 500 | 330 | 100 | 42 | 10/145 |
| TBC080506 | 5.0 x8.0 | 6.0 | 1120 | 500 | 520 | 100 | 42 | 10/145 |
| TBC080508 | 5.0 x8.0 | 8.0 | 1300 | 500 | 700 | 100 | 42 | 10/145 |
| TBC106502 | 6.5 x10.0 | 2.0 | 740 | 500 | 140 | 100 | 42 | 10/145 |
| TBC106504 | 6.5 x10.0 | 4.0 | 930 | 500 | 330 | 100 | 42 | 10/145 |
| TBC106506 | 6.5 x10.0 | 6.0 | 1120 | 500 | 520 | 100 | 42 | 10/145 |
| TBC106508 | 6.5 x10.0 | 8.0 | 1310 | 500 | 710 | 100 | 42 | 10/145 |
| TBC120802 | 8.0 x12.0 | 2.0 | 740 | 500 | 140 | 100 | 60 | 10/145 |
| TBC120804 | 8.0 x12.0 | 4.0 | 920 | 500 | 320 | 100 | 60 | 10/145 |
| TBC120806 | 8.0 x12.0 | 6.0 | 1100 | 500 | 500 | 100 | 60 | 10/145 |
| TBC120808 | 8.0 x12.0 | 8.0 | 1280 | 500 | 680 | 100 | 60 | 10/145 |
| TBC161102 | 11.0 x16.0 | 2.0 | 720 | 500 | 120 | 100 | 75 | 10/145 |
| TBC161104 | 11.0 x16.0 | 4.0 | 880 | 500 | 280 | 100 | 75 | 10/145 |
| TBC161106 | 11.0 x16.0 | 6.0 | 1040 | 500 | 440 | 100 | 75 | 10/145 |
| TBC161108 | 11.0 x16.0 | 8.0 | 1210 | 500 | 610 | 100 | 75 | 10/145 |
Physical Properties
| HARDNESS SHORE A | 98A | ASTM D-2240 |
| TENSILE STRENGTH (Kg/cm2) | 600 | ASTM D-638 |
| ULTIMATE ELONGATION (%) | 440-540 | ASTM D-638 |
| TABER ABRASION (mg) | 30-40 | ASTM D-1044 |
| TEAR STRENGTH (Kg/cm2) | 165 | ASTM D-732 |
| PU TYPE | POLYESTER & POLYETHER BASE |
**More information, please access our website:
Notice: These values are based on the test of our present laboratory test specimens.
