940nm 1000m Infrared IR laser illuminator surveillances Automobile nightvision Medical applications
- Category: >>>
- Supplier: Shenzhen Tyson Technology Co. Ltd.
Share on (2015028592):
Product Overview
Description
Products Description

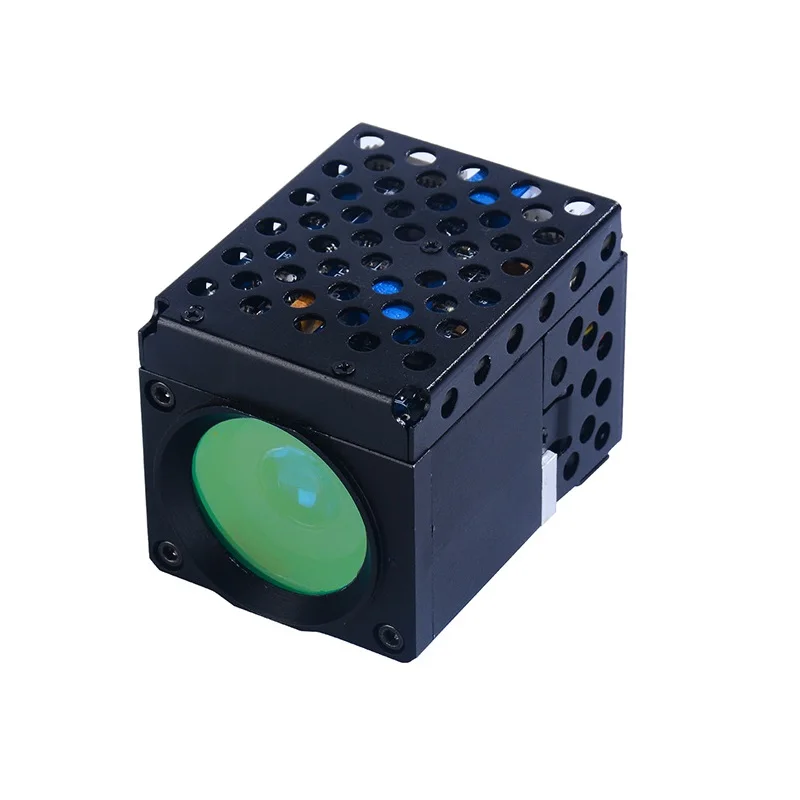

Infrared IR laser illuminator 940nm 1000m
Description
This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D, Sony VISCA. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via protocols, users can call the instruction to operate conveniently in use.
Features
Beam angle zooming electrically, up to 1200 steps
Illumination over 1000m range
High reliability, lifetime up to 50000hrs
Compact, easy to integrate
RS232, RS422, RS485, TTL interface optional
Negligible off-axis divergence, easy to collimate with camera lens
Uniform beam intensity, speckle free
Operating state memory
Predefining position
Low heat, high efficiency
Applications
Highway monitoring
PTZ camera
Harbor monitoring
Forest fire prevention
Boundary monitoring
Traffic monitoring
Military applications
Description
This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D, Sony VISCA. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via protocols, users can call the instruction to operate conveniently in use.
Features
Beam angle zooming electrically, up to 1200 steps
Illumination over 1000m range
High reliability, lifetime up to 50000hrs
Compact, easy to integrate
RS232, RS422, RS485, TTL interface optional
Negligible off-axis divergence, easy to collimate with camera lens
Uniform beam intensity, speckle free
Operating state memory
Predefining position
Low heat, high efficiency
Applications
Highway monitoring
PTZ camera
Harbor monitoring
Forest fire prevention
Boundary monitoring
Traffic monitoring
Military applications
Parameters | Typical values | Unit | Remarks |
Model no. | LL2001-0150-940CAP | ||
Laser mode | Mutimode | － | |
Wavelength | 940±10 | nm | |
Optical power | 4 | w | @exit |
Spot shape | Circular | ||
Illuminating distance | 1000 | m | |
Spot uniform | excellent | ||
Fan angle | 1-50 | ° | ±0.2° |
Operating voltage | 12V | ||
Operating current | 2.3 | A | |
Operating mode | CW | ||
Lifetime | 50000 | hrs | |
Operating temperature | -40- +85 | ° | |
Storage temperature | -40- +85 | ° |
808nm 2km IR laser illuminator laser spot at 1m

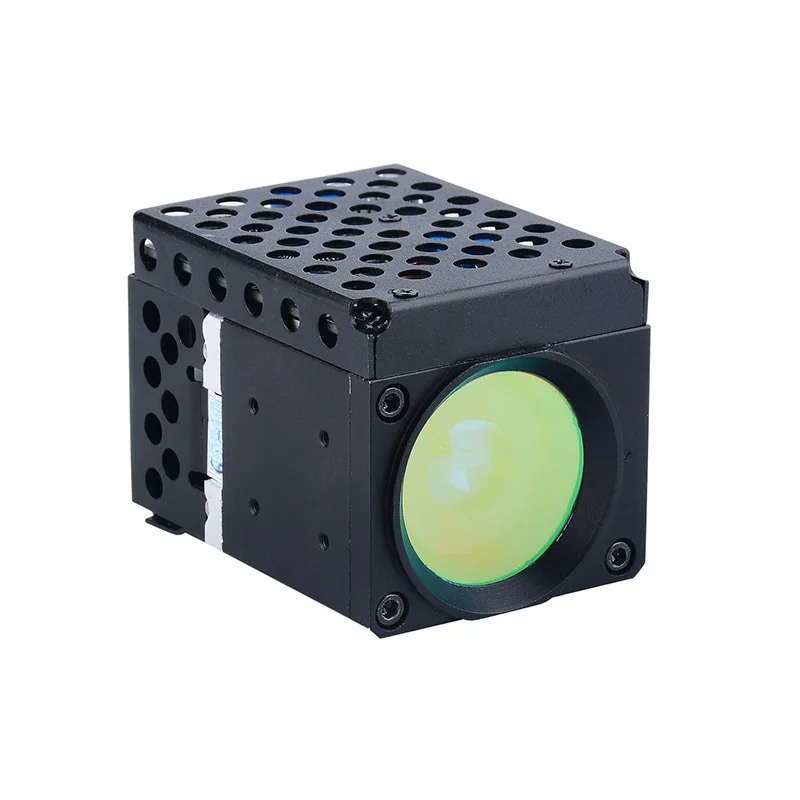

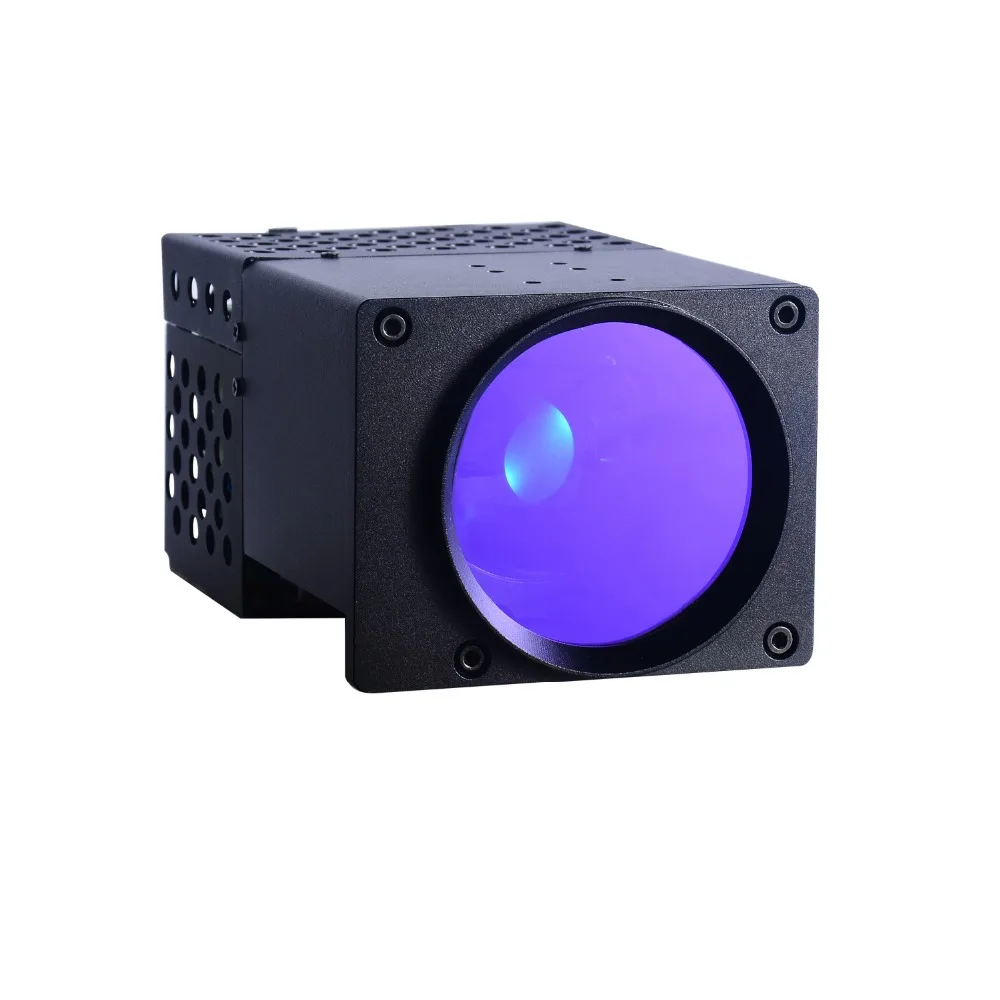

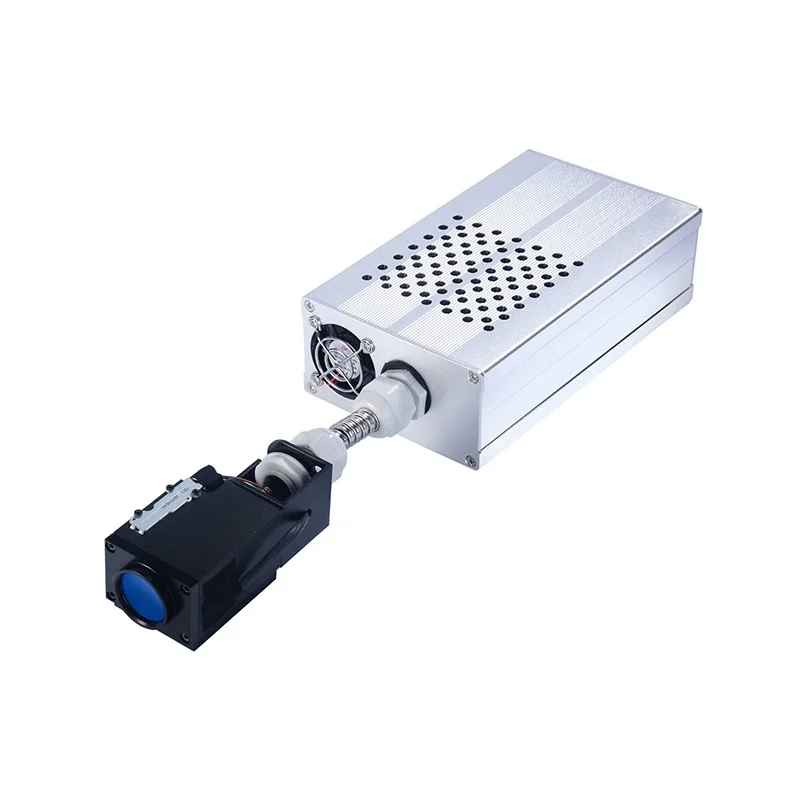

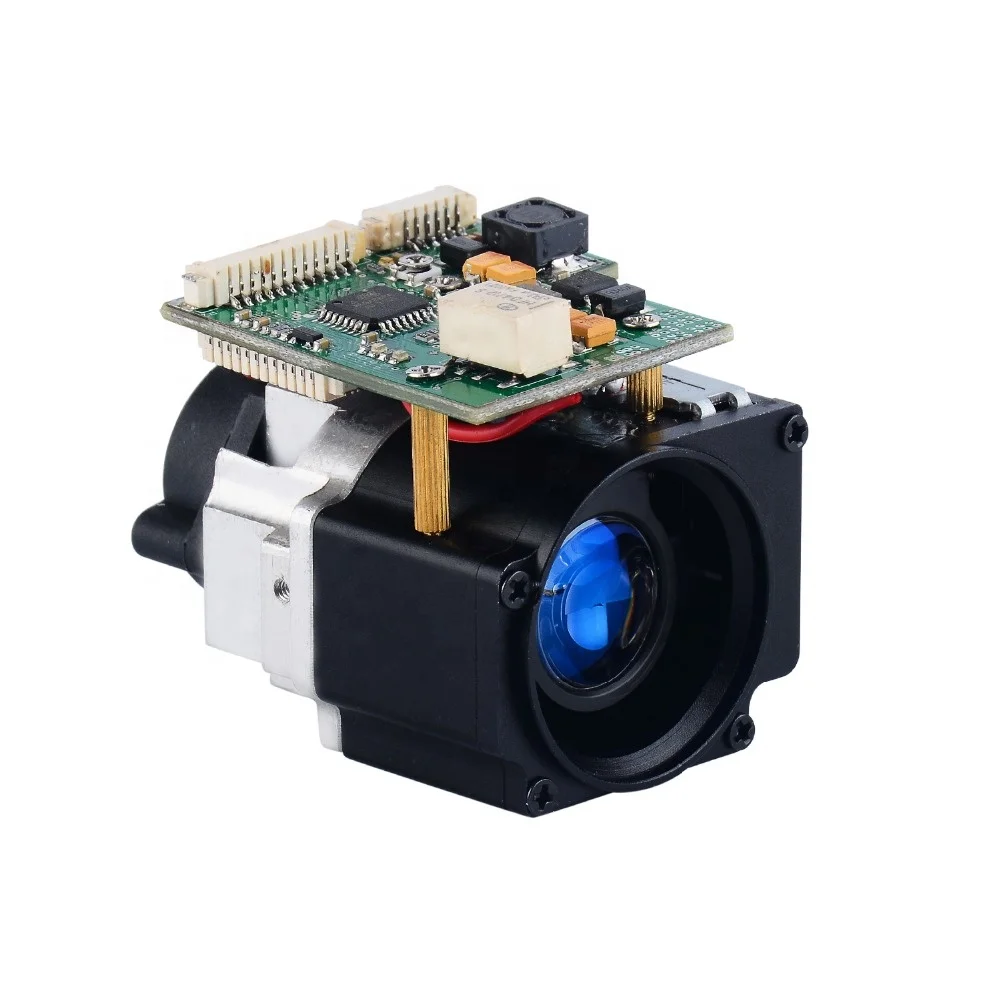

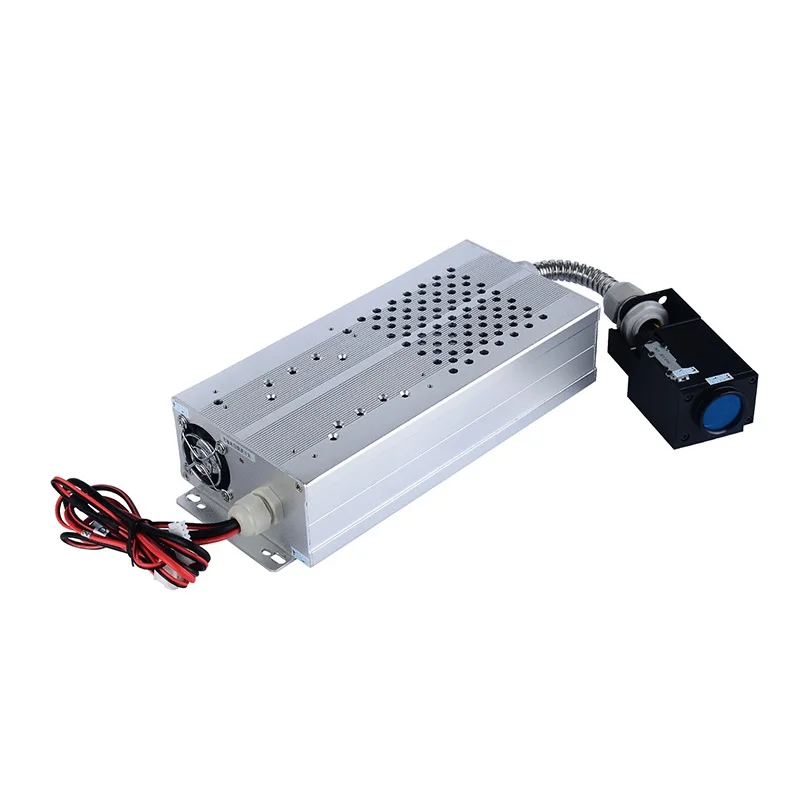

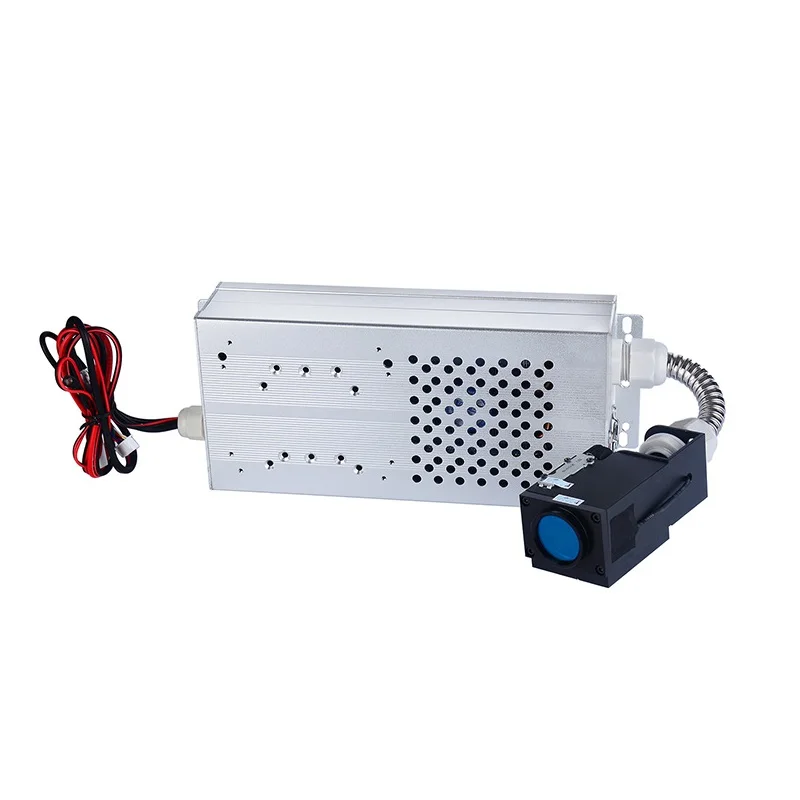

Product Show
