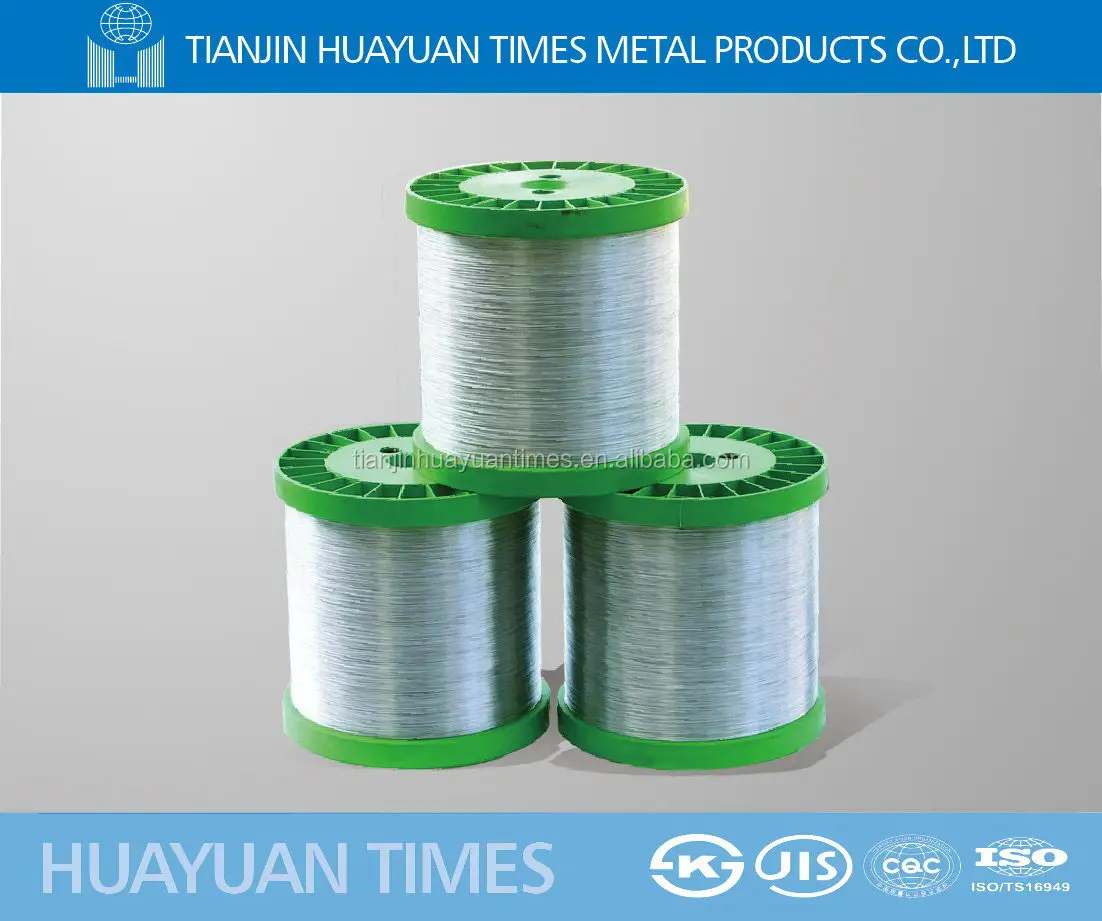

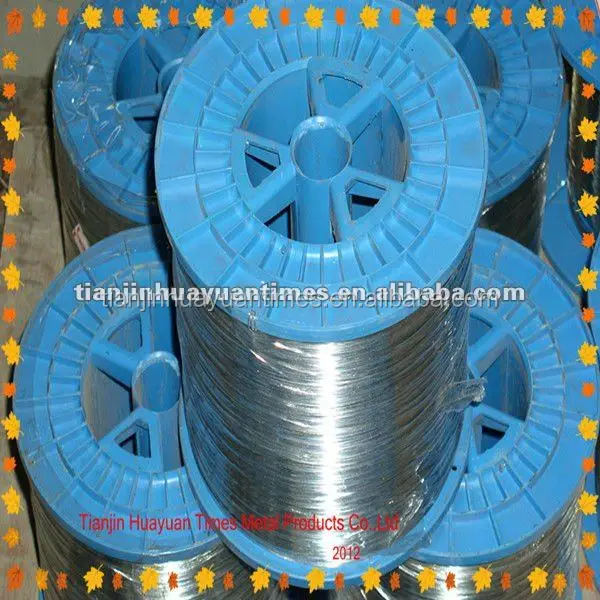

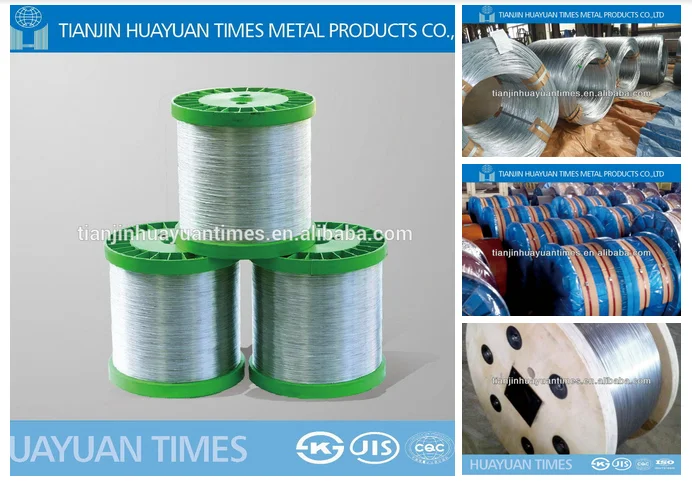

Electro galvanized wire for MESH SAE 1006 0.33MM

Product Overview

Description

 SAE 1006 electro galvanized wire for MESH       0.33MM

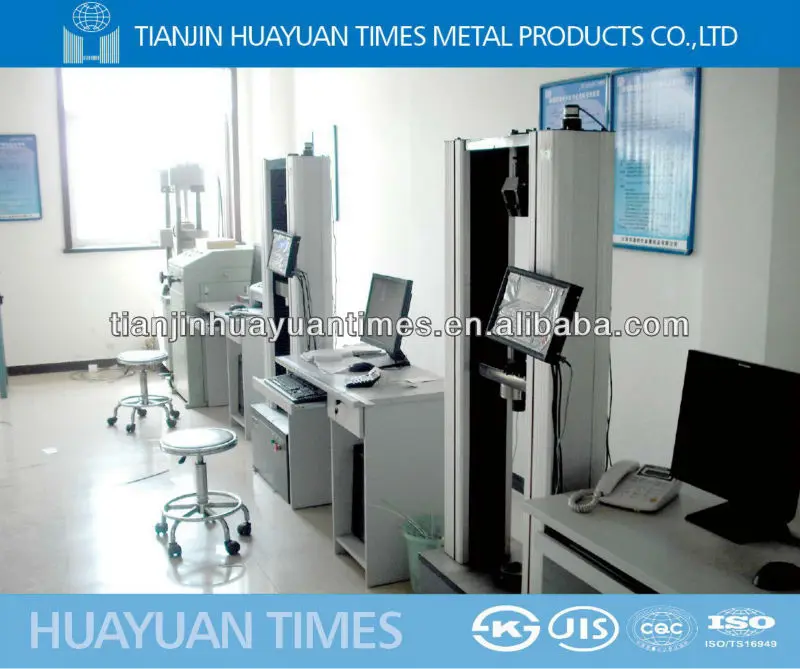

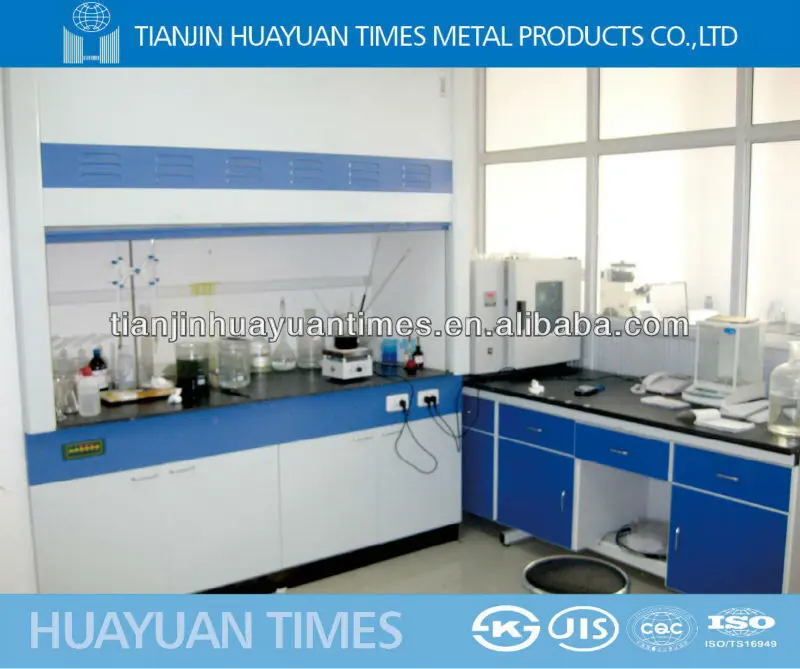

     We have our own Chemical labotory and Mechanical labotory, so all of our raw material, semi-finished product and finished products are tested,valued and approved  to the next processing step .,We test the diameter , tensile strength , elongtaion , wrap , torsion , elasticity , modelue of elasticity , lineratiy . zinc coating, weithgt, and the micro structure, and chemical components



Detailed Specification for the product imformation



1.standards.

we meet GB,YB ,ASTM, DIN,EN ,JIS, KS ,IEC standards

2.raw materials:

1)wire rod SAE 1006. SAE 1008.SAE 1018.Q195 Q235.M6, BP05

2) zinc with 99.995% of purity

3.range of tensil strength:

size of products(mm)	tensil strength(mpa)
0.24-1.60	350-550
1.61-5.00	400-1200

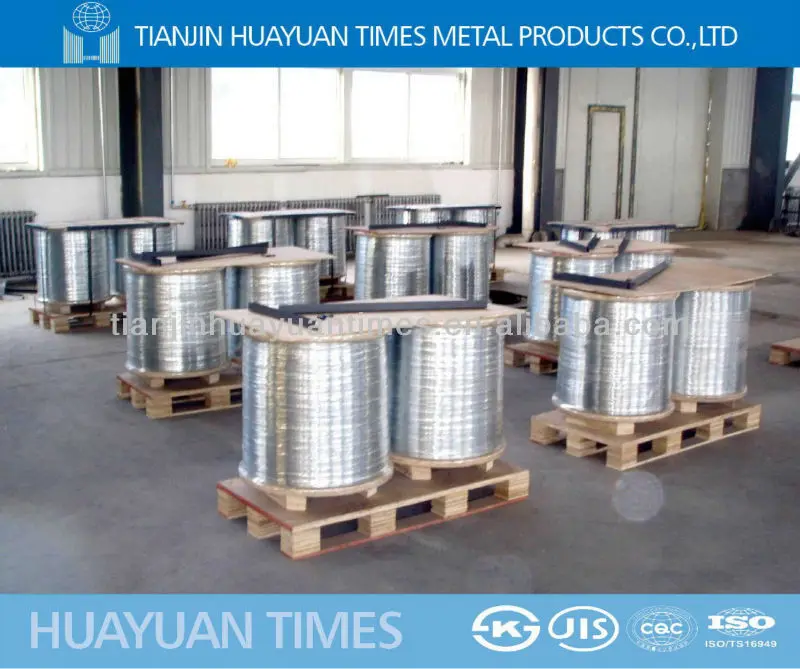

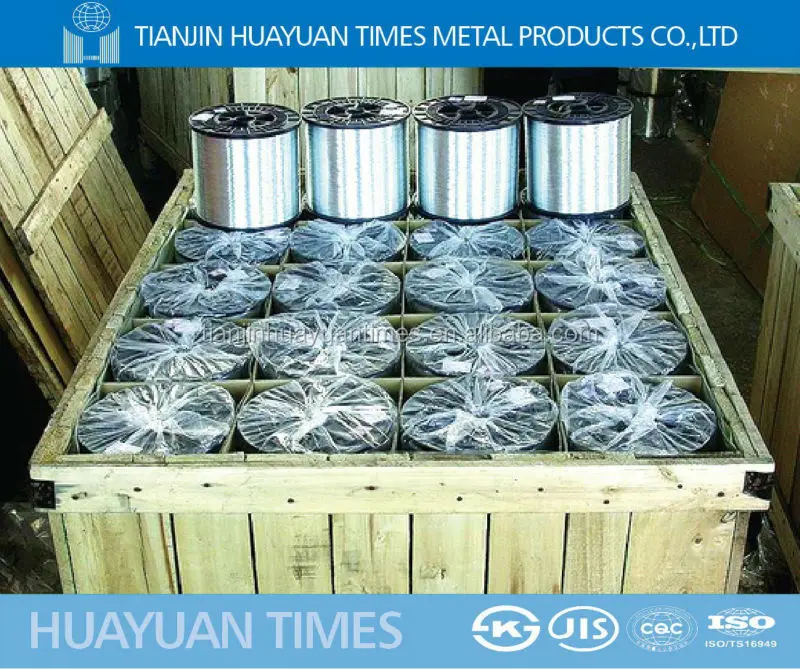

4.packing.

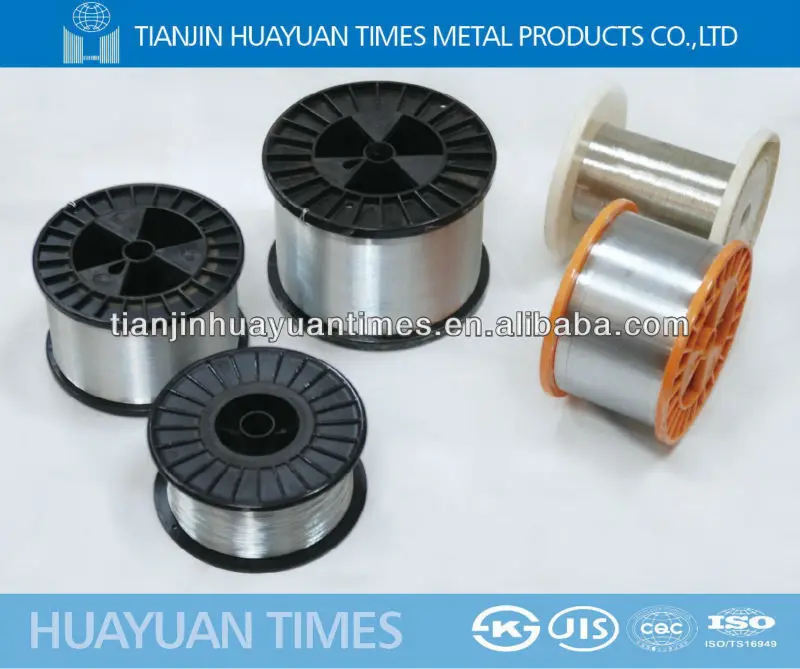

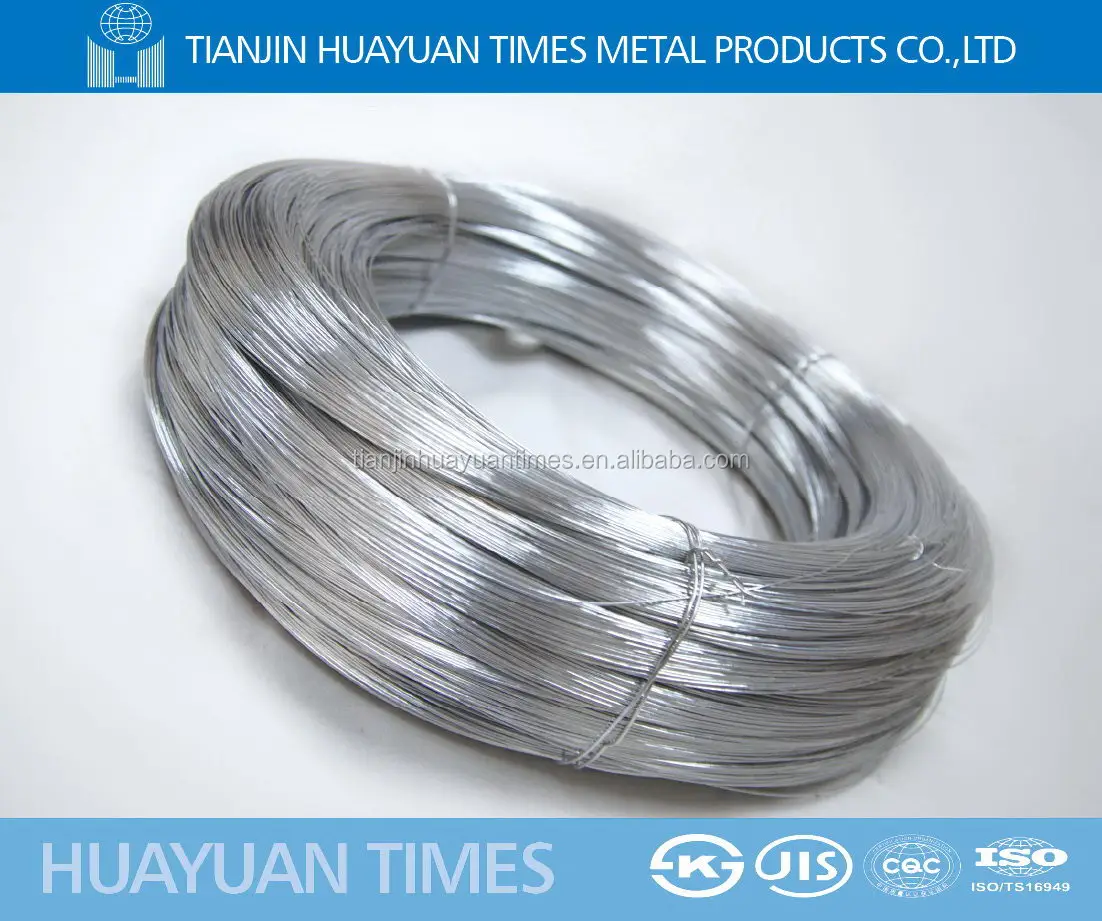

size of products(mm)	size of coil	spool packing	big coil packing(ID/OD MM)

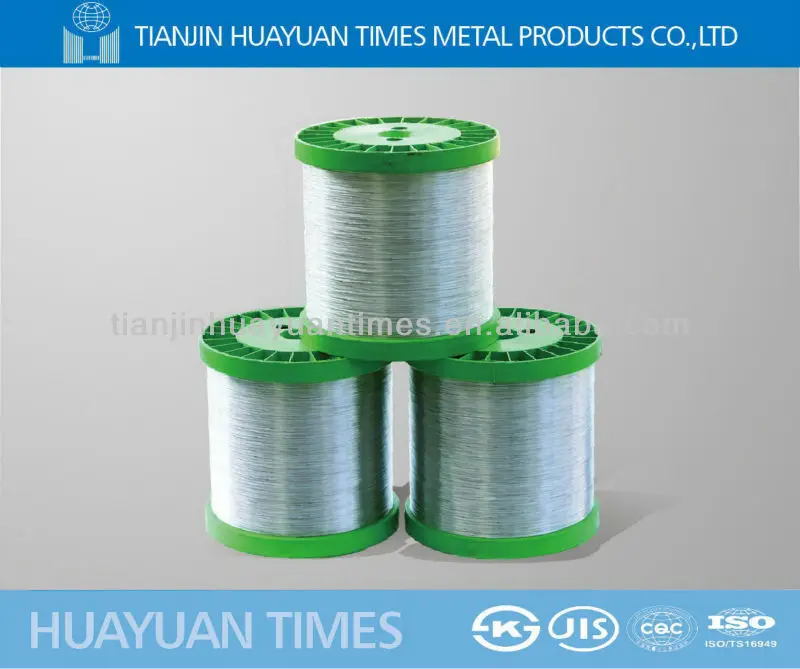

0.15-0.45	8 inches	1-100kg/spool
0.46-0.60	8 ,12 inches	1-100kg/spool

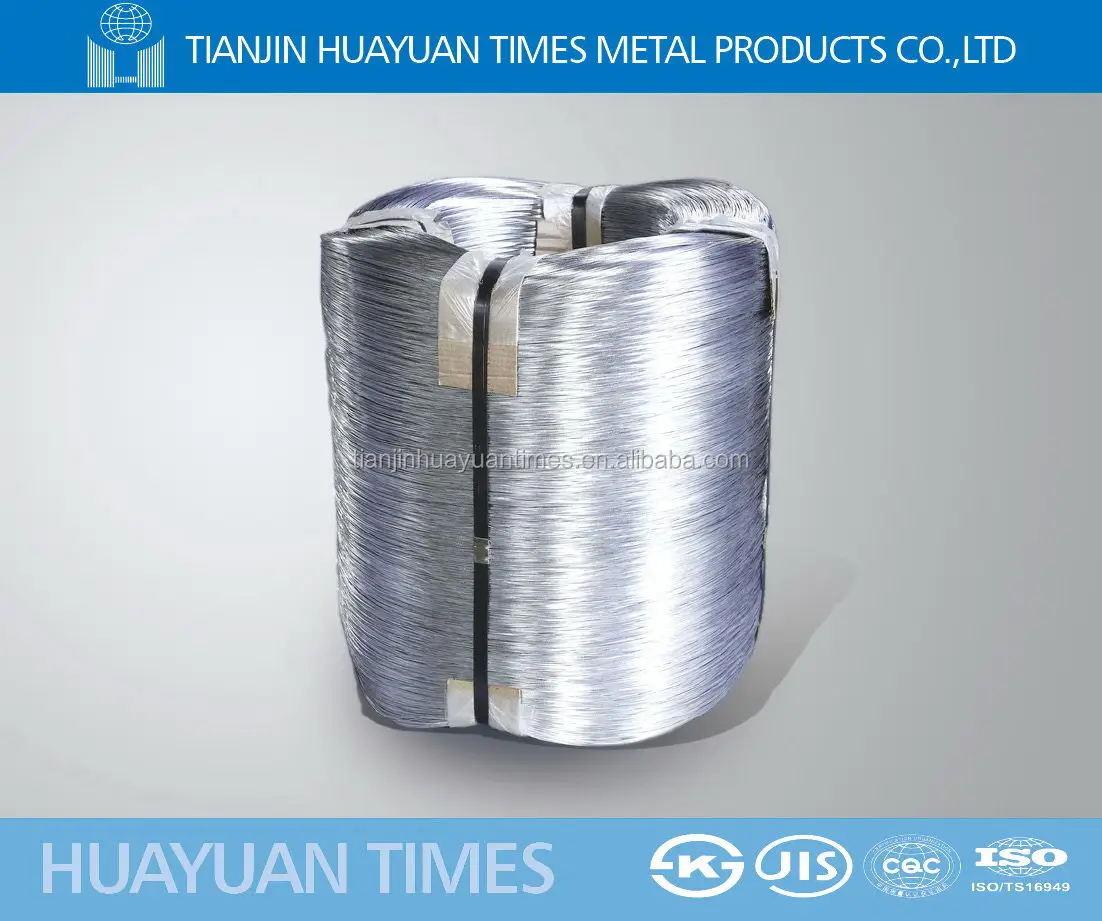

0.61-1.60	12,14,16inches	1-100kg/spool	250-400/400-700
1.61-8.00			450/800





5.zinc coating.

size of products	1.  zinc coating ≥	2.zinc coating≥	3. zinc coating≥	4. zinc coating≥	5. zinc coating≥
≤ 0.25		18	15	12	5
0.25-0.40		25	20	12	5
0.40-0.50		25	20	15	8
0.50-0.60		25	20	15	8
0.60-0.80		55	20	15	10
0.80-1.20		55	25	18	10
1.20-1.60		55	25	18	12
1.60-1.80		55	40	30	20
1.80-2.20		55	50	40	20
2.20-2.50		55	55	40	25
2.50-3.00		55	55	45	25
3.00-4.00		55	55	50	30
4.00-6.00		55	55	50	40



6.application

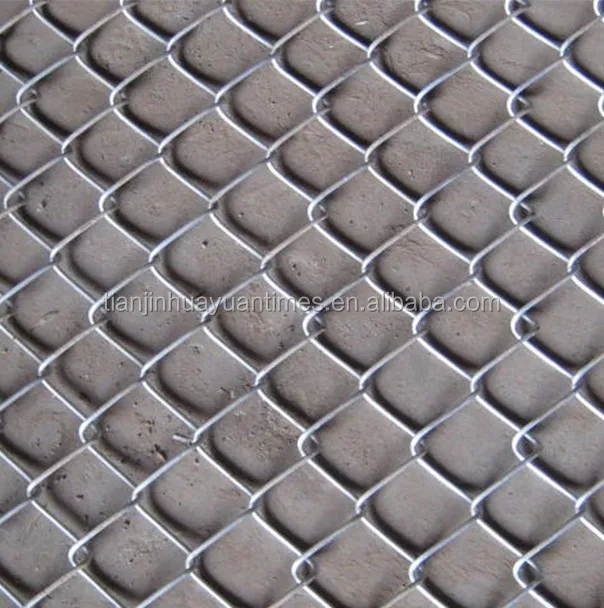

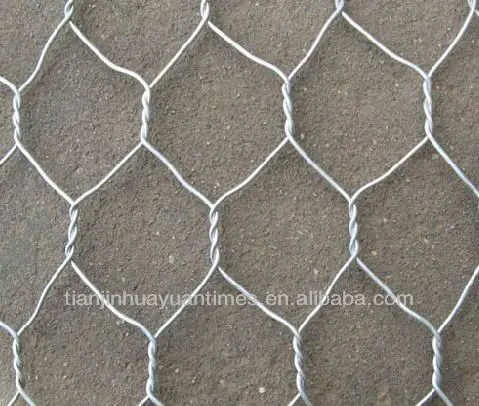

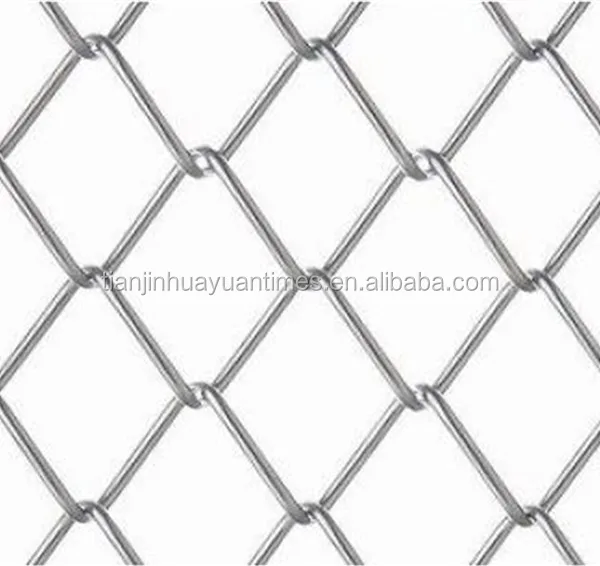

   our products-the electro galvanized wire are used in a wide range of areas ,such as detonator string,artware,redrawing for rope, woven mesh, toy,etc.



Supplier of DAEHO STEEL WIRE IN KOREA , AND METAL LINK , LS CABLE&SYSTEM







7 .Introduction

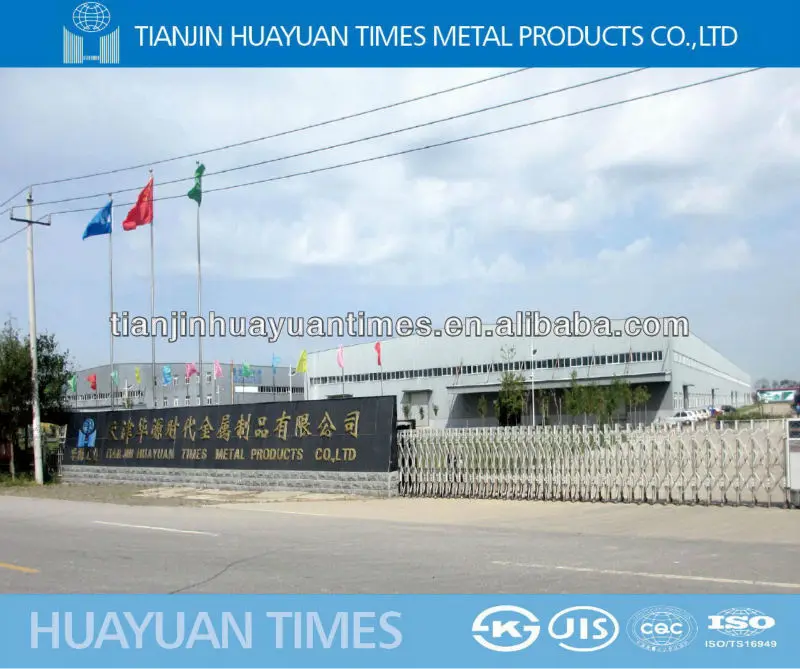

Our company Tianjin huayuan times metal products co.,ltd



A.Establish Date:2008

B.Employee:Over 450

C.Floor Area:180,000 M2

D.Assets:RMB 300Million( USD 50Million)

 E.Annual Capacity:150,000T

we are professional manufacture of ELECTRO GALVANIZED  FOR MESH AND NETTING
