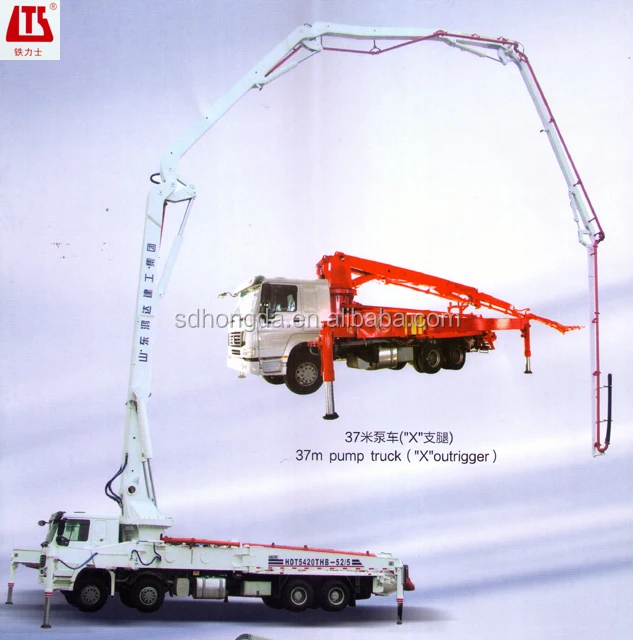

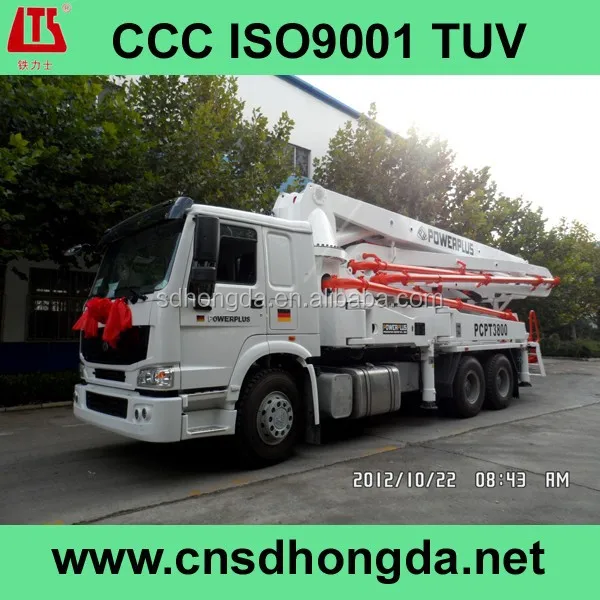

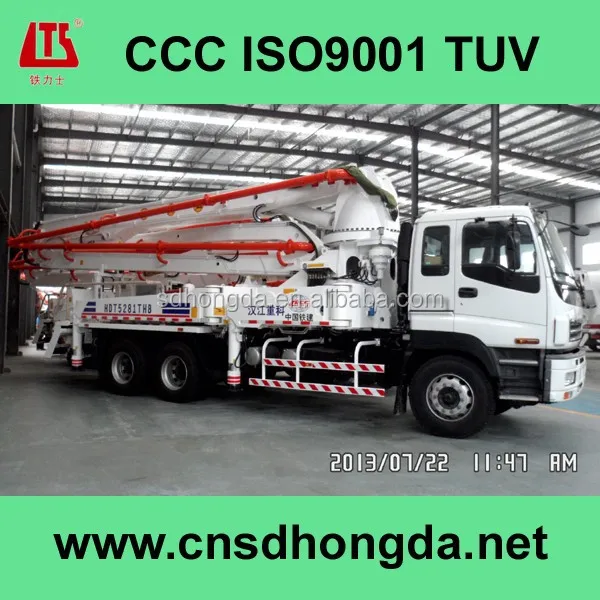

Reasonably Priced 39m boom Concrete Pump Truck
- Category: >>>
- Supplier: Shandong Hongda Construction Machinery Group Co. Ltd.
Share on (2015806652):
Product Overview
Description
2015 New Designed Reasonably Priced 39m boom HDT5291THB-39/4 Construction Concrete Pump Truck
TLS(Iron Giant) Brand, Famous Trademark of China
CCC/ISO9001&TUV Approved
I.Brief Introduction to Construction Concrete Pump Truck
Designed on the basis of accurate data from finite element analysis and dynamics simulation analysis, the boom system has a scientific structure and excellent performance. Besides, stress and strain tests are conducted by the national test center to verify the agreement between the calculation and analysis result of the boom structure and its actual working condition. The design of HONGDA Pump Truck adopts an international purchase strategy, and all its key components are world-famous brands which have the following features:
The big-diameter conveying cylinder has a strong suction ability and can afford large pumping flow.
The HBC wireless remote-control unit imported with original German packaging is light in weight and easy to carry. The operator can put the distributing boom in place simply by operating the handle bars.
The pumping capacity can be regulated through the stepless control device.
The stretching speed of the distributing boom can be regulated through the quick-and-slow stepless control device.
The slewing speed of the boom can be regulated through the stepless control device.
It is equipped with the emergency brake device and the automatic speed-control device for the diesel engine to reduce oil consumption.
Equipped with the STEIBEL transfer case and the REXROTH pump unit imported with original German packaging;
Equipped with slewing reducers and motors imported with original packaging;
Equipped with HAWE proportional multi-way valves imported with original German packaging;
Equipped with originally-imported REXROTH valves and valves made by Italian oil-control companies;
It is equipped with an electric cabinet with totally-imported components; control modules like PLC are all products from the German company SIEMENS.
II.Main Technical Parameters of Construction Concrete Pump Truck
|
Items |
Unit |
Model of Whole Truck |
|
|
HDT5291THB-39/4 |
|||
|
Main Technical Parameters in |
Theoretical Pumping Capacity |
m3/h |
150 |
|
Pumping Capacity Index |
Mpa.m3/h |
586 |
|
|
Theoretical Pumping Pressure |
Mpa |
8.5 |
|
|
Hopper Capacity |
L |
700 |
|
|
Feeding Height |
mm |
1370 |
|
|
Distributing Valve Form |
|
S-pipe valve |
|
|
Max. Distributing Radius |
m |
34.7 |
|
|
Max. Distributing Height |
m |
38.7 |
|
|
Max. Distributing Depth |
m |
27 |
|
|
Height of Distributing Boom When Stretched |
mm |
8830 |
|
|
Distance between Front Landing Legs |
mm |
6800 |
|
|
Distance between Rear Landing Legs |
mm |
7000 |
|
|
Distance between Front and Rear Landing Legs |
mm |
7432 |
|
|
Diameter of Conveying Pipe |
mm |
125 |
|
|
Length of Tail Hose |
m |
4 |
|
|
Rotary Range of Distributing Boom |
|
365° |
|
|
Number of Boom Sections |
|
4 |
|
|
Rotary Angle of Each Boom Section |
° |
91/180/180/180/270 |
|
|
Remote-control Distance |
m |
200 |
|
|
Main Technical Parameters in |
Max. Traveling Speed |
km/h |
90 |
|
Min. Turning Radius |
mm |
8800 |
|
|
Brake Distance |
m |
7 |
|
|
Approach Angle |
° |
16 |
|
|
Departure Angle |
° |
11 |
|
|
Chassis Model |
|
HOWO ZZ5307N4647C |
|
|
Wheel Base between the First and the Second Axle |
mm |
4600 |
|
|
Wheel Base between the Second and the Third Axle |
mm |
1350 |
|
|
Front Tread |
mm |
2022 |
|
|
Rear Tread |
mm |
1830 |
|
|
Max. Engine Power |
kw |
247(2200r/min) |
|
|
Max Engine Torque |
n.m |
1350 (1100-1600r/min) |
|
|
Max. Grade Ability |
% |
35 |
|
|
Fuel Consumption Limit |
L/100km |
34 |
|
|
Overall Dimension (L ×W× H) |
mm |
12500×2490×3950 |
|
|
Full-load Total Weight |
kg |
29500 |
|

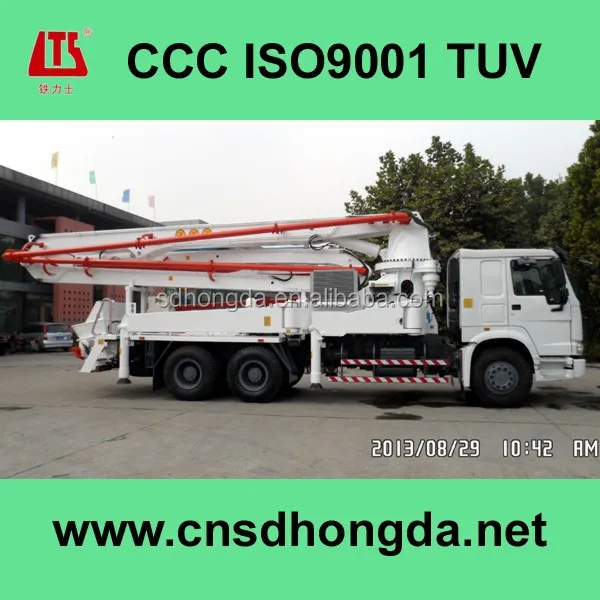

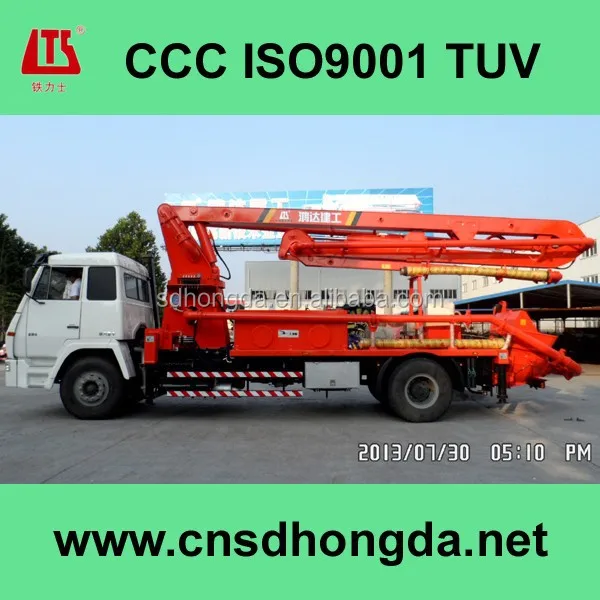

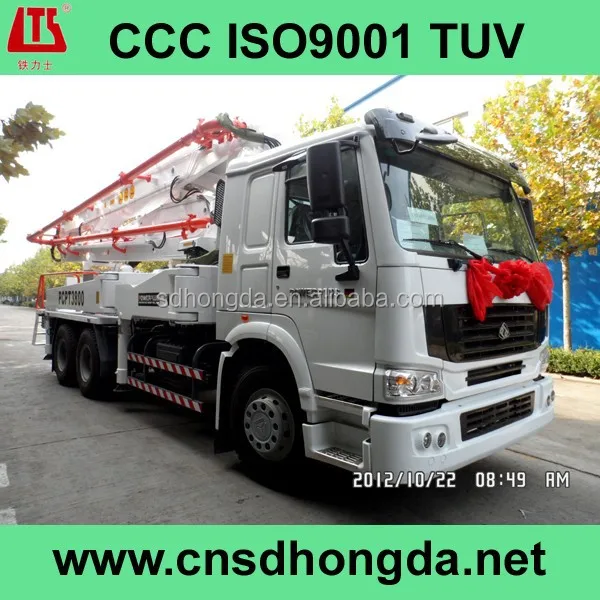

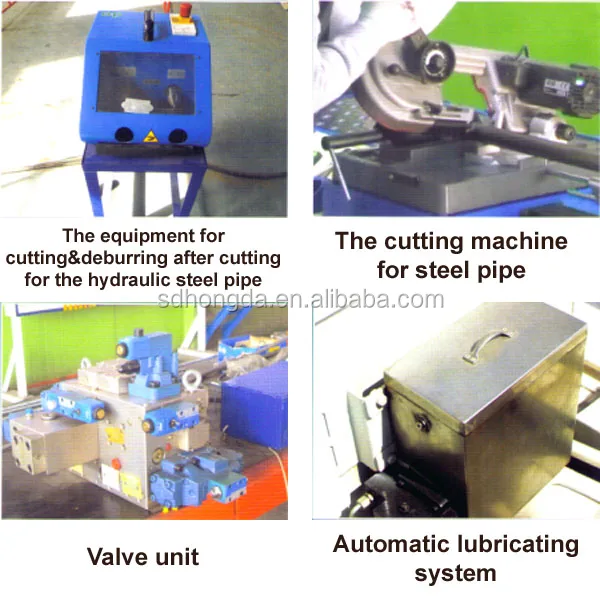

III.Detail Pictures of Construction Concrete Pump Truck
IV.Brief Introduction to Our Company
Shandong Hongda Construction Machinery Group Co., Ltd., which is located in the beautiful city of Laiyang in China’s Shandong Province, is not only one of the largest industrial enterprise groups of China but also one of the key enterprises in China’s construction machinery industry. Hongda Group is a professional manufacturer of construction machinery for 29 years; Our total assets amount to about RMB 1.88 billion (US$300.8 million); Our annual sales income of the year 2011 reaches RMB2.5 billion (US$400 million); We have about 3,800 employees; Our company covers a gross area of more than 800,000 m2 and a total floor area of about 460,000 m2.
Our company has passed the ISO9001 International Quality System Certification, the CCC Certification (China Compulsory Certification) and the CE Certification. Our products have won the titles of “Shandong Famous Brand” and “Shandong Famous Trademark” in many consecutive years, and our company has been awarded many honors like “Provincial-level Civilized Enterprise”, “National-level High-tech Enterprise”, “National-level User-trusted Star Enterprise”, “National-level Contract-honoring and Promise-keeping Enterprise” and “National-level Credible and Law-abiding Enterprise”.
Our main products cover 12 series with more than 80 varieties, such as:

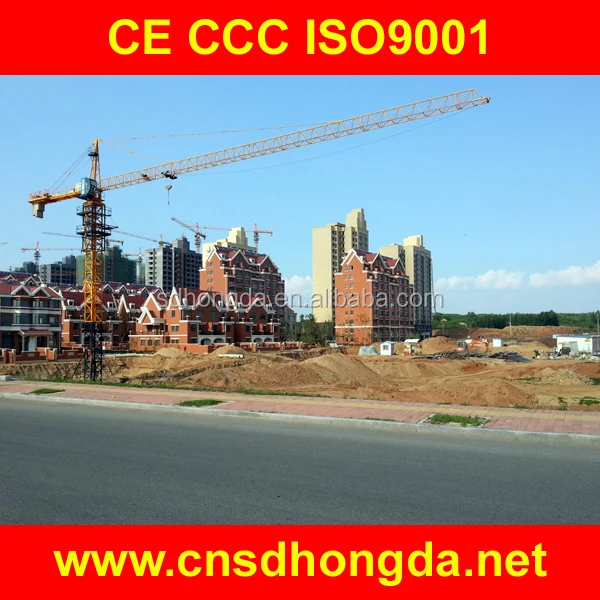

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);

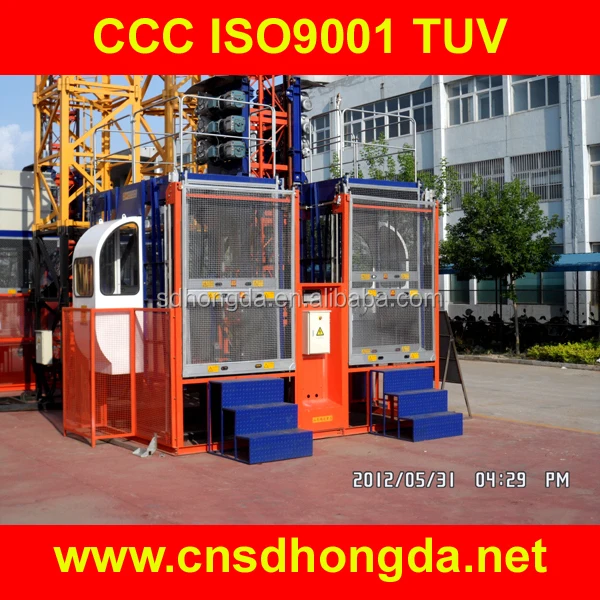

2. Construction Elevators (multi-speed, stepless-speed);

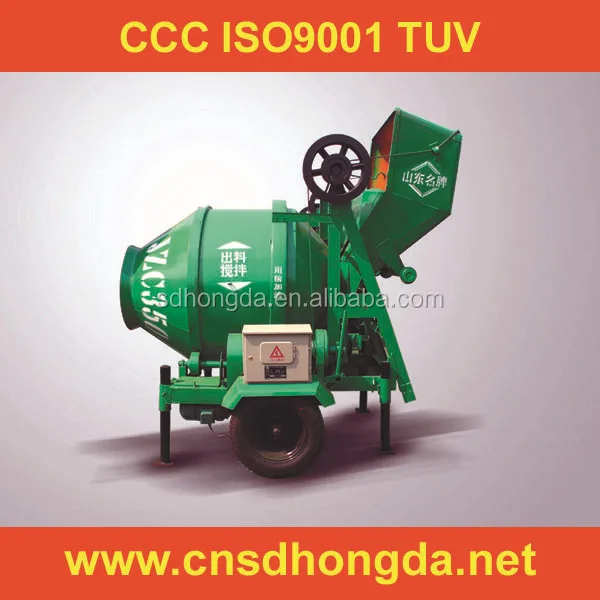

3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);

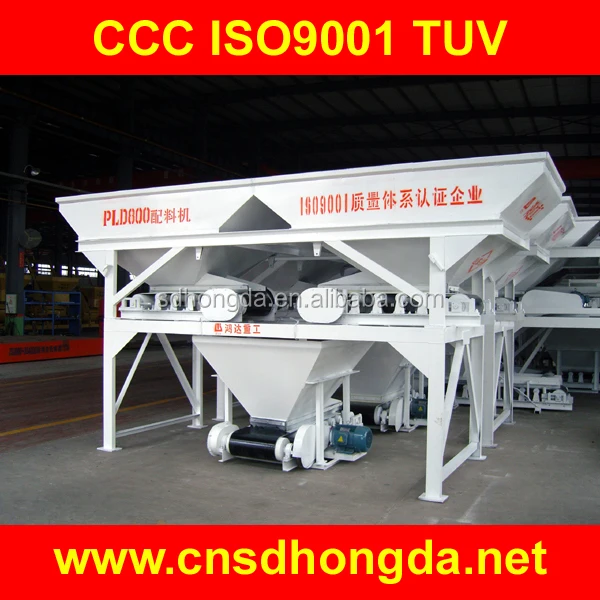

4. Concrete Batchers;

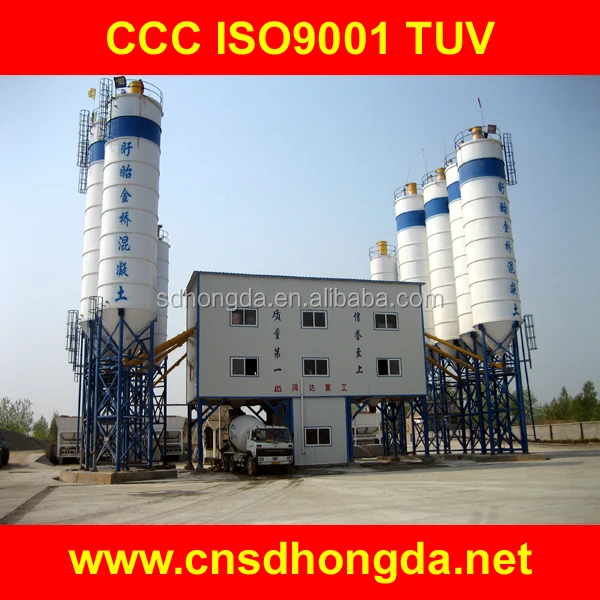

5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);

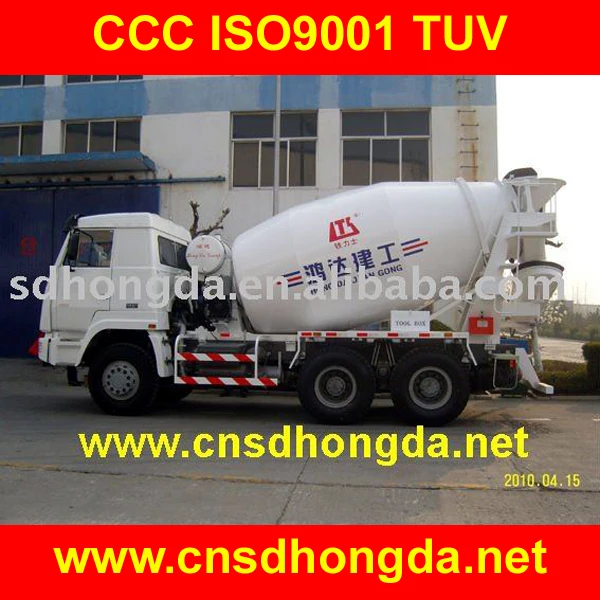

6. Concrete Truck Mixers (6-16m3);

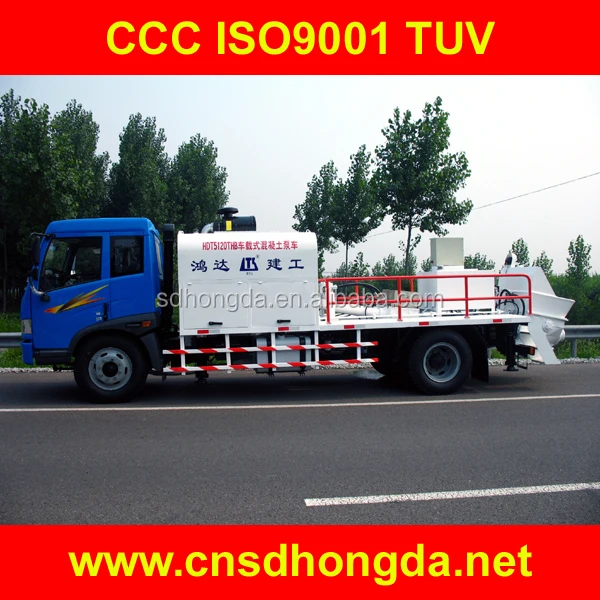

7. Truck-mounted Concrete Pumps (diesel, electric);

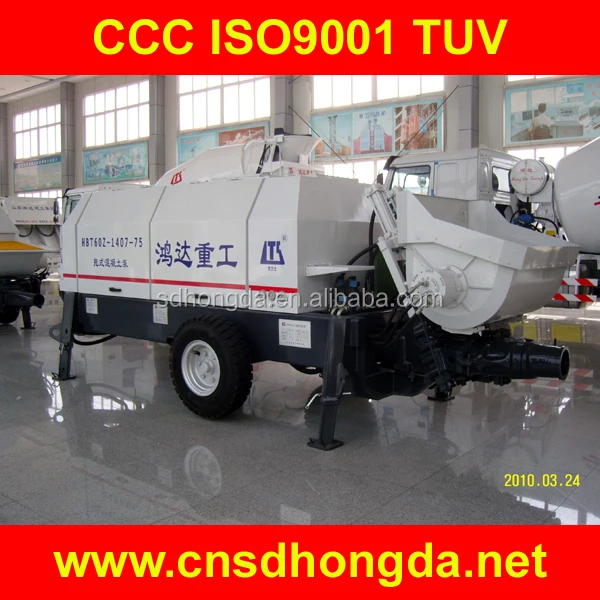

8. Trailer-mounted Concrete Pumps (diesel, electric);

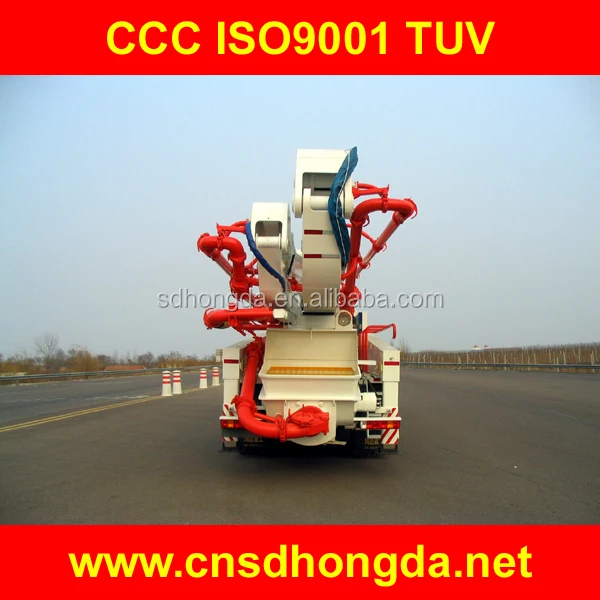

9. Concrete Pump Trucks (with 24-52m booms);

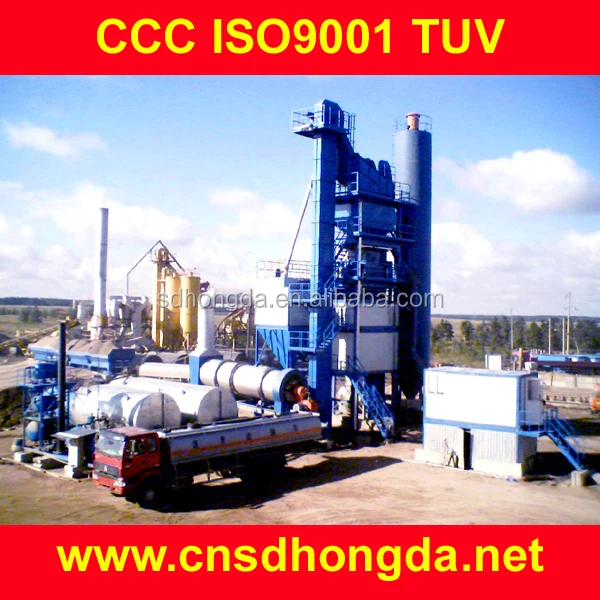

10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);

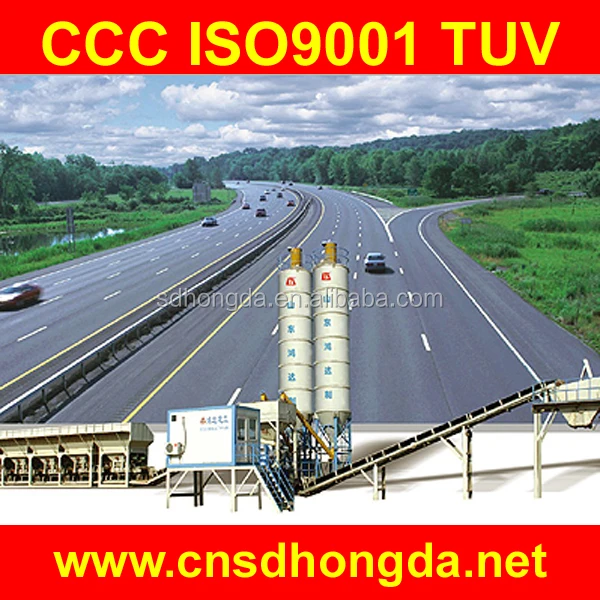

11. Stabilized Soil Mixing Plants;
Quality Control (QC)
Third Control
ISO9001:9001 Certificate
European Certificate
Enviroment Protection Design
Corporate Culture
ENTERPRISE TENET: All for clients, all from clients.
ENTERPRISE GOAL: Try our best for perfectness.
BUSINESS PRINCIPLE: Focusing on people first, Doing business honestly, Sticking to win-win development firmly.
BUSINESS POLICY: Arming engineering machinery with high technology, Upgrading traditional industry with high quality, Promoting the updating of traditional industry with all our efforts.
CULTURE SPIRIT: Never complain, always look for a better way, always prepare to get a chance. Innovation is essential to the development of an enterprise and even a nation. Every one of HONGDA Group is an image ambassador of our enterprise, To be an upright person in all seriousness,to be a good worker without ostentation.
V.Our Services
Why Choose TLS?
Reply in first time
Arrange production in first time
Effect transportation in first time
Solve problem in first time
R&D Technical Support
We have a professional R&D team for research and development of new techniques and products. We can design and adjust the machines according to customers’ requests.
Professional engineers, technical support on installation and training overseas are available.
Before Sale Service
Before sales, we provide our customers with professional solutions on Construction Concrete Pump Truck according to customers’ situations.
After Sale Service
Turn-Key Solutions
Free Erection & Commissioning Service
Operation Training Service
Spare Parts Supply ( all working life )
You are warmly welcomed to visit our products! Our web page //www.cnsdhongda.net
If you have any question, please feel free to contact us.
You can send email to salesatcnsdhongda.net,
or you can call us +86 535 7287987
or fax to us +86 535 7287987 any time!
