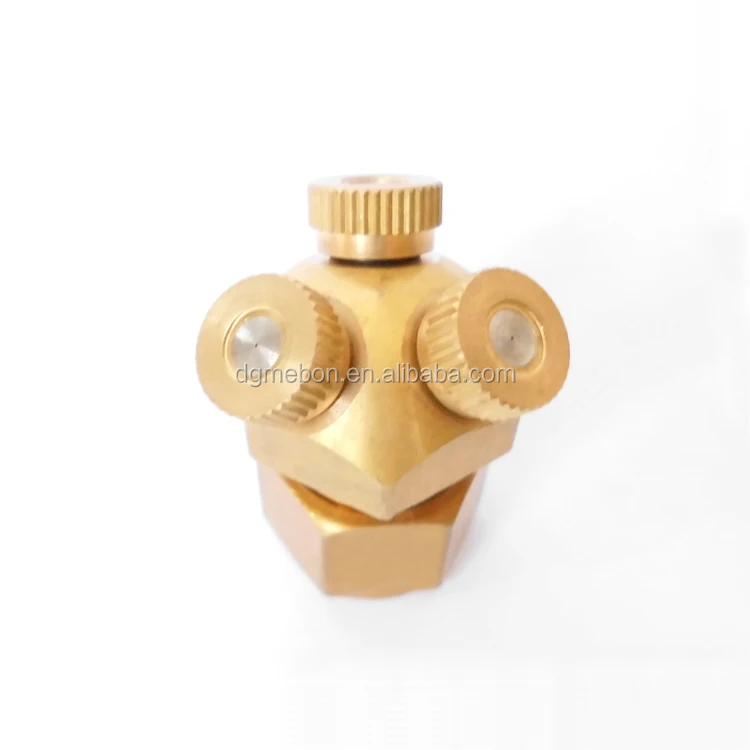

three head mist nozzle,summer cooling nozzle,fog nozzle
- Category: >>>
- Supplier: Dongguan Mebon Spraying & Purification Technology Ltd.
Share on (2015928793):
Product Overview
Description
three head mist nozzle,summer cooling nozzle,fog nozzle
Product Description
- Metal fog spray nozzle consists of brass/SS body with internal SS/ceramic core and stainless steel guide vane (with a leak-proof device).
- The liquid flows at high velocity under the water pressure of 70kg to 120kg, forming centrifugal swirl and spraying very fine hollow droplet.
- It is equipped with TEFLON strainer and the fog droplet sizes are about 30um.
- Widely used in workshop moistening salt spray test,man-made fog and other moistening locations.
- The imported US punching machine punches orifice about 0.15 to 0.5mm in size.
- The nozzle saves 10 times or above cost than that of moistening by air.
| Performance Data | |||
| Fog Nozzle | Orifice Diameter | Operation Pressure | Flow Rate |
| FD1 | 0.15mm | 20-70kg/cm | 20-46cc/min |
| FD2 | 0.20mm | 49-89cc/min | |
| FD3 | 0.30mm | 80-145cc/min | |
| FD4 | 0.40mm | 95-178cc/min | |
| FD5 | 0.50mm |
130-243cc/min | |
Commen Application:
1. Wetting & Rust removal
2.Humidify for space
3.Chemical treatment
4.Chemical agent spraying
5.Liquid coating
6.Humidify for tabacco leaf
7.Pill coating
8.Evaporative cooling for flue gas
9.Disinfection & sterilization
10.Parts cooling
11.Fruit wax injection
12.Ceramic tile glazing
13.Humidify for factory
14.Salt fog test
15.Artificial fog
16.Humidify for other place
Product Show
Packaging
Strict export packaging for the goods.
Payment & Shipment
Our service
1. Reply your inquiry within 8 hours.
2. Samples could be sent free.
3. Delivery time within 7 days.
4. Best after-sale service
5. Payment Term:T/T , Western Union, L/C
6. Delivery Way: DHL/ UPS/FEDEX Express; Air/ Sea Transportation
