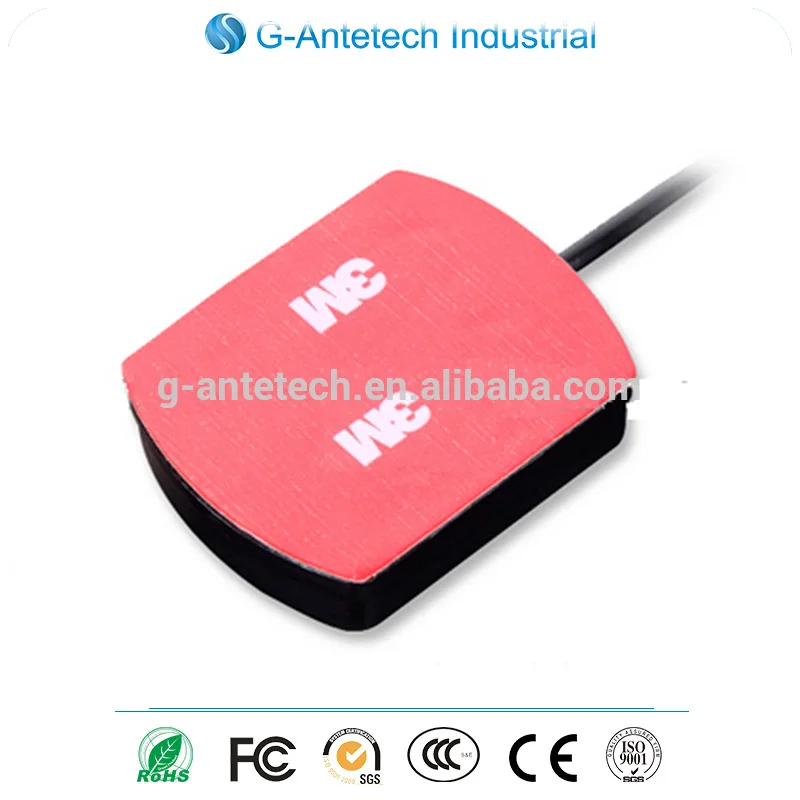

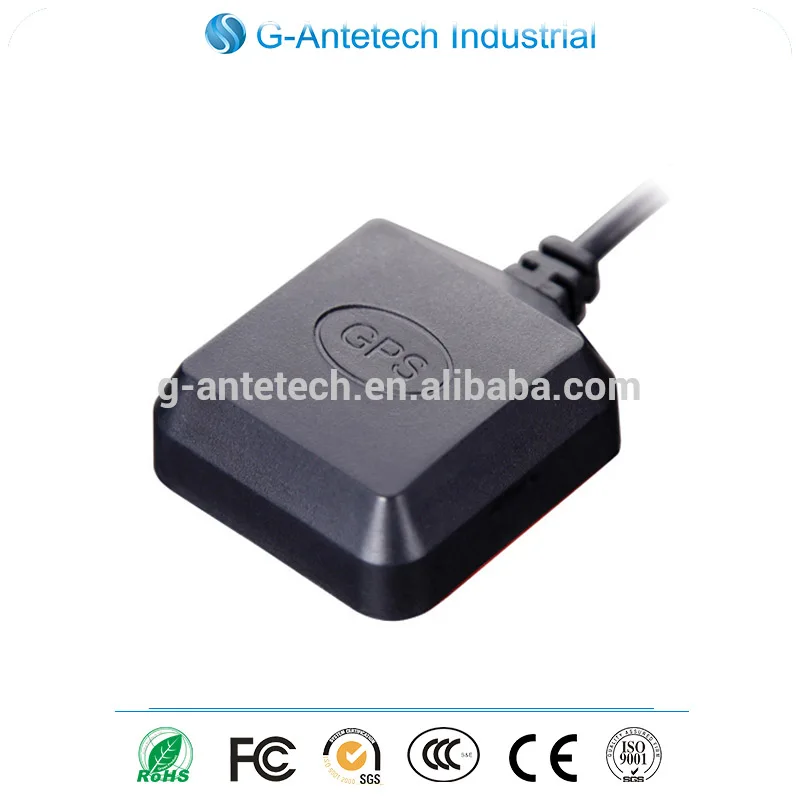

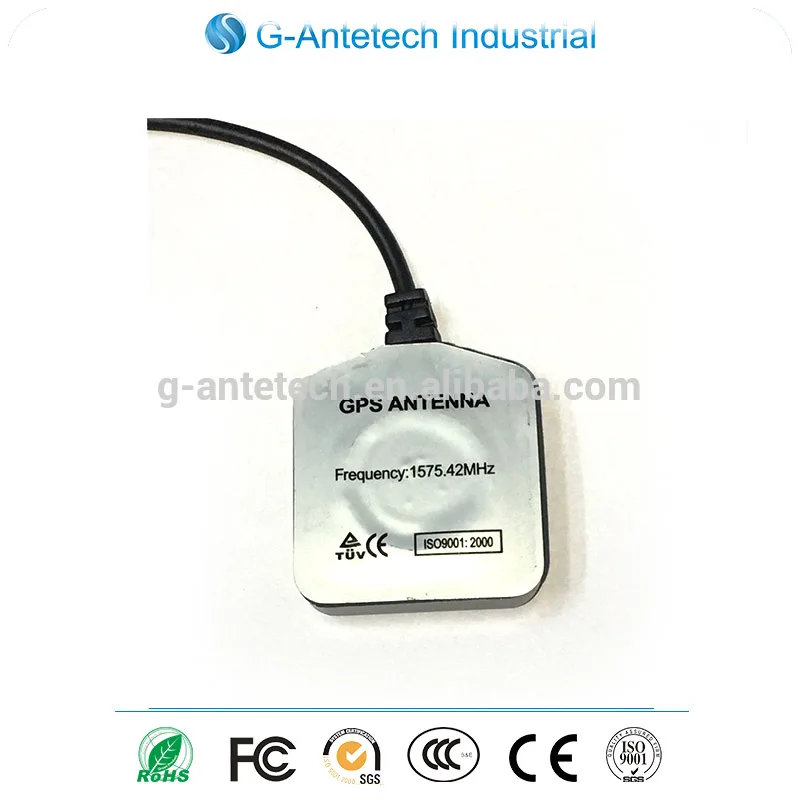

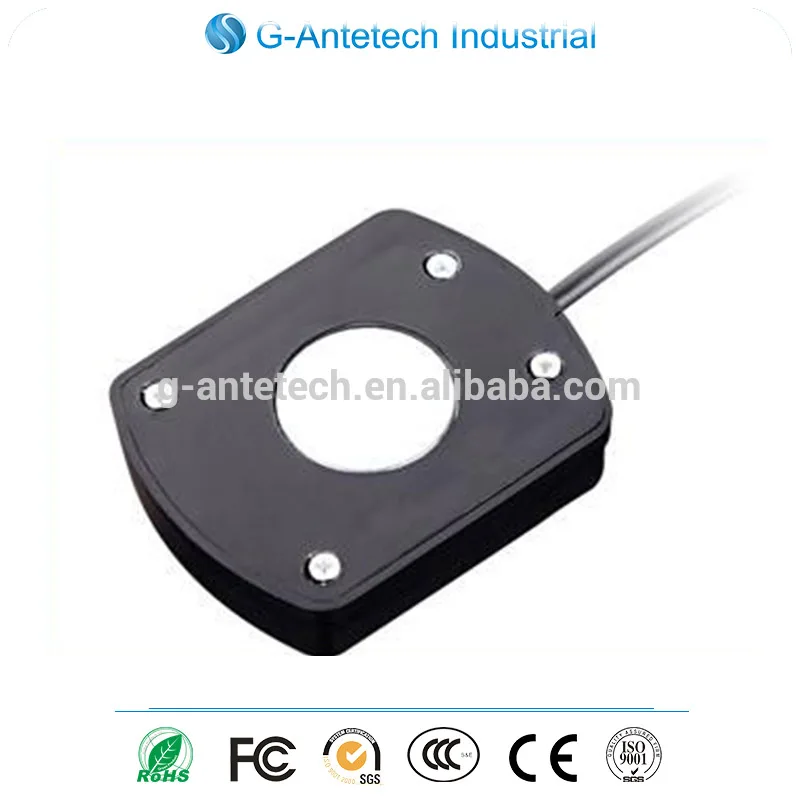

Free sample high quality magnetic gps tracking device antenna tracker auto with all kinds of connector types
- Category: >>>
- Supplier: Guangzhou G-Antetech Telecom Antenna Factory
Share on (201643813):
Product Overview
Description
Product Description
Tracker car use gps active antenna free samples with high quality
| Dielectric Antenna | |
| Center Frequency: | 1575.42±1MHz |
| Band Width : | ±5MHz |
Polarization: | RHCP |
| Gain: | 5dBi |
| V.S.W.R | <1.5 |
| Impendance: | 50Ω |
| Axial Ratio: | 3dB(max) |
| LNA/Filter | |
| Gain: | 28±2dB |
| Noise Figure: | <1.5 |
| Filter Insertion Loss: | <3dB |
Ex-band Attenuation: | 12dB@CF+50MHz/16dB@CF-50MHz |
Supply Voltage: | 2.2~5V DC |
| DC Current: | 5~15mA |
| V.S.W.R | <2.0 |
| Mechanical | |
| Dimension: | 35*39*14mm |
| Cable: | RG174 or others |
| Connector: | SMA/MCX/FAKRA or others |
| Radome Material: | ABS |
| Mounting Method: | Magnet/Adhesive |
| Housing: | Black |
| Environmental | |
| Operating Temperature: | -40℃~+85℃ |
| Relative Humidity: | Up to 95% |
| Ingress Protection: | IP67 |
| Vibration: | 10 to 55Hz with 1.5mm amplitude 2hours |
| Environmentally Friendly: | ROHS Compliant |
