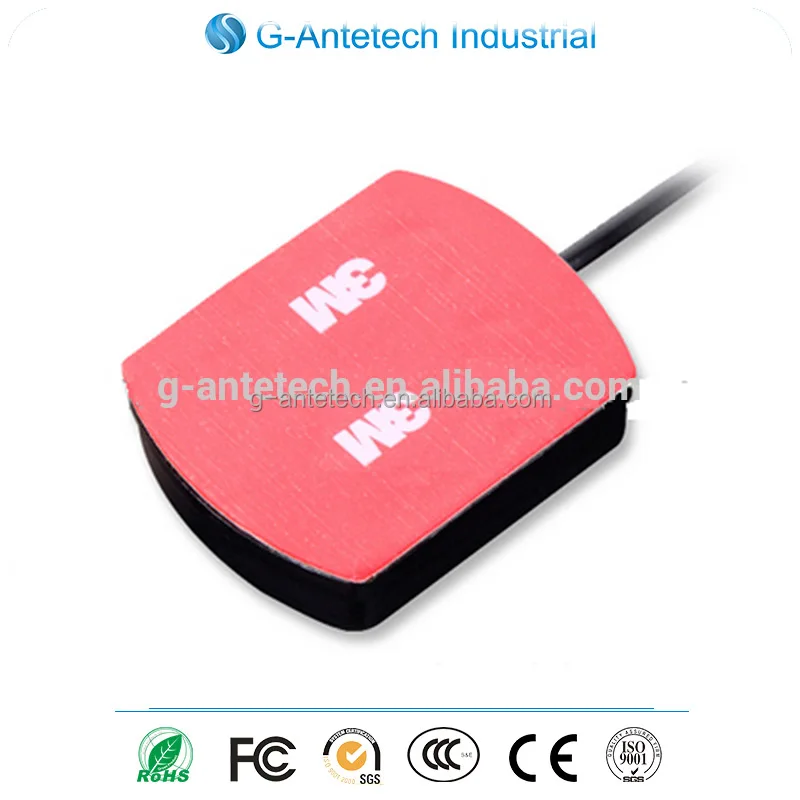

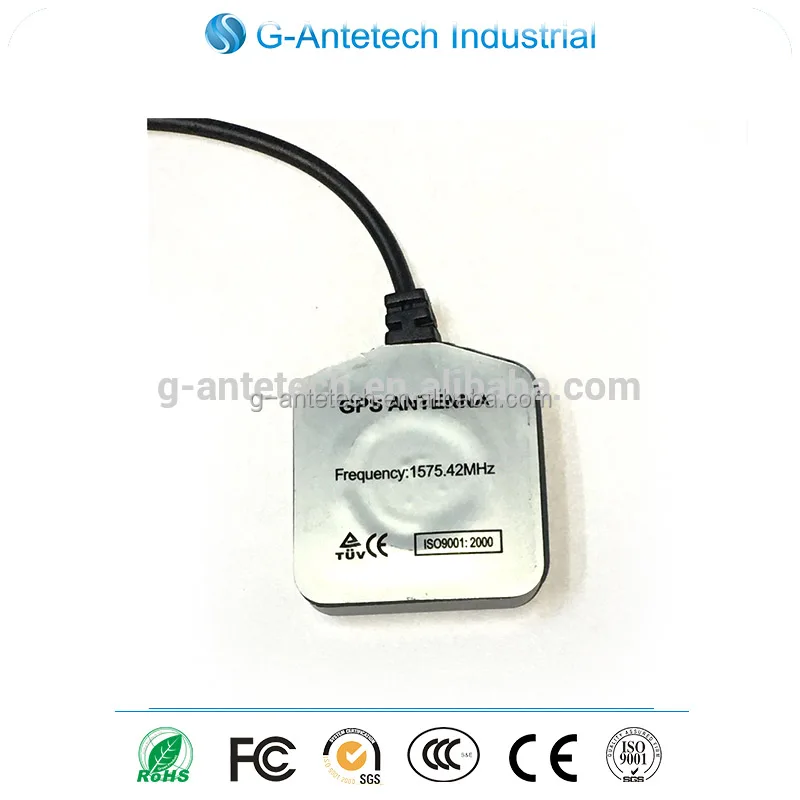

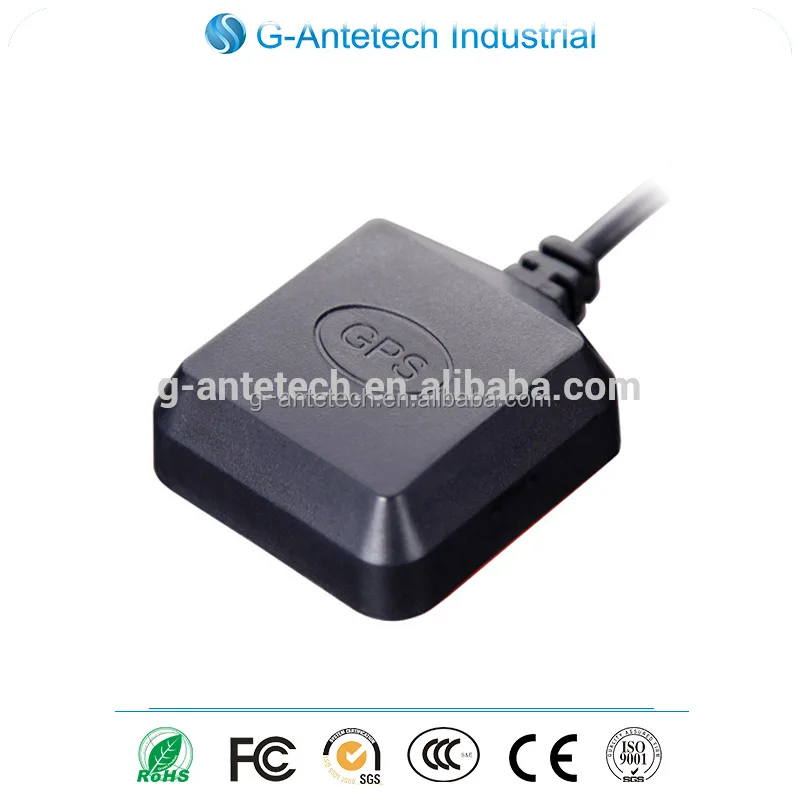

China supplier high quality jvc kw nt1 gps magnet antenna gps beidou l1 l2 with RG174 cable 3Meter

Item

Specifications

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

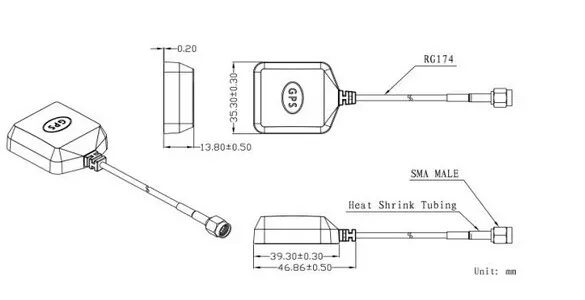

Dimension

35*39*14mm

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

V.S.W.R

<2.0

Mechanical

Cable

RG174

Connector

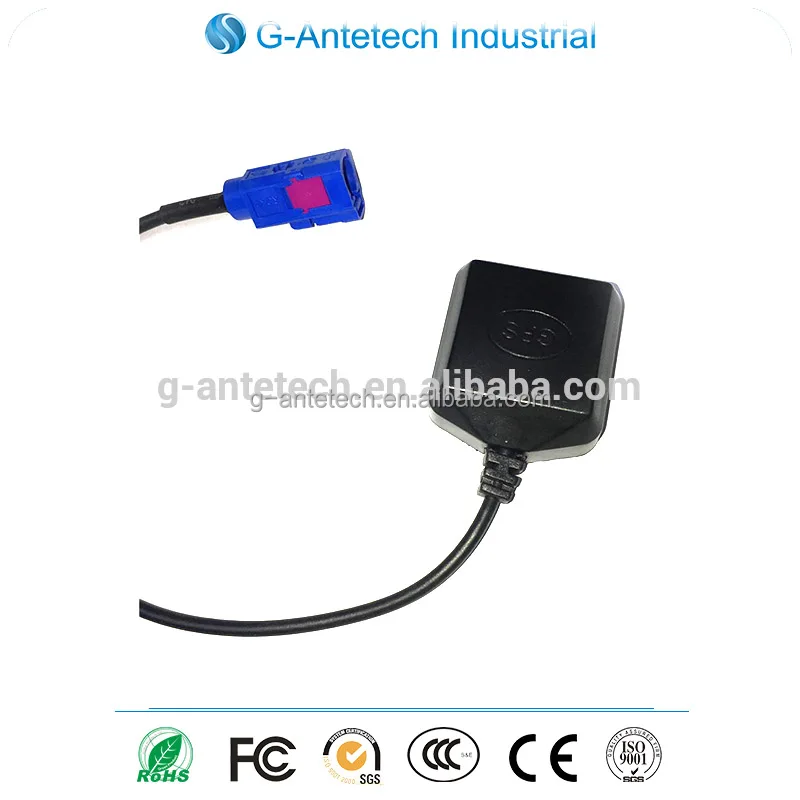

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

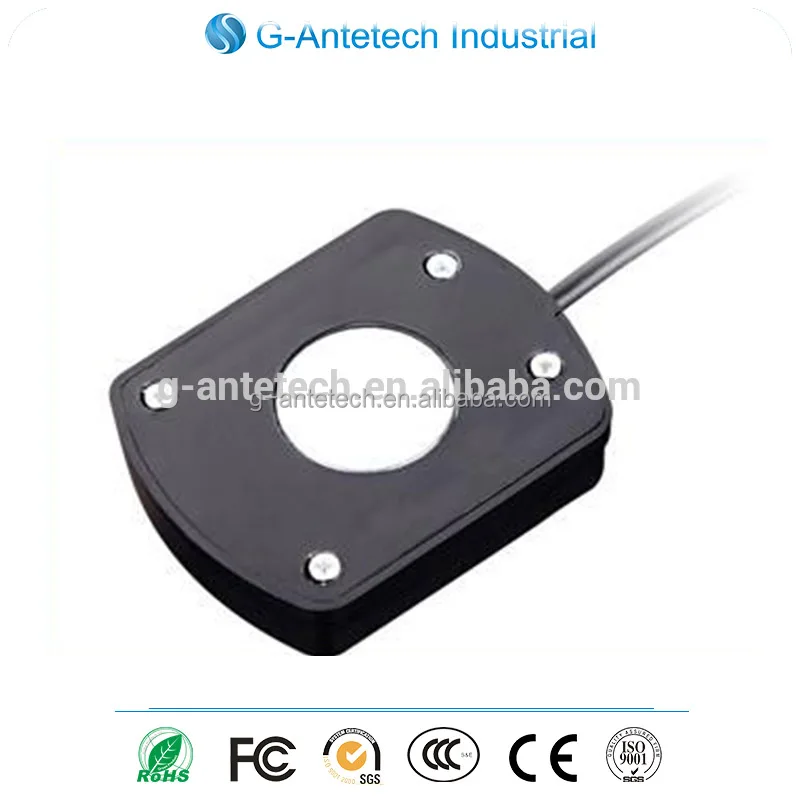

Magnet/Adhesive

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
