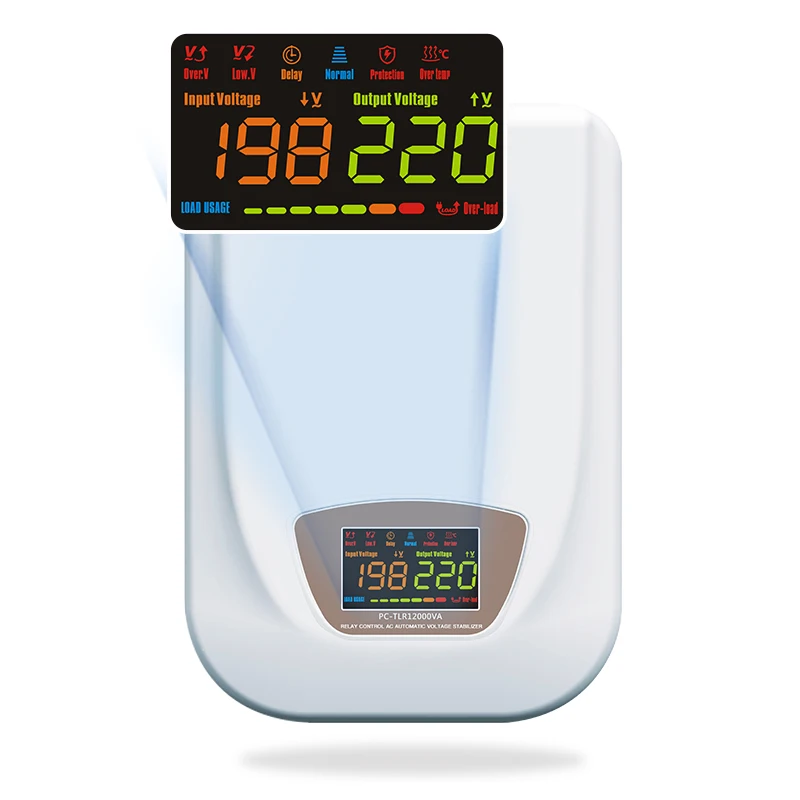

Relay Control Wall mount Type Electrical AC Automatic Voltage Stabilizer
- Category: Voltage Regulators\/Stabilizers >>>
- Supplier: Zhejiang,TTN,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
MODEL | PC-TLR3000VA | PC-TLR5000VA | PC-TLR8000VA | PC-TLR10000VA | PC-TLR12000VA | ||||
TECHNOLOGY | RELAY CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL | ||||||||
LED DISPLAY | INFORMATION | INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION | |||||||
PROTECTION | Over Voltage | Output Voltage≥243±4v | |||||||
Low Voltage | Output Voltage≤188v±4v | ||||||||
Over Loading | More Than 120% | ||||||||
Over Temperture | 120℃±10℃ | ||||||||
Delay Time | Long time(255 seconds)/Short time(5 seconds) | ||||||||
LANGUAGE | English/Russia/Chinese | ||||||||
Input Voltage | AC150-270V(A TYPE);AC135-AC270V(B TYPE) AC105-AC270(C TYPE);AC80V-AC270V(DTYPE) | ||||||||
Output Voltage | 220+/-10% adjustable | ||||||||
Frequency | 50Hz/60Hz | ||||||||
Phase | Single phase | ||||||||
Efficency | ≥90% | ||||||||
Ambient Temperature | -15℃-45℃ | ||||||||
Relative humidity | <95% | ||||||||
Waveform distortion | No additional wave from distortion | ||||||||
Insulation resistance | Insulation resistance | ||||||||
Power | 3000VA | 5000VA | 8000VA | 10000VA | 12000VA | ||||
Packing size(cm) | 43.2*31.9*39.9 | 45.7*34.9*43.9 | 45.7*34.9*43.9 | 51.8*39.0*27.0 | 51.8*39.0*27.0 | ||||
Packing (pcs) | 2 | 2 | 2 | 1 | 1 | ||||

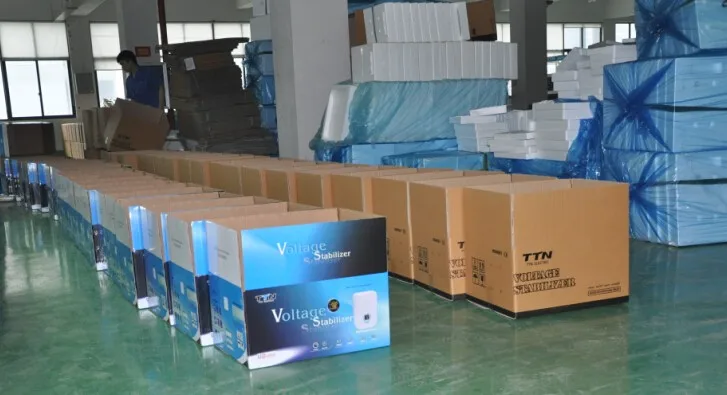

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

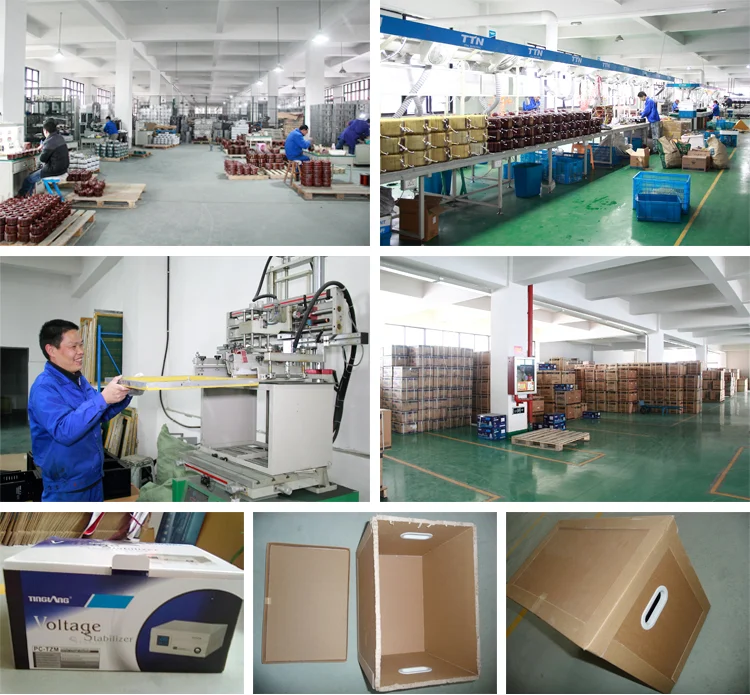

Company Profile
Company Information
Founded in 1994 year, ZHEJIANG TTN ELECTRIC CO., LTD is situated beautiful in Lucheng light industrial Zone, Wenzhou city and with30,000 square meter building. It is a member unit of the china electrical equipment industry association. And it also is a high
new science and technology enterprise. The company grasps "humanist" as the management philosophy and concept. The company has got
ISO9001:2000 international quality systems authentication.
The company mainly produces the voltage stabilizer/regulator /AVR, UPS, Power Supply Switch, Power Inverter, Solar System and so
on. All together there are more than 10 kinds of "TTN""TINGLANG" and "tecshell" series products. All products passed the quality
inspection by the People's Insurance Company and some products have passed “the Product quality authentication of CQC". And the
partial product has passed "the European Economic Community CE safe authentication". In recent years The TTN is continuously
evaluated as “the Chinese well-know brand”, “the Chinese quality stands up to the most rigorous test the service to feel relived
the prestige brand"
While the Company strictly controls the quality of the products, it also insists on enhancing the quality of the services which
has obtained the remarkable results. For theis, the company has successively received the honor of Zhejiang Province for "the
advanced technical product" "the superior technical product"
"By my sincerity, will receive in exchange for your heart" is the promise to the users from all staff of the company .the company
is continuously devoting to improve the customers living quality and is unceasingly to display the unique specialized technical
superiority. The company is also devoted to make the more valuable high technical products which will truly provide the customers
with the perfect brand space.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Sales service:
1. Warranty: Within one year from the sale date in case of damage.
2. Within one year from the sale date, if there are any accessory problems, you just provide the photos of damaged accessory, then
we will provide free accessory.
3. According to the number of products, we will provide easily damaged accessories for free.
4. We can provide technical support, when you need maintained that can do convenience for you.
1. Warranty: Within one year from the sale date in case of damage.
2. Within one year from the sale date, if there are any accessory problems, you just provide the photos of damaged accessory, then
we will provide free accessory.
3. According to the number of products, we will provide easily damaged accessories for free.
4. We can provide technical support, when you need maintained that can do convenience for you.
FAQ
Q1. What’s the payment term?
A. We accept TT, 30% deposit and 70% balance against copy of BL.
Q2. How’s the delivery time?
A. About 10-25 days for production.
Q3. Tell me the standard of package?
A. For the small capacity, color box as inner package and carton as delivery package. For big capacity, use strong wooden case for
protection.
Q4. What kind of material of transformer?
A. Two types: 100% copper, copper with aluminum. Copper is better and also higher price.
Q5. How about the logo? OEM will be ok?
A. Our logo is TTN. If you place big order, we can accept your logo. So OEM is ok. But you use our logo TTN will be high
appreciated.
If you have any questions, welcome to contact us.
A. We accept TT, 30% deposit and 70% balance against copy of BL.
Q2. How’s the delivery time?
A. About 10-25 days for production.
Q3. Tell me the standard of package?
A. For the small capacity, color box as inner package and carton as delivery package. For big capacity, use strong wooden case for
protection.
Q4. What kind of material of transformer?
A. Two types: 100% copper, copper with aluminum. Copper is better and also higher price.
Q5. How about the logo? OEM will be ok?
A. Our logo is TTN. If you place big order, we can accept your logo. So OEM is ok. But you use our logo TTN will be high
appreciated.
If you have any questions, welcome to contact us.
