HP 160D 4 colors pad printer closed Sealed Ink Cup Automatic Pad Printing Machine

Product Overview

Description

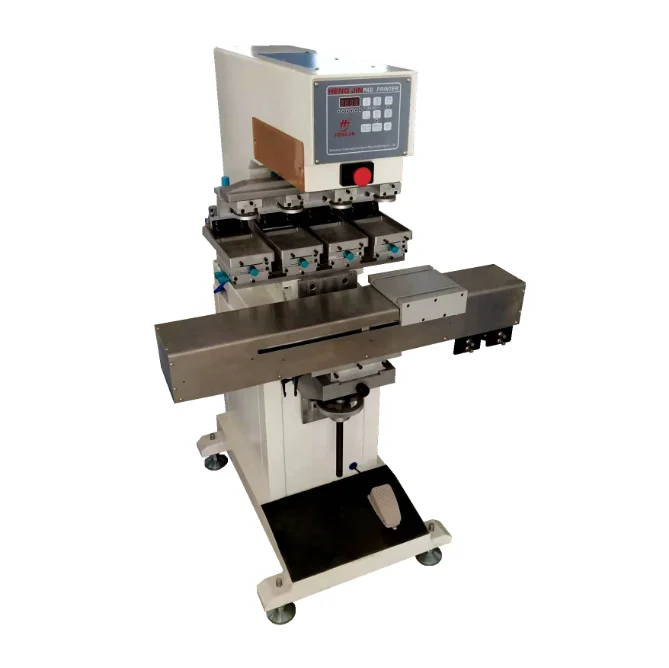

HP-160D 4 colors pad printer

closed Sealed Ink Cup Automatic Pad Printing Machine



This item special for big target products printing, which is a regular size. Can be for necessities, toys, electrons, electrical equipment, plastics, leather, metal, glass, light industry and food packages, etc.

Feature of this Machine:

1 The printing speed of shuttle pad printer is slower than turntable machine, but which suituble to bigger products. Per time printing 4 colors;

2 There are two cylinders in the worktable which both together exchange controll the position, then Fixing position is precise and stable;

3 This is machine is Semi-automatic, having automatic counter for 4 digits;

4 The machine can do your any printing requested, and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;

5 The cylinder of Machine is Imported Germany FESTO. The thickness of the screw we used 8.75 Degree. Which have more usage about 20 years;

6 The body is Alloy Cast Aluminium, then it is lighter and durable. The color of body is dusting, which is precise and more nice;

7 The machine is running agile, steady and low voice.



Parameter of Machine:



Major Technical Specification
Color	4
Max. Steel Plate Size (mm)	100*150 (4inches X6inches)
Printing Area (mm)	75*125 (3 inches X5inches)
Max. printing Capacity (pcs/hr)	680
Max printing height (mm)	150
Ink Mode	Ink Well type
measurement(L*W*H)mm:	770*800*1420
Net Weight(kg):	225
Power	110V or 220V 50/60Hz
HP-160DY (Four color ink cup pad printer with shuttle) ink cup size Dia90mm









Our Service:



1 The gurantee time is 1 years, And maintain is lifelong. During this time, if any workpiece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side. And the machine have matched a urgent foot switch.

2 The suppier must sure the machine all work well before package.

3 Lead time: 7-10 days when receive your deposit.
