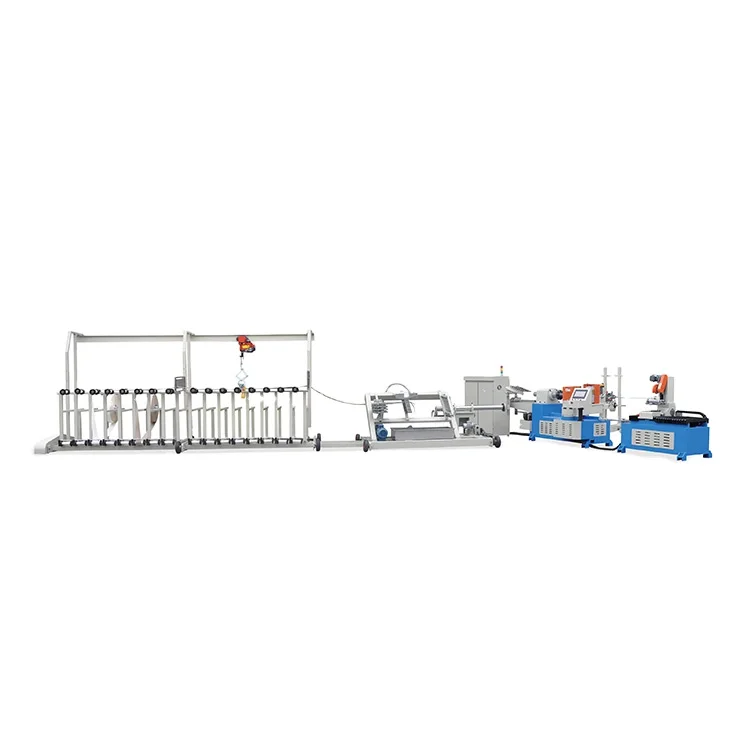

Fully automatic numerical control paper tube core making machine low noise JS PTE4 120
- Category: >>>
- Supplier: Zhejiang Jinshen Machinery Manufacture Co. Ltd.
Share on (201706694):
Product Overview
Description
FEATURES AT A GLANCE
1. Main structure is in thicker steels, much more stable and strong.
2. Main transmission adopt gear speed cut , low-noise, low-heating, high revolution, high torque.
3. Main motor adopt Vectorial high torque inverter speed adjusting.
4.hydraulic device to adjust belt tension
5.synchronous cutting system, high precision ball screw and high performance server motor drive.
6. pulse length fixation control to ensure cutting length
7. double PLC control system, IO output control and functional operation control separately,
8. new control panel and big size colorful main machine touching interface
9. multi functional bottom paper feeding device, will stop once paper break
10. integral paper reel stand, glue stand, paper feeding assembly
PRODUCT SPECIFICATIONS
"E" series of paper tube machine ,designing idea simple,compact,stable.
Standard for making paper tube 3”(ID76.2MM), Max wall thickness under 10MM, biggest tube ID can up to 200MM.
Standard for making paper tube 3”(ID76.2MM), Max wall thickness under 10MM, biggest tube ID can up to 200MM.
Use: Chemical fiber paper tube ,all kinds of composite paper can , all kinds of small industrial paper core
Model can produce spiral paper tube with gluing ,winding, cutting together on.
Model can produce spiral paper tube with gluing ,winding, cutting together on.
Number of roll paper | 3-16 plies | Wheel hub driving | 4 wheels |
tube diameter | 20-200mm | Cutting blade motor | Taiwan(wanxin) |
thickness | 1-10mm | bearing | Haerbin |
Rolling core mold fixed way | Flange fixation | Man-machine interface | We! view6070T |
Rewinding noses | Four noses double belt | Inverter | YASKAWA 7.5KW |
Cutting way | Single blade cutting | Actuator | CHNT |
Gluing way | Double sides | Signal component | Omron |
Fixed length way | Infrared/apron/ Numbering device | Angle adjusting machine | have |
Operator | 1-3 person | Pneumatic part | Airtac |
Productive speed | 3-20m/min | synchronized control | Servo, |
Speed regulation control | Inverter | Synchronized follow cut-system | Servo follow system |
Mainframe size: L*W*H | 4850*1850* 1950mm | Auto falling tube shelf | have | |
Area space: L*W | 16000*7000mm | Angle adjustment of belt | auto | |
Wheel hub diameter | 215mm | Belt adjust | manual | |
Wheel hub width | 200/350mm | Mainframe pivot angle | have | |
Min-tread | 750mm | Stop when paper without | have | |
Max-tread | 900mm | Auto giving glue | Screw pump 1.5 kw | |
Total weight | About 4200kg | Paper-belt giving lubricating oil | Auto | |
Drive system | Tension control | Can choose | ||
Power of mainframe | 7.5KW Wannan | Paper-shelf type | Integral | |
Mainframe Rotate speed | 1400r/min | belt | sailcloth | |
Hub max speed | 48r/min | |||

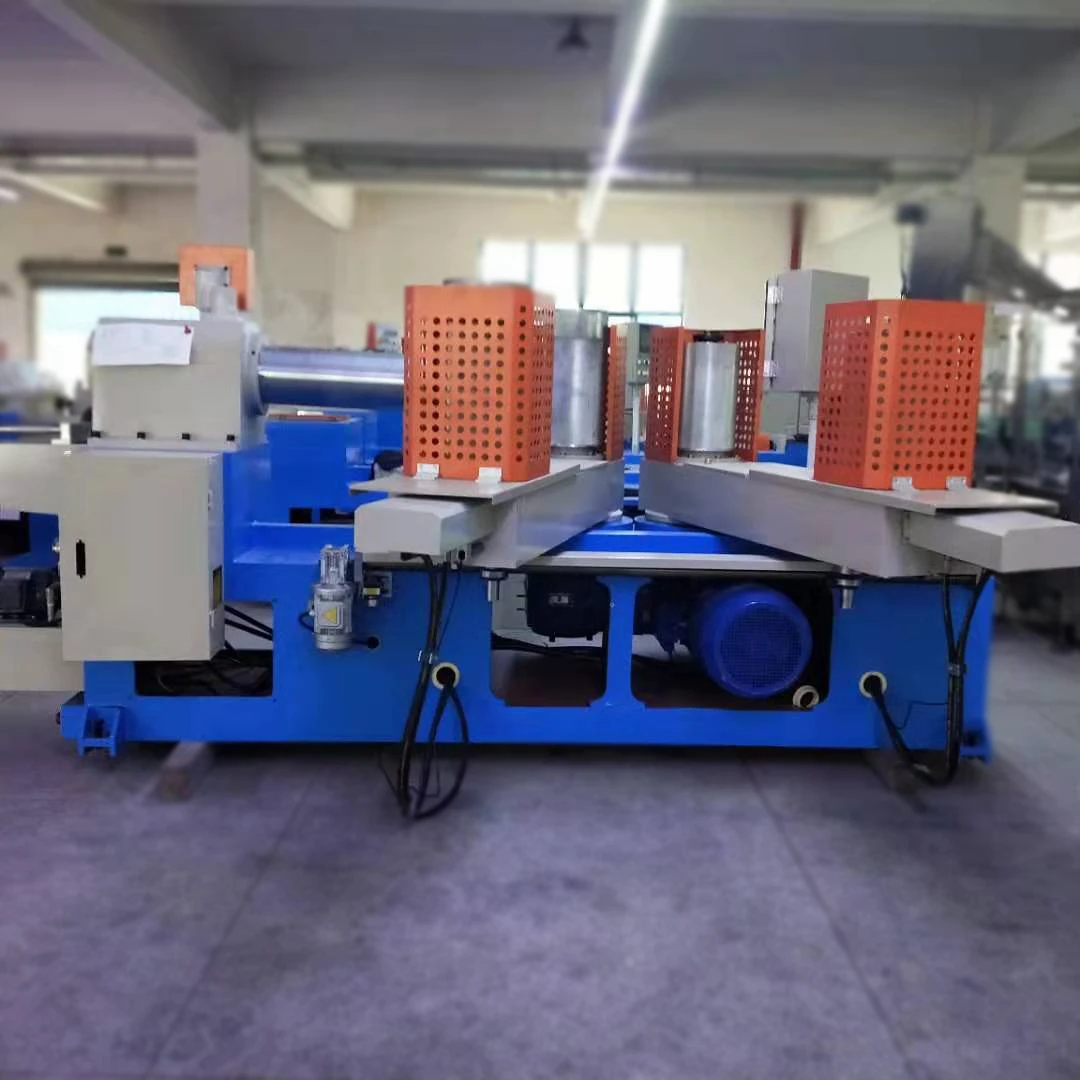

mainframe
bottom paper stand
paper reel and glue stand
