Product Overview

Description

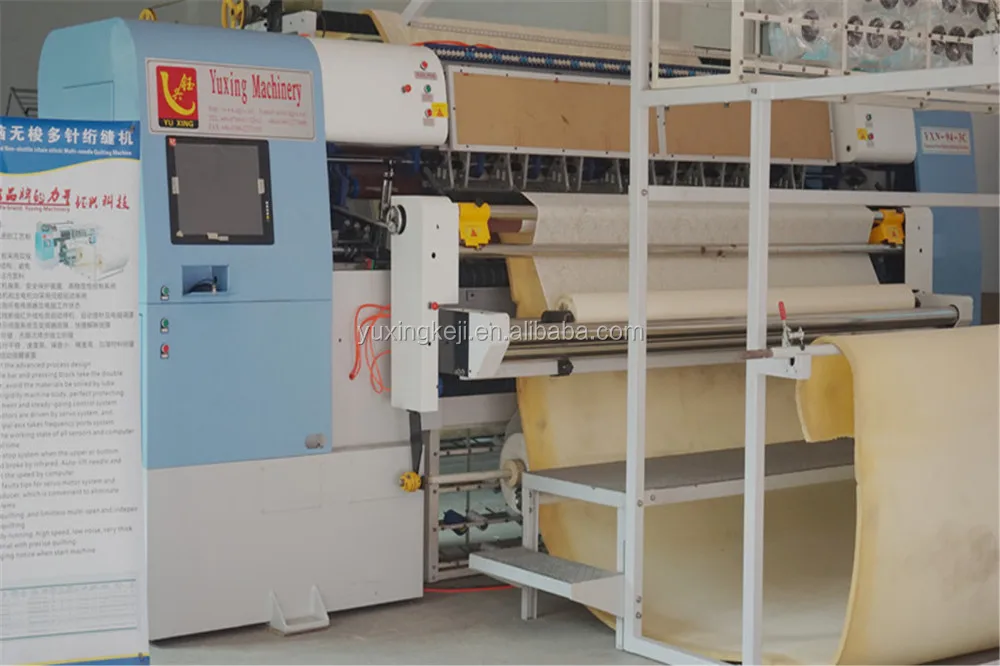

 Computer Non-shuttle Multi-needle Mattress Quilting  Machine





  MODEL: YXN-94-4C(2"+3"+3")






quilt machine,mattress manufacturing machine,carpet making machine.machinery,quilt making machine,quilt,machine quilt,chain stitch machine,quilt production machine,quilting bedding set,machine china







SPECIFICATION





































































  Product Name



 Computer Non-shuttle mattress Machine



  Model



  YXN-94-4C(2"+3"+3")






 Size(L*W*H)



  4800*1600*2000mm



 Weight



  4500kg



 Quilting width



  2485mm



 Needle bar spacing



  50.8,76.2,76.2(2"+3"+3")



 Quilting thickness



  80mm



 Rolling speed



  600-900r/min



 throughput



  60-180m/hour



 Needle type



  #21-#24



 X-axis movement



  410mm



 Needle spacing



  25.4mm



 Stitch length



  2-8mm



 Rated voltage(AC)



  As required



 Power



  7KW









   Used for quilting advanced mattress,bedding products,carpets and cushions





Quilting Machine Patterns











FUNCTION





1.Adopt the advanced process  techneque ,perfect machine for high production.


2.Needle bar and pressing plate are pushed by double rocking arm. which increase pattern accuration as well as avoid the materials be soiled by lube.


3.High rigidity machine body,perfect protecting equipment and steady-going control system.


4.X,Y motors are driven by servosystem, and principal axis takes frequency ports system.


5.Test the working state of all sensors and computer in real time.





6.Auto top system when the bottom or upper thread broke detected by infrared system


 Auto lift needle and  adjust the  speed by compurter.


7.Auto faults tips for servo motor system and transducer,making it    much convenient to eliminate problems.


8.360°quilting sewing and limitless multi-span and independent quilting.


9.Steady running,high speed,low noise,very thick material with precise quilting.


10.Ringing alarm when machine start running.


11. 8 inch pattern capability


12.Pre-installed up-to-date pattern,or create you own design through CAD darwings.








Packaging & Shipping





All our machines are packed in standard elastic film before shipping, can be shipped 15 days after receiving advance payment.










Our Services





AFTER-SALES





To reassure our customer, we provide one year guarantee to meet concerns, within warranty, customer will get free new  parts for replacement. Technician is always available via online assistance, we'll engaged in solving every problem comes to us in quick fashion. In our concept, customer is entitled to have a robust machine accomplishing it's task successfully free from any worries, high quality and good service is our best repay for customer's trust and confidence.





1) Within a year


a.If machine parts is broken,we can send the needed parts to our customer for free.


b.We can provide the installation, commissioning and training service in customer's factory,while customer needs to pay for VISA application,flight tickets,accommodation, USD50/day/person as labor fee








2) After one year


a.If machine parts is broken,we need to charge our customer for the required parts.


b.If we send our technician to customer's factory for maintenance, customer should pay USD 50/day as service charge, include VISA fee, flight tickets,accommodation.








FAQ





Voltage:Voltage is defaulted as 380v/50HZ,220v/60HZ. Please advise us your country's rated industrial voltage before shipping if different .


Payment terms: By T/T, 30% in advance, 70% pay off before delivery.
















Company Information





YuXing Machinery Equipment Technology Co.,Ltd  has been in quilting machine industry from 2000, mainly manufacture Lock stitch/chain stitch quilting machine,embroidery and quilting machine,fabric roller,cutting panel,bobbin winder etc with varied types, backed up with an overall after-sale serveice





We assiduously do research and develop for our products to keep putting new upgraded machine on market,  produce and fabricate machine parts etc, all process involved in quilting machine field integrated into one-stop





We focus on quilting machine field only to be more specialized, built business step by step, win us the reputation as one of the leading manufacturer of quilting machine in Dongguan China.





Machine is for producing mattress,sleepping  bag,garments, bedspread ,duvet,cushion and other home textile fashion goods.





Quality first,


                    Customer paramount,


                                                         Honest business,
                                                                                     Credit-founded
