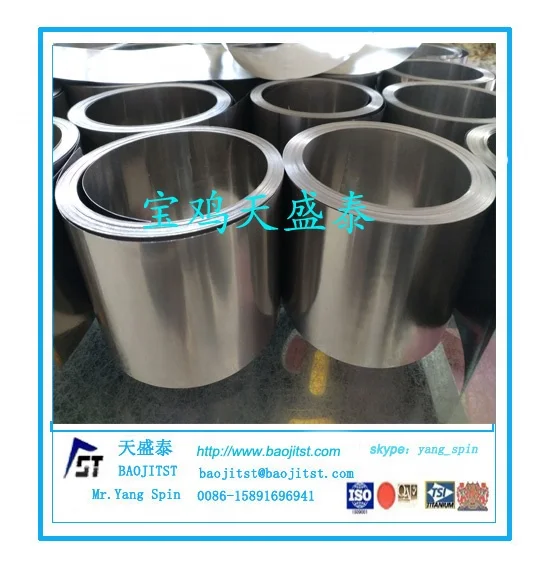

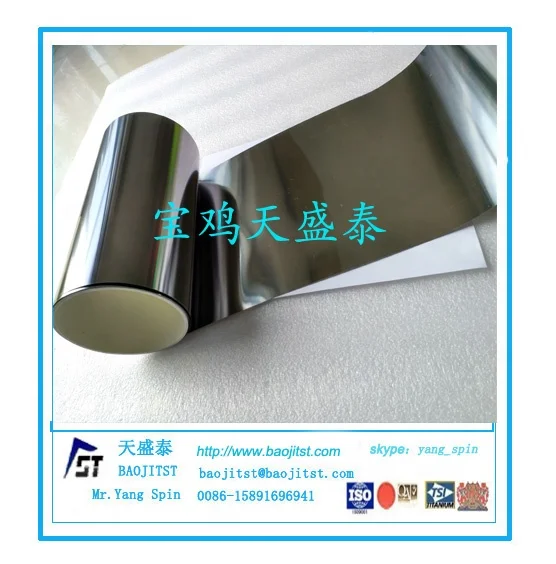

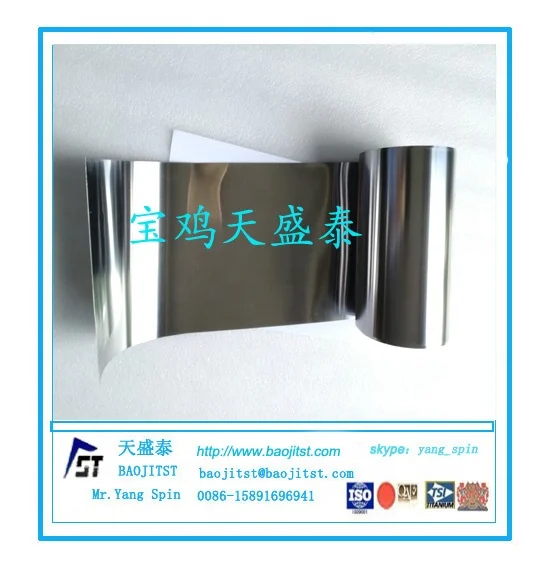

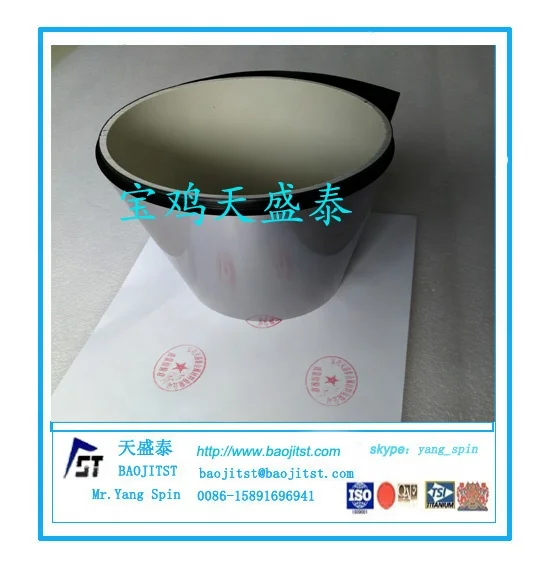

0.01mm titanium foil Gr1 ASTM B265 baojitst

Product Overview

Description

0.008mm titanium foil Gr1 ASTM B265 baojitst



1. Grade:   GR1 GR2 GR5 GR7 GR9 GR12

2. Size:  Min thickness 0.008mm *width 100mm* Length  in coils

                thickness 0.025mm-0.09mm * width 50mm-200mm* Length  in coils

                thickness 0.1mm-0.5mm * width 50mm-600mm* Length in coils

                thickness 0.6mm-2.0mm * width 50mm-1200mm* Length in coils

3. Standard:  ASTM B265 ASTM F67 ASTM F163

4. Certification: ISO9001, SGS

5. MOQ: 1KG

6. Production capacity: 1000kg/month

7. Payment: T/T or Western Union

8.Delivery time: 3-10days

9.Used: Used in the production of loudspeaker voice diaphragm, filler inside the chemical equipment, medical implants, production of precision parts, etc.



UNS No.



	UNS No.			UNS No.
Gr1	UNS R50250	CP-Ti	Gr11	UNS R52250	Ti-0.15Pd
Gr2	UNS R50400	CP-Ti	Gr12	UNS R53400	Ti-0.3Mo-0.8Ni
Gr4	UNS R50700	CP-Ti	Gr16	UNS R52402	Ti-0.05Pd
Gr7	UNS R52400	Ti-0.20Pd	Gr23	UNS R56407	Ti-6AL-4V ELI
Gr9	UNS R56320	Ti-3AL-2.5V



Tolerance(mm)



Thickness	Thickness tolerance	Width tolerance	Length tolerance
0.008-0.025	±0.003 -- ±0.002	±0.5	+10-0
0.03-0.05	±0.005 -- ±0.003	±0.5	+10-0
0.06-0.07	±0.007 -- ±0.005	±0.5	+10-0
0.08-0.9	±0.01 -- ±0.007	±0.5	+10-0
0.1-0.15	±0.015 -- ±0.01	±0.5	+10-0
0.18-0.2	±0.02-- ± 0.015	±0.5	+10-0
0.25-0.3	±0.03--±0.02	±0.5	+10-0
0.4-0.5	±0.05--±0.04	±1.0	+15-0
0.6-1.0	±0.07--±0.05	±1.0	+15-0
1.1-1.5	±0.09--±0.07	±1.5	+15-0
1.6-2.0	±0.12--±0.1	±2.0	+15-0
