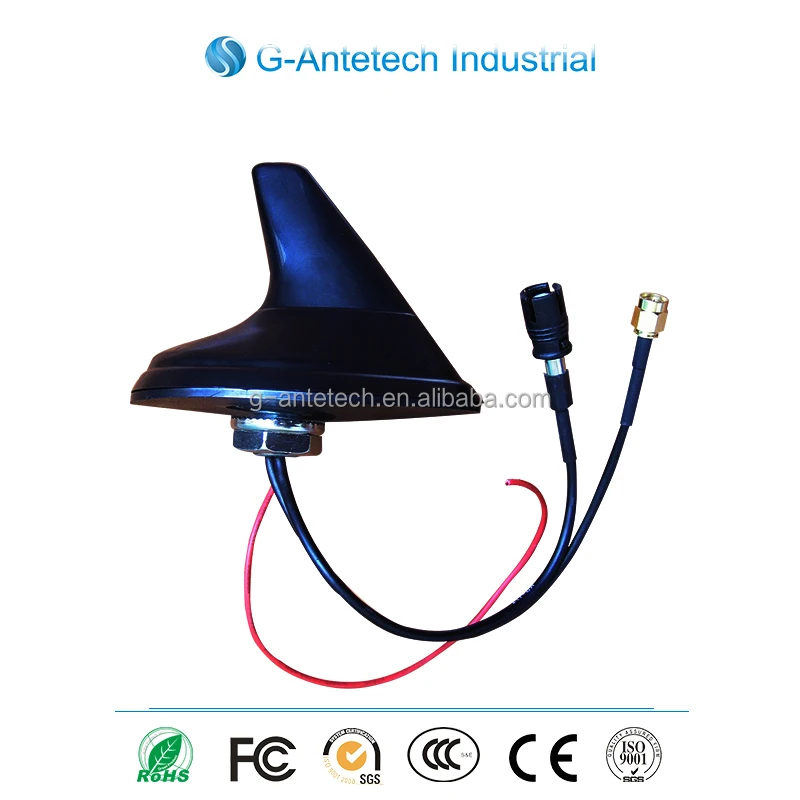

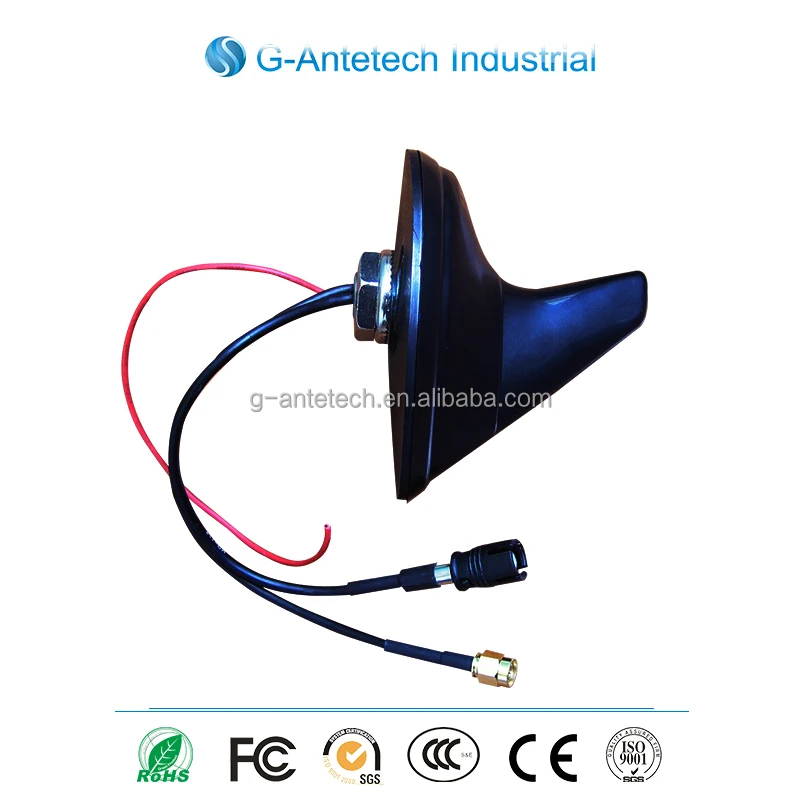

Universal truck antenna active gps am fm mobile antenna for taxi/train/truck/tractor
- Category: >>>
- Supplier: Guangzhou G-Antetech Telecom Antenna Factory
Share on (201779480):
Product Overview
Description
Product Description
(China supplier) Sell GPS+FM AM Combination shark Fin car antenna
GPS Antenna
| Dielectric Antenna
| Center frequency | 1575.42MHz±1 MHz |
Band width | ±5MHz | ||
Polarization | RHCP | ||
Gain | 5db | ||
V.S.W.R | <1.5 | ||
Impendance | 50Ω | ||
Axial ratio | 3db(max) | ||
LNA
| Gain | 28±2db | |
Noise figure | <1.5 | ||
Ex-band attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
V.S.W.R | <2.0 | ||
Supply voltage | 2.2~5V DC | ||
Current consumption | 5~15mA | ||
FM/AM Antenna | Frequency | 76-110MHz (FM), 525-1,700MHz (AM) | |
Gain | +20dB (FM), +5dB (AM) | ||
Impedance | 75 ohm | ||
Cable | 3C-2V | ||
Voltage | 10-14V | ||

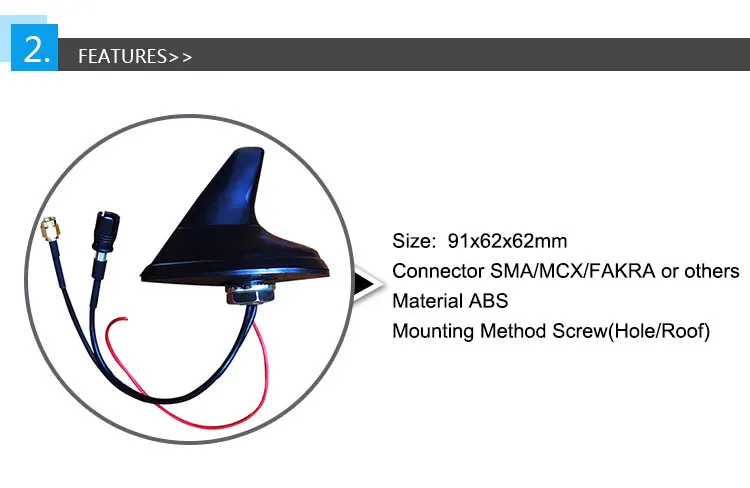

Mechanical
| Size | 91x62x62mm | |
Connector | SMA/MCX/FAKRA or others | ||
Material | ABS | ||
Mounting Method | Screw(Hole/Roof) | ||
Environmental | Operating Temperature | -40℃~+85℃ | |
Relative Humidity | Up to 95% | ||
Waterproof | IP67 | ||
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
Environmentally Friendly | ROHS Compliant | ||
