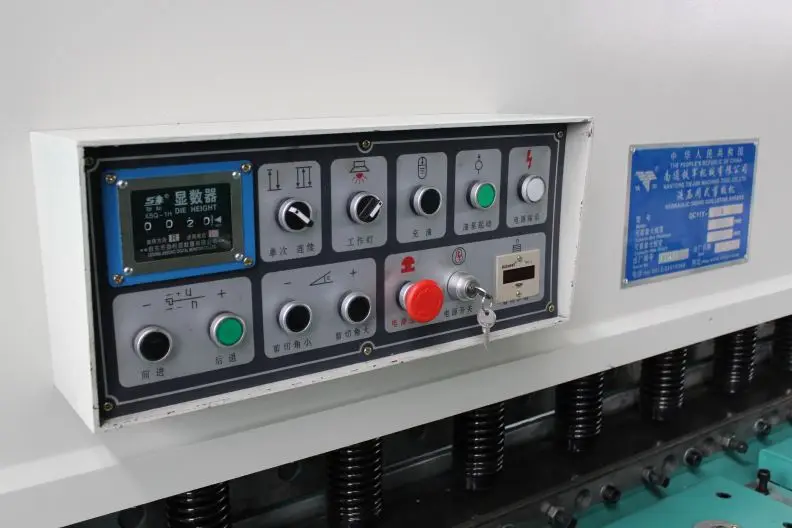

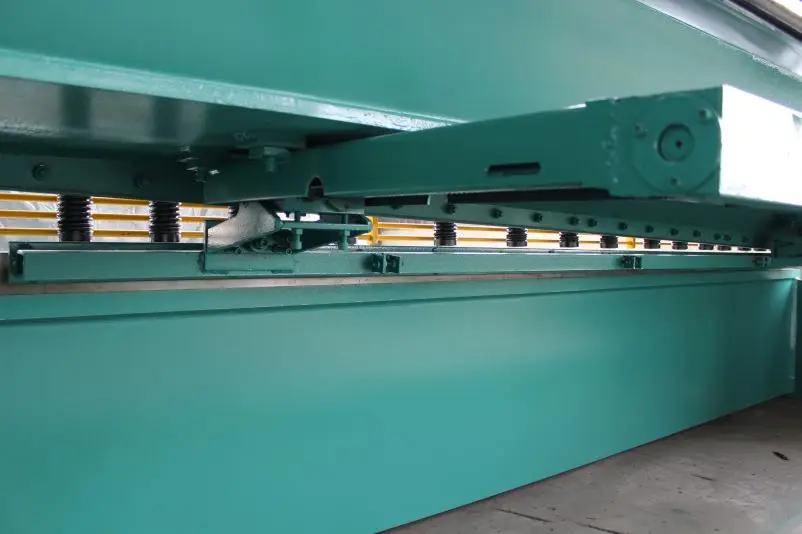

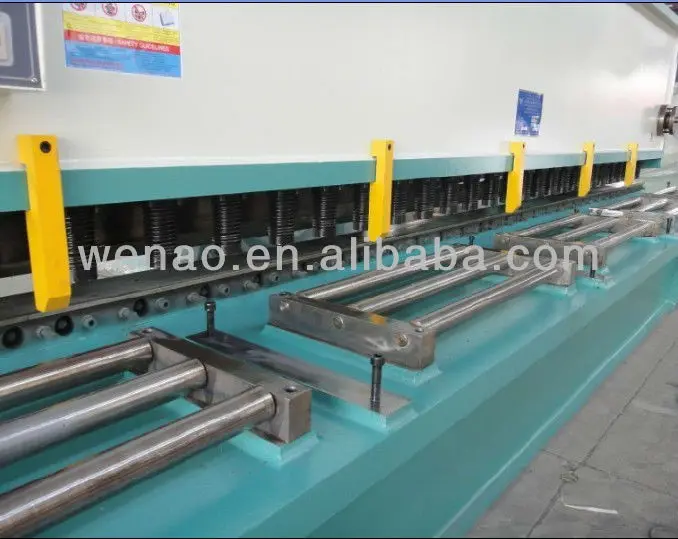

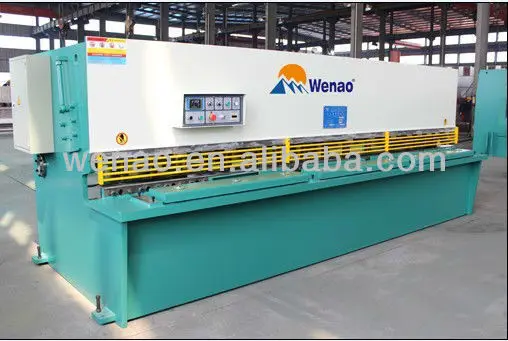

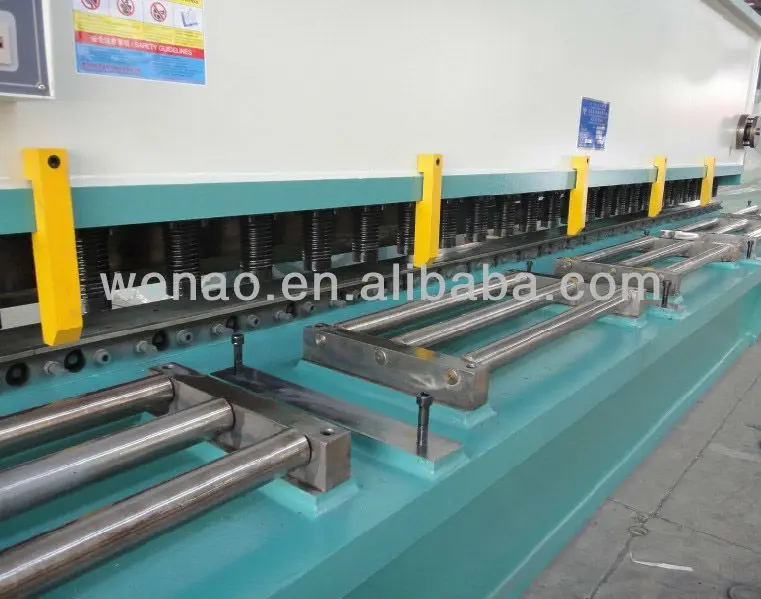

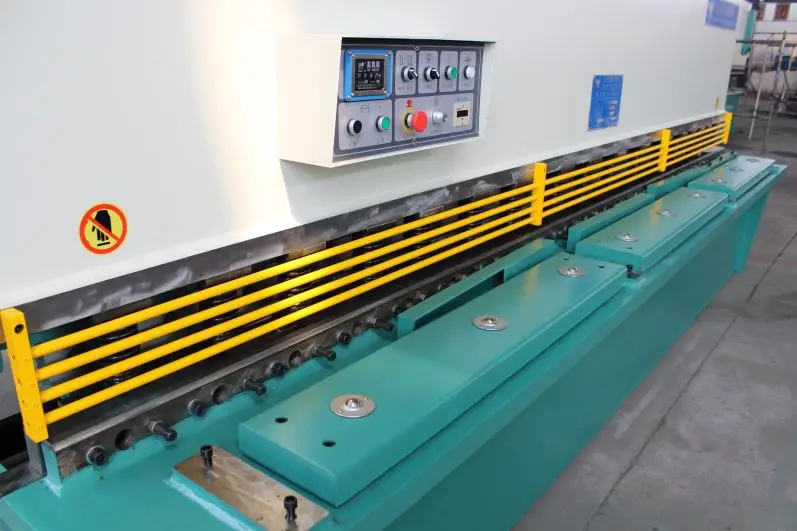

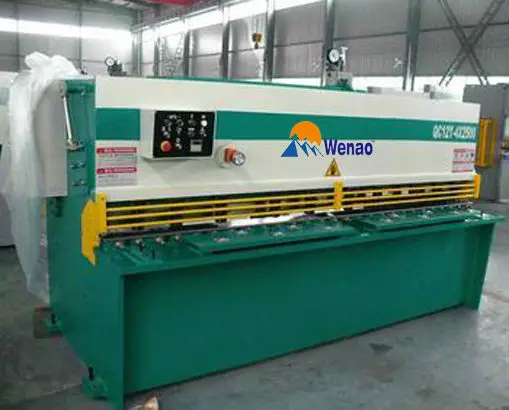

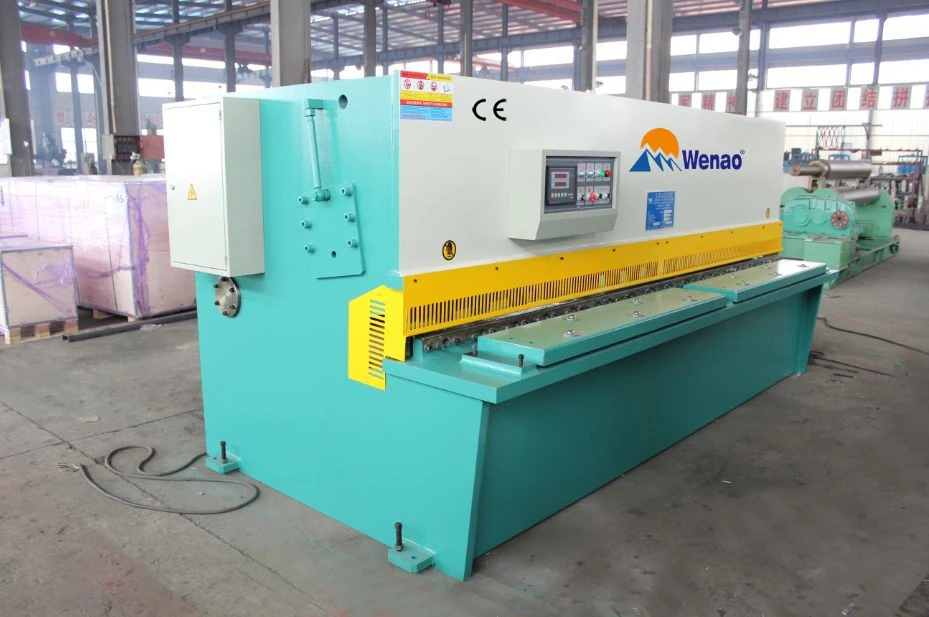

QC12Y 8X4000 Hydraulic swing beam shearing machine SIKO display

Product Overview

Description

high quality universal hydraulic swing beam cutting equipment|high quality universal hydraulic swing beam cutting equipment



Features:

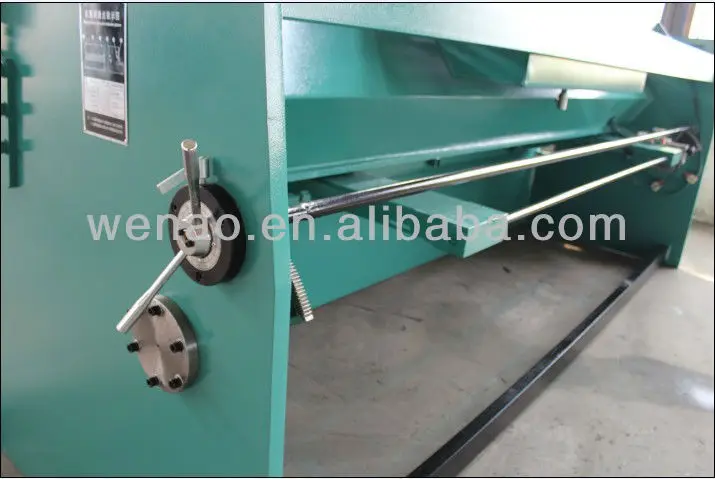

1.Rapid blade gap adjustment, to be conducted without clearance. Edge of the adjustments.



2.E20 CNC system hight reliability.



3.Inverter, coding device that is expected after the NC block.



4.Lights on line installation, ease of manual crossed shear.



5.Reliable security guards.



Brief description of equipment:



1.Overload protection device:According to the structure feature, shearing machine set overload protection on force, pressure and torsion, it’s reliable and operate quickly.



2.Transmission system: set protective device to exposed gear, fuel tanks and other transmission parts which may produce danger, meanwhile avoid clamping point between protective device and moving parts. There are obvious turn indicating device in unidirectional rotating parts.

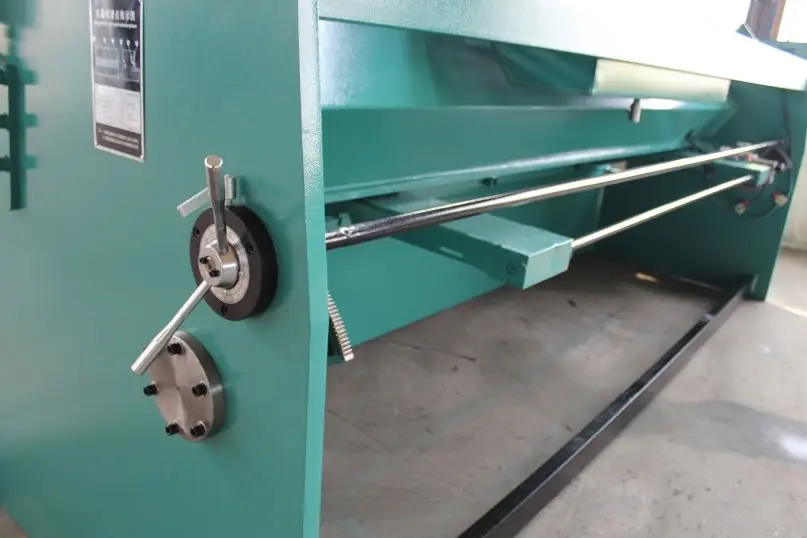

3.Adjustment device ofthe upper andlower blade have a structure to adjust accurate and locking reliable.



4.Each part of shearing machine plays coordinate and reliable in full load test.



5. It plays coordinated among upper blade, swaging and handling, all of the working standard action play smooth and reliable. When stopped running the upper blade can stay in theposition ofthedesignspecification.



6.The appearance of the machine tool: Paint of surface colour and lustre is uniform, there is no defect like obvious aberration, bubble and sagging. All system pipes and circuits are installed neat and attractive. The rust underlying can be removed and the topcoat using upscale polyurethane paint



7. Assembly quality: Important fixed joint surface like rack ,rails, workbench, beams, blade and cylinder jointed Closely, after fastened these could be test by filler gauge.



8.Safety setting of CNC electric system:using infrared fixing equipment, Back gauge is equipped with a frequency converter and encoder, in order to realize CNC back gauge. The machine is equipped with warning signs, power cut off switch device, protection against electric shock, overheating protection and some relevant wiring technology



What is your machine quality ?



• Answer: We accept SGS to check our quality before shipping.

How to do if the machine is broken ?

• Answer: Free repair within one year.

What is your payment terms ?

• Answer: 30% advance payment,70% against copy of B/L(after shipping).
• How to get a accurate quotation from us ?



1,tell us metal thickness.



2,tell us metal widthness.

• How to check shipping cost from China to my country?

Very simple, tell us your city or port.

• How to check imported charges or tax ?

Call your Customer. tell them machine HS code.



Press brake and rolling machine are 84622990. shearing machine is 84623990.

• How to see our machine in your local place?



We have sold lots of machines to the world, in most situation, you can see our machine in your country, however, we can not promise 100%,so,confirm with us by email.



• How to repair&maintain our machine ?

Generally, the hydraulic machine is not easy to break. even though the problem occur, It is small problem.we can solve it through email and video.



• do you offer commissioning service?

yes, we can offer commissioning service, but, the buyer need to afford plane tickets.



• Do you offer teaching&training ?



yes, we prefer that you arrange your worker to China. or our engineer go to your country.



• what policy for broken parts?

within one year, we offer free parts.



if beyond one year, you need to buy by factory cost.



Parameter:



Parameter Specification	Shearing Size	Shearing Width	Strokes	Backgauge Rang	Shearing Angle	Working Table Height	Main Power
	mm	mm	mm-1	mm	(.)	mm	Kw
4*2500	4	2500	18	20-500	1°30′	800	4
4*3200	4	3200	18	20-600	1°30′	800	4
4*4000	4	4000	12	20-600	1°30′	800	5.5
6*2500	6	2500	18	20-600	1°30′	800	7.5
6*3200	6	3200	14	20-600	1°30′	800	7.5
6*4000	6	4000	12	20-600	1°30′	800	7.5
6*6000	6	6000	7	20-800	1°30′	850	7.5
8*2500	8	2500	14	20-600	1°30′	800	11
8*3200	8	3200	10	20-600	1°30′	800	11
8*4000	8	4000	8	20-600	1°30′	800	11
8*6000	8	6000	6	20-800	1°30′	850	15
10*2500	10	2500	10	20-600	1°30′	800	11
10*3200	10	3200	10	20-600	1°30′	800	11
10*4000	10	4000	8	20-600	1°30′	800	15
10*6000	10	6000	6	20-600	1°30′	850	18.5
12*2500	12	2500	10	20-600	2°	800	15
12*3200	12	3200	9	20-600	2°	800	18.5
12*4000	12	4000	5	20-600	2°	800	15
12*6000	12	6000	6	20-800	2°	900	22
16*2500	16	2500	8	20-800	2°	800	18.5
16*3200	16	3200	7	20-800	2°	800	22
16*4000	16	4000	5	20-800	2°	850	22
16*6000	16	6000	4	20-800	2°30'	1000	22
20*2500	20	2500	6	20-800	2°30'	850	22
20*3200	20	3200	6	20-1000	2°30'	900	30
20*4000	20	4000	6	20-1000	2°30'	900	30
20*6000	20	6000	3	20-800	2°30'	1000	30
25*2500	25	2500	6	20-1000	3°	850	30
25*3200	25	3200	6	20-1000	3°	900	30
25*4000	25	4000	6	20-1000	3°	1000	30
25*6000	25	6000	6	20-1000	3°	1100	37
30*2500	30	2500	6	20-1000	3° 30'	1000	37
30*3200	30	3200	5	20-1000	3° 30'	1100	37
30*4000	30	4000	5	20-1000	3° 30'	1200	55
40*2500	40	2500	5	20-1000	4°	1200	55
40*3200	40	3200	5	20-1000	4°	1200	55
