Hotel rooms DND & Make up room system

Product Overview

Description

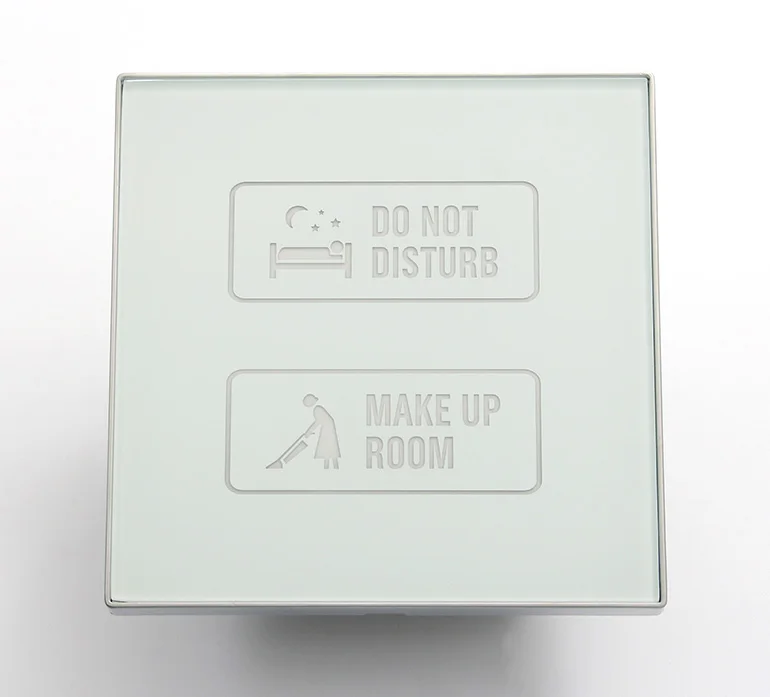

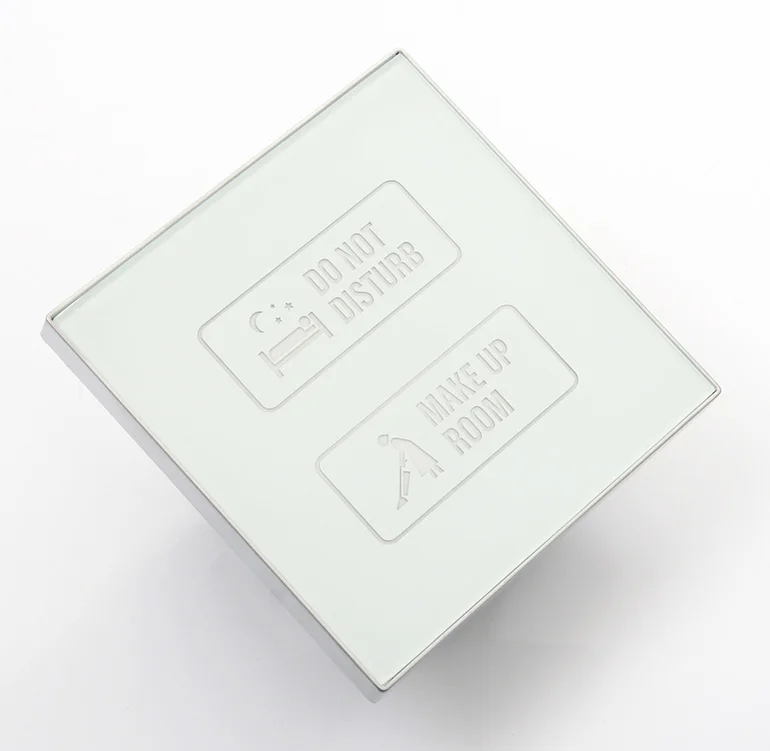

Hotel rooms DND & Make up room system

Description

G1TB is designed by GTD company, based on new version wireless communication technology and capacitive touch control technology. It is special develop for star hotels, smart DND & Make up room. This system is including wire and wireless version. We can also special made different voltage (80-260V AC, 5-60V DC).

G1TB system is including outdoor display panel, indoor control panel, bell, and energy saver. We can also OEM made function as your need.

Our smart doorbell system is with humanized design, well improve the hotel service level and gain customers satisfaction. It has been a standard products in hotel industry.



Elegant, easy and fluent design
Fashionable pure flat design, simple text and icons, different colors LED back-light to choose, metal texture frame.

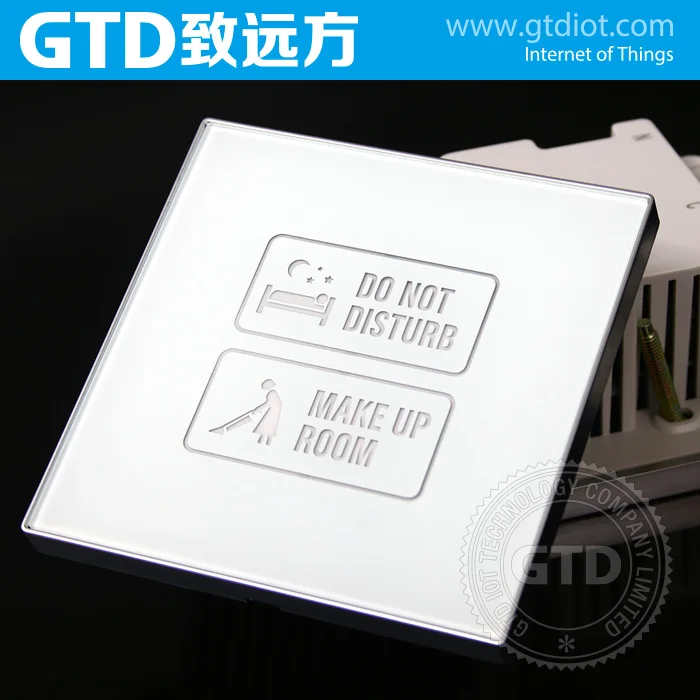

Tempered glass panel

Luxury tempered glass panel, waterproof scratch proof, safe and not easy to aging.



Capacitive touch control

High sensitivity and 100ms touch sensor speed, smooth and delicate touch feelings.
It is the integration of science, technology, art, and fashion!



LED back-light indicator

Simple yet-catching LED back-light indicator, blue, orange, red, green of indicator 4 different status, providing best humanized operating and recognized.

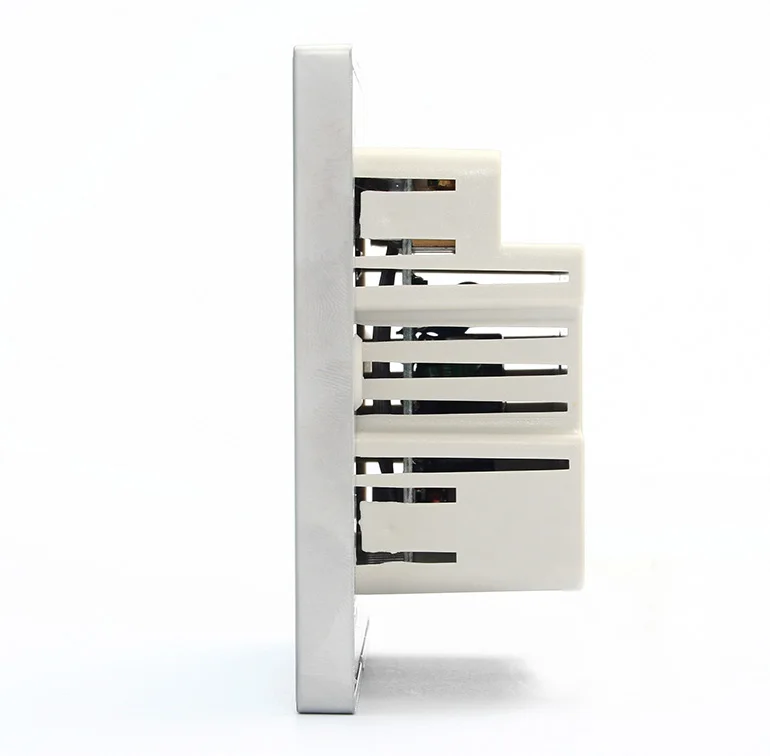

Cooling grid design

There is some cooling slot on the back of the G1TB, which will well reduce the temperature of electronic components, prolong the service life of the product.

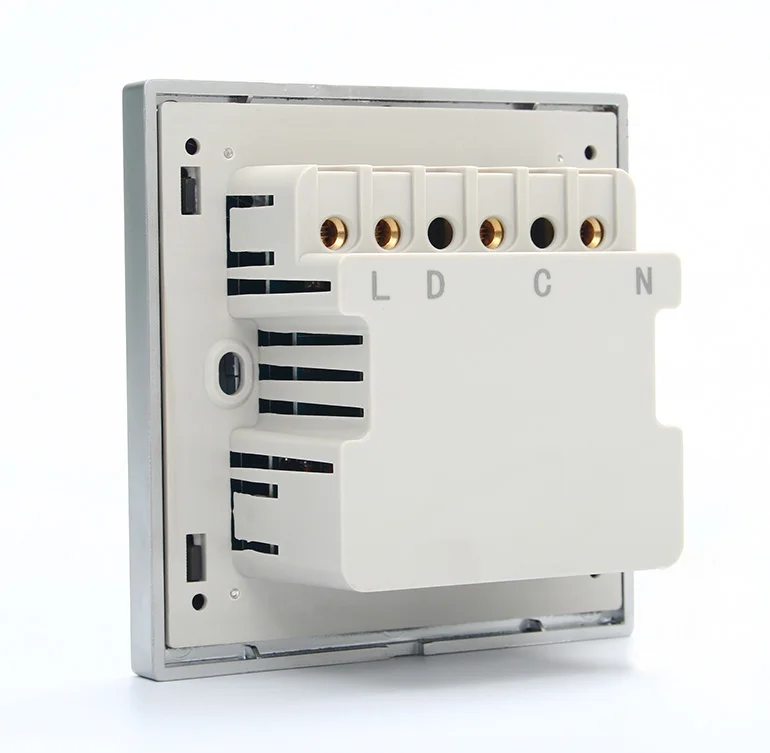

Copper wiring terminal and screws

G1TB is using copper casting metal wiring terminal and screws, which can greatly increase the conductivity, reduce resistance, and increase the load. In addition, it can also improve product durability and stability.



Precision producing

G1TB is produced precision, which can ensure high first-class quality. Meanwhile, it can be customized wireless doorbell system, using 433Mhz wireless radio frequency technology, with strong anti-interference ability and strong penetrating power.



Different colors panel

G1TB is with different panel colors for choice, also we can special OEM made panel colors and words at customer’s request.


High-grade Bulletproof glue

G1TB hotel room DND & Make up room system is using high-grade imported PC material, impact resistance, fire retardant, and never fade.



Related products

G1TB system switches are suitable for 86 install box. Meanwhile, you can also select a mechanized switch as control panel.



Used in different areas
Suitable for hotels, apartment, motel, schools, colleges, universities, hospitals, leisure centres and offices etc.



Technical details

Operating voltage: 12V DC or 50/60Hz 80-260VAC
Screw fixed center distance: 60mm (application of 86 bottom case)
Operating temperature: -10 - 60°c
Operating Humidity: 0-95%
Service Life: press touch-screen button 1 million times, relay contacts 100,000 times.
Power consumption: less than 1W
Transport, storage temperature range: -20 - 80°c
Overall dimensions: W86mm * H86mm * D40mm
