3. Multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc.
4. High efficiency, NO effect on the traffics on surface,good for the environment, lower the cost.
5. More than 20 units in Singapore
6. Concrete jacking pipe, segmental concrete pipe both ok;
7. Customer-built
Our Services
1.On site service support;
2. 12month warranty;
3. Life time service support,

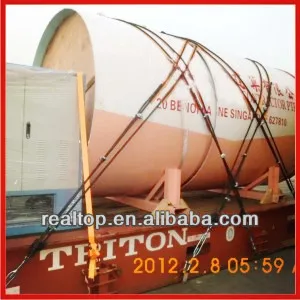

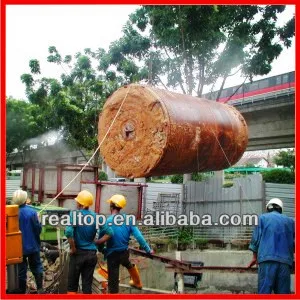

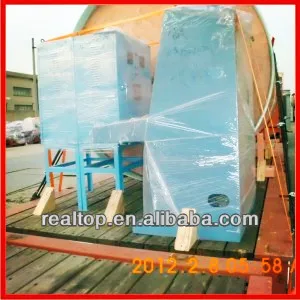

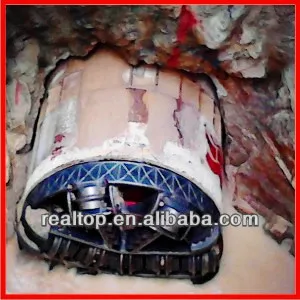

4. Photos of machine on-site1.
Product Description

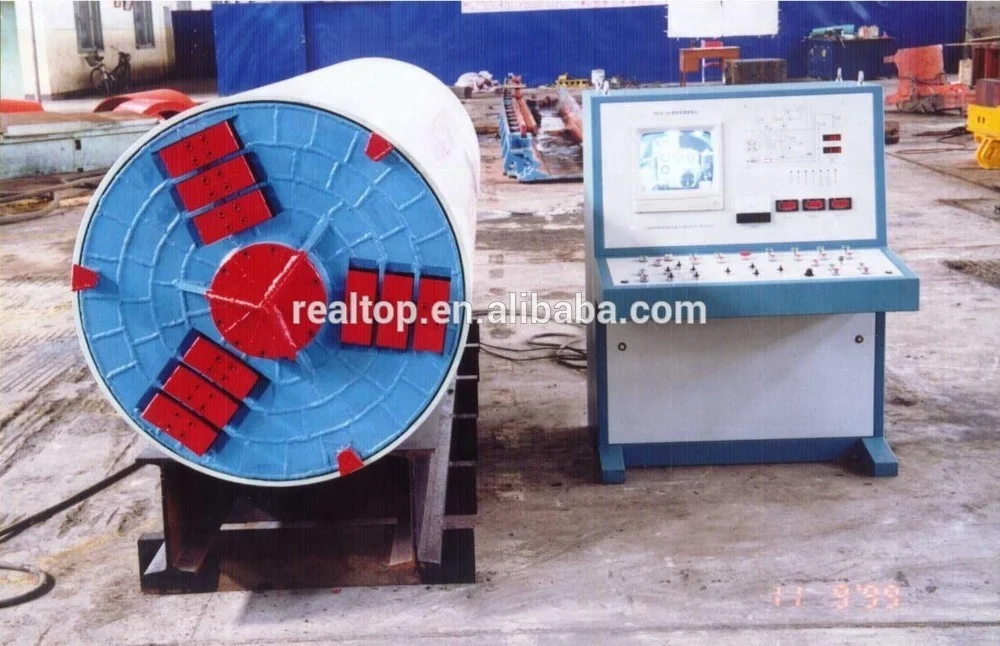

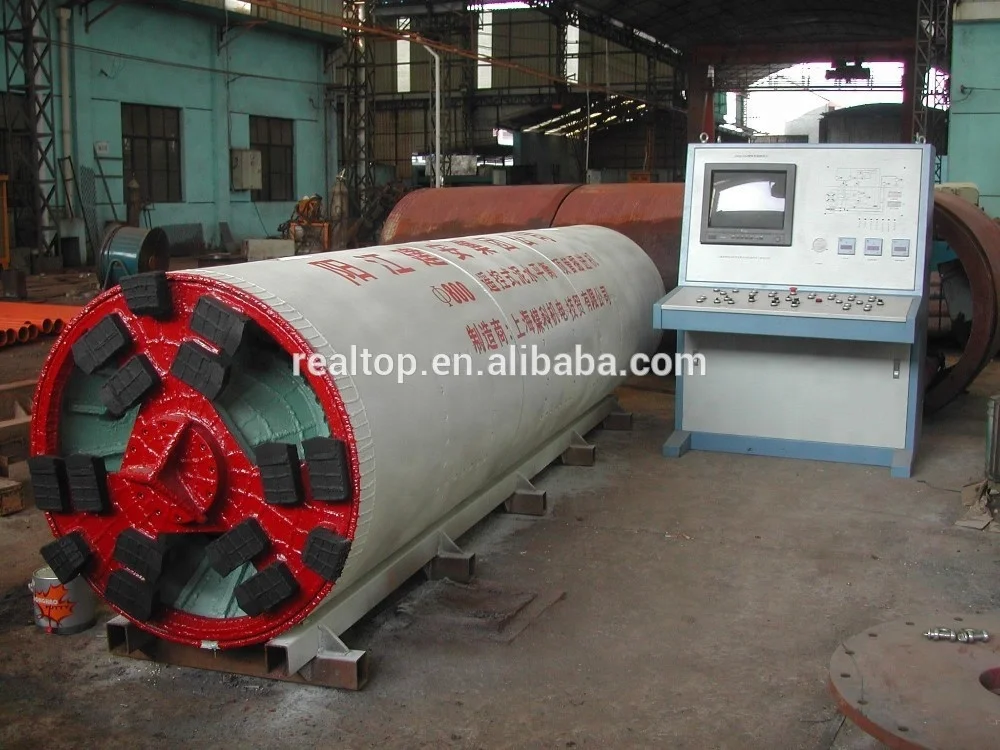

we could supply pipe jacking machine model from DG250mm to DG4500, for round shape and rectangular
pipe jacking machine
Models and main technical data
Model
DG1200-QNP
Dimensions
Inner Diameter (mm)
1200
Outer Diameter (mm)
1500
Total Length (mm)
3800
Cutting Part
Motor Power (kW)
45
Cutterhead Torque (kN·m)
150
Cutterhead Rotating Speed (r/min)
0-4
Timing Way
VVVF
Oil Cylinder of Rectifying
Quantity
4
Thrust Force (kN)
800
Stroke (mm)
60
Rectifying Angle (°)
±2
Hydraulic System
Motor Power (kW)
1.5
Working Pressure (MPa)
25
Slurry In & Out System
Water-in Gravel Pump(kW)
22
Slurry-out Gravel Pump(kW)
37
Timing Way
VVVF
Main Jacking System
Jacking Speed (mm/min)
0~80
Rated Pressure (MPa)
46.5
Rated Jacking Force (kN·m)
1500 *6
Main Pump Power (kW)
18.5
Timing Way
VVVF
For your reference:
One of our customer from Thailand purchase two sets of DG1200-QNP from our company in the year of 2013 and its soil is mainly clay.
