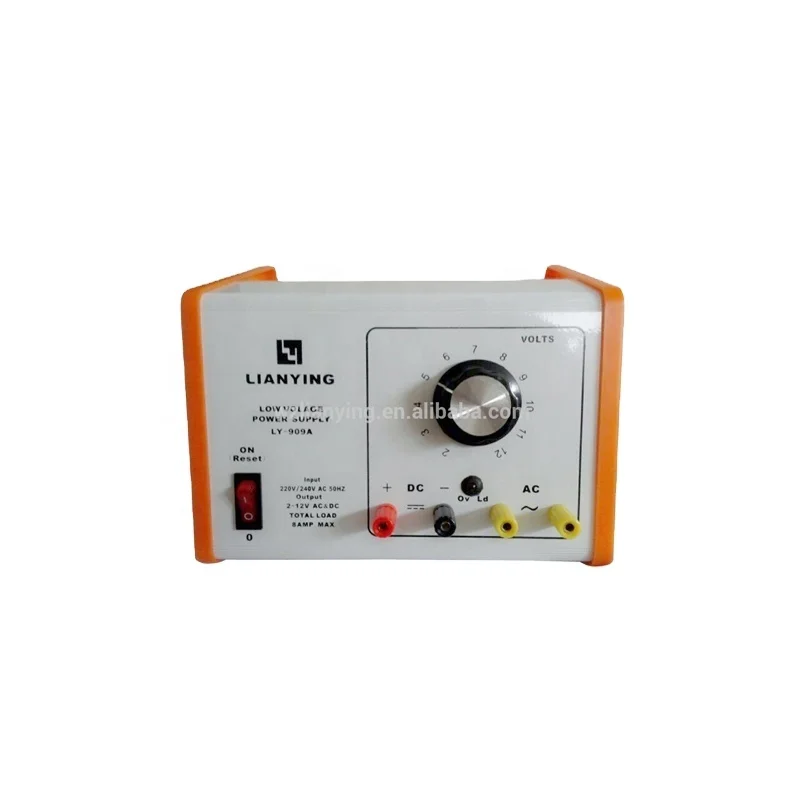

lab 12V adjustable ac dc regulated power supply

Product Overview

Description



MODEL	CURRENT	VOLTAGE	OVERLOAD PROTECTION	AC&DC DUAL OUTPUT	LCD SCREEN	Feature
LY909C	5A	2-12V	√	√	√	STABLE VOLTAGE
LY909B	8A	2-12V	√	√	√	STABLE VOLTAGE
LY909B2	2A	2-24V	√	√	√	STABLE VOLTAGE
LY909A	8A	2-12V	√	√	×	STABLE VOLTAGE



1.This machine is ac/dc three-way output power supply, dc output dc output 1 and 2 two parts completely isolated electrical properties is the same, electrical, can be convenient to two parts series parallel use dc power;

2. Both part of the power supply for the infinite pressure regulating mode, and set a limited flow type overload protection device, even if the output short circuit will not burned the power supply for a long time;

3. Ac output using automatic regulating mode, as type overload protection circuit, once the output terminal overload, can shut down output, and is equipped with three power supplies LCD voltmeter display real-time output voltage.

The performance indicators:

1, the dc output voltage: dc dual 0 v to 12 v adjustable;

2, the dc output current: dual acuity 1.5 A;

3, dc overload protection: current limiting type overload protection device, when the output current more than rated current, output voltage automatically, the output current no longer increases;
4, ac output voltage: 0 v ~ 16 v adjustable;
5, ac output current: 3 a or higher;

6. the input voltage: AC 85 v ~ 220 v, 45 hz ~ 62 hz
