Good quality ceiling fan wiring cbb61 diagram capacitor
- Category: >>>
- Supplier: Ningbo KLS Electronic Co. Ltd.
Share on (2022110588):
Product Overview
Description
Product Description
CBB60 Type AC Motor Capacitor
Product Description:
CBB60 Type AC Motor Capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, and steady electricity performance, anti-striking current, strong over-carrying capacity etc. |

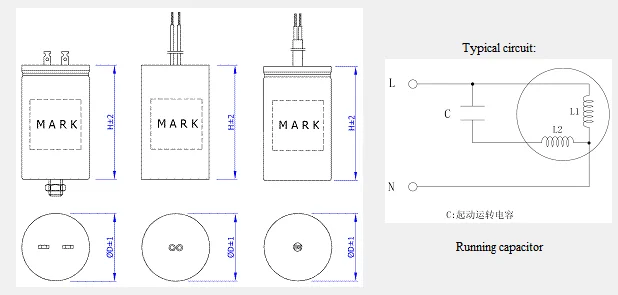

SIZE:
Safety approvals | UL VDE CQC | |
Implemented standard | GB/T3667 UL810 EN60252 | |
Climatic category | 25/70/21 25/85/21 40/70/21 40/85/21 | |
Rated voltage | 150VAC~600VAC (50/60Hz) | |
Capacitance range | 1μF~80μF | |
Capacitance tolerance | ±5%(J) ±10%(K) ±105%(U) | |
Testing voltage | between terminals | 2*UN (VAC)/60s |
between terminals and case | 2*UN+1000(VAC)/ 60s(≥2000VAC) | |
Insulation resistance (20℃) | between terminals | ≥2000MΩ .μF (500Vdc,60s) |
Tangent of loss angle(20℃) | ≤0.002 (100Hz ) | |
Class of safety | P0 / P2 | |
Fault current | 10,000AFC (UL810) | |
| Dimension(Unit:mm) | ||||||||
Rated Cap. | 250/300VAC | 350 VAC | 400/450VAC | 500VAC | ||||
D | H | D | H | D | H | D | H | |
6μF | 25 | 57 | -- | -- | 30 | 60 | -- | -- |
8μF | 30 | 60 | -- | -- | 35 | 60 | -- | -- |
10μF | 30 | 60 | -- | -- | 40 | 60 | 40 | 70 |
12μF | 35 | 60 | 35 | 60 | 40 | 60 | -- | -- |
15μF | 35 | 60 | -- | -- | 40 | 70 | -- | -- |
18μF | 35 | 60 | -- | -- | 45 | 70 | -- | -- |
20μF | 40 | 60 | 40 | 70 | 45 | 70 | 45 | 80 |
25μF | 40 | 60 | 45 | 70 | 45 | 80 | -- | -- |
30μF | 40 | 70 | 45 | 80 | 45 | 90 | 50 | 90 |
35μF | -- | -- | -- | -- | 50 | 90 | -- | -- |
40μF | 45 | 70 | 45 | 90 | 50 | 100 | 55 | 110 |
