Product Overview

Description

Audio Connectors * Video Connectors XLR Connectors Series XLR Socket Connector

Item Code: KLS1-XLR-S09



Welcome to our store!



Introductions:

Audio Connectors * Video Connectors XLR Connectors Series XLR Socket Connector


Size:





Furtures:



Electrical Specification:
1.Contact resistance: ≤ 0.03Ω
2.Insulation resistance: ≥ 100mΩ
3.Withstand voltage: 500V AC (50Hz)/minute
4.Rated load: 50V DC, 1A
5.Insertion and extraction force: 4-40N
6.Temperature range: -30° C to + 80° C

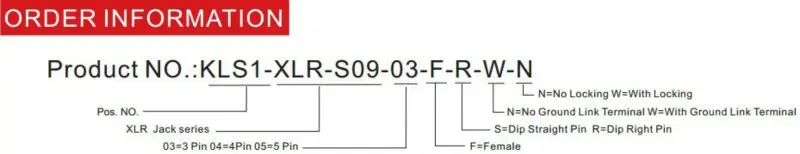

How to order:







Package Included:



Inner packing: 1000pcs/polybag

Outer packing: export carton
