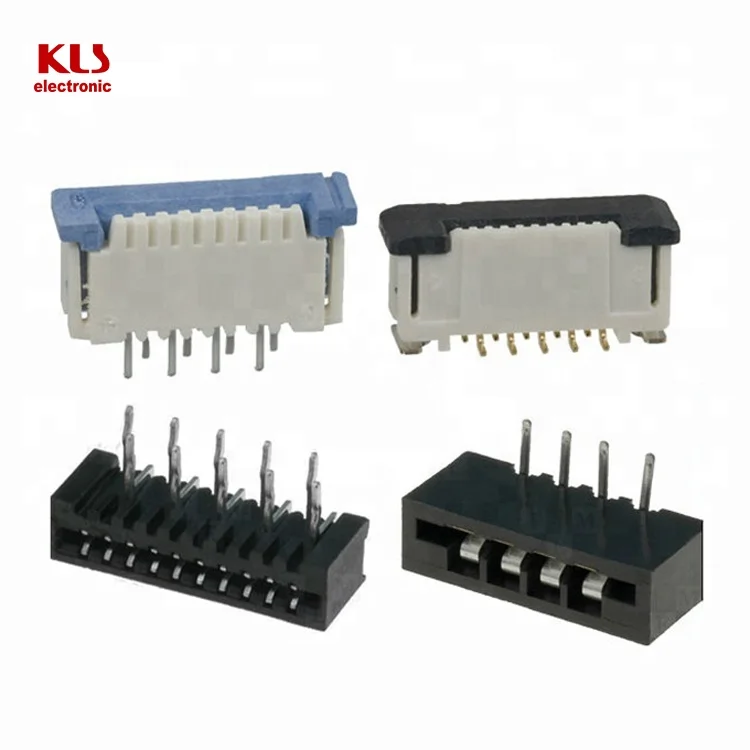

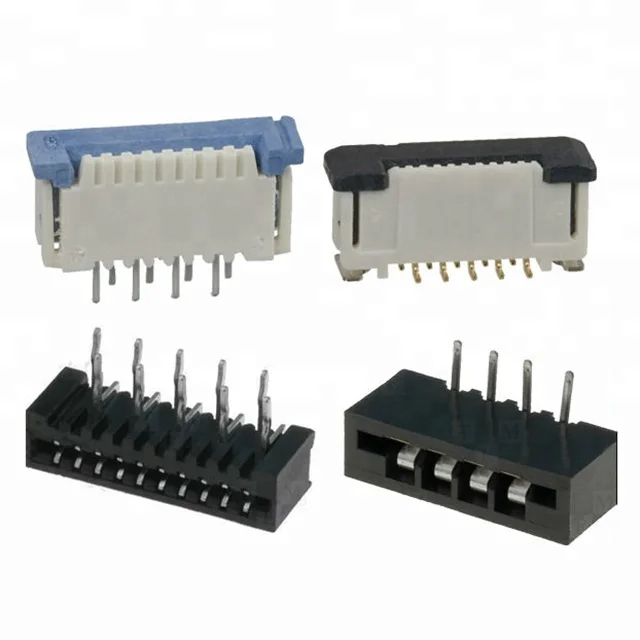

Good quality 0.5mm FFC/FPC Connector With Hinged Lock Type

Product Overview

Description



This product picture and price only as a reference, please confirm the product information before the next order and select the order to take effect!



KLS SAMPLE ROOM



0.50mm Pitch FFC/FPC Connector

Item Code: KLS1-242G

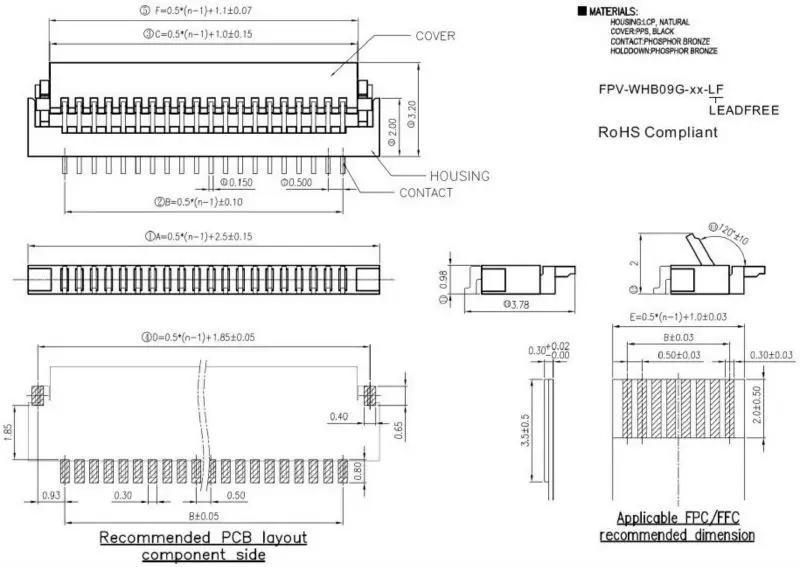

Size:





Features:



Material:

1.Housing: Nylon 46 UL94V-0
2.Contact:  Phosphor Bronze
3.Plating: Tin Plated Over Nickel



Electrical Characteristics:
1.Voltage rating: 50 VAC
2.Current rating: 0.4 AMP
3.Dielectric Withstandingf Voltage: 500 VAC R.M.S.
4.Insulation resistance: 500m ohm Min
5.Contact resistance: 30m ohm. max.
6.Temperature range: -40°C To +105°C

7.Maximum Electrical Rating: 105°C 600 Volts Max.



-----------------------------------------------------------------------------------

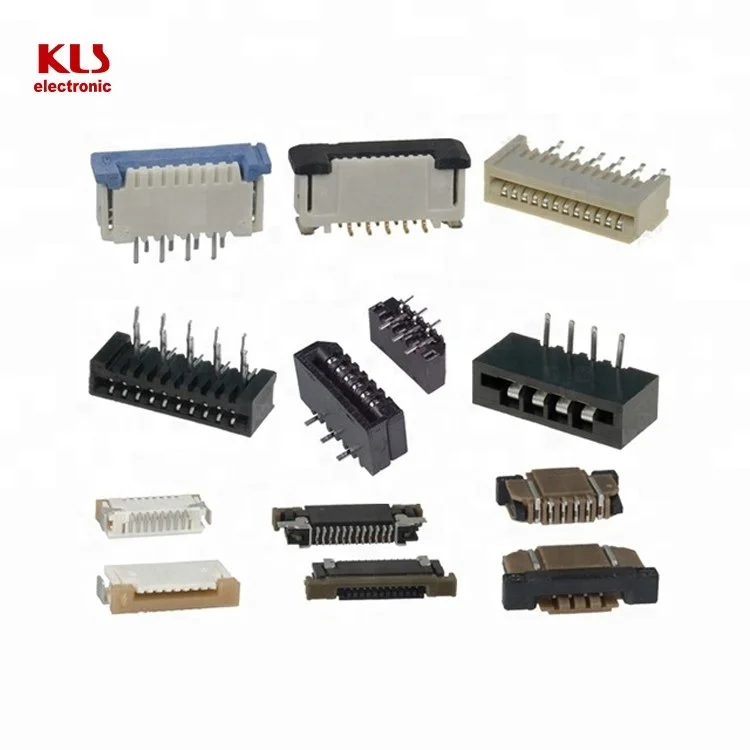

Other FFC/FPC Connector:

0.5mm  FFC/FPC connector

1.0mm  FFC/FPC connector

1.5mm  FFC/FPC connector

2.54mm FFC/FPC connector
