Combined micro switch 25*15.8mm size switch

Product Overview

Description

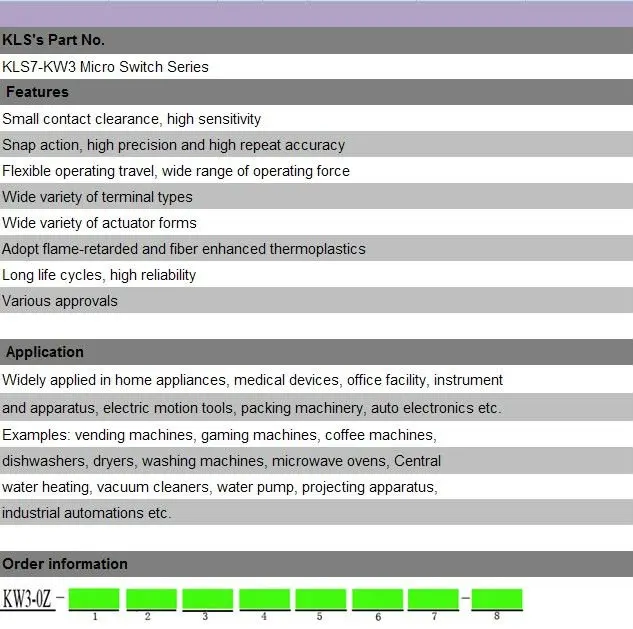

Micro Switches

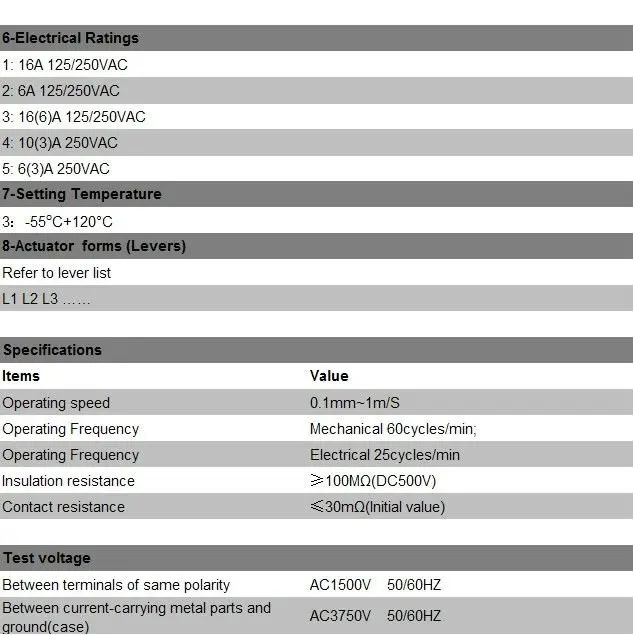

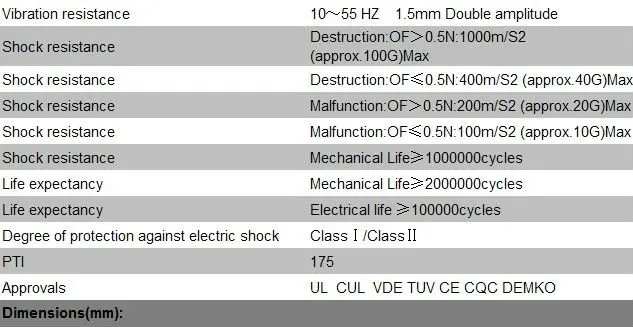

Specifications:

Small size micro switch(mini switch)
1:Operating speed: 0.1mm~1m/S

2:Operating Frequency: Mechanical 60cycles/min;

3:Operating Frequency: Electrical 25cycles/min

4:Insulation resistance: ≥100MΩ(DC500V)

5:Contact resistance: ≤30mΩ(Initial value)



KLS Also supply tact switch ,Micro switch ,push button switch and other .

All switch can be found in our web site , welcome you coming !

DIP Switch ,Tact switch ,DS switch ,and  Rocker switch ,Micro switch  all can be supply .

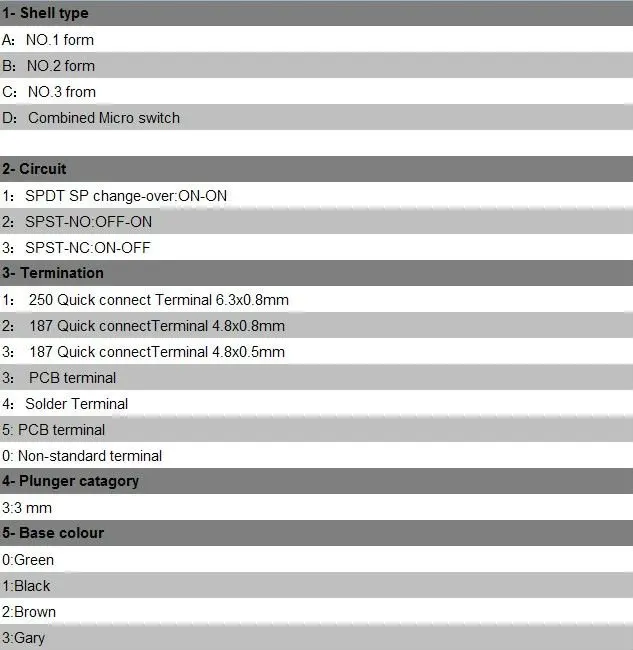

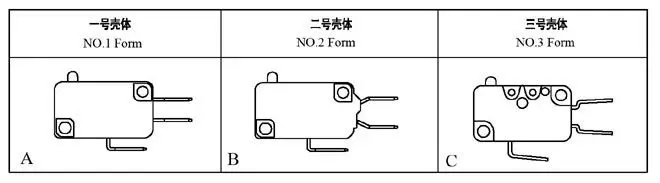

Shell Type:

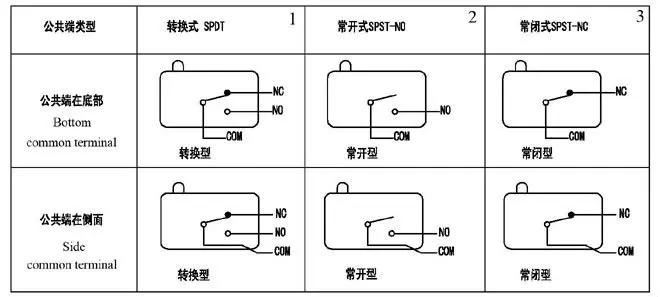

Circuit Type:

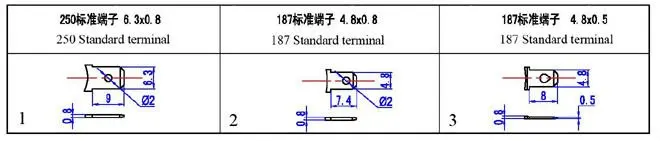

Connect terminal dimensions Type:

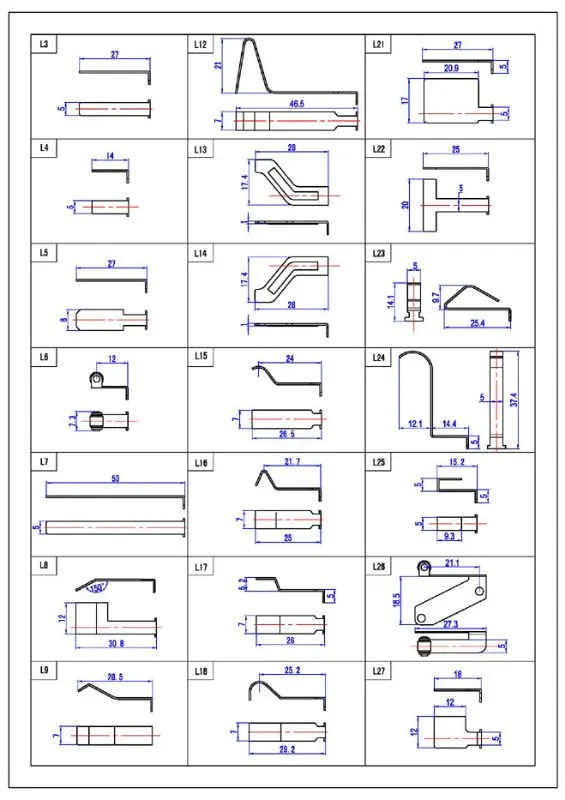

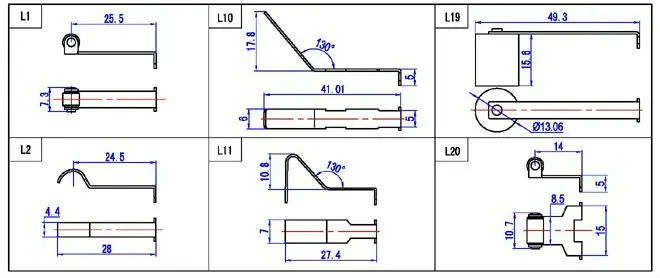

Actuator forms (Levers) TYPE:
