Good quality 246 KLS brand 3.5mm pcb mount audio jack

Product Overview

Description

3.5mm audio jack

Item Code: KLS1-TSJ3.5-003D

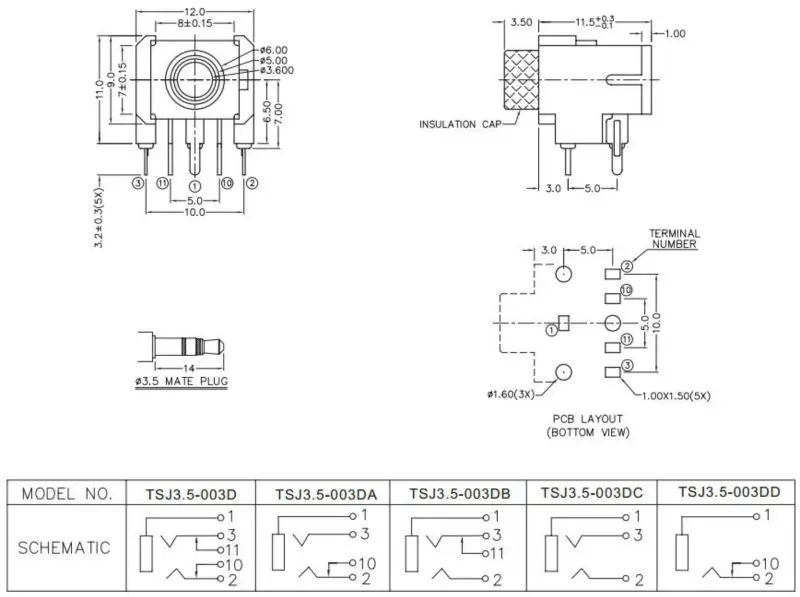

Size:





Features:

1.Rated voltage: DC 30 V
2.Rated current: 0.5 A
3.Contact resistance: 0.03Ω, max
4.Insulation resistance: 100MΩ, min
5.Pressure: AC500V (50Hz) / 1minute
6.Insertion Force :2-20 N
7.Life: 50000 times
8.Operating Temperature:-30ºC~+70ºC



Material:
1.Housing Material:PA6T
2.Center Pin Material:
3.Terminal 1 : Copper Alloy
4.Terminal 2 : Copper Alloy
5.Terminal 3 : Copper Alloy
6.Bushing :Brass

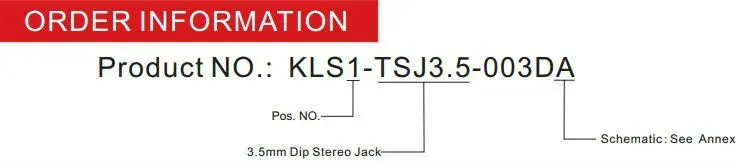

How to order:



==================================================================





You are searching for creditable and professional supplier to work with;we are also looking for sincerely and long-term customers. Once we find each other, we could make rapid progress together!
