1. JP40-1 used plaster pump is smallest plastering machine introduced Italian technology.
2. It’s applicable to delivery, bonding and plastering for different uses and physicochemical performance of various interior and exterior plastering mortar, masonry mortar, flooring mortar, decorative mortar, thermal insulation mortar, and floor surface mortar.
3. It can plaster to 500-1000m2 per 8hours, max height 0-30m; max distance 0-60m.
4. Its structure is very compact, smaller volume. And it's easy to move, dismantle and operate
Technical parameters
Model
JP40-Ⅰ
Output (L/min)
25-40
Delivery pressure (bar)
<30
Delivery height (m)
0-40
Delivery distance(m)
0-15
General power (kw)
3.3/4
Hopper volume (L)
180
Net weight (kg)
220
Dimensions (mm)
1450 ×700 ×800
1. the out cover can take out easily for maintance, it installs vibrating grid for seving larger grain size! Air compressor is attached JP40-1.
2. Screw worm pump with stainless steel wearable connection
- In South Africa, JP40-1 auto plastering machine for wall is used for plastering
thermal insulation to board panel house.
Company Information

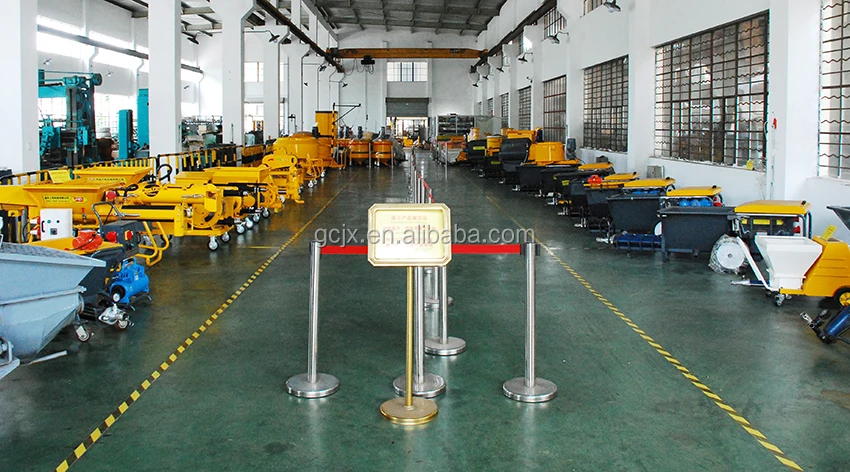

***Professional Production Line
Most of our workers are working hear over 5-10 years
Construction case
Our machine in construction plant---From left to right, from up to down.
***Spraying and plastering on wall in & outside---WG5C/JP22/JP40/
JP50/JP60/JP70/JP90/JP110... plastering machine for cement/cement/mortar/gypsum
***Centrifugal lining casting in shaft lining of well
***Spraying or plastering on lightweight steel building
Packaging & Shipping
***Wooden case packing
Full container shipment---wooden pallent package
LCL shipment----wooden carton package
FAQ
1. Q: Which pump model or plastering machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
-use for plastering or grouting?
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A:Screw type plastering machine
Rotor and stator would be worn out after 1-4 weeks depends on material and operation period.suggest purchase 4--6 sets.
Concrete pump:
After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week if voltage is 3 phase 380v 50hz. 20-40 days if other voltage.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
